Model # D25313K TYPE 2 Official DeWalt hammer drill

Here are the diagrams and repair parts for Official DeWalt D25313K-TYPE-2 hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Housing Assembly 584433-00
#118

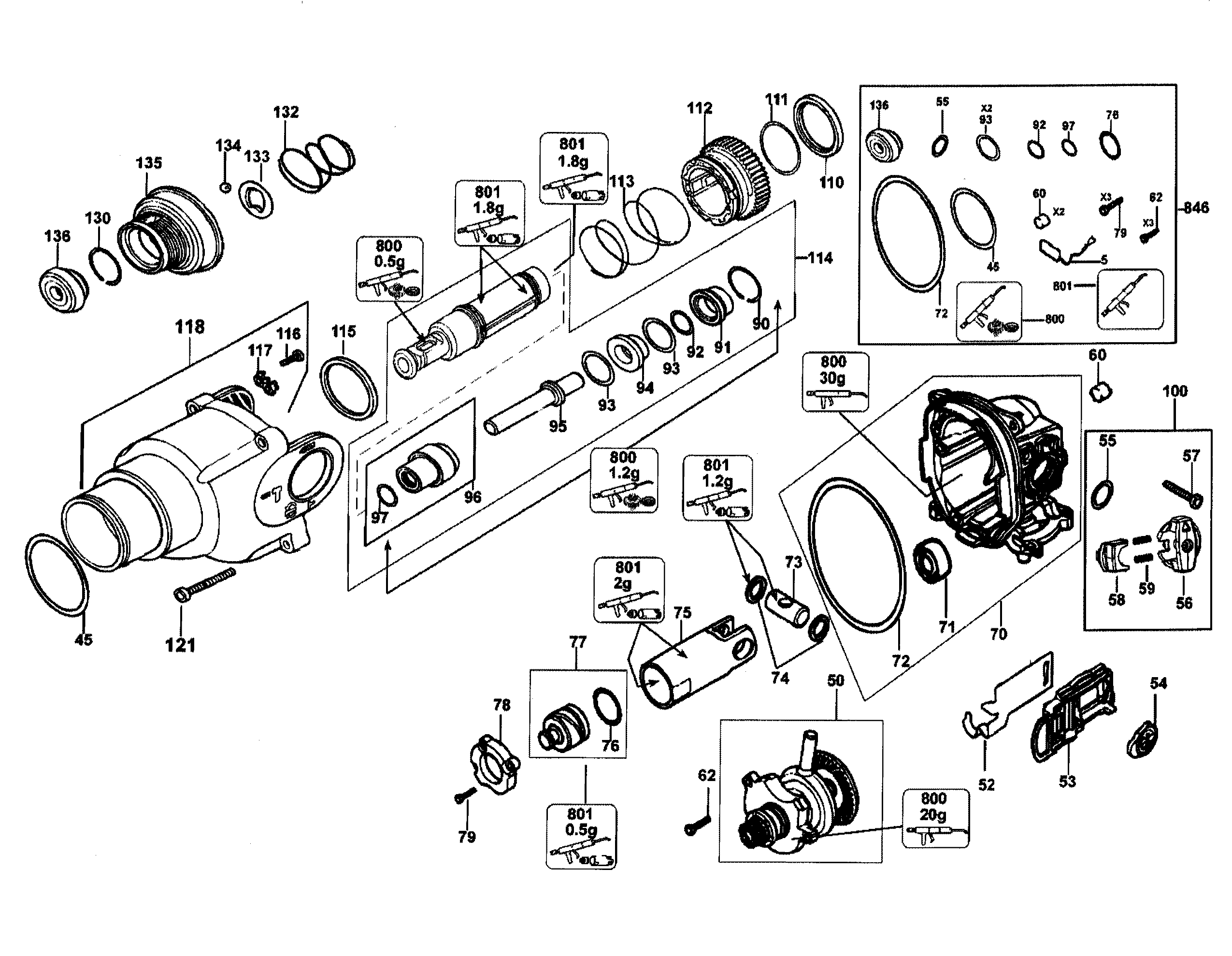

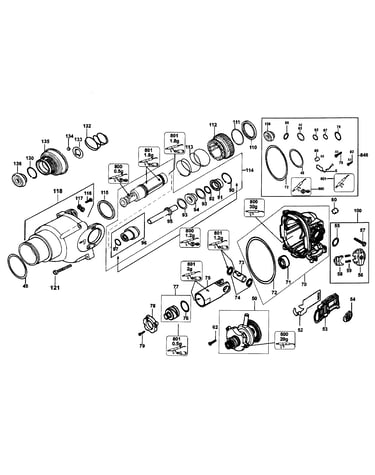

Drill tip diagram

Housing assembly

Part #584433-00

The manufacturer no longer makes this part, and there's no substitute part

Serv Tool 559638-99
#NI

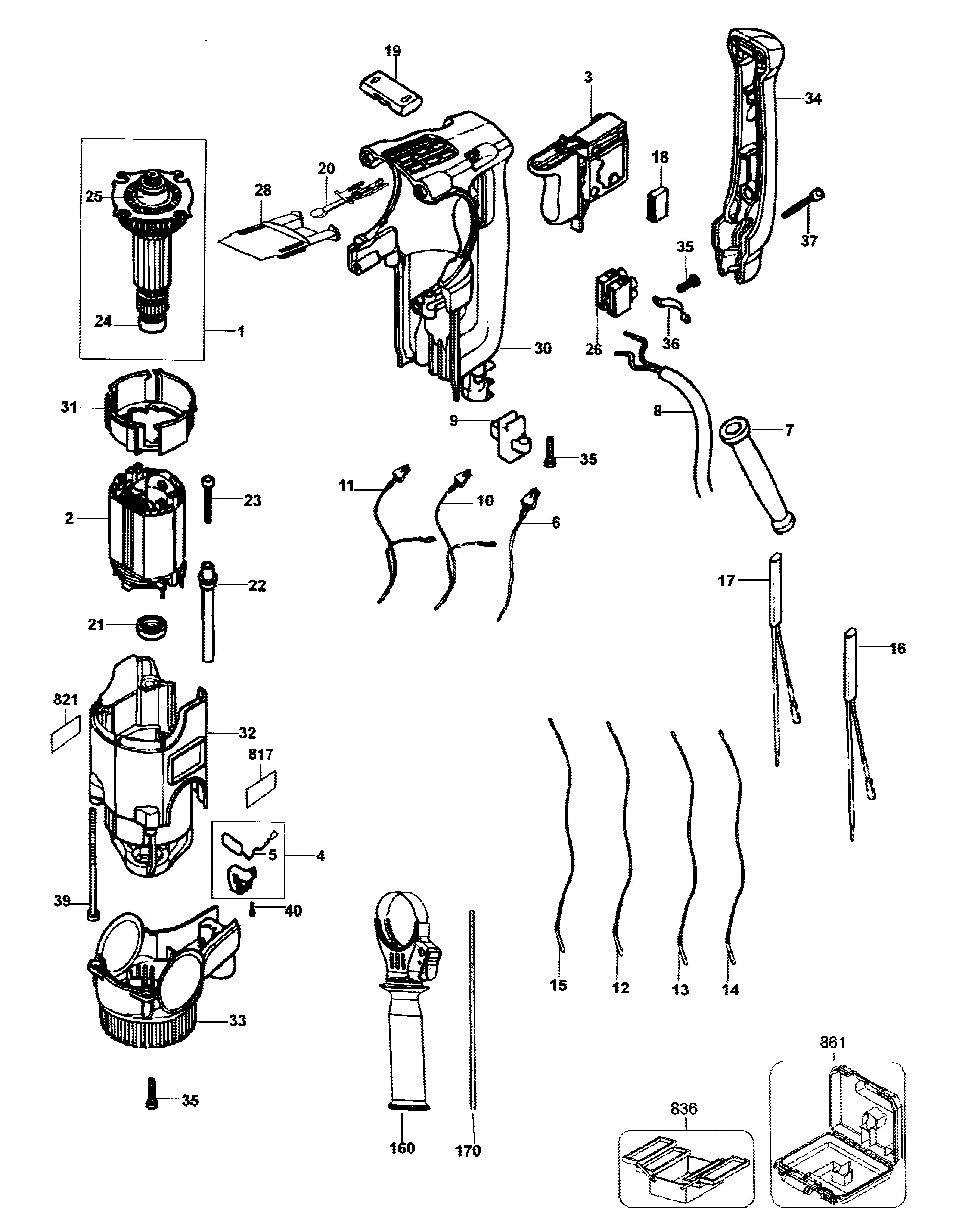

Drill assy diagram

Serv tool

Part #559638-99

The manufacturer no longer makes this part, and there's no substitute part
