Model # FAQE7001LB0 Official Frigidaire dryer

Here are the diagrams and repair parts for Official Frigidaire FAQE7001LB0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

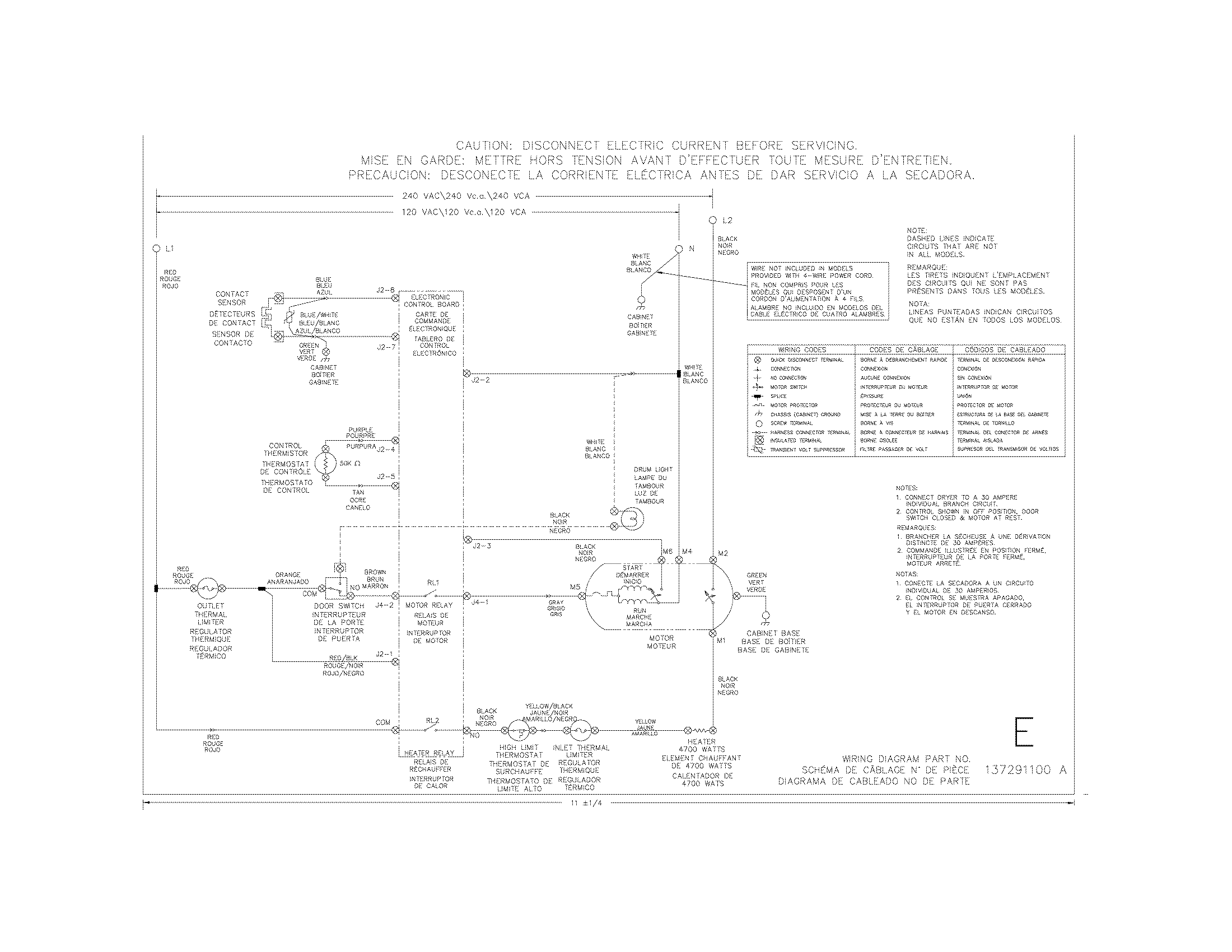

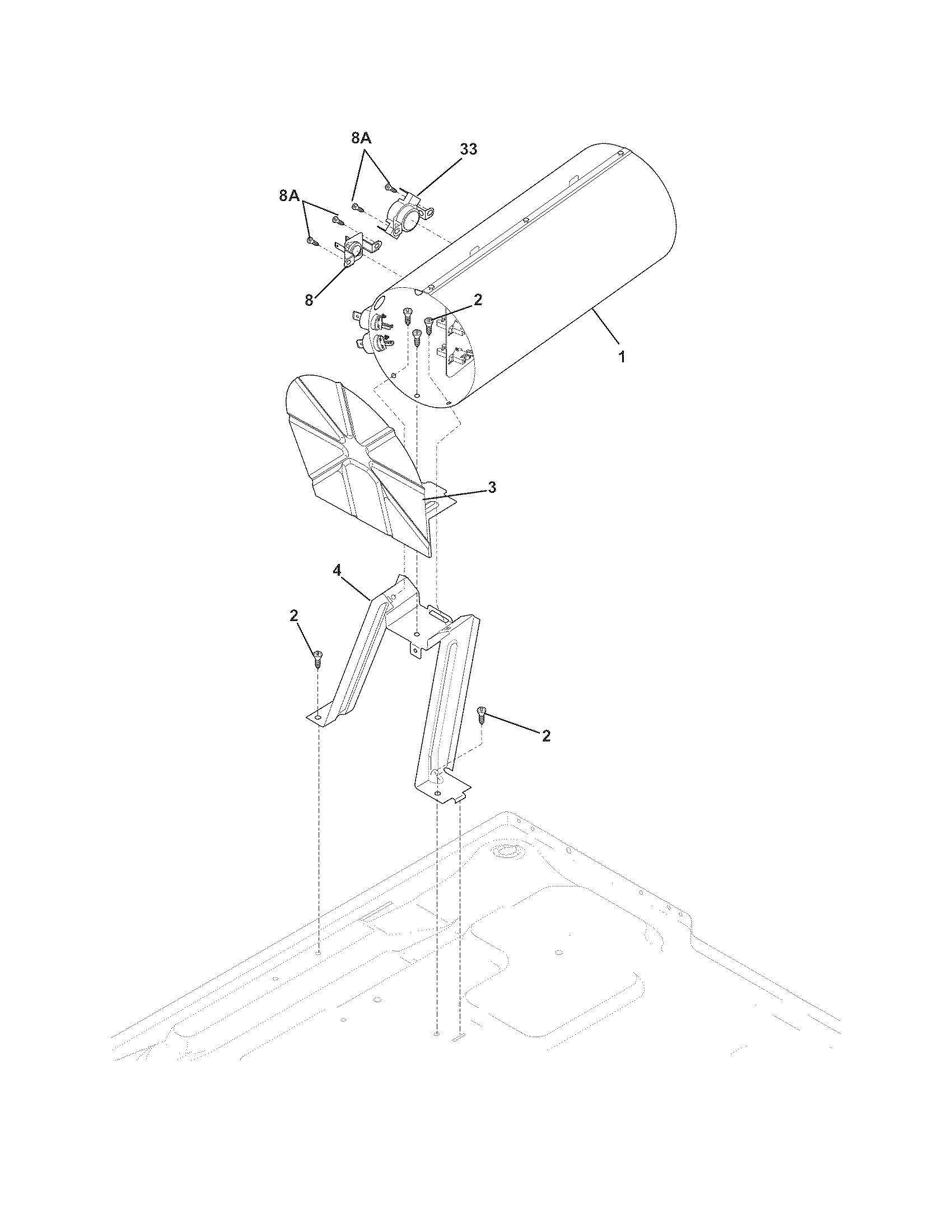

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
White-westinghouse Dryer Drum Belt (replaces 137315300) 134719300
#25

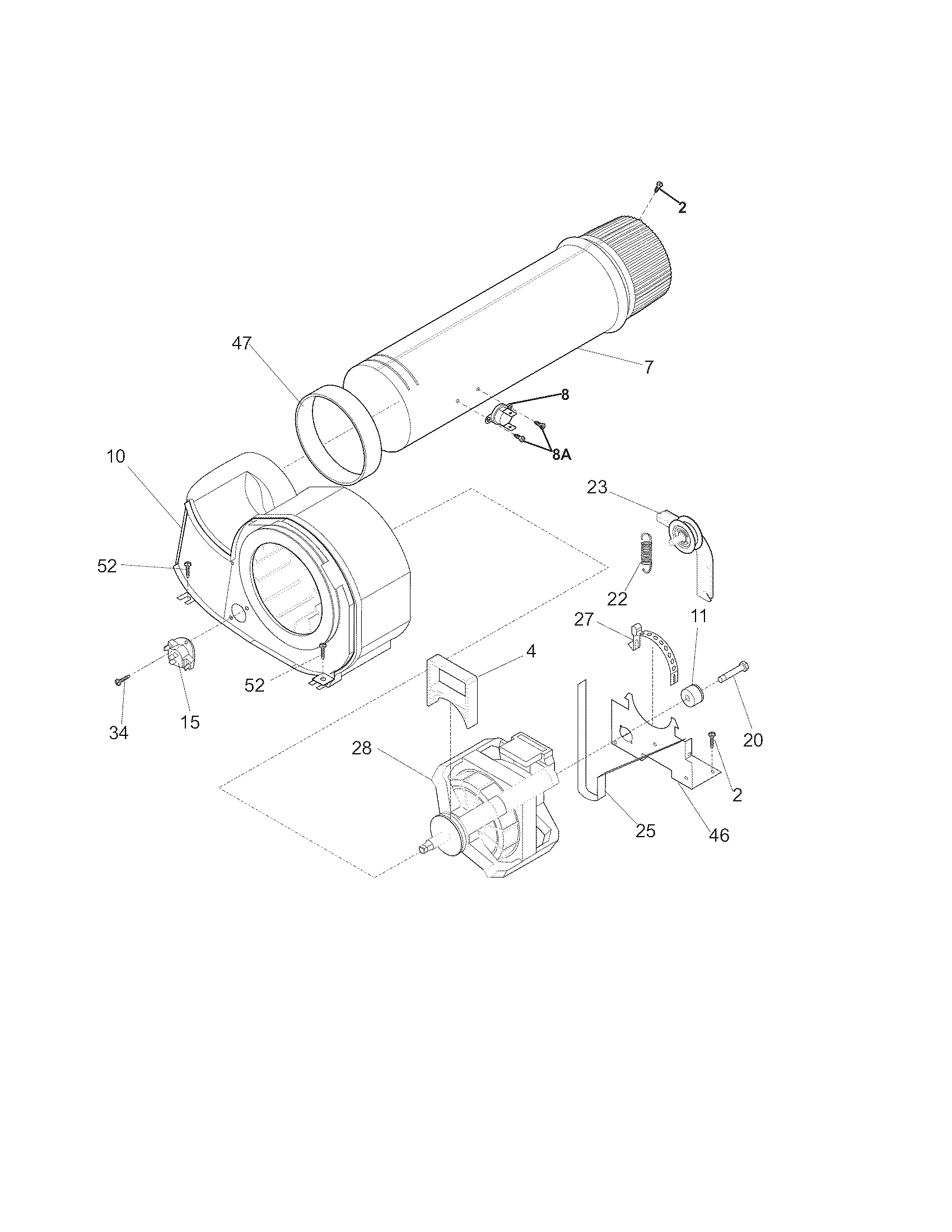

Motor diagram

White-westinghouse dryer drum belt (replaces 137315300)

Part #134719300

BEST SELLER
$54.77 |
10% OFF Phone Price : $60.77
In Stock
Dryer Idler Assembly 134793500
#23

Motor diagram

Dryer idler assembly

Part #134793500

Replaced by #134793511

?
Manufacturer substitution
This part replaces 134793500. Substitute parts can look different from the original.
BEST SELLER
$39.35 |
13% OFF Phone Price : $45.35
In Stock
Dryer Drive Motor And Pulley 137115900
#28

Motor diagram

Dryer drive motor and pulley

Part #137115900

Replaced by #5304529782

?
Manufacturer substitution
This part replaces 137115900. Substitute parts can look different from the original.
BEST SELLER
$180.19 |
6% OFF Phone Price : $192.19
In Stock
Dryer Blower Wheel And Housing Assembly (replaces 131775610) 131775600
#10

Motor diagram

Dryer blower wheel and housing assembly (replaces 131775610)

Part #131775600

BEST SELLER
$101.04 |
11% OFF Phone Price : $113.04
In Stock
Dryer Thermistor (replaces 134216500) 134587700
#15

Motor diagram

Dryer thermistor (replaces 134216500)

Part #134587700

BEST SELLER
$41.62 |
13% OFF Phone Price : $47.62
In Stock
Limiter 134711400
#8

Motor diagram

Limiter

Part #134711400

Replaced by #134711401

?
Manufacturer substitution
This part replaces 134711400. Substitute parts can look different from the original.
BEST SELLER
$23.51 |
20% OFF Phone Price : $29.51
In Stock
Dryer Electronic Control Board 137070890
#1

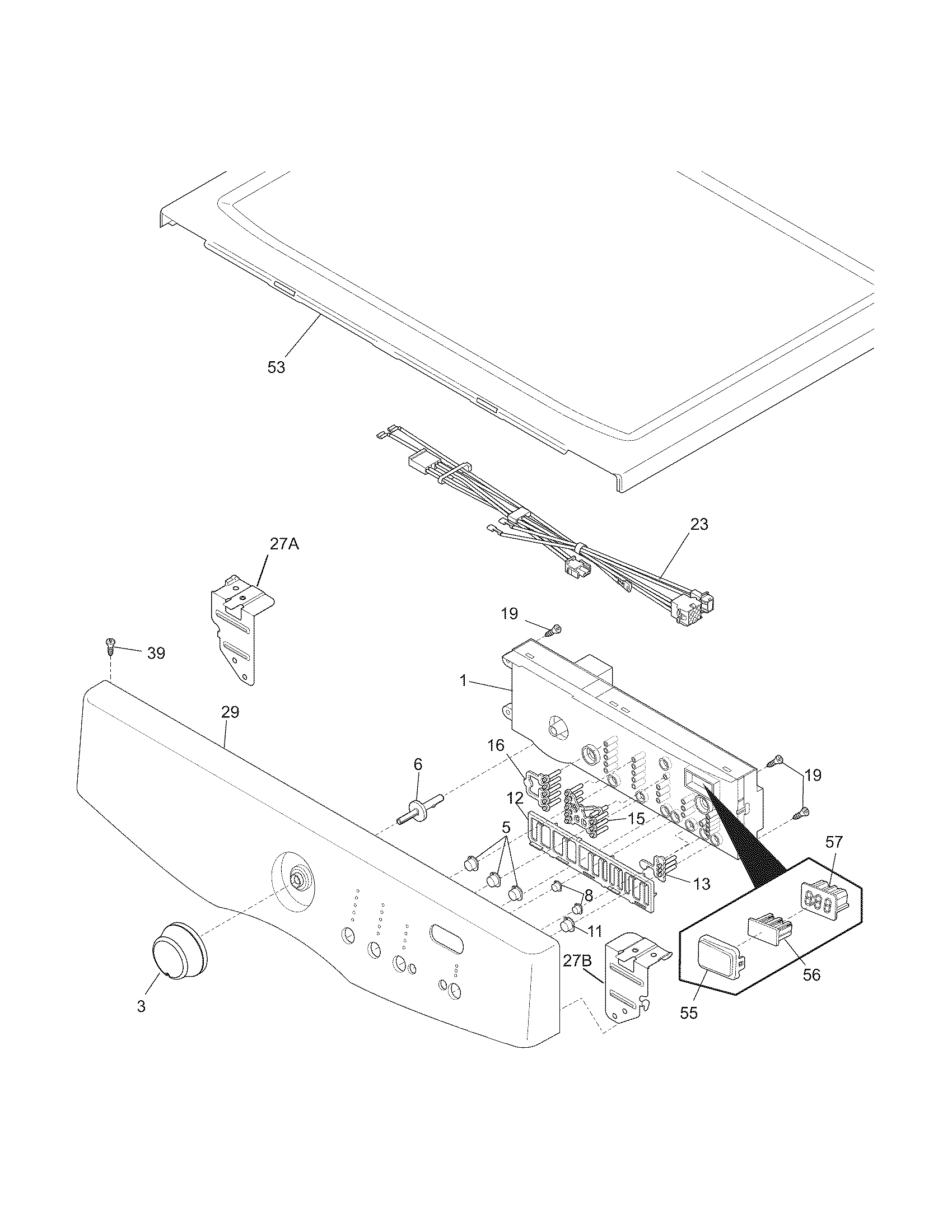

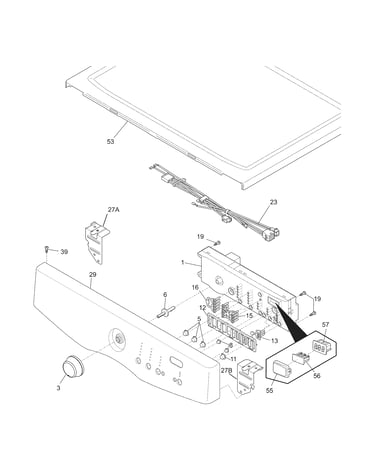

Controls/top panel diagram

Dryer electronic control board

Part #137070890

Replaced by #137070890NH

?
Manufacturer substitution
This part replaces 137070890. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$192.26 |
6% OFF Phone Price : $204.26
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Dryer Screw 131477000
Dryer screw

Part #131477000

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131477000. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Duct 134694020
#16

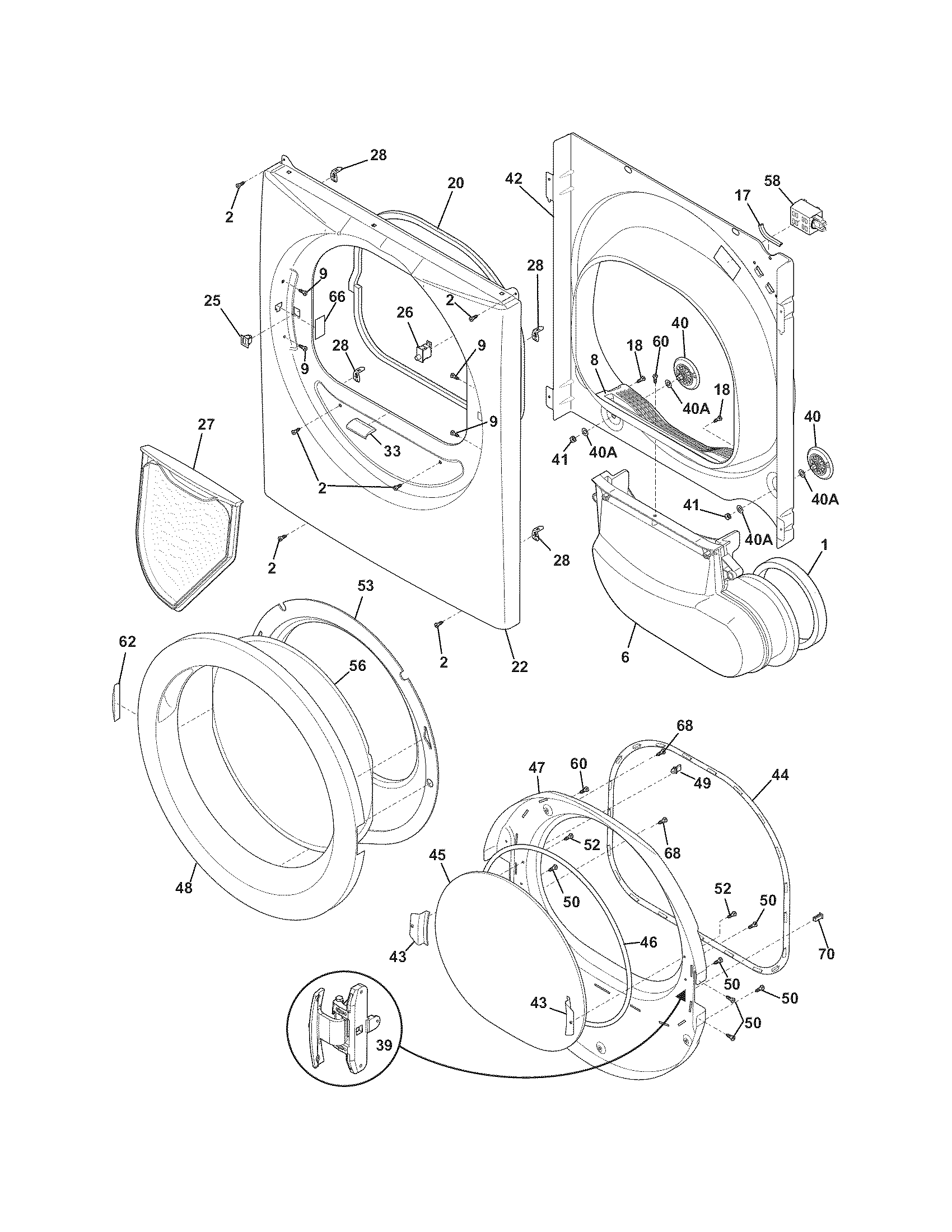

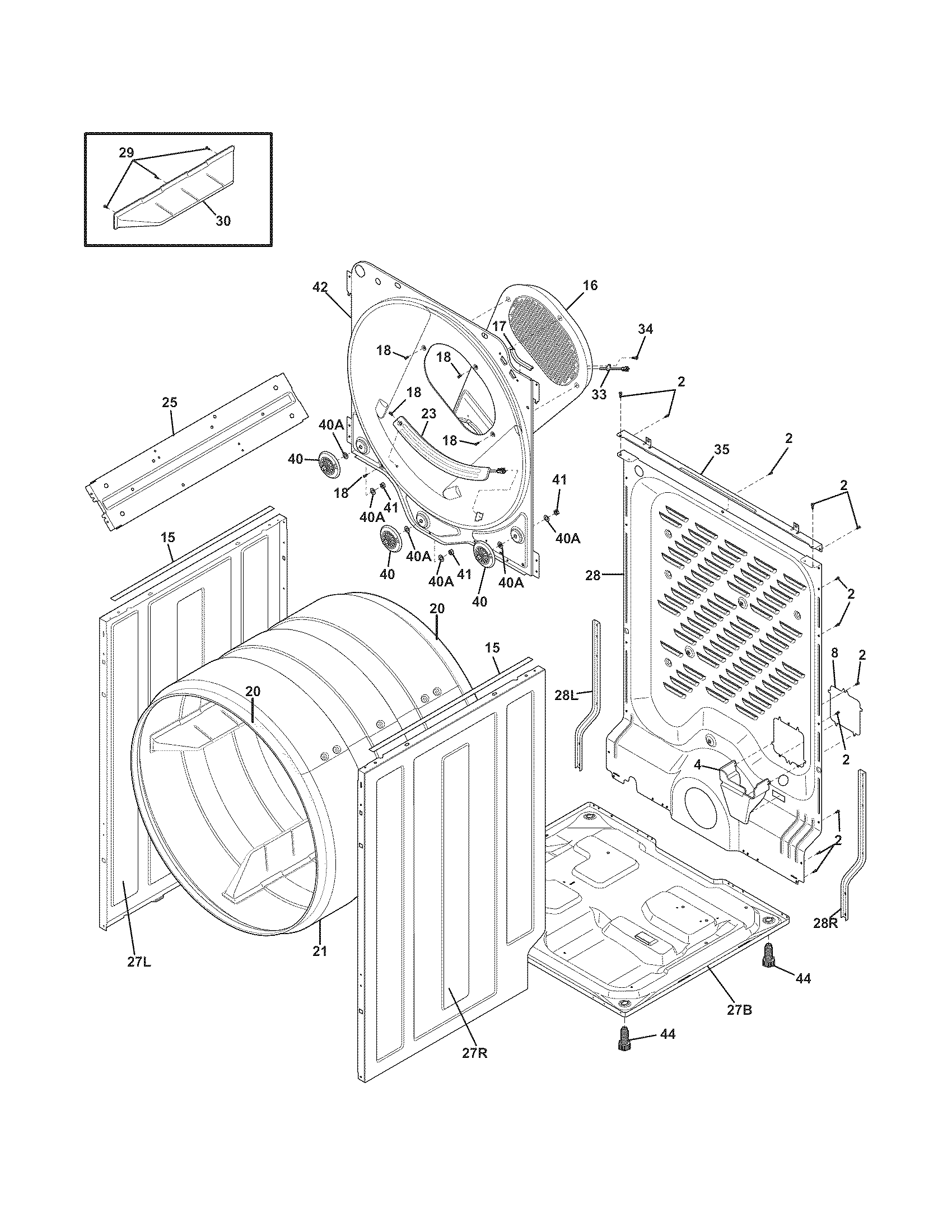

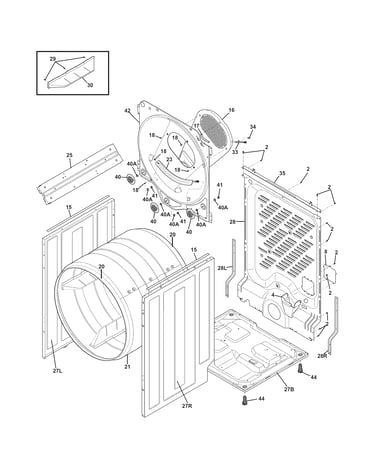

Cabinet/drum diagram

Duct

Part #134694020

Replaced by #5304508449

?
Manufacturer substitution
This part replaces 134694020. Substitute parts can look different from the original.
BEST SELLER
$63.21 |
9% OFF Phone Price : $69.21
In Stock
