Model # 58032017 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58032017 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Lock Nut 26772
#12

Muffler assembly diagram

Lock nut

Part #26772

Replaced by #691808

?
Manufacturer substitution
This part replaces 26772. Substitute parts can look different from the original.
This item is not returnable
$14.34
In Stock
Cap Screw 22336
#16

Muffler assembly diagram

Cap screw

Part #22336

The manufacturer no longer makes this part, and there's no substitute part

Clamp 26756
#8

Muffler assembly diagram

Clamp

Part #26756

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly G-24992
#6

Stator assembly diagram

Stator assembly

Part #G-24992

The manufacturer no longer makes this part, and there's no substitute part

Muff Strap 26757
#2

Muffler assembly diagram

Muff strap

Part #26757

The manufacturer no longer makes this part, and there's no substitute part

Cap 26879
#16

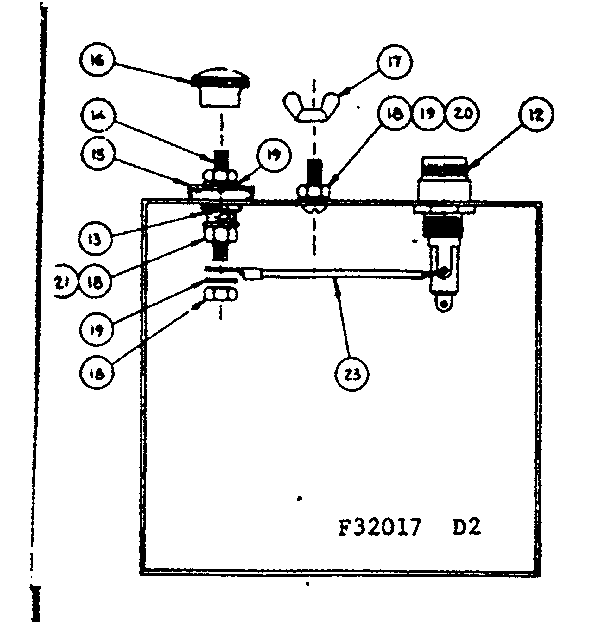

Connection and outlet box cover assembly diagram

Cap

Part #26879

The manufacturer no longer makes this part, and there's no substitute part

Carrier 27213
#7

Stator assembly diagram

Carrier

Part #27213

The manufacturer no longer makes this part, and there's no substitute part

Lock Outlet 24825
#23

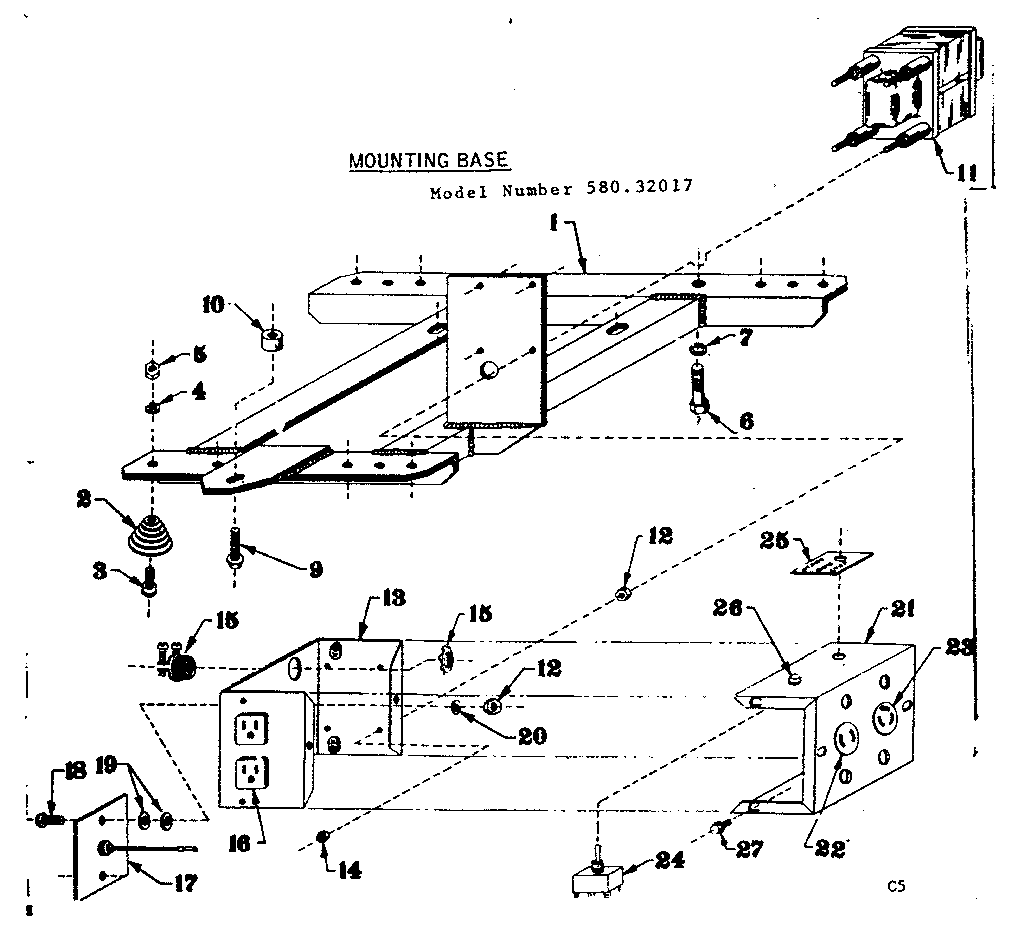

Mounting base diagram

Lock outlet

Part #24825

The manufacturer no longer makes this part, and there's no substitute part

Outlet 24824
#22

Mounting base diagram

Outlet

Part #24824

The manufacturer no longer makes this part, and there's no substitute part

Screw 24488
#13

Stator assembly diagram

Screw

Part #24488

The manufacturer no longer makes this part, and there's no substitute part
