LG
Room Air Conditioner

Model # LSN092HE Official LG room air conditioner

Here are the diagrams and repair parts for Official LG LSN092HE room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Motor Assembly 4681A20055A
#146811

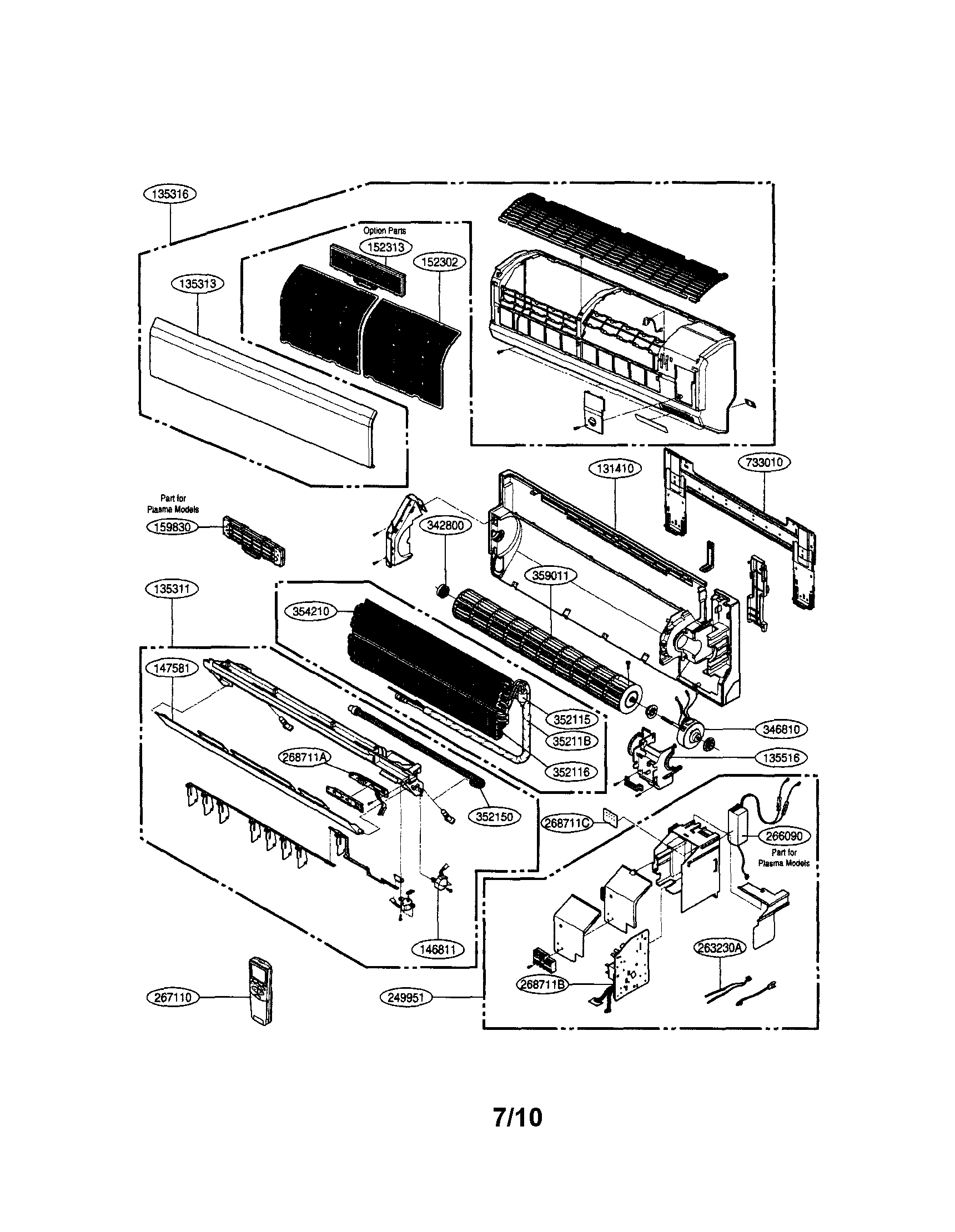

Room a/c diagram

Motor assembly

Part #4681A20055A

$23.07
In Stock
Room Air Conditioner Blower Wheel Bearing 4280A20004A
#342800

Room a/c diagram

Room air conditioner blower wheel bearing

Part #4280A20004A

Replaced by #4280A20004M

?
Manufacturer substitution
This part replaces 4280A20004A. Substitute parts can look different from the original.
This item is not returnable
$5.58 |
15% OFF Phone Price : $6.58
In Stock
Evaporator 5421A20258B
#354210

Room a/c diagram

Evaporator

Part #5421A20258B

$206.67 |
5% OFF Phone Price : $218.67
In Stock
Tube Assembly 5211A29042A
#352115

Room a/c diagram

Tube assembly

Part #5211A29042A

$52.40
In Stock
Filter Assembly 5231A20040K
#152313

Room a/c diagram

Filter assembly

Part #5231A20040K

$18.83
In Stock
Hv Assy 6609A10003Z
#266090

Room a/c diagram

Hv assy

Part #6609A10003Z

$60.98
In Stock
Plate Assembly 3301A20020A
#733010

Room a/c diagram

Plate assembly

Part #3301A20020A

$27.47
In Stock
Drain Hose 5251A20011G
#352150

Room a/c diagram

Drain hose

Part #5251A20011G

$24.09
In Stock
Cover Assembly 3551A20156B
#135516

Room a/c diagram

Cover assembly

Part #3551A20156B

$14.51
In Stock
Louver 5990A20068A
#147581

Room a/c diagram

Louver

Part #5990A20068A

$24.09
In Stock
