Model # JV334*01 Official Hotpoint range hood

Here are the diagrams and repair parts for Official Hotpoint JV33401 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Range Hood Grease Filter WB2X2052
#907

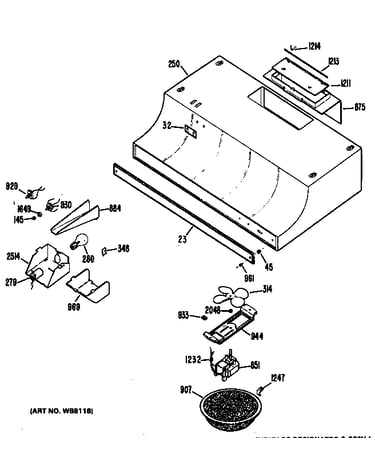

Rangehood assembly diagram

Range hood grease filter

Part #WB2X2052

$28.95 |
17% OFF Phone Price : $34.95
In Stock
Use And Care Guide 49-4595

#NI

All parts diagram

Use and care guide

Part #49-4595

$8.49
In Stock
Guard Wire WB2X3368
#884A

Rangehood assembly diagram

Guard wire

Part #WB2X3368

The manufacturer no longer makes this part, and there's no substitute part

Guard Wire Sl WB2X7517
#884F

Rangehood assembly diagram

Guard wire sl

Part #WB2X7517

The manufacturer no longer makes this part, and there's no substitute part

Ring Compression WB2X3198
#2048

Rangehood assembly diagram

Ring compression

Part #WB2X3198

The manufacturer no longer makes this part, and there's no substitute part

Rectifier WB24X202
#279B

Rangehood assembly diagram

Rectifier

Part #WB24X202

The manufacturer no longer makes this part, and there's no substitute part

Motor Kit WB26X45
#851B

Rangehood assembly diagram

Motor kit

Part #WB26X45

The manufacturer no longer makes this part, and there's no substitute part

Box Light Wh WB2X7364
#2514A

Rangehood assembly diagram

Box light wh

Part #WB2X7364

The manufacturer no longer makes this part, and there's no substitute part

Clip WB2X2053
#1247

Rangehood assembly diagram

Clip

Part #WB2X2053

The manufacturer no longer makes this part, and there's no substitute part

Screw - Mt. Trim WZ4X369
#961

Rangehood assembly diagram

Screw - mt. trim

Part #WZ4X369

The manufacturer no longer makes this part, and there's no substitute part
