Model # FFEF3016VSC Official Frigidaire electric range
Here are the diagrams and repair parts for Official Frigidaire FFEF3016VSC electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
FFEF3016VSC Ranges
#54A

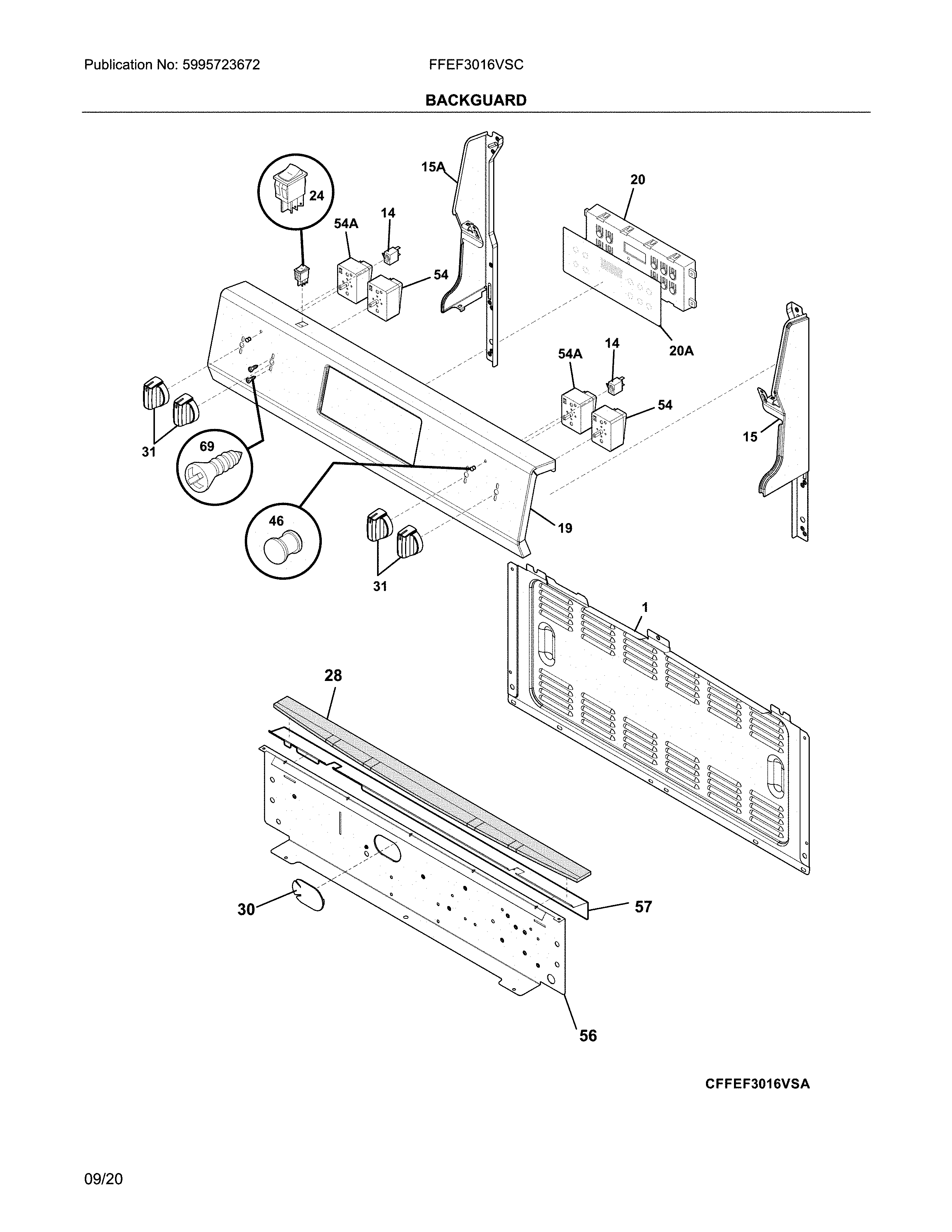

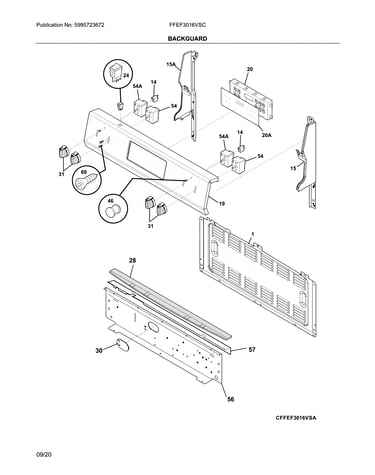

Backguard diagram
Frigidaire range surface element control switch (replaces 316021501, 5304506425)
Part #316436001
$35.24 |
15% OFF Phone Price : $41.24
In Stock
#67

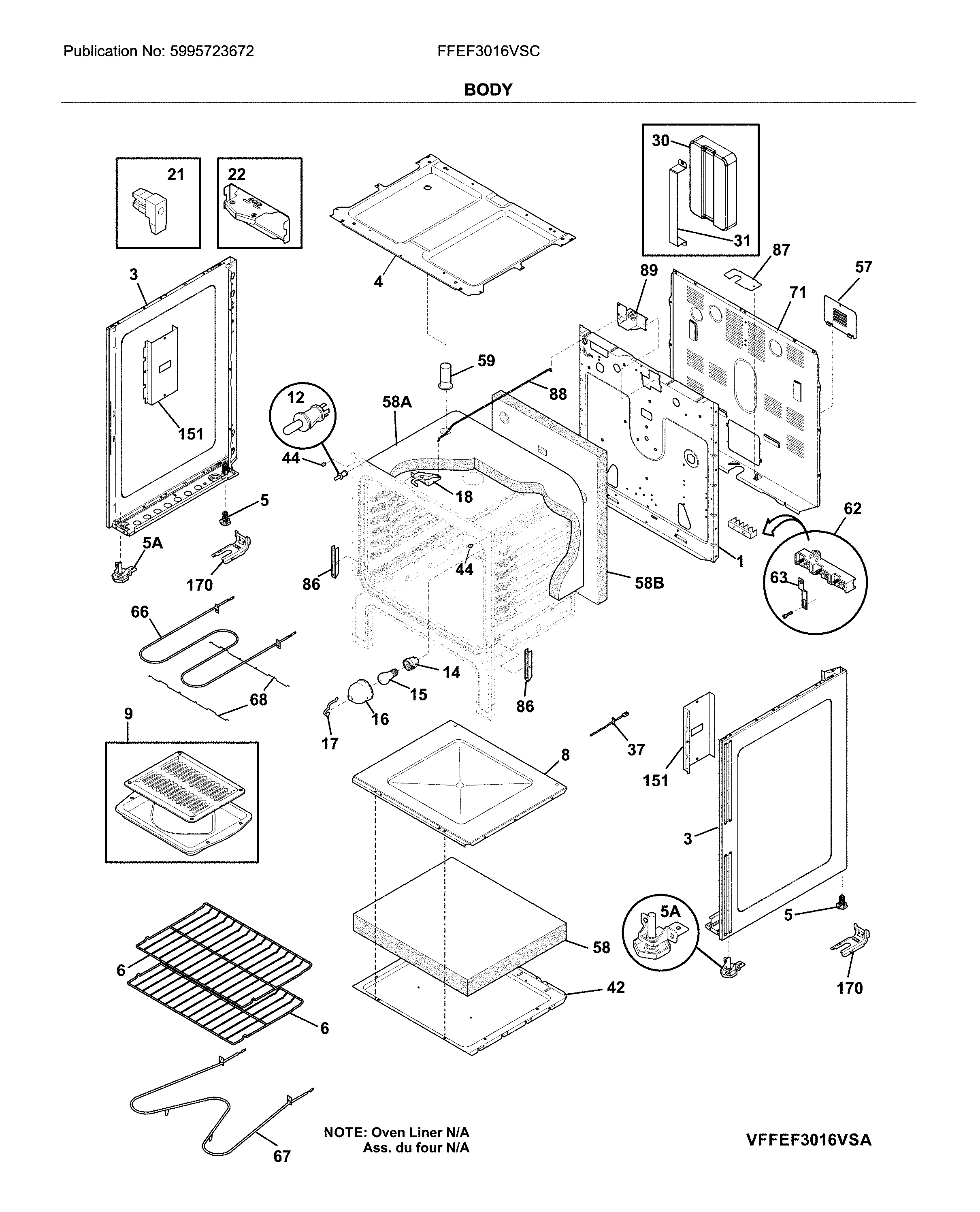

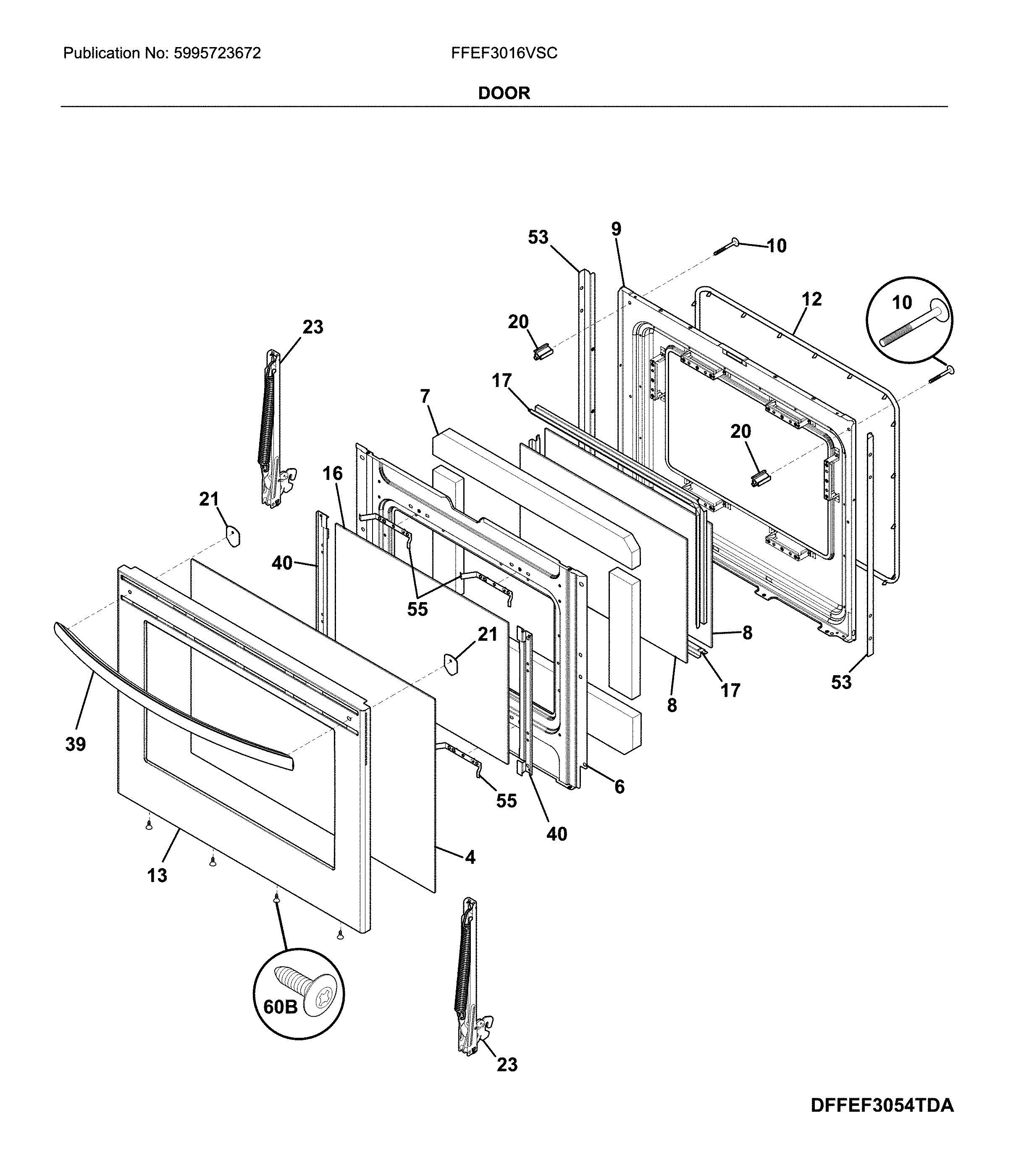

Body diagram
Frigidaire range bake element (replaces 316075104)
Part #316075103
$22.18 |
21% OFF Phone Price : $28.18
In Stock
#54
Backguard diagram
Frigidaire range small surface element control switch (replaces 316021500, 5304506424)
Part #316436000
$52.61 |
10% OFF Phone Price : $58.61
In Stock
#15
Body diagram
Frigidaire range oven light bulb (replaces 241555401, 316538901)
Part #316538904
$16.47 |
11% OFF Phone Price : $18.47
In Stock
#46
Backguard diagram
Range indicator light lens (replaces 316437800)
Part #316557300
$13.63 |
13% OFF Phone Price : $15.63
In Stock
#14
Backguard diagram
Range indicator light
Part #316022500
$43.73 |
12% OFF Phone Price : $49.73
In Stock
#4

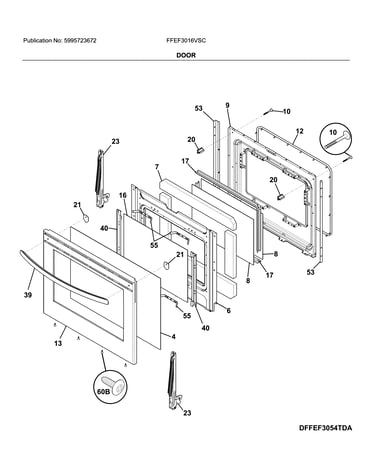

Door diagram
Frigidaire kenmore range oven door outer glass (black)
Part #316452758
$118.19 |
9% OFF Phone Price : $130.19
In Stock
#19A

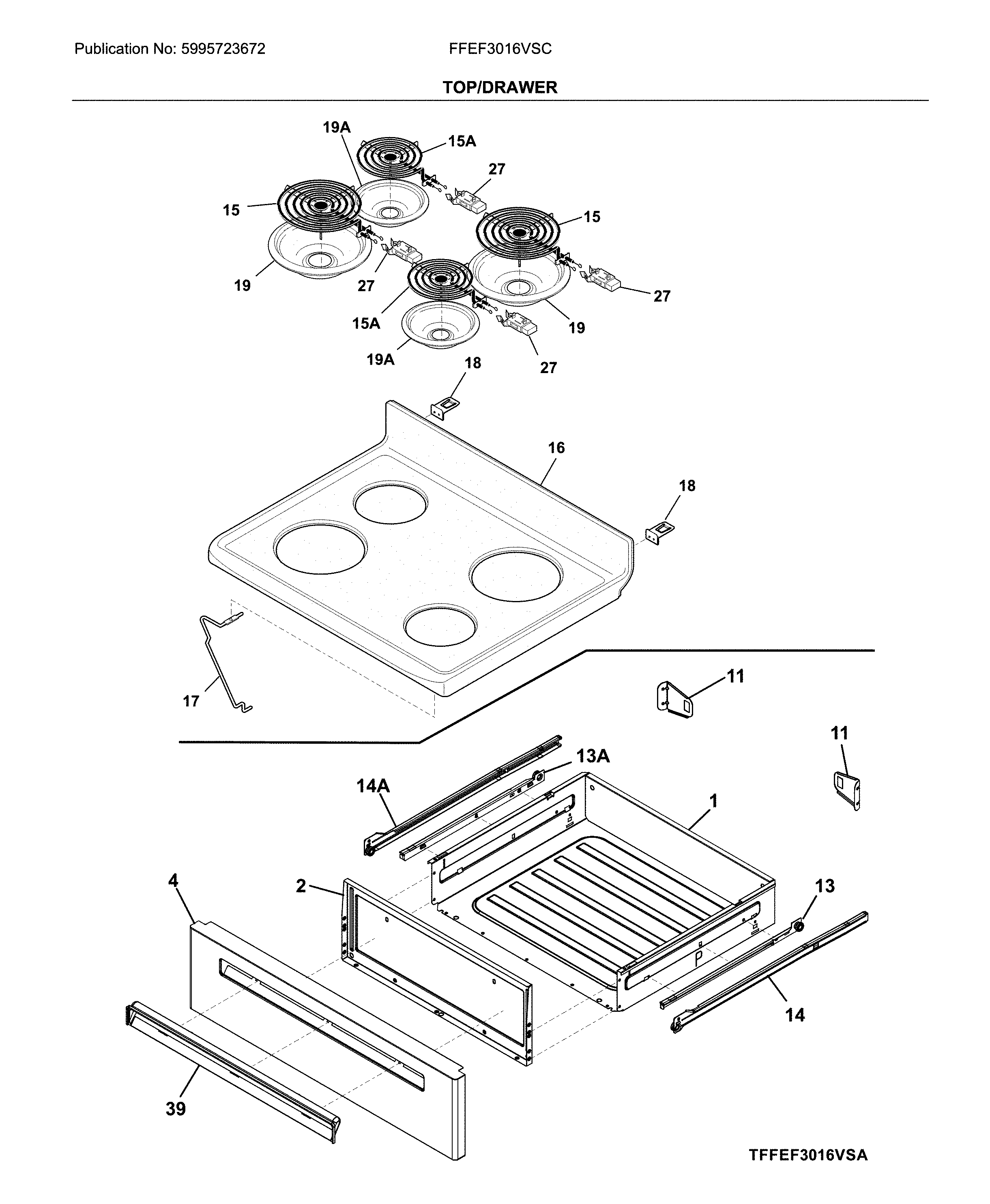

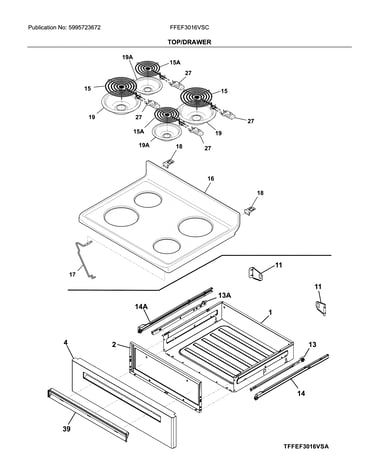

Top/drawer diagram
Surface pan
Part #318067076
Replaced by #A316222201
?
Manufacturer substitution
This part replaces 318067076. Substitute parts can look different from the original.
$10.96 |
15% OFF Phone Price : $12.96
In Stock
#89
Body diagram
Range oven door lock motor and switch assembly
Part #316464300
Replaced by #5304528973
?
Manufacturer substitution
This part replaces 316464300. Substitute parts can look different from the original.
$38.88 |
13% OFF Phone Price : $44.88
In Stock
#6
Body diagram
Frigidaire range oven rack (replaces 316496202, 316496207, 7316498003)
Part #316496201
This item is not returnable
$88.01 |
6% OFF Phone Price : $94.01
In Stock
