Model # ZEK957SD1SS Official GE wall oven

Here are the diagrams and repair parts for Official GE ZEK957SD1SS wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

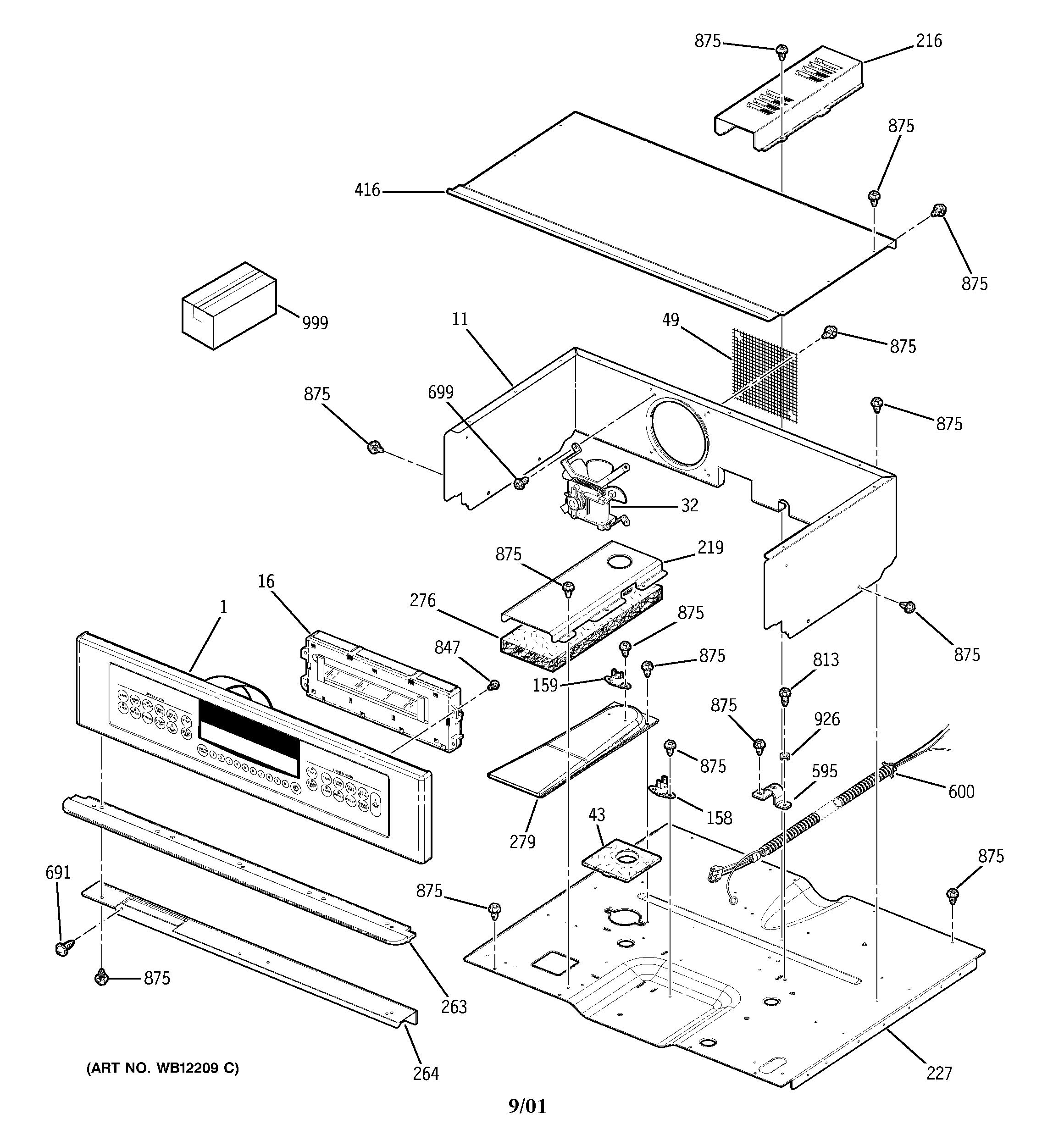

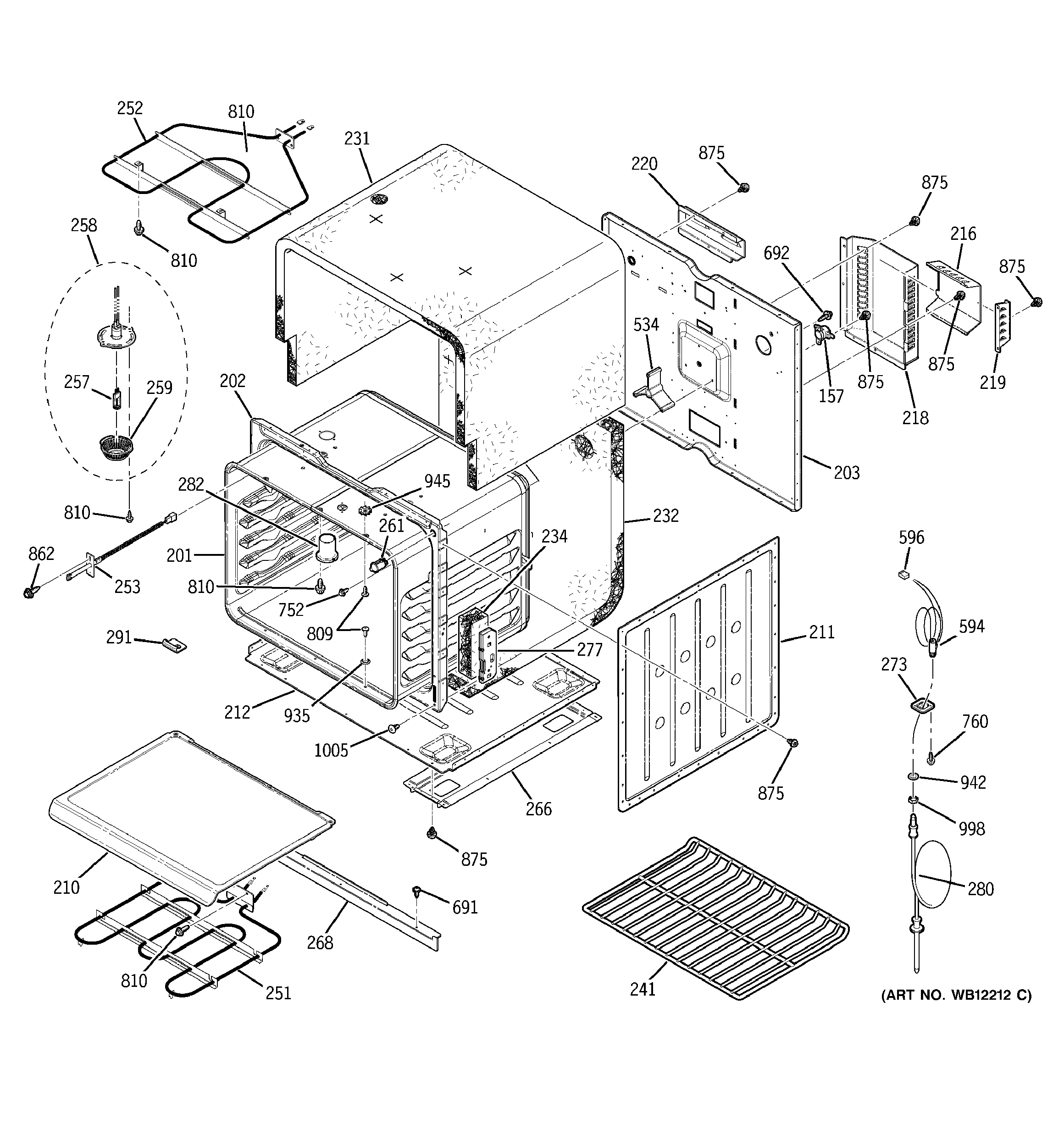

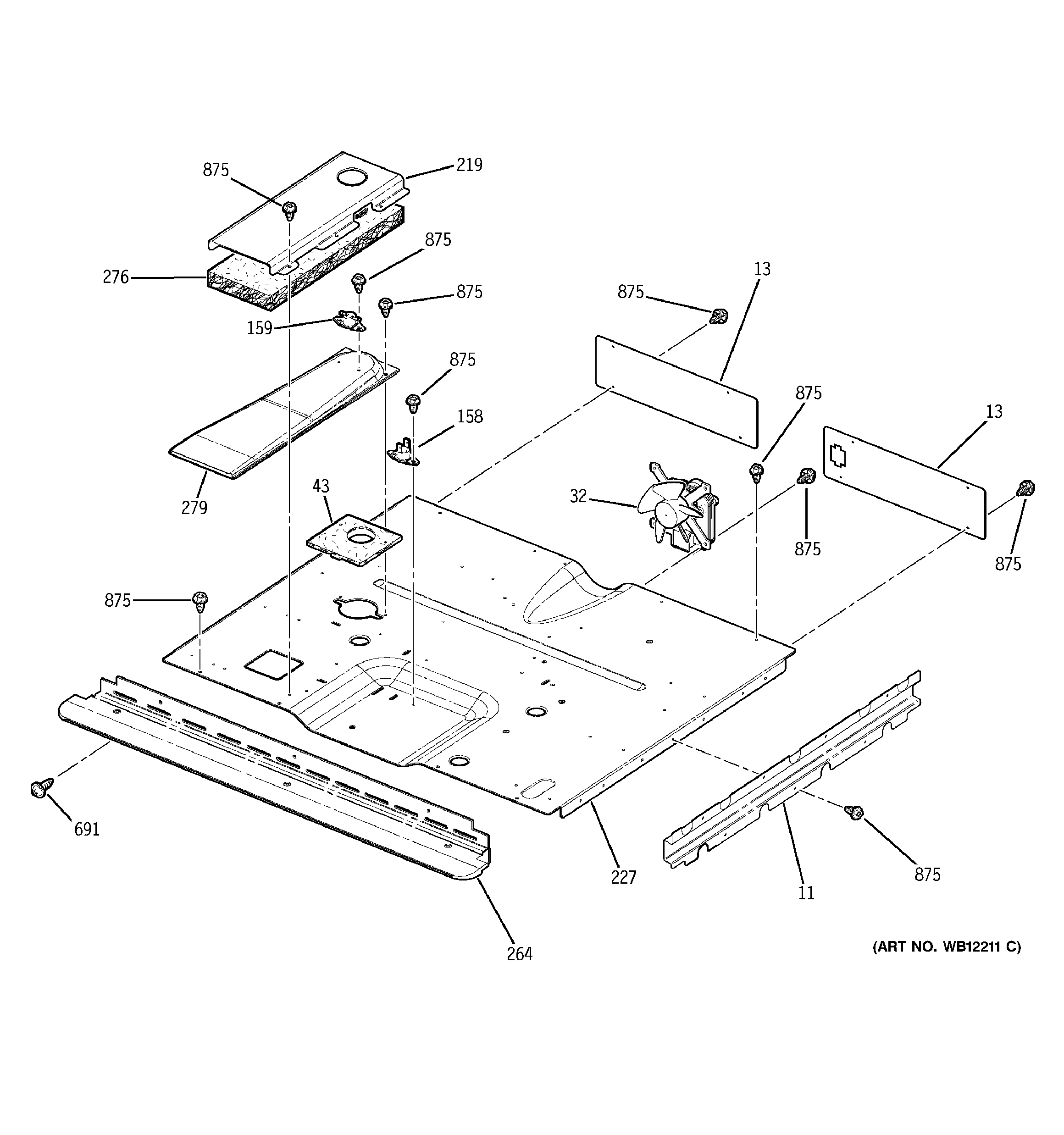

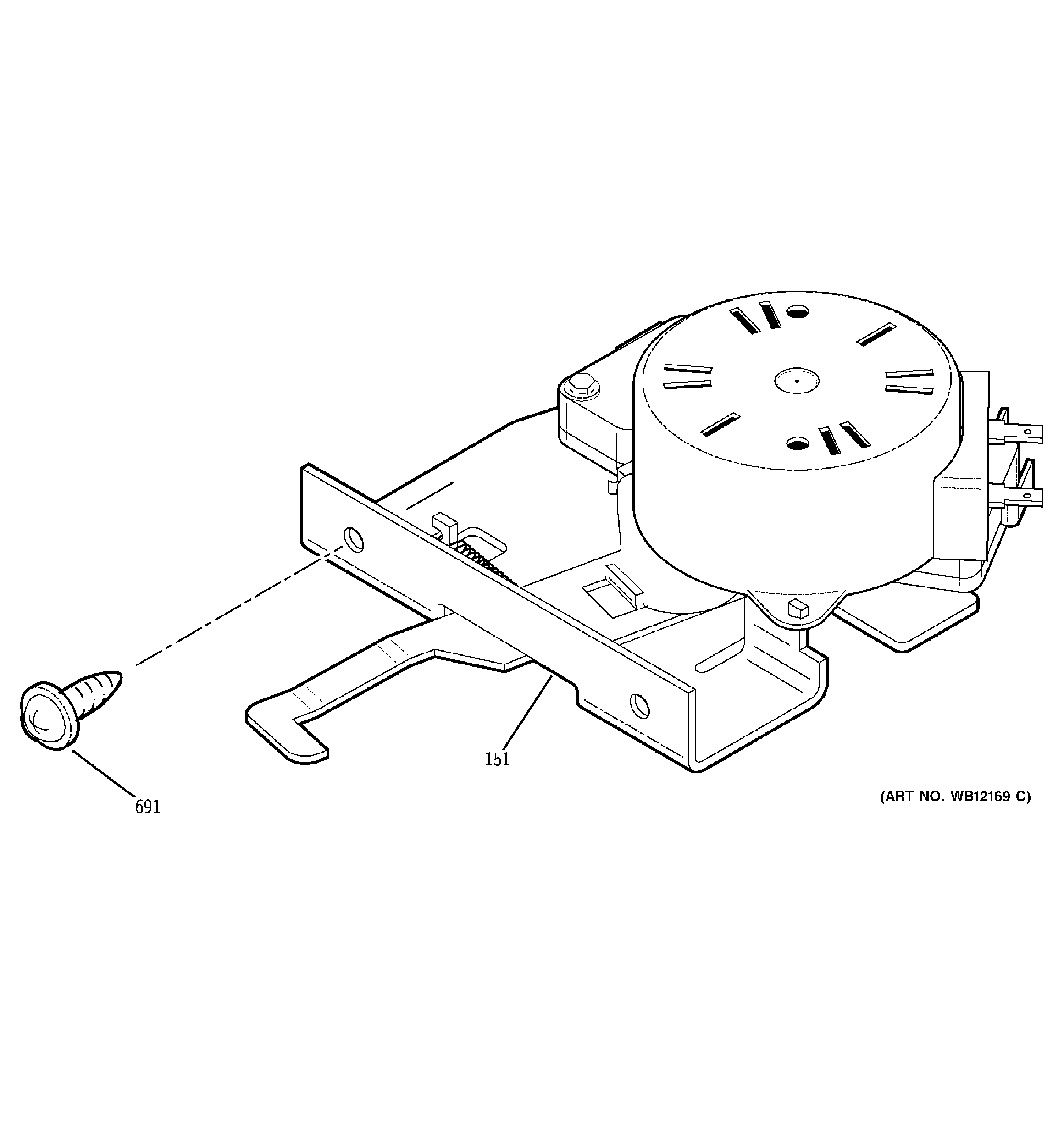

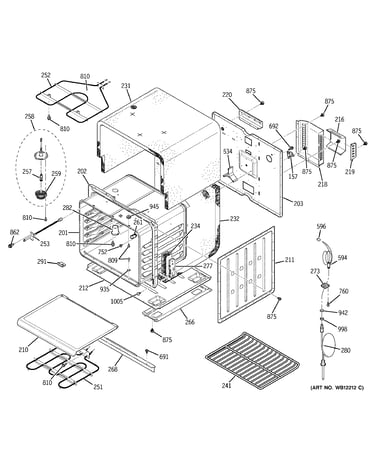

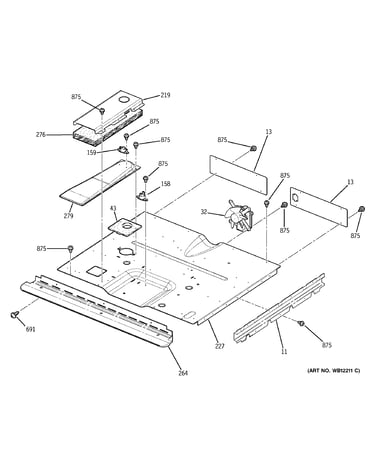

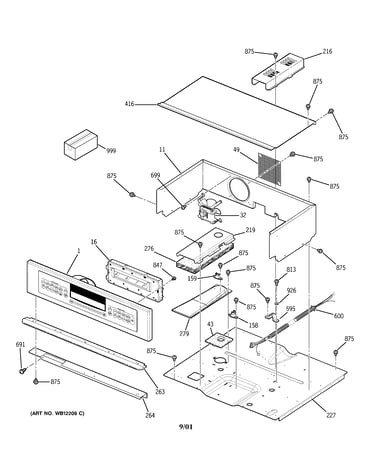

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Element WB44T10030
Broil element

Part #WB44T10030

Replaced by #WB44T10051

?
Manufacturer substitution
This part replaces WB44T10030. Substitute parts can look different from the original.
BEST SELLER
$71.94 |
8% OFF Phone Price : $77.94
Back Order
Light Bulb WB08T10007
Light bulb

Part #WB08T10007

Replaced by #WB08T10023

?
Manufacturer substitution
This part replaces WB08T10007. Substitute parts can look different from the original.
This item is not returnable
$12.78 |
14% OFF Phone Price : $14.78
In Stock
Nut WB02T10017
#977

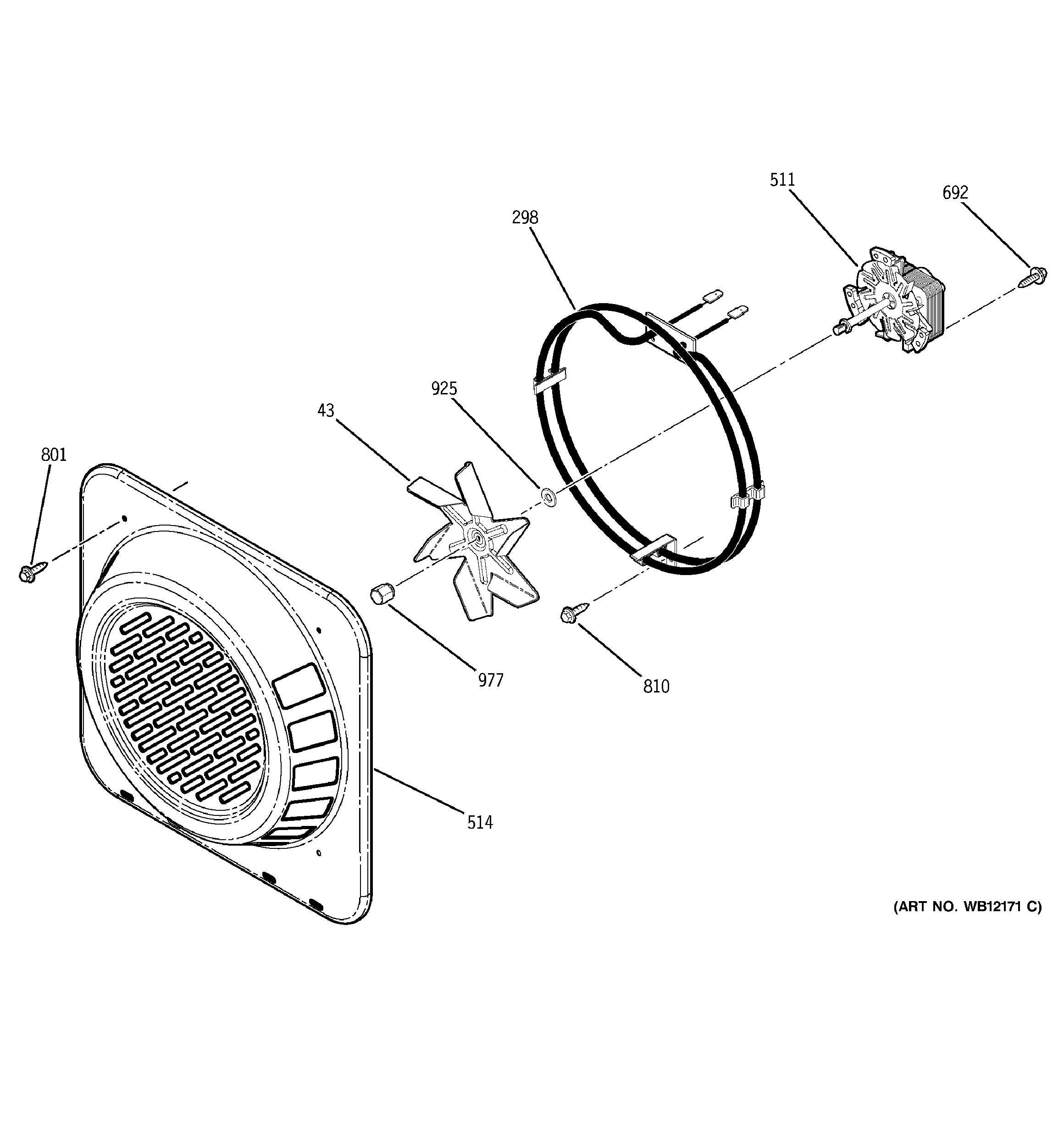

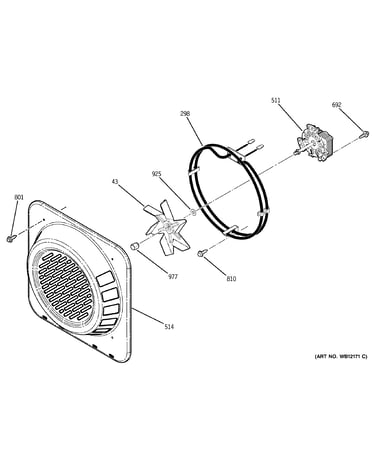

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Fan Blade WB02T10018
Fan blade

Part #WB02T10018

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10018. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Screw WB01K5028
Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01X1137
Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Rack Assembly (replaces Wb48x5105, Wb49x10169) WB48X5108
#533

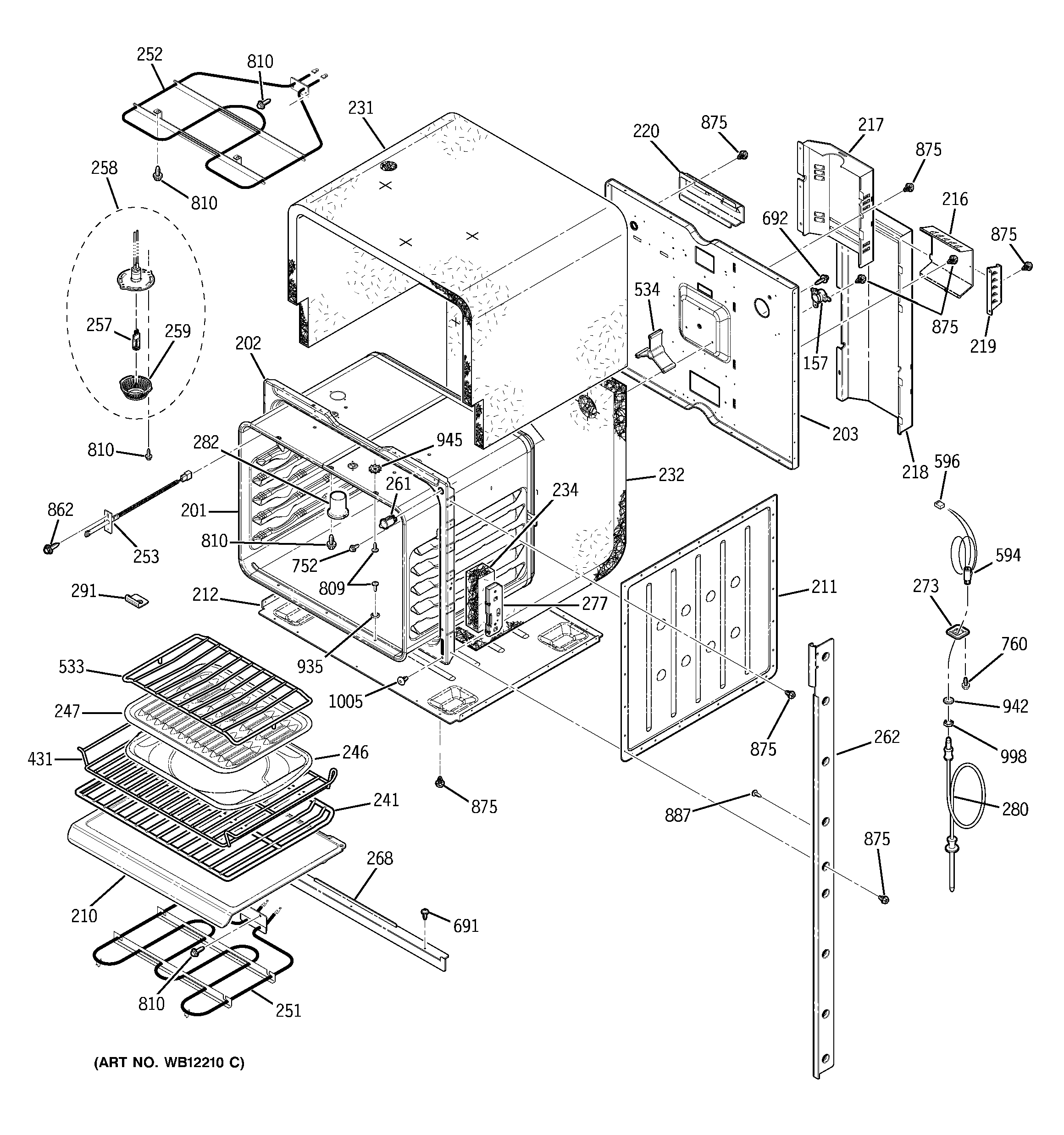

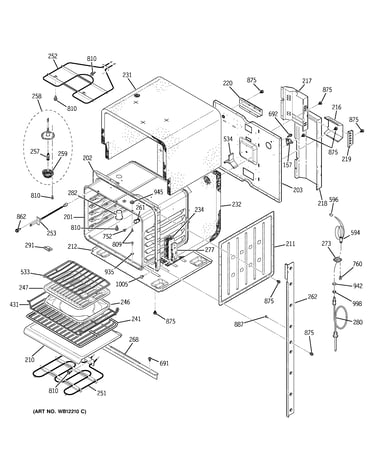

Upper body diagram

Range oven rack assembly (replaces wb48x5105, wb49x10169)

Part #WB48X5108

$21.30 |
22% OFF Phone Price : $27.30
In Stock
Range Oven Door Gasket WB32T10010
#132

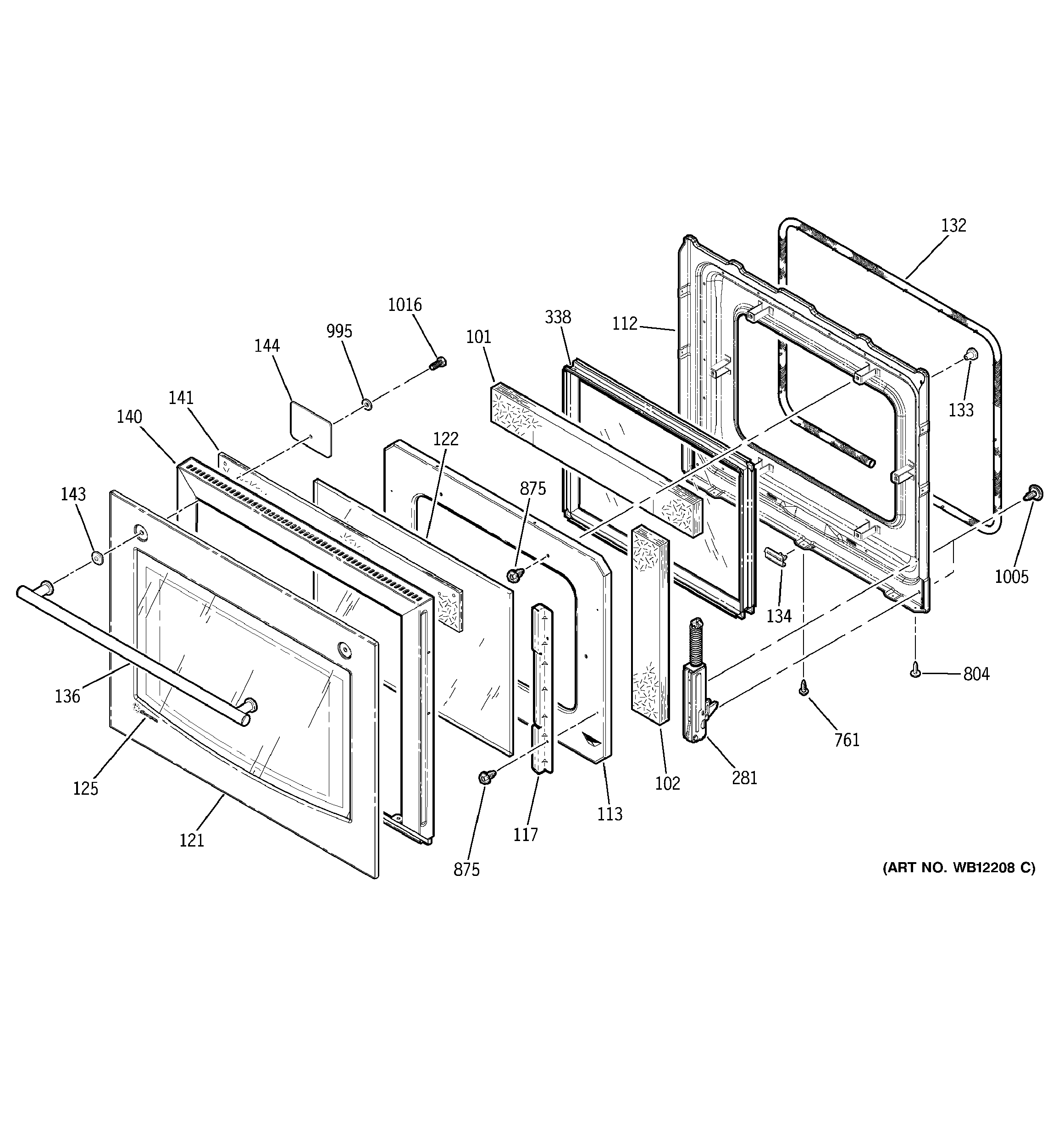

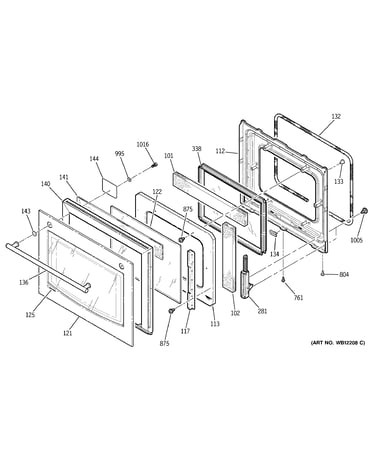

Door diagram

Range oven door gasket

Part #WB32T10010

$67.43 |
8% OFF Phone Price : $73.43
In Stock
Screw - Black WB01K5162
Screw - black

Part #WB01K5162

Replaced by #WB1K5162

?
Manufacturer substitution
This part replaces WB01K5162. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
