Model # 24B031E099 Official Craftsman 4.5-hp csv push chipper/shredder

Here are the diagrams and repair parts for Official Craftsman 24B031E099 4.5-hp csv push chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Blade 781-0490
#22

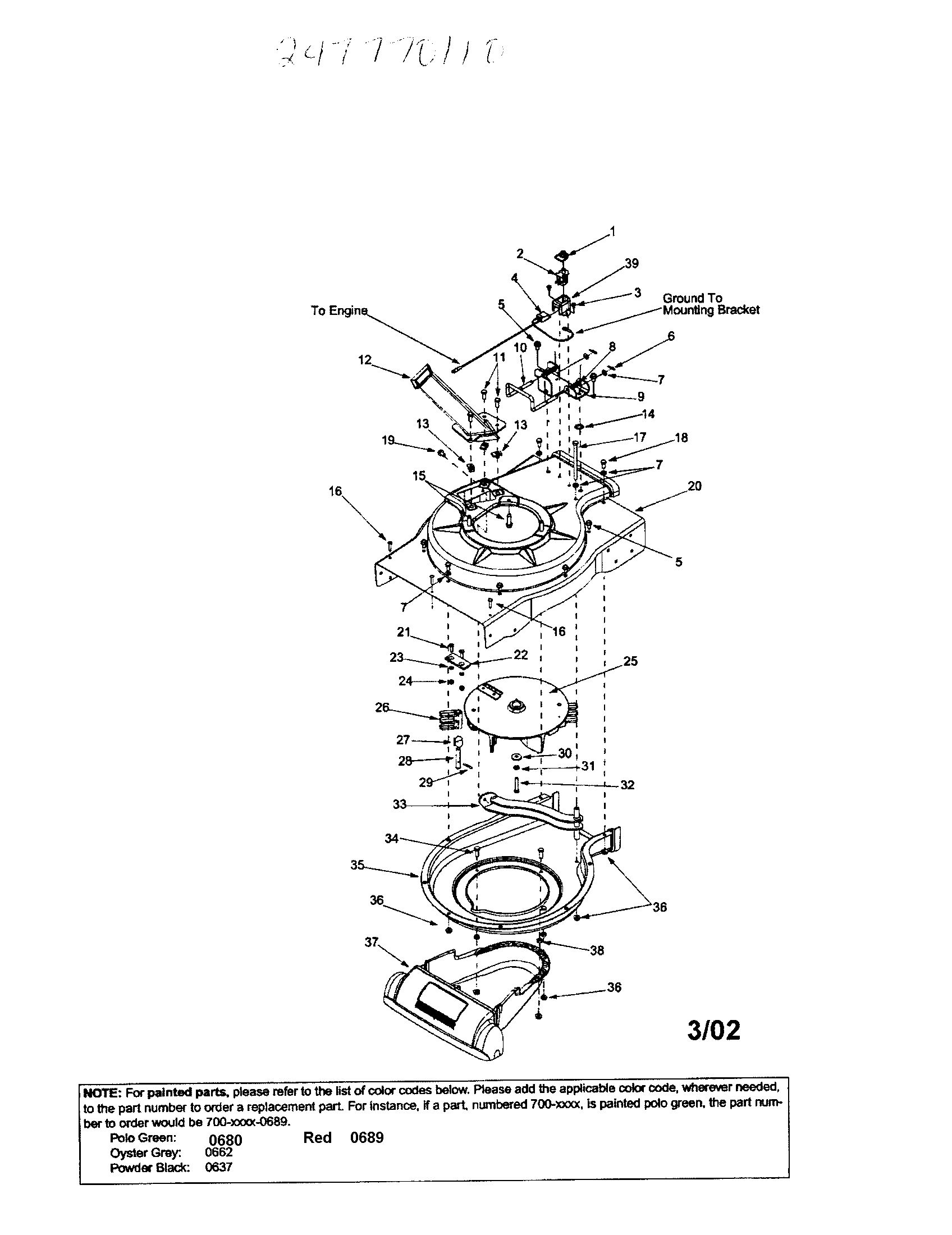

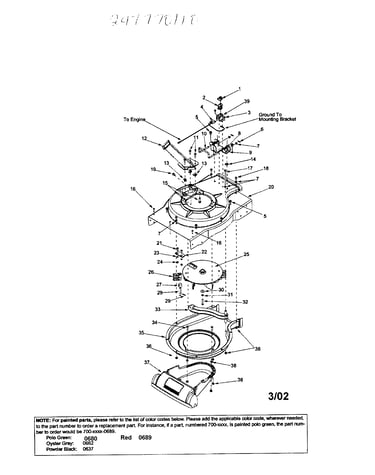

Housing/impeller diagram

Blade

Part #781-0490

Replaced by #981-0490

?
Manufacturer substitution
This part replaces 781-0490. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.78 |
16% OFF Phone Price : $36.78
In Stock
Lock Washer 736-0119
#23

Housing/impeller diagram

Lock washer

Part #736-0119

Replaced by #936-0119

?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Mount Switch 725-3166
#2

Housing/impeller diagram

Mount switch

Part #725-3166

Replaced by #725-3166

?
Manufacturer substitution
This part replaces 725-3166. Substitute parts can look different from the original.
This item is not returnable
$9.83 |
9% OFF Phone Price : $10.83
In Stock
Chute Assembly 631-0090
#35

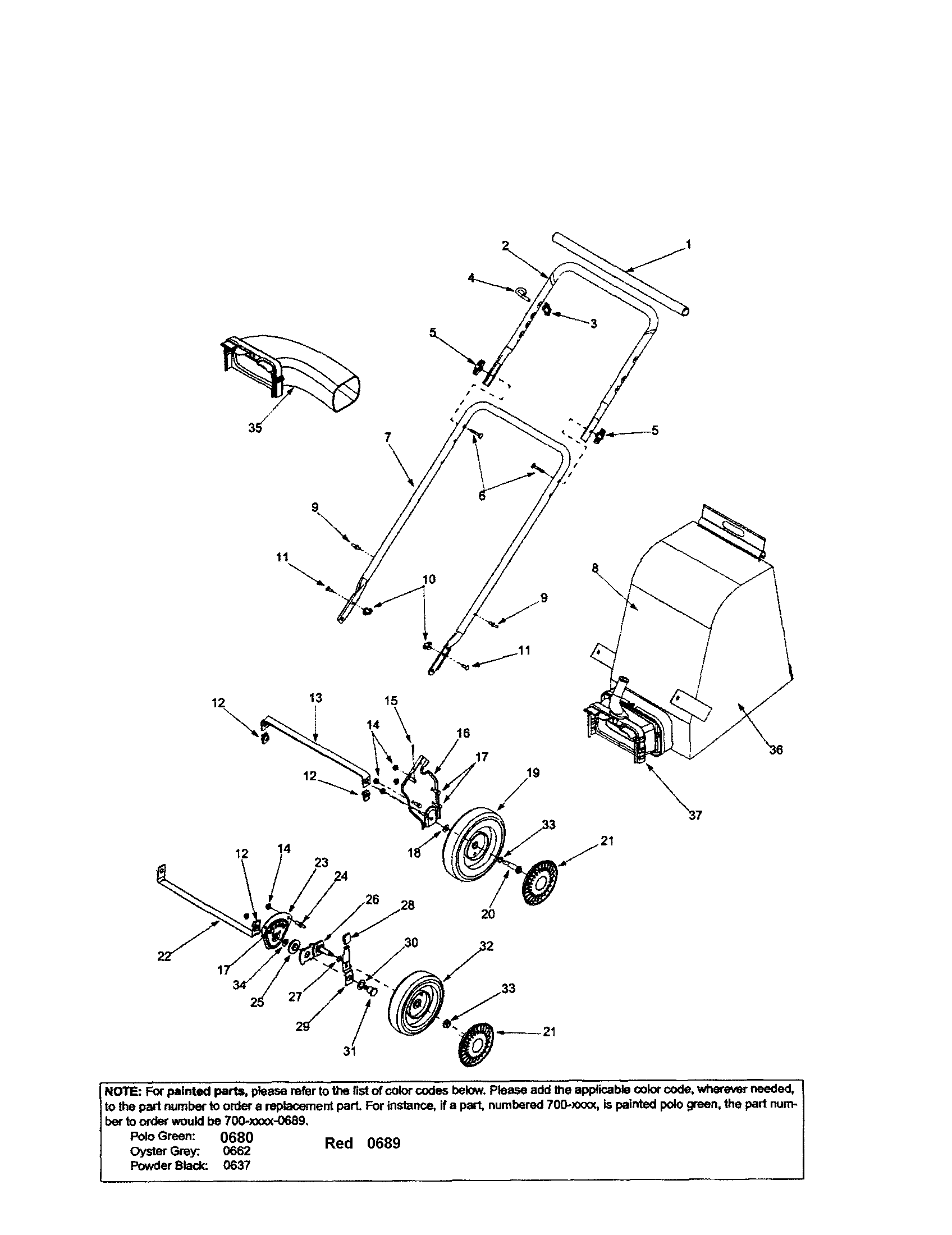

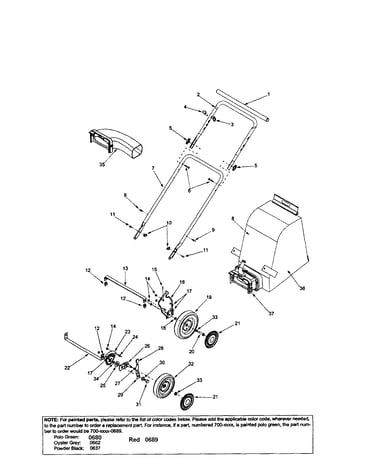

Handle/bag/chute-blower diagram

Chute assembly

Part #631-0090

Replaced by #OEM-290-012

?
Manufacturer substitution
This part replaces 631-0090. Substitute parts can look different from the original.
$109.30 |
10% OFF Phone Price : $121.30
In Stock
Wing Nut 712-0397
#10

Handle/bag/chute-blower diagram

Wing nut

Part #712-0397

Replaced by #712-0397A

?
Manufacturer substitution
This part replaces 712-0397. Substitute parts can look different from the original.
This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Lawn & Garden Equipment Carriage Bolt (replaces 1186069, 583108, 706-101080, 706-10602-12, 791-182213) 710-0703
#11

Handle/bag/chute-blower diagram

Lawn & garden equipment carriage bolt (replaces 1186069, 583108, 706-101080, 706-10602-12, 791-182213)

Part #710-0703

This item is not returnable
$6.46 |
13% OFF Phone Price : $7.46
In Stock
Lawn Tractor Hex Bolt 710-3008
#11

Housing/impeller diagram

Lawn tractor hex bolt

Part #710-3008

This item is not returnable
$4.62 |
18% OFF Phone Price : $5.62
In Stock
Switch Cover 731-1613
#39

Housing/impeller diagram

Switch cover

Part #731-1613

Replaced by #731-1613

?
Manufacturer substitution
This part replaces 731-1613. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lawn Vacuum Chipper/shredder Discharge Chute 631-0083
#37

Handle/bag/chute-blower diagram

Lawn vacuum chipper/shredder discharge chute

Part #631-0083

Replaced by #631P0083A

?
Manufacturer substitution
This part replaces 631-0083. Substitute parts can look different from the original.
$93.00 |
6% OFF Phone Price : $99.00
In Stock
Lawn Mower Height Adjuster Lever (replaces 687-02051) 732-1026
#29

Handle/bag/chute-blower diagram

Lawn mower height adjuster lever (replaces 687-02051)

Part #732-1026

This item is not returnable
$10.14 |
16% OFF Phone Price : $12.14
In Stock
