Craftsman
Power Sander

Model # 875188270 Official Craftsman orbital sander

Here are the diagrams and repair parts for Official Craftsman 875188270 orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Craftsman Rubber Grip 9102102
#13

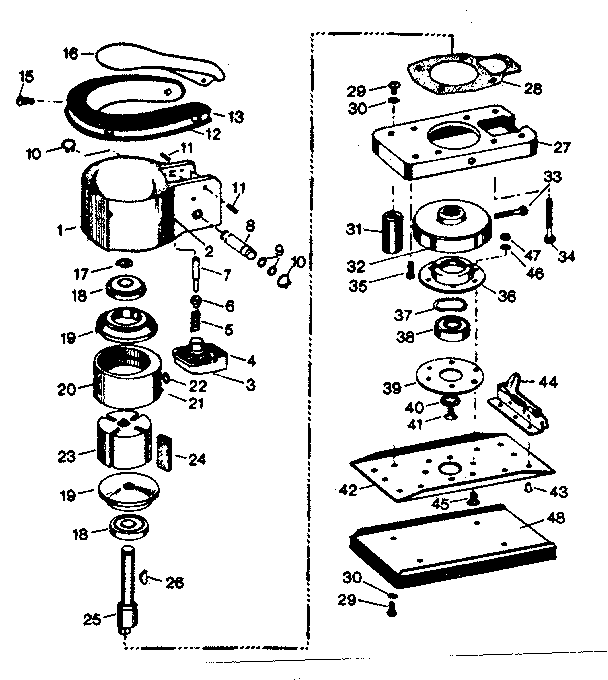

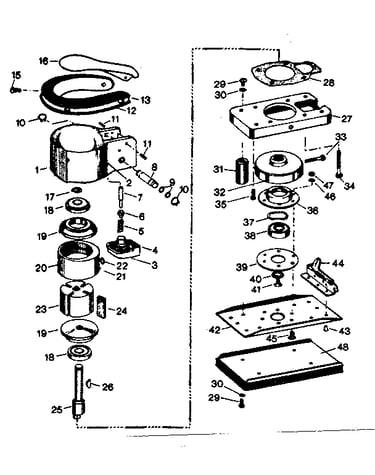

Unit parts diagram

Craftsman rubber grip

Part #9102102

The manufacturer no longer makes this part, and there's no substitute part

Locate Pin 729139
#21

Unit parts diagram

Locate pin

Part #729139

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Lever 729362
#16

Unit parts diagram

Craftsman lever

Part #729362

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Washer 729369
#37

Unit parts diagram

Craftsman washer

Part #729369

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Washer 729292
#40

Unit parts diagram

Craftsman washer

Part #729292

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Motor Housing 729349
#1

Unit parts diagram

Craftsman motor housing

Part #729349

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Sander Screw 729377
#29

Unit parts diagram

Craftsman sander screw

Part #729377

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Sander Owner's Manual PL-0287

#NI

All parts diagram

Craftsman sander owner's manual

Part #PL-0287

The manufacturer no longer makes this part, and there's no substitute part

Craftsman End Plate 729327
#19

Unit parts diagram

Craftsman end plate

Part #729327

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Ret Plate 729367
#39

Unit parts diagram

Craftsman ret plate

Part #729367

The manufacturer no longer makes this part, and there's no substitute part
