Outdoor Smoker

Model # 30162EW Official Outdoor Living Products smoker

Here are the diagrams and repair parts for Official Outdoor Living Products 30162EW smoker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

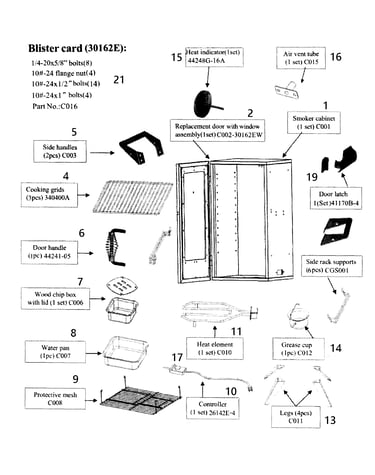

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Outdoor Living Products Grid CG3430
#3

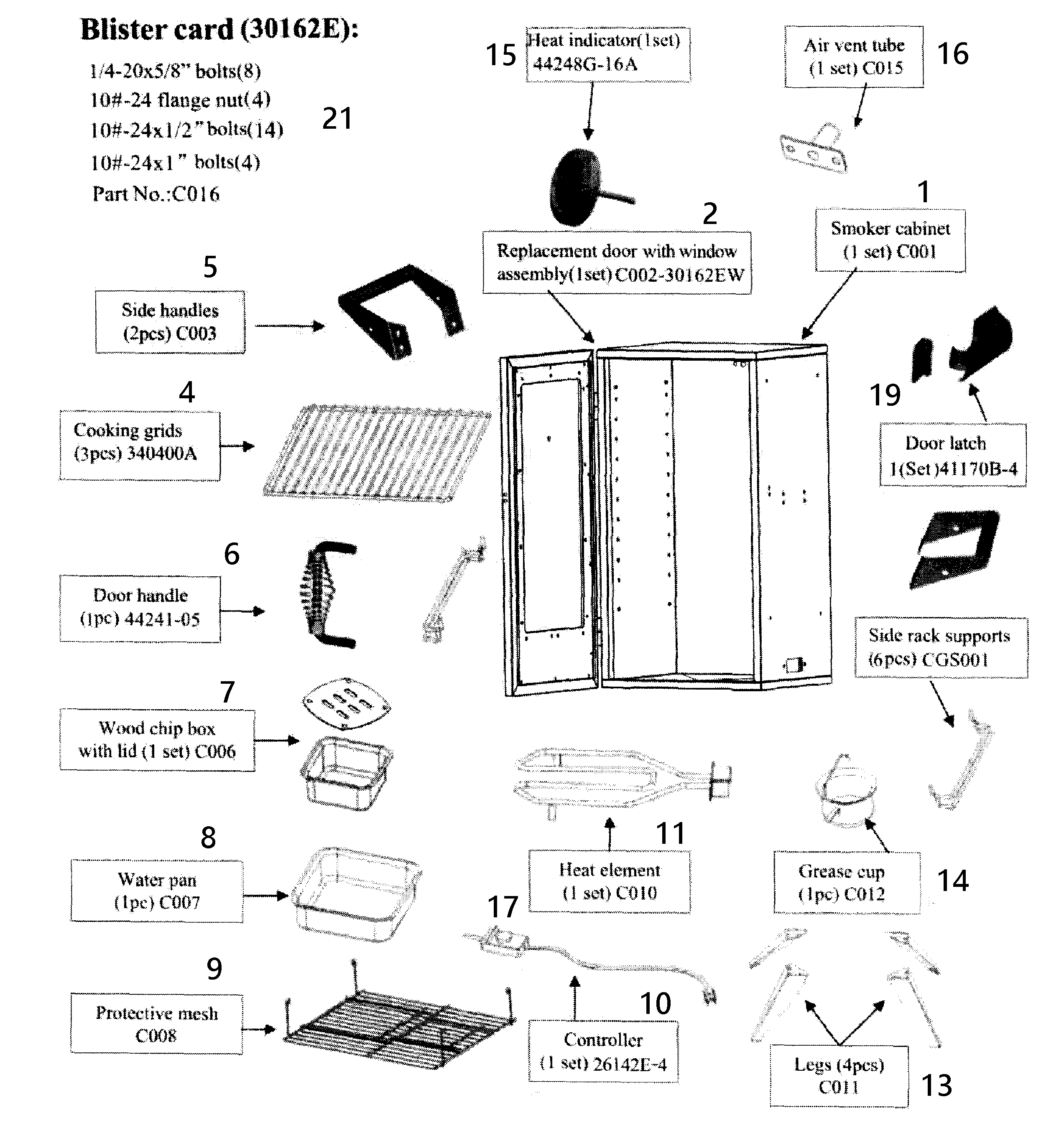

Smoker diagram

Outdoor living products grid

Part #CG3430

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Living Products Element EC1500
#12

Smoker diagram

Outdoor living products element

Part #EC1500

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Living Products Cover SC3430
#20

Smoker diagram

Outdoor living products cover

Part #SC3430

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Living Products Controller C009
#10

Smoker diagram

Outdoor living products controller

Part #C009

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Living Products Pan C007
#8

Smoker diagram

Outdoor living products pan

Part #C007

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Living Products Element C010
#11

Smoker diagram

Outdoor living products element

Part #C010

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Living Products Leg C011
#13

Smoker diagram

Outdoor living products leg

Part #C011

The manufacturer no longer makes this part, and there's no substitute part

Indicator 44248G-16
#15

Smoker diagram

Indicator

Part #44248G-16

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Living Products Latches 41170-04
#19

Smoker diagram

Outdoor living products latches

Part #41170-04

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Living Products Door Assembly 30162E-DOOR
#2

Smoker diagram

Outdoor living products door assembly

Part #30162E-DOOR

The manufacturer no longer makes this part, and there's no substitute part
