Model # 21A-240H000 Official MTD front-tine tiller

Here are the diagrams and repair parts for Official MTD 21A-240H000 front-tine tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
#9

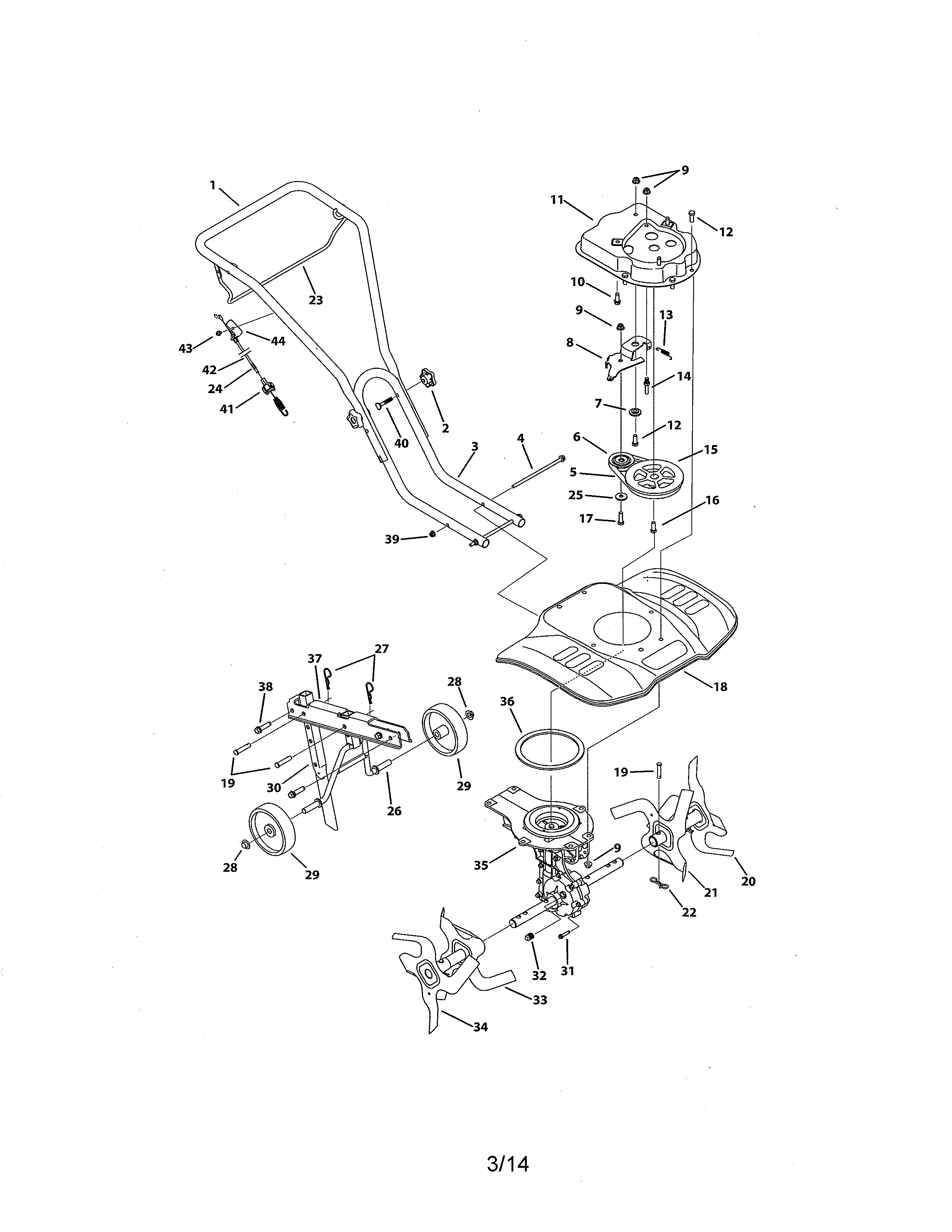

Front tine tiller diagram

Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#43

Front tine tiller diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Yard Machines Lawn Mower Handle Knob (replaces 01000382, 113589, 720-04072, 720-04125) 720-04072A
#2

Front tine tiller diagram

Yard machines lawn mower handle knob (replaces 01000382, 113589, 720-04072, 720-04125)

Part #720-04072A

BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Yard-man Lawn Tractor Cotter Pin 714-04043
#22

Front tine tiller diagram

Yard-man lawn tractor cotter pin

Part #714-04043

This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Ace Lawn & Garden Equipment Push Cap 726-0299
#28

Front tine tiller diagram

Ace lawn & garden equipment push cap

Part #726-0299

This item is not returnable
$12.39 |
14% OFF Phone Price : $14.39
In Stock
Yard Machines Lawn Tractor Bolt (replaces 01000668, 1982728, 1983620, 43001, 715326, 910-0253, 9711, B1100046, Gw-325284, Gw-750a, Gw-90012, Gw-9711, Gw-98068, Gw-98-068, Gw-b1100046, Gw-b70235, Gw-m6520008, Gw-pt/01395/00, Gw-pt/80153/00, Gw-t70235, Wd- 710-0514
#12

Front tine tiller diagram

Yard machines lawn tractor bolt (replaces 01000668, 1982728, 1983620, 43001, 715326, 910-0253, 9711, b1100046, gw-325284, gw-750a, gw-90012, gw-9711, gw-98068, gw-98-068, gw-b1100046, gw-b70235, gw-m6520008, gw-pt/01395/00, gw-pt/80153/00, gw-t70235, wd-

Part #710-0514

This item is not returnable
$5.33 |
16% OFF Phone Price : $6.33
In Stock
Yard Machines Lawn & Garden Equipment Hex Bolt 710-0520
#17

Front tine tiller diagram

Yard machines lawn & garden equipment hex bolt

Part #710-0520

This item is not returnable
$7.77
In Stock
Lawn Tractor Gauge Wheel 734-0973
#29

Front tine tiller diagram

Lawn tractor gauge wheel

Part #734-0973

$19.06
In Stock
Ace Cotter Pin 714-3020
#27

Front tine tiller diagram

Ace cotter pin

Part #714-3020

This item is not returnable
$6.17
In Stock
Inner Tine Assembly 642-0003
#21

Front tine tiller diagram

Inner tine assembly

Part #642-0003

Replaced by #642-0003-0637

?
Manufacturer substitution
This part replaces 642-0003. Substitute parts can look different from the original.
$81.99 |
7% OFF Phone Price : $87.99
In Stock
