Magic Chef
Range

Model # BRT74LK-4TV Official Magic Chef rv range

Here are the diagrams and repair parts for Official Magic Chef BRT74LK-4TV rv range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Clip Therm 493-88197
#13

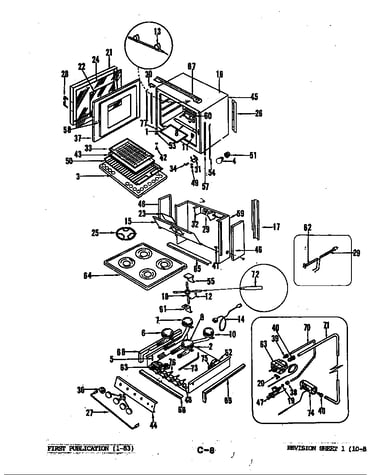

Body diagram

Clip therm

Part #493-88197

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 493-88197. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Hinge Pan 50-11293
#47A

Body diagram

Hinge pan

Part #50-11293

The manufacturer no longer makes this part, and there's no substitute part

Guard Thermo 50-11087-2
#26

Body diagram

Guard thermo

Part #50-11087-2

The manufacturer no longer makes this part, and there's no substitute part

Flash Tube 50-21057-1
#72

Body diagram

Flash tube

Part #50-21057-1

The manufacturer no longer makes this part, and there's no substitute part

Knob 50-26276
#35

Body diagram

Knob

Part #50-26276

The manufacturer no longer makes this part, and there's no substitute part

Knob 50-20281
#36

Body diagram

Knob

Part #50-20281

The manufacturer no longer makes this part, and there's no substitute part

Burner, R 50-21517
#10

Body diagram

Burner, r

Part #50-21517

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 368-51
#51

Body diagram

Receptacle

Part #368-51

The manufacturer no longer makes this part, and there's no substitute part

Support 50-11048
#60

Body diagram

Support

Part #50-11048

The manufacturer no longer makes this part, and there's no substitute part

"t" Fitting (flange) N/P
"t" fitting (flange)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
