Kenmore
Upright Vacuum

Model # 21637020700 Official Kenmore vacuum

Here are the diagrams and repair parts for Official Kenmore 21637020700 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Kenmore Vacuum Base Cover Assembly 237312000
#1

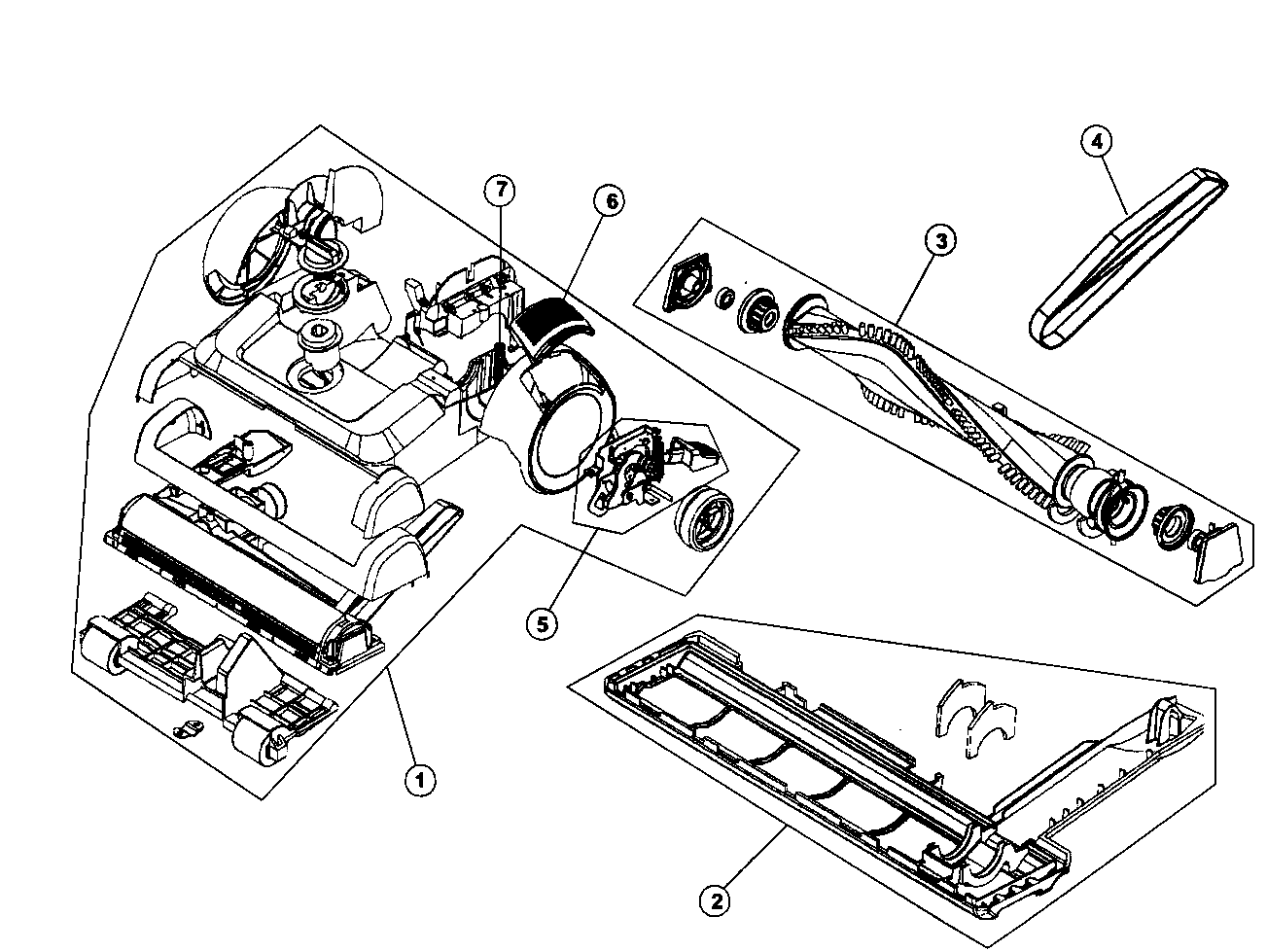

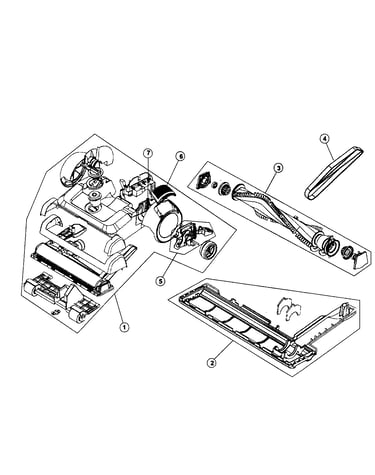

Nozzle base assy diagram

Kenmore vacuum base cover assembly

Part #237312000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Cord Sprng 137020000
#15

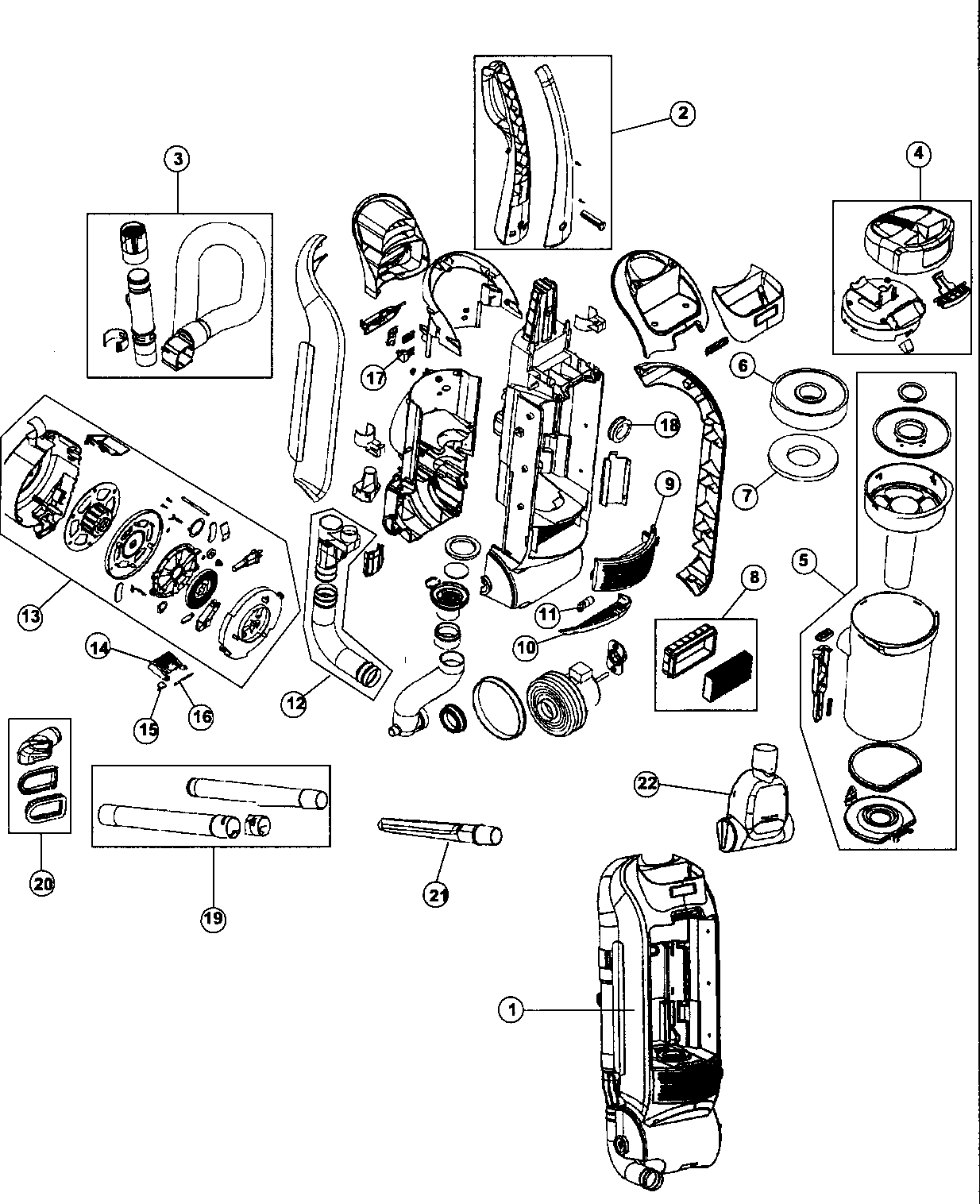

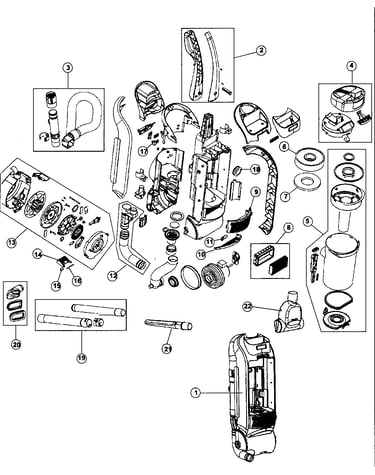

Main boady assy diagram

Kenmore cord sprng

Part #137020000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Switch 137136000
#17

Main boady assy diagram

Kenmore vacuum switch

Part #137136000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Dust Bin 237190000
#5

Main boady assy diagram

Kenmore vacuum dust bin

Part #237190000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Hose 237140000
#3

Main boady assy diagram

Kenmore vacuum hose

Part #237140000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Main Body 515550001
#1

Main boady assy diagram

Kenmore main body

Part #515550001

The manufacturer no longer makes this part, and there's no substitute part

Gasket 561737001
#18

Main boady assy diagram

Gasket

Part #561737001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 237210000
#8

Main boady assy diagram

Vacuum filter

Part #237210000

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Cord Rod 137121000
#16

Main boady assy diagram

Kenmore cord rod

Part #137121000

The manufacturer no longer makes this part, and there's no substitute part

Light Lens 515558001
#10

Main boady assy diagram

Light lens

Part #515558001

The manufacturer no longer makes this part, and there's no substitute part
