Model # 225587506 Official Craftsman 20" 5-hp gamefisher transom

Here are the diagrams and repair parts for Official Craftsman 225587506 20" 5-hp gamefisher transom, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

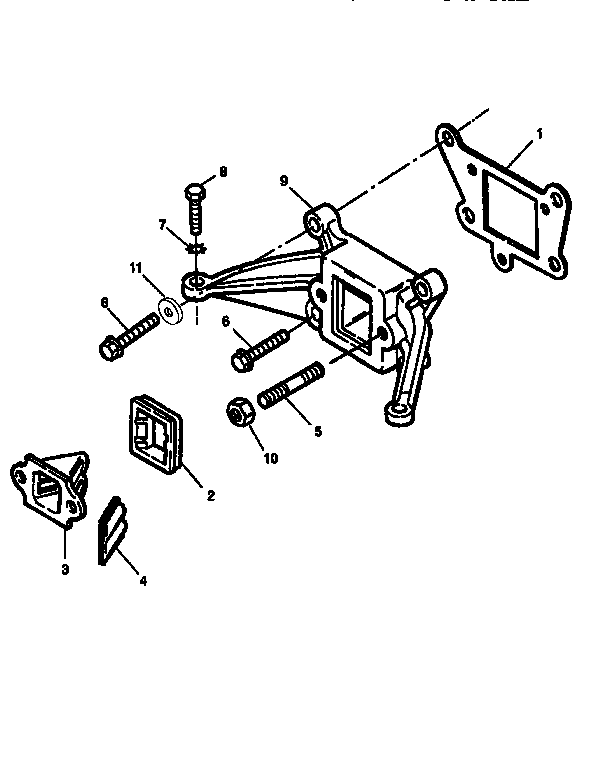

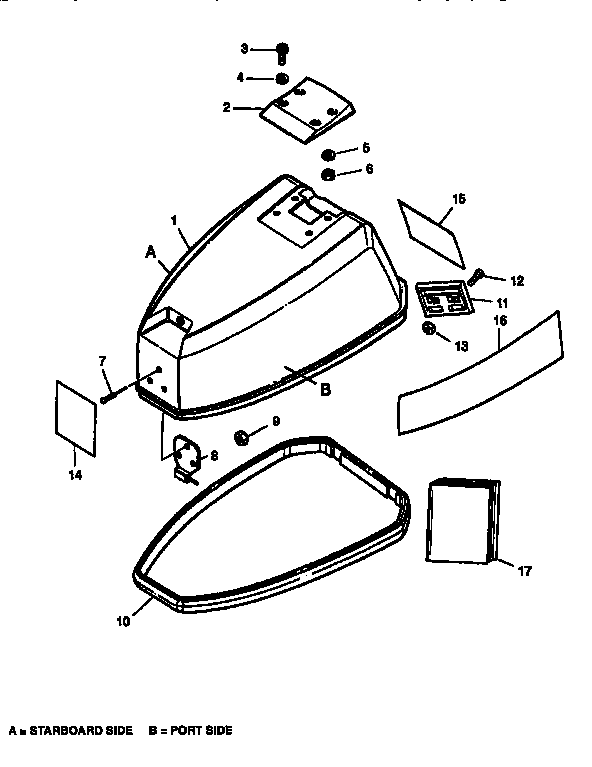

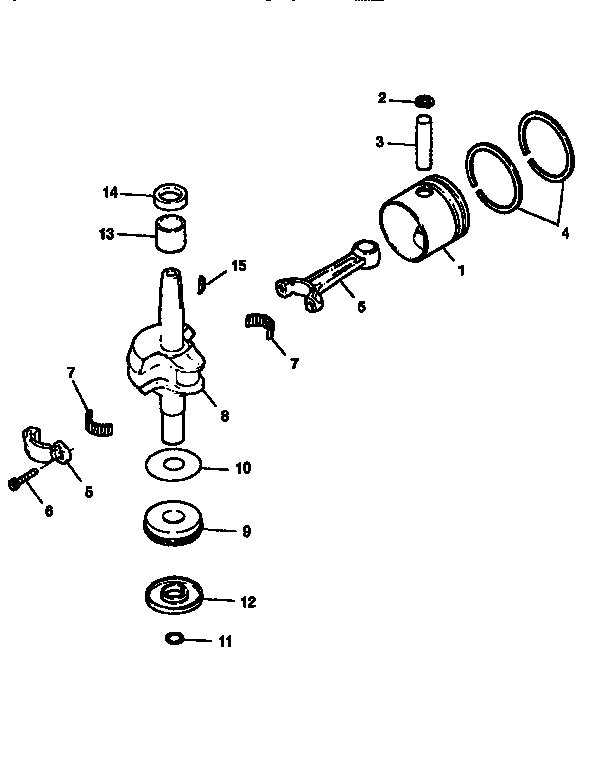

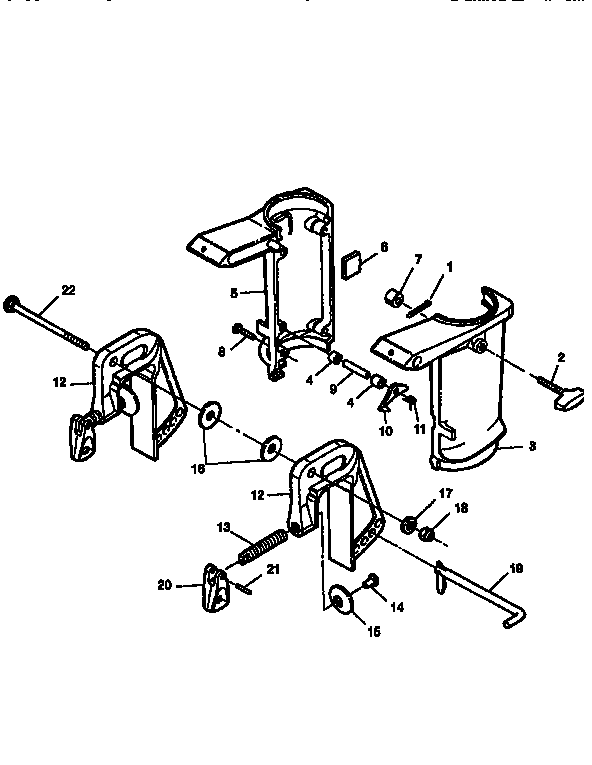

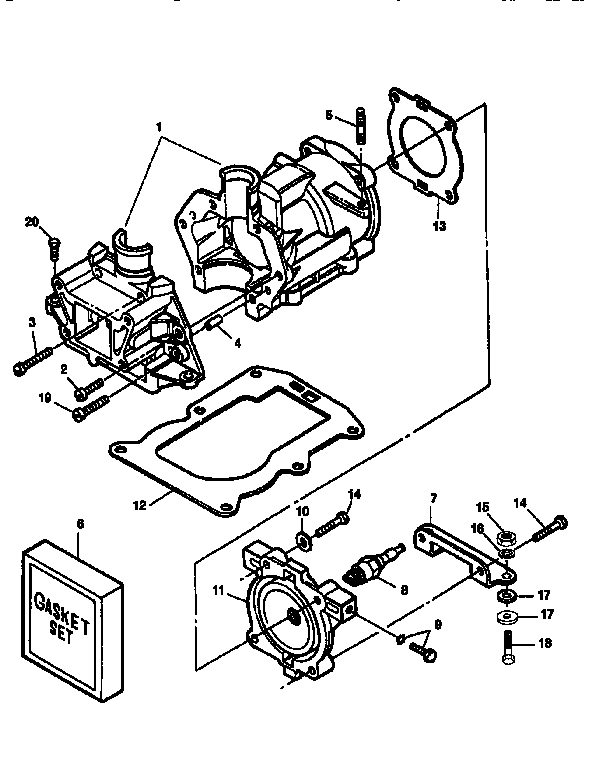

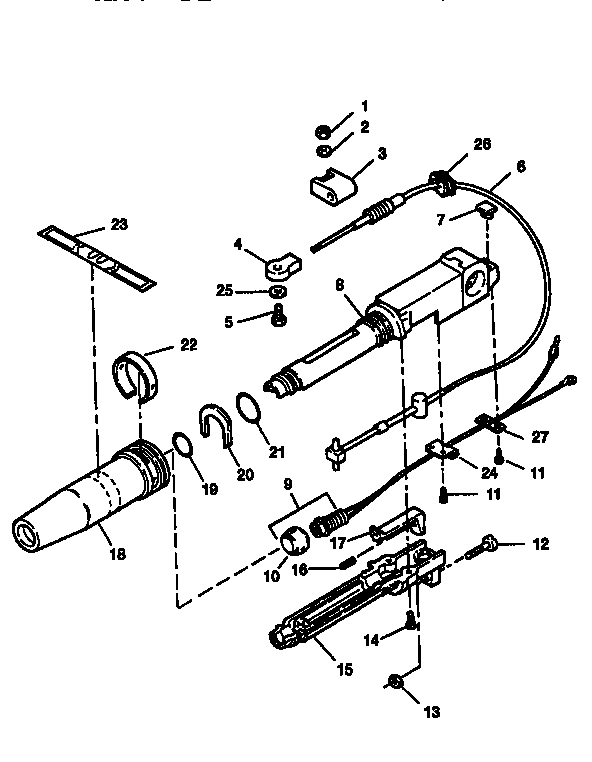

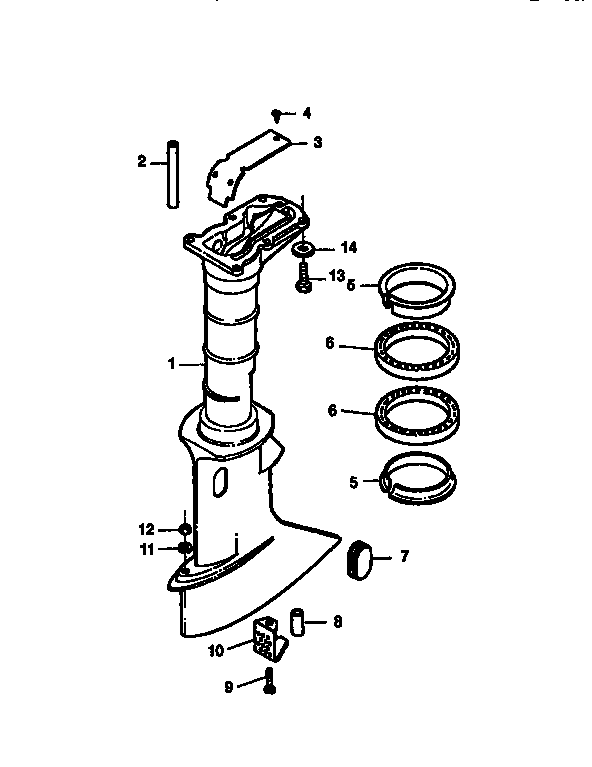

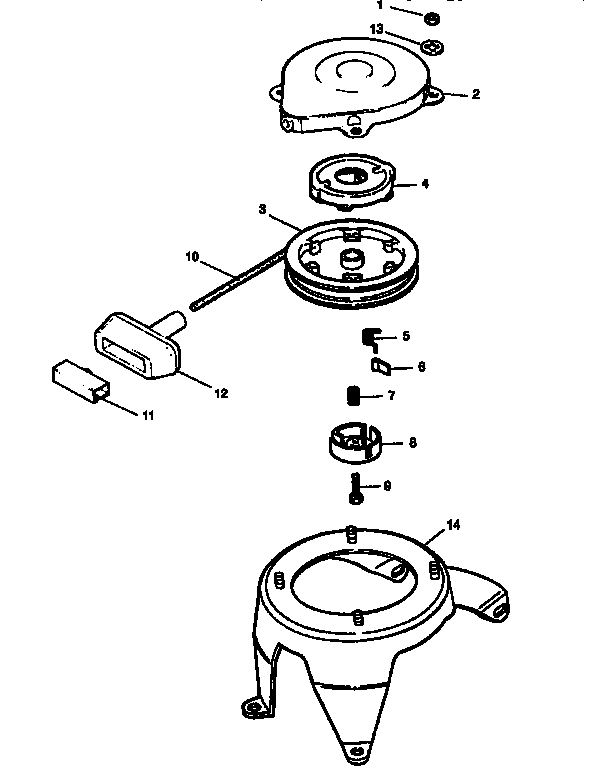

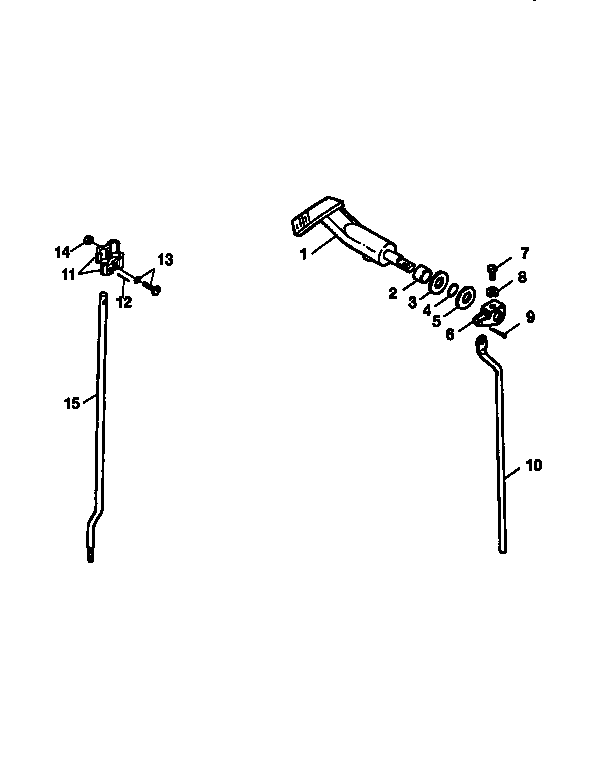

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 302 parts  |
Cable Tie, 4-in 56762
Cable tie, 4-in

Part #56762

The manufacturer no longer makes this part, and there's no substitute part

Repair Kit FK10295
#31A

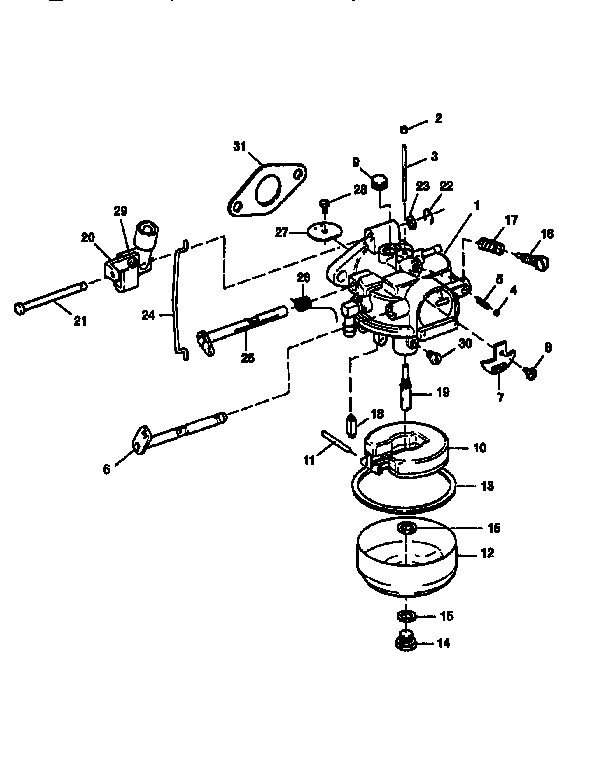

Carburetor diagram

Repair kit

Part #FK10295

The manufacturer no longer makes this part, and there's no substitute part

Float FO13554
#10

Carburetor diagram

Float

Part #FO13554

The manufacturer no longer makes this part, and there's no substitute part

Needle Inlet F10265
#18

Carburetor diagram

Needle inlet

Part #F10265

The manufacturer no longer makes this part, and there's no substitute part

Seal F17816
#14

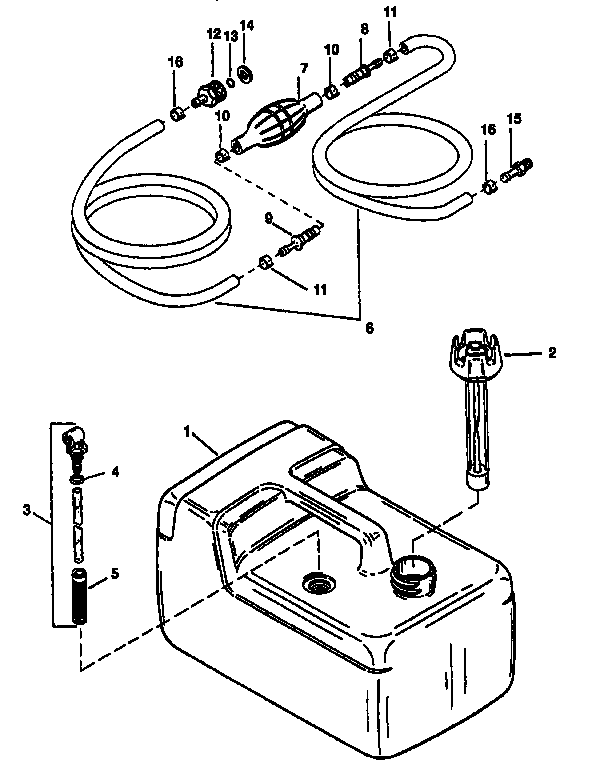

Fuel tank line (plastic-3.2 gal) diagram

Seal

Part #F17816

The manufacturer no longer makes this part, and there's no substitute part

Propeller 48-820110A20
#23

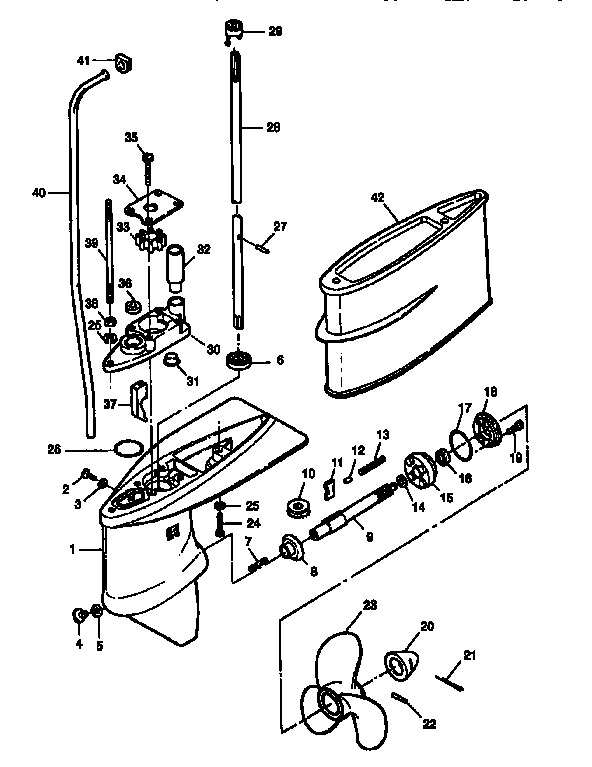

Gear housing diagram

Propeller

Part #48-820110A20

The manufacturer no longer makes this part, and there's no substitute part

Nut 11-64015
Nut

Part #11-64015

The manufacturer no longer makes this part, and there's no substitute part

Module Kit 300-819156T
#3

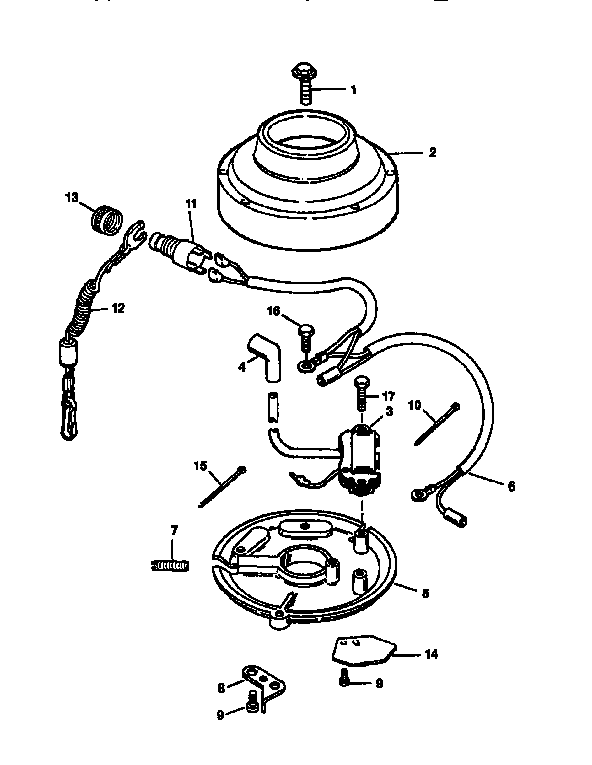

Ignition system diagram

Module kit

Part #300-819156T

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27-F24748-2
#9

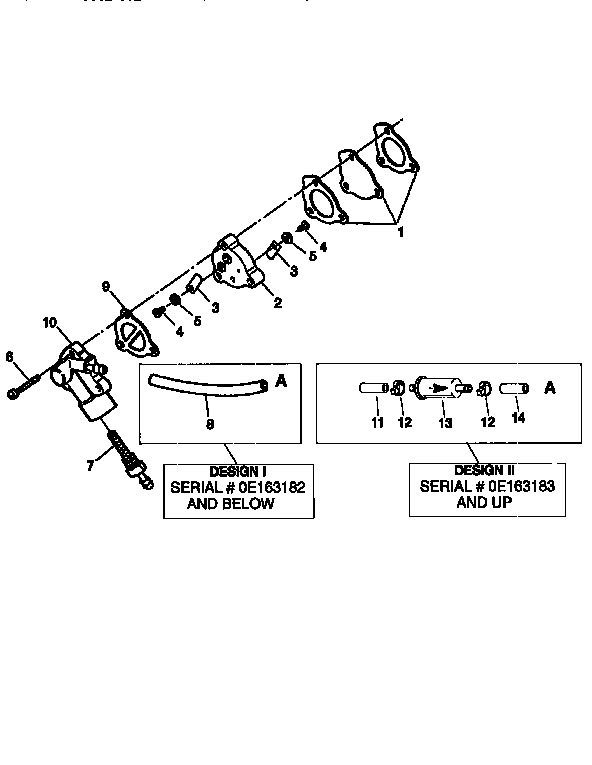

Fuel pump diagram

Gasket

Part #27-F24748-2

The manufacturer no longer makes this part, and there's no substitute part

Coupling 22-F197767-2
#9

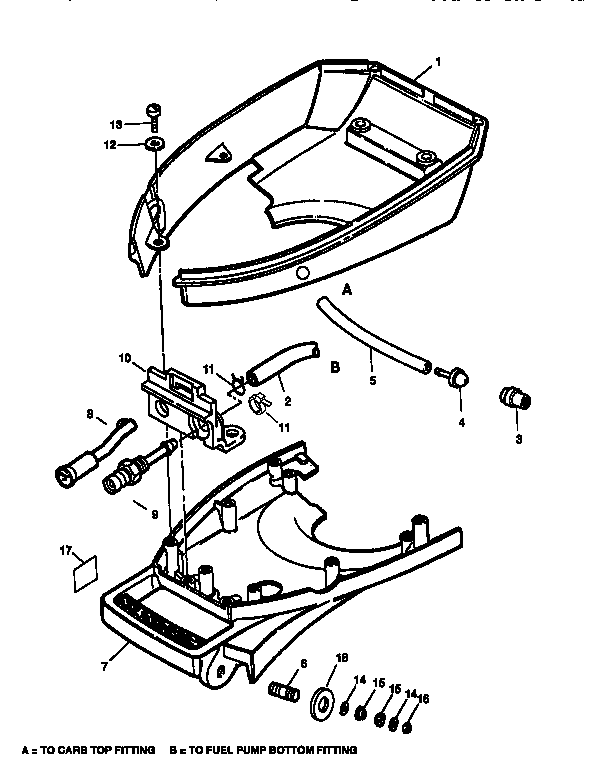

Bottom cowl and support plate diagram

Coupling

Part #22-F197767-2

The manufacturer no longer makes this part, and there's no substitute part
