Model # ET20GMXFW01 Official Whirlpool top-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool ET20GMXFW01 top-mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

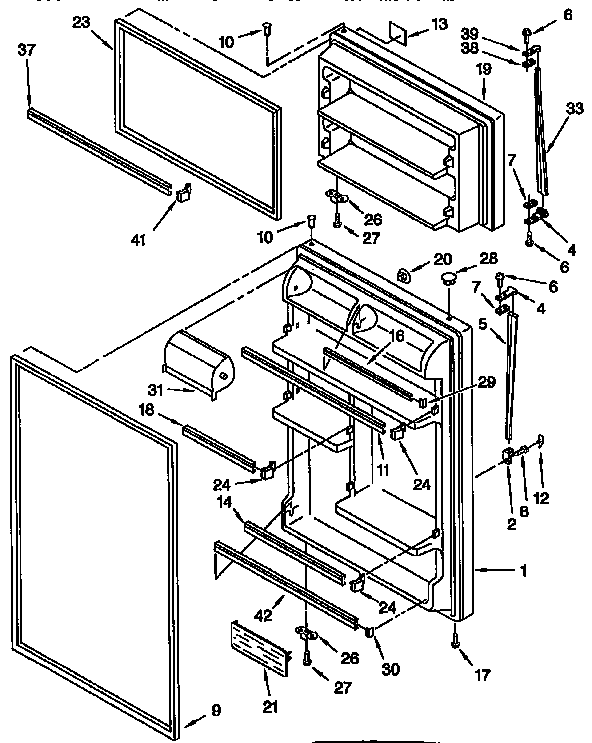

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
ET20GMXFW01 Refrigerators
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

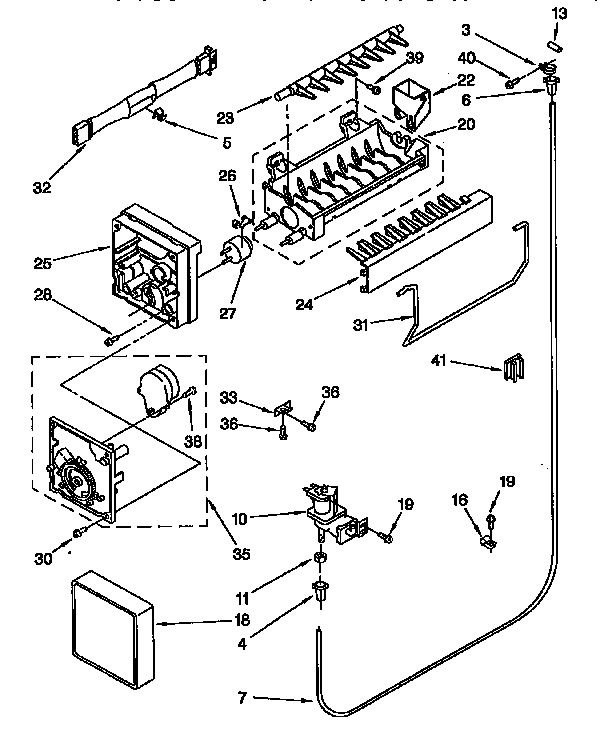

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

4.29 (82)
BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Light Bulb 527949
#17

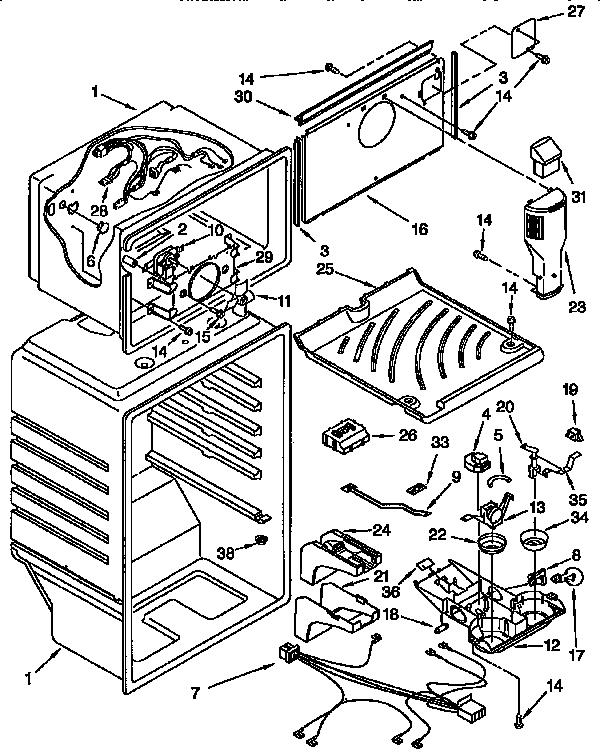

Liner diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
3.82 (11)
BEST SELLER
$24.42 |
20% OFF Phone Price : $30.42
In Stock
Refrigerator Defrost Timer 2193084
#4

Liner diagram

Refrigerator defrost timer

Part #2193084

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2193084. Substitute parts can look different from the original.
3.71 (17)
BEST SELLER
$27.82 |
18% OFF Phone Price : $33.82
In Stock
Drier Tube 2174865
#29

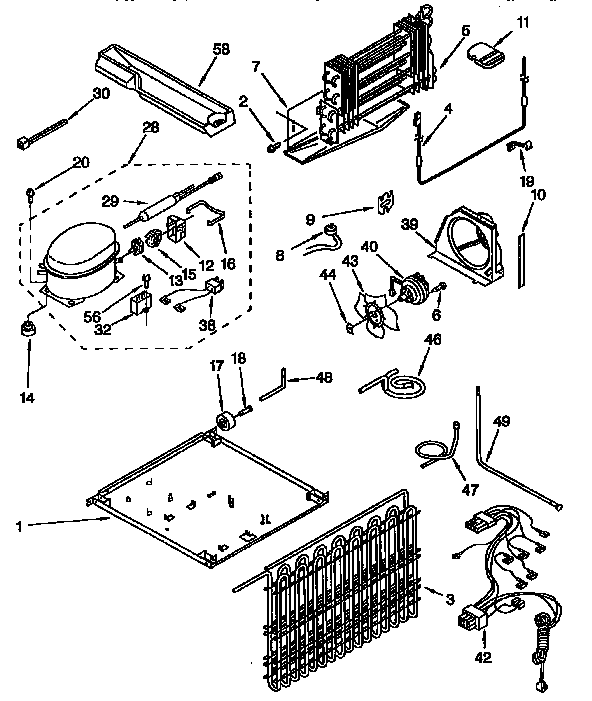

Unit diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Water Tube 2183156
#7

Icemaker diagram

Refrigerator water tube

Part #2183156

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 2183156. Substitute parts can look different from the original.
3 (7)
BEST SELLER
$27.43 |
18% OFF Phone Price : $33.43
In Stock
Refrigerator Crisper Pan 2166256
#24

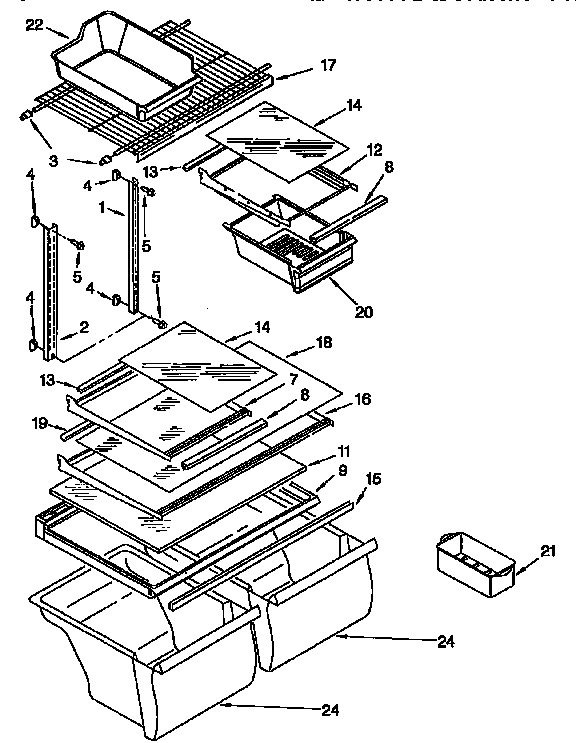

Shelf diagram

Refrigerator crisper pan

Part #2166256

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2166256. Substitute parts can look different from the original.
4.33 (33)
BEST SELLER
$84.90 |
7% OFF Phone Price : $90.90
In Stock
Refrigerator Inlet Valve 2182104
#10

Icemaker diagram

Refrigerator inlet valve

Part #2182104

Replaced by #WP2315576

?
Manufacturer substitution
This part replaces 2182104. Substitute parts can look different from the original.
4.1 (20)
BEST SELLER
$45.28 |
12% OFF Phone Price : $51.28
In Stock
Refrigerator Compressor 4387773
#28

Unit diagram

Refrigerator compressor

Part #4387773

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 4387773. Substitute parts can look different from the original.
5 (1)
BEST SELLER
$282.03 |
$12.00 OFF Phone Price : $294.03
In Stock
Condenser Motor 2176336
#40

Unit diagram

Condenser motor

Part #2176336

Replaced by #W10822259

?
Manufacturer substitution
This part replaces 2176336. Substitute parts can look different from the original.
4.68 (19)
BEST SELLER
$136.98 |
8% OFF Phone Price : $148.98
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
