Model # DSC-T30 Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-T30 digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Usb Cable 183084811
#NI

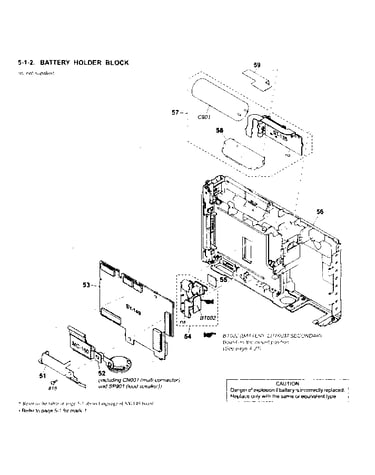

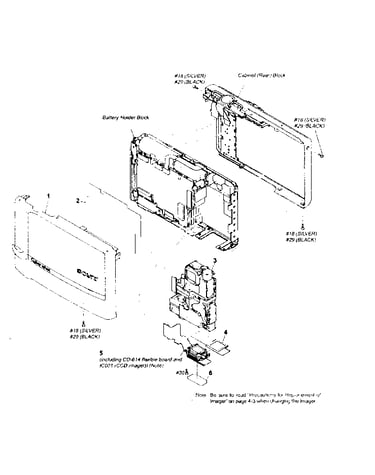

Cabinet/lens parts diagram

Usb cable

Part #183084811

The manufacturer no longer makes this part, and there's no substitute part

Battery,li 175656611
#BT00

Battery holder block diagram

Battery,li

Part #175656611

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670755501
#NI

Cabinet/lens parts diagram

Integrated circuit

Part #670755501

The manufacturer no longer makes this part, and there's no substitute part

Lsv-1110a A1167020A
#3

Cabinet/lens parts diagram

Lsv-1110a

Part #A1167020A

Replaced by #A1167020B

?
Manufacturer substitution
This part replaces A1167020A. Substitute parts can look different from the original.
In Stock
Transformer 144388011
#NI

Cabinet/lens parts diagram

Transformer

Part #144388011

Replaced by #144388011

?
Manufacturer substitution
This part replaces 144388011. Substitute parts can look different from the original.
In Stock
Sy-149 Board A1192561A
#53A

Battery holder block diagram

Sy-149 board

Part #A1192561A

The manufacturer no longer makes this part, and there's no substitute part

Cd-rom 267961701
#NI

Cabinet/lens parts diagram

Cd-rom

Part #267961701

The manufacturer no longer makes this part, and there's no substitute part

Capacitor, 106uf 315v 111413811
#C901

Battery holder block diagram

Capacitor, 106uf 315v

Part #111413811

The manufacturer no longer makes this part, and there's no substitute part

Ic001,ic Cxa3691en-t9 875323085
#NI

Cabinet/lens parts diagram

Ic001,ic cxa3691en-t9

Part #875323085

The manufacturer no longer makes this part, and there's no substitute part

Wriststrap 205098111
#NI

Cabinet/lens parts diagram

Wriststrap

Part #205098111

The manufacturer no longer makes this part, and there's no substitute part
