Model # SKF-540F Official Onkyo audio speakers

Here are the diagrams and repair parts for Official Onkyo SKF-540F audio speakers, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Cushion Panel 442-215107-00
#29

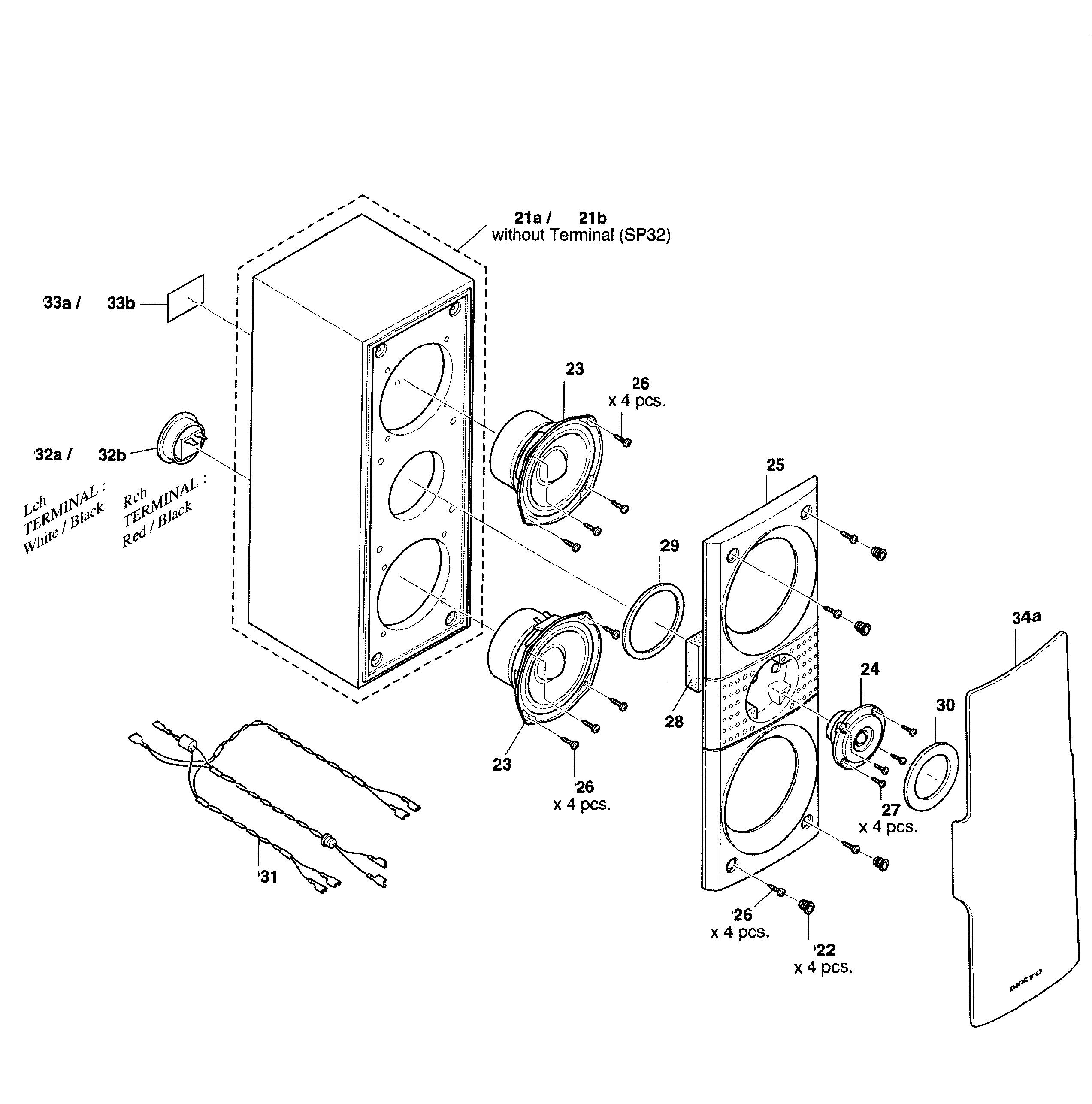

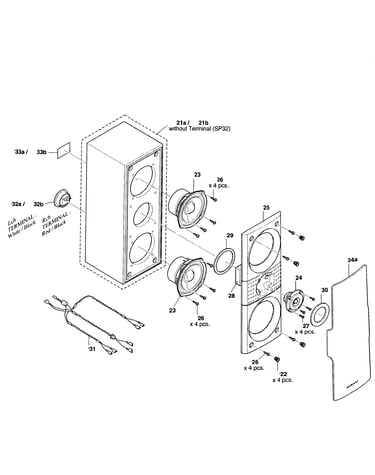

Speaker diagram

Cushion panel

Part #442-215107-00

The manufacturer no longer makes this part, and there's no substitute part

Speaker Left,complete 000-SKF540FLB
#NI

Speaker diagram

Speaker left,complete

Part #000-SKF540FLB

The manufacturer no longer makes this part, and there's no substitute part

Cushion Tw 442-904102-00
#30

Speaker diagram

Cushion tw

Part #442-904102-00

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assy,left 000-SKF540FBLSER
#21A

Speaker diagram

Cabinet assy,left

Part #000-SKF540FBLSER

The manufacturer no longer makes this part, and there's no substitute part

Woofer W1278A
#23

Speaker diagram

Woofer

Part #W1278A

The manufacturer no longer makes this part, and there's no substitute part

Cloth Frame Assy D201-F54001B-90
#34A

Speaker diagram

Cloth frame assy

Part #D201-F54001B-90

The manufacturer no longer makes this part, and there's no substitute part

Speaker Right,complete 000-SKF540FRB
#NI

Speaker diagram

Speaker right,complete

Part #000-SKF540FRB

The manufacturer no longer makes this part, and there's no substitute part

Catching Holder 230-S79001B-00
#22

Speaker diagram

Catching holder

Part #230-S79001B-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 411-PE4016AB2
#26

Speaker diagram

Screw

Part #411-PE4016AB2

The manufacturer no longer makes this part, and there's no substitute part

Panel D200-F54001S-10
#25

Speaker diagram

Panel

Part #D200-F54001S-10

The manufacturer no longer makes this part, and there's no substitute part
