Model # MC-V758200 Official Panasonic vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-V758200 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Panasonic Lowr Plate AC27ABYMZV07
#A-3

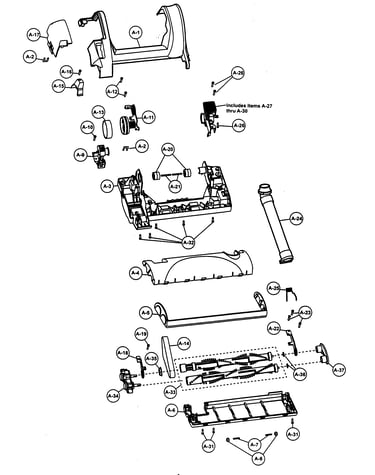

Nozzle housing diagram

Panasonic lowr plate

Part #AC27ABYMZV07

$46.99
In Stock
Panasonic Shaft AC16CBDNZ000
#C-11

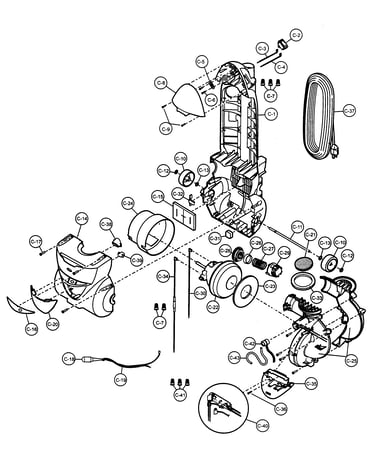

Motor housing/motor/body diagram

Panasonic shaft

Part #AC16CBDNZ000

$8.49
In Stock
Panasonic Dust Box AC40KBRNZV07
#C-1

Motor housing/motor/body diagram

Panasonic dust box

Part #AC40KBRNZV07

$71.49
In Stock
Panasonic Bushing AC64CBYMZ000
#A-35

Nozzle housing diagram

Panasonic bushing

Part #AC64CBYMZ000

$11.49
In Stock
Panasonic Handle AC23BBYMZV07
#D-9

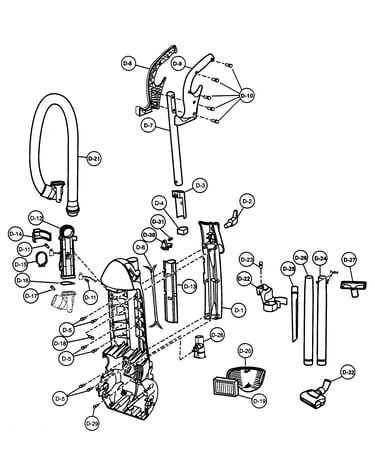

Body/handle/rear dust compartment diagram

Panasonic handle

Part #AC23BBYMZV07

$27.49
In Stock
Panasonic Cover AC06BBRNZV07
#E-2

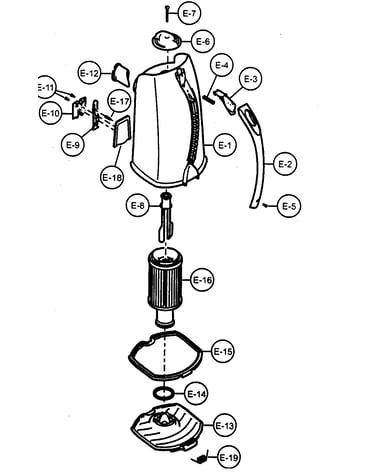

Dust bin diagram

Panasonic cover

Part #AC06BBRNZV07

$34.49
In Stock
Panasonic Indicator AC96MBRLZ000
#C-42

Motor housing/motor/body diagram

Panasonic indicator

Part #AC96MBRLZ000

$30.99
In Stock
Panasonic Shaft AC16CBYMZ000
#A-7

Nozzle housing diagram

Panasonic shaft

Part #AC16CBYMZ000

$9.49
In Stock
Panasonic Panasonic Motor Case AC09FBRNZG09
#C-14

Motor housing/motor/body diagram

Panasonic panasonic motor case

Part #AC09FBRNZG09

$38.49
In Stock
Panasonic Panasonic Tube AC30JBRNZV07
#D-12

Body/handle/rear dust compartment diagram

Panasonic panasonic tube

Part #AC30JBRNZV07

$16.49
In Stock
