Model # ECRT52 Official AO Smith water heater

Here are the diagrams and repair parts for Official AO Smith ECRT52 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Element 042285-025
#6

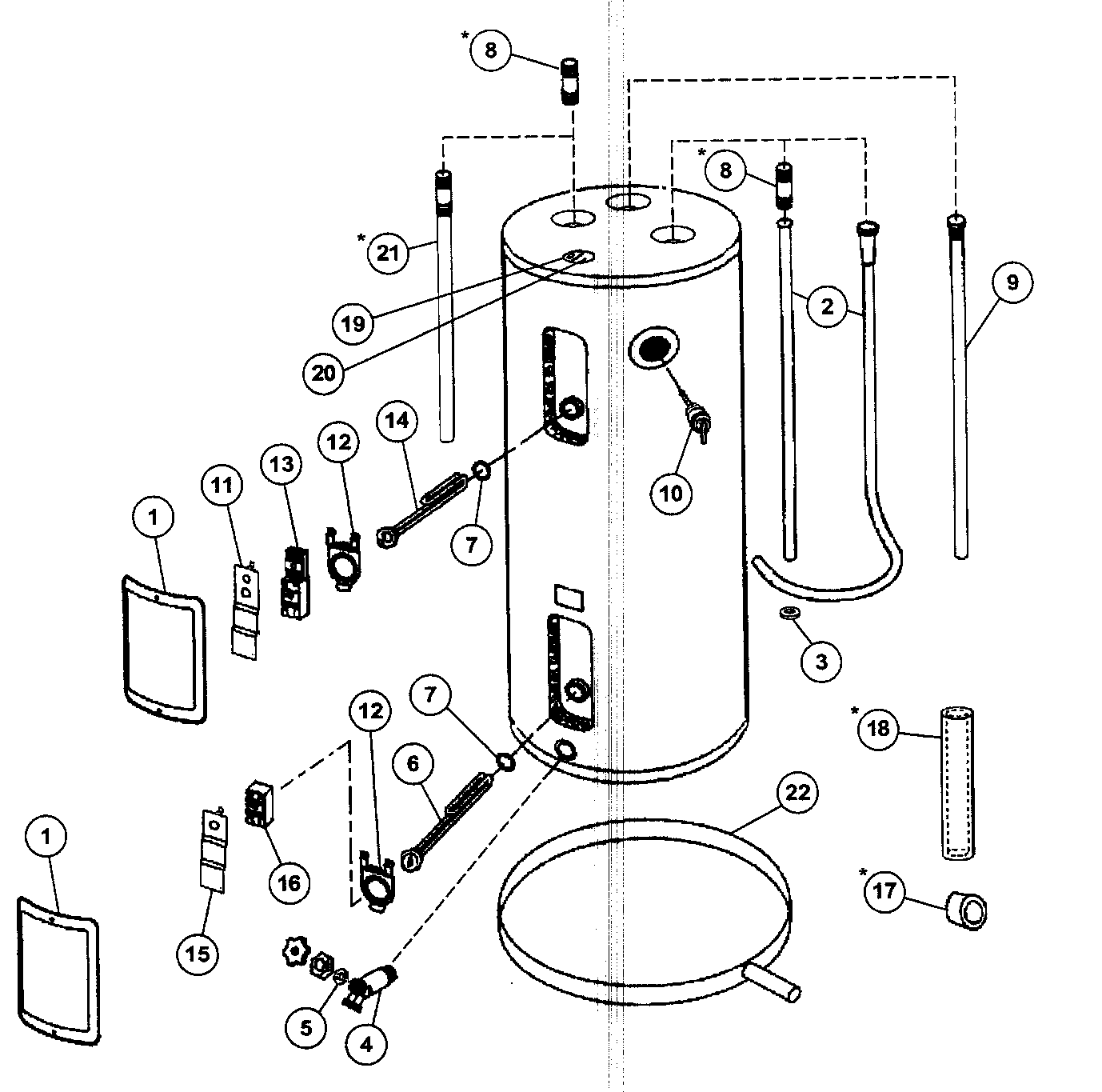

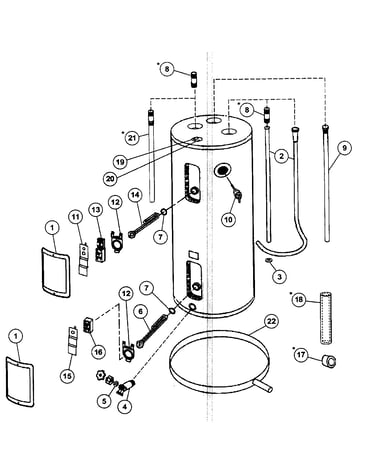

Cabinet parts diagram

Element

Part #042285-025

Replaced by #100108290

?
Manufacturer substitution
This part replaces 042285-025. Substitute parts can look different from the original.
$33.33
In Stock
Owner's Manual 184639-000
#NI

Cabinet parts diagram

Owner's manual

Part #184639-000

$9.99
In Stock
Terminal Cover 182360-000
#15

Cabinet parts diagram

Terminal cover

Part #182360-000

Replaced by #100109598

?
Manufacturer substitution
This part replaces 182360-000. Substitute parts can look different from the original.
$22.86
In Stock
Nipple 184715-001
#8

Cabinet parts diagram

Nipple

Part #184715-001

Replaced by #100109621

?
Manufacturer substitution
This part replaces 184715-001. Substitute parts can look different from the original.
$41.11
In Stock
Element 042286-021
#14

Cabinet parts diagram

Element

Part #042286-021

Replaced by #100108283

?
Manufacturer substitution
This part replaces 042286-021. Substitute parts can look different from the original.
$27.14
In Stock
Thermostat 182354-000
#13

Cabinet parts diagram

Thermostat

Part #182354-000

Replaced by #100109846

?
Manufacturer substitution
This part replaces 182354-000. Substitute parts can look different from the original.
$53.33
In Stock
Box Cover 184660-000
#20

Cabinet parts diagram

Box cover

Part #184660-000

Replaced by #184660-000

?
Manufacturer substitution
This part replaces 184660-000. Substitute parts can look different from the original.
$17.99
In Stock
Relief Valve 043151-004
#10

Cabinet parts diagram

Relief valve

Part #043151-004

Replaced by #9001583015

?
Manufacturer substitution
This part replaces 043151-004. Substitute parts can look different from the original.
$29.95
In Stock
Drain Valve 026273-004
#4

Cabinet parts diagram

Drain valve

Part #026273-004

Replaced by #9009086015

?
Manufacturer substitution
This part replaces 026273-004. Substitute parts can look different from the original.
$19.49
In Stock
Anode Rod 183523-026
#9

Cabinet parts diagram

Anode rod

Part #183523-026

Replaced by #100109624

?
Manufacturer substitution
This part replaces 183523-026. Substitute parts can look different from the original.
$31.11
In Stock
