Whirlpool
Electric Wall Oven

Model # WOS52ES4MZ00 Official Whirlpool electric wall oven

Here are the diagrams and repair parts for Official Whirlpool WOS52ES4MZ00 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Motor-fan W11347858
#7

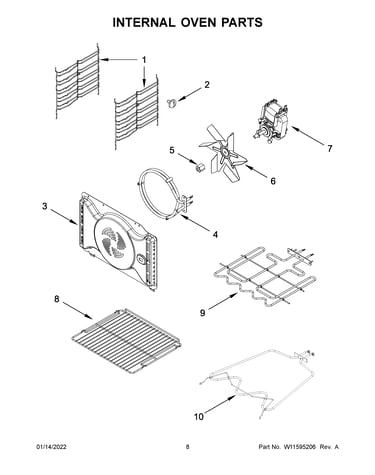

Internal oven parts diagram

Motor-fan

Part #W11347858

$157.82
In Stock
Vent, Door Trim Top W10518369
#1

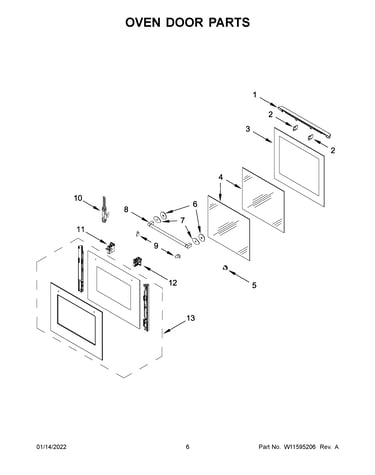

Oven door parts diagram

Vent, door trim top

Part #W10518369

$52.80
In Stock
Alu Fan Cavi W10901438
#6

Internal oven parts diagram

Alu fan cavi

Part #W10901438

$54.64
In Stock
Nut Cavity F W10901439
#5

Internal oven parts diagram

Nut cavity f

Part #W10901439

$9.82
In Stock
Spacer, Door Trim Top W10518307
#2

Oven door parts diagram

Spacer, door trim top

Part #W10518307

$12.59
In Stock
Handle, Door (white) W11594201
#8

Oven door parts diagram

Handle, door (white)

Part #W11594201

$100.39 |
11% OFF Phone Price : $112.39
In Stock
Handle, Door (black) W11594197
#8A

Oven door parts diagram

Handle, door (black)

Part #W11594197

$83.63
In Stock
Harness, Main W11594182
#NI

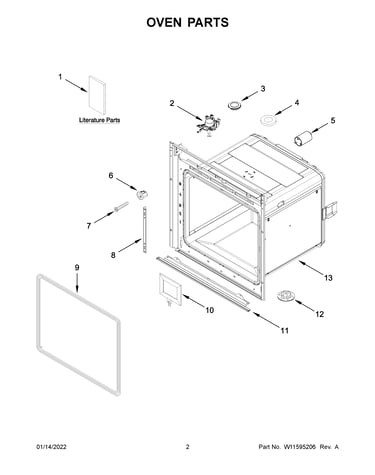

Oven parts diagram

Harness, main

Part #W11594182

$183.87
In Stock
Harns-wire W11348035
#2

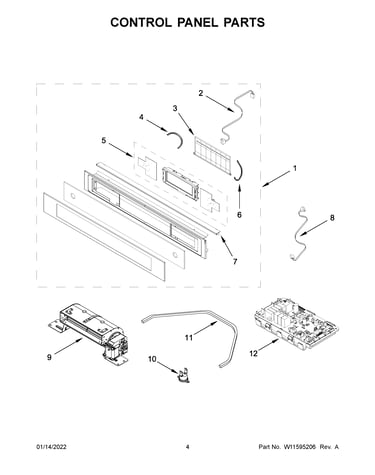

Control panel parts diagram

Harns-wire

Part #W11348035

$28.96
In Stock
Gasket, Blower Motor W10519009
#11

Control panel parts diagram

Gasket, blower motor

Part #W10519009

$13.15
In Stock
