Panasonic
Speaker

Model # SB-HC190P Official Panasonic audio speakers

Here are the diagrams and repair parts for Official Panasonic SB-HC190P audio speakers, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Screw XTB312GFJ
Screw

Part #XTB312GFJ

The manufacturer no longer makes this part, and there's no substitute part

Piezo Cove RMQX1085-K
#29

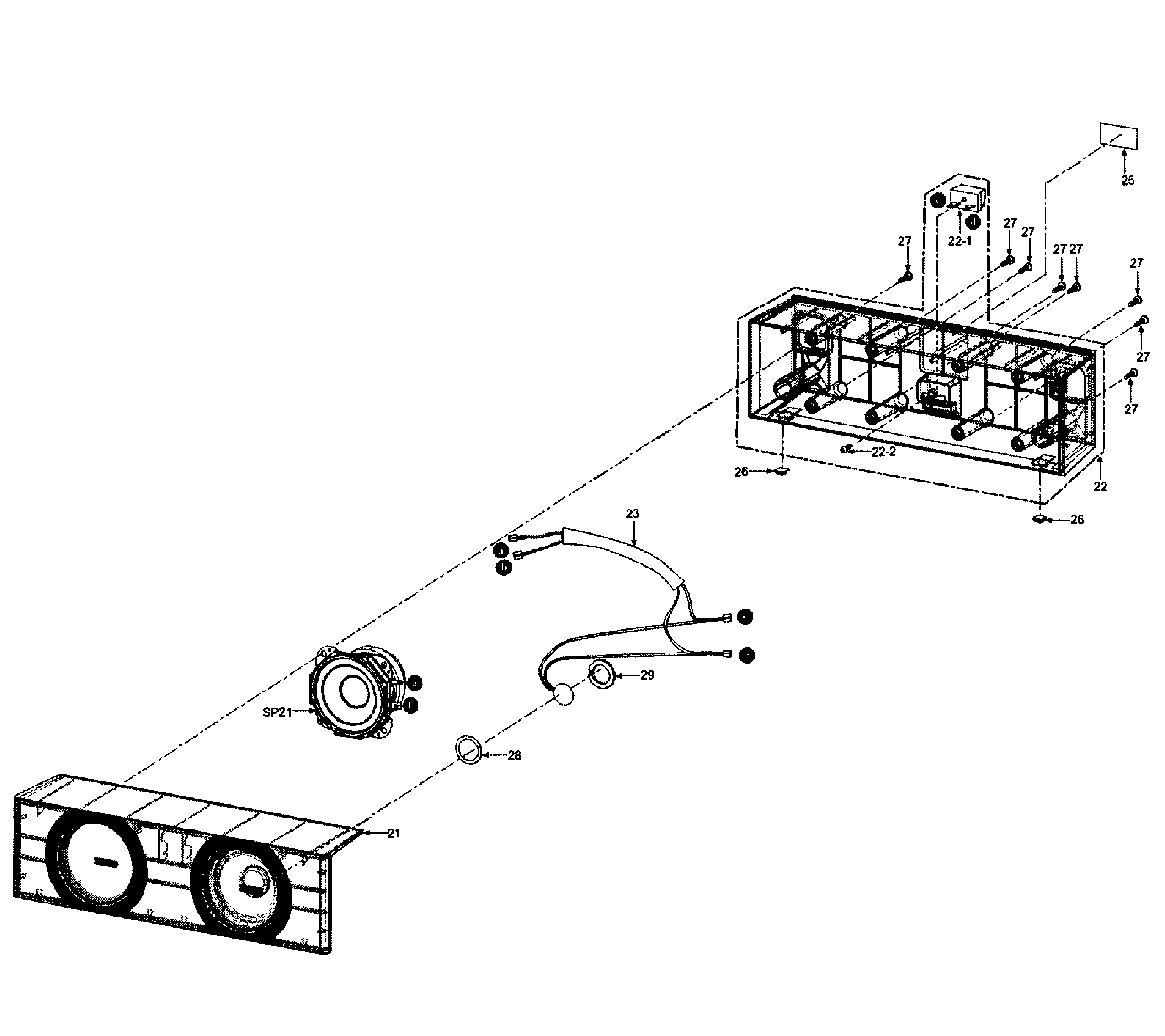

Speaker diagram

Piezo cove

Part #RMQX1085-K

The manufacturer no longer makes this part, and there's no substitute part

Rear Cabinet RYK1667-KJ
#22

Speaker diagram

Rear cabinet

Part #RYK1667-KJ

The manufacturer no longer makes this part, and there's no substitute part

Piezo Cap RMQ2019
#28

Speaker diagram

Piezo cap

Part #RMQ2019

The manufacturer no longer makes this part, and there's no substitute part

Full Range L0AA06A00086
#SP21

Speaker diagram

Full range

Part #L0AA06A00086

The manufacturer no longer makes this part, and there's no substitute part

Transit Wi REE1649
#23

Speaker diagram

Transit wi

Part #REE1649

The manufacturer no longer makes this part, and there's no substitute part

Leg RKAX0042-K
#26

Speaker diagram

Leg

Part #RKAX0042-K

The manufacturer no longer makes this part, and there's no substitute part

Panel RYP1719-K
#21

Speaker diagram

Panel

Part #RYP1719-K

The manufacturer no longer makes this part, and there's no substitute part

Spec Label RGN3112-K
#25

Speaker diagram

Spec label

Part #RGN3112-K

The manufacturer no longer makes this part, and there's no substitute part

Terminal K4BC02B00017
#22-1

Speaker diagram

Terminal

Part #K4BC02B00017

The manufacturer no longer makes this part, and there's no substitute part
