Craftsman
Power Drill

Model # 90027103 Official Craftsman 3/8" industrial drill/driver

Here are the diagrams and repair parts for Official Craftsman 90027103 3/8" industrial drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Retain Ring 700833-00
#42

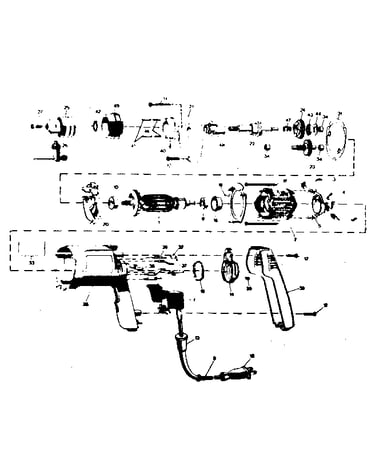

Unit parts diagram

Retain ring

Part #700833-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Drill Motor Brush Spring 445860-00
#4

Unit parts diagram

Sears drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Screw 448269-00
#17

Unit parts diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Cont Strip 445882-00
#37

Unit parts diagram

Sears cont strip

Part #445882-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 45550-00
#47

Unit parts diagram

Spring

Part #45550-00

The manufacturer no longer makes this part, and there's no substitute part

Clutch Gear 445362-00
#24

Unit parts diagram

Clutch gear

Part #445362-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 132663-00
#46

Unit parts diagram

Spring

Part #132663-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Power Tool 2-prong Power Cord 448557-98
#8

Unit parts diagram

Brinley power tool 2-prong power cord

Part #448557-98

The manufacturer no longer makes this part, and there's no substitute part

Slv Bearing 131557-00
#34

Unit parts diagram

Slv bearing

Part #131557-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Plug 234900-02
#18

Unit parts diagram

Sears plug

Part #234900-02

The manufacturer no longer makes this part, and there's no substitute part
