Kenmore
Gas Range

Model # 3626111191 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 3626111191 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Igniter WB13K0001
#218

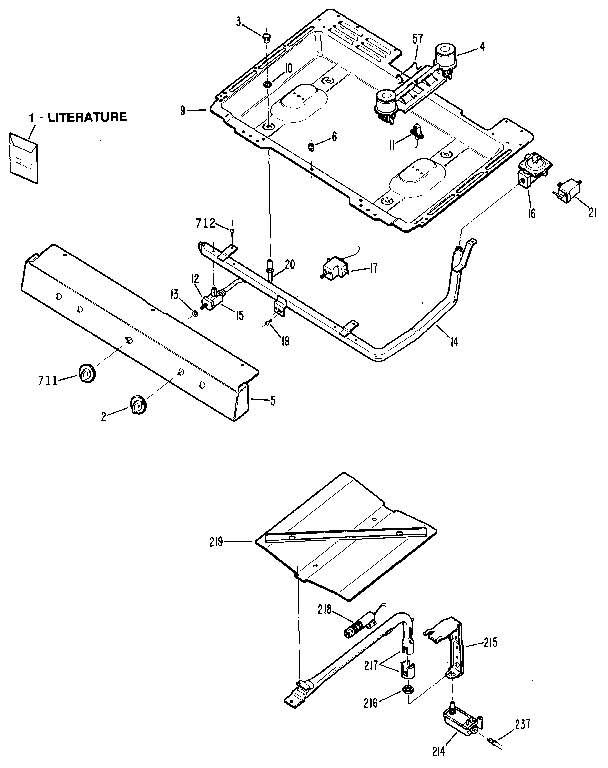

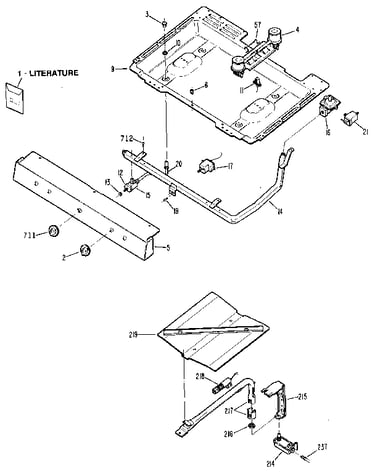

Burner box assembly diagram

Igniter

Part #WB13K0001

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0001. Substitute parts can look different from the original.
BEST SELLER
$86.63 |
6% OFF Phone Price : $92.63
Back Order
Double Burner WB29K0017
#4

Burner box assembly diagram

Double burner

Part #WB29K0017

Replaced by #WB16K10026

?
Manufacturer substitution
This part replaces WB29K0017. Substitute parts can look different from the original.
$55.13 |
10% OFF Phone Price : $61.13
Back Order
Rangetop Wh WB62K0016
#114

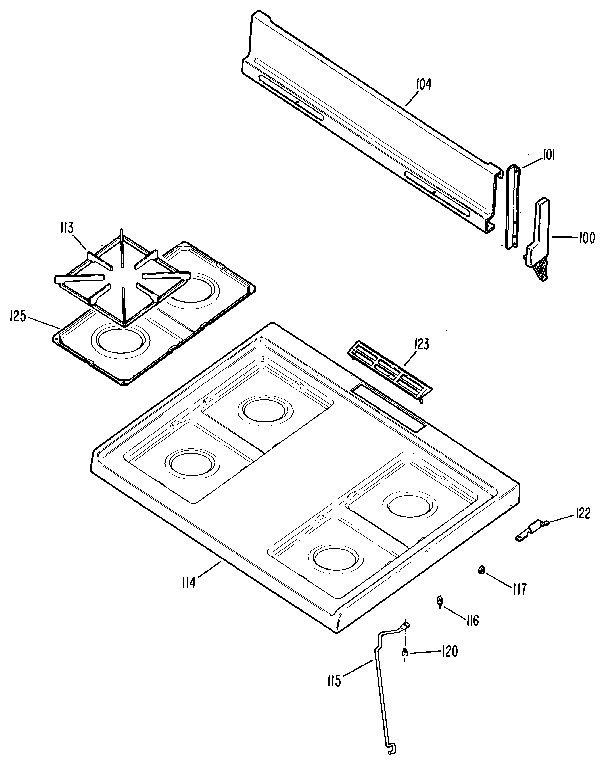

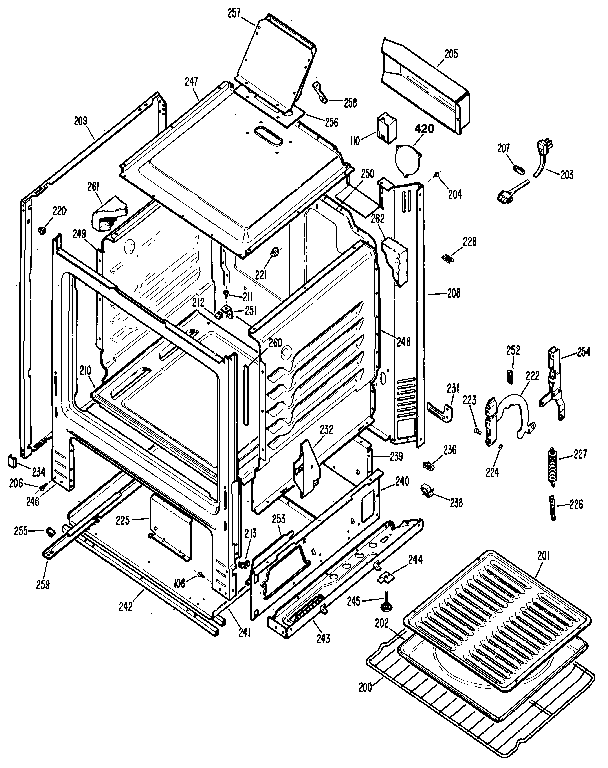

Cabinet diagram

Rangetop wh

Part #WB62K0016

Replaced by #WB62K10001

?
Manufacturer substitution
This part replaces WB62K0016. Substitute parts can look different from the original.
$204.83 |
6% OFF Phone Price : $216.83
In Stock
Screw WB01K0021
#206

Range top diagram

Screw

Part #WB01K0021

Replaced by #WR01X10065

?
Manufacturer substitution
This part replaces WB01K0021. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Washer WB01X0119
#312

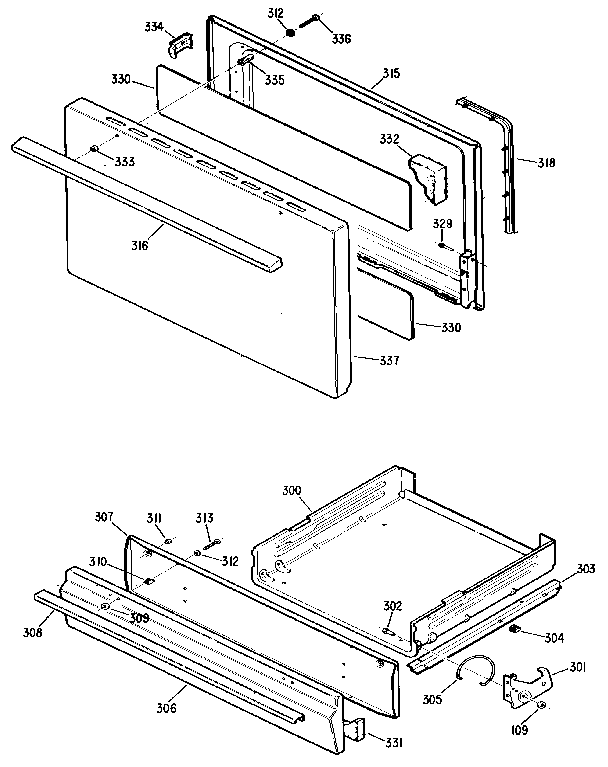

Door and broiler assembly diagram

Washer

Part #WB01X0119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB01X0119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Valve Cover WB02K0024
#13

Burner box assembly diagram

Valve cover

Part #WB02K0024

Replaced by #WB2K24

?
Manufacturer substitution
This part replaces WB02K0024. Substitute parts can look different from the original.
This item is not returnable
$27.25 |
18% OFF Phone Price : $33.25
In Stock
Handle WB15K0004
#316

Door and broiler assembly diagram

Handle

Part #WB15K0004

Replaced by #WB15K1

?
Manufacturer substitution
This part replaces WB15K0004. Substitute parts can look different from the original.
$24.98 |
19% OFF Phone Price : $30.98
In Stock
Insul Ovback WB35K0016
#262

Range top diagram

Insul ovback

Part #WB35K0016

Replaced by #WB35K16

?
Manufacturer substitution
This part replaces WB35K0016. Substitute parts can look different from the original.
$36.35 |
14% OFF Phone Price : $42.35
In Stock
Spacer WB02K0014
#310

Door and broiler assembly diagram

Spacer

Part #WB02K0014

Replaced by #WB2K14

?
Manufacturer substitution
This part replaces WB02K0014. Substitute parts can look different from the original.
This item is not returnable
$8.11
In Stock
Hinge Gd Rgt WB14K0006
#122

Cabinet diagram

Hinge gd rgt

Part #WB14K0006

Replaced by #WB10K18

?
Manufacturer substitution
This part replaces WB14K0006. Substitute parts can look different from the original.
$8.11
In Stock
