Model # 3639600210 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 3639600210 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Dryer Assembly WR86X0086
#740

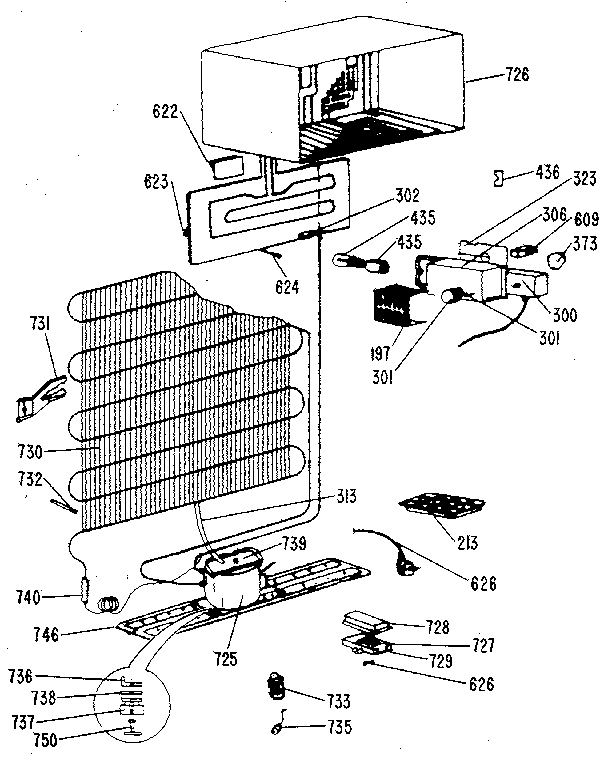

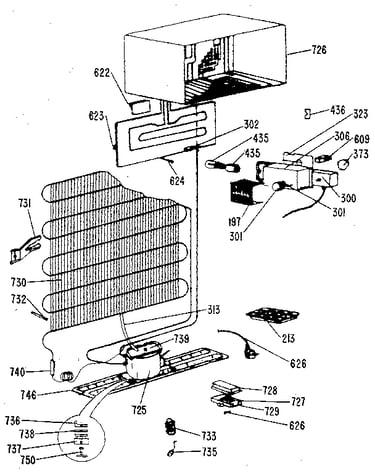

Unit diagram

Dryer assembly

Part #WR86X0086

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0086. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Kenmore Socket WR23X5180
#435A

Unit diagram

Kenmore socket

Part #WR23X5180

$40.00
In Stock
Kenmore Refrigerator Parts List SR3290
#1B

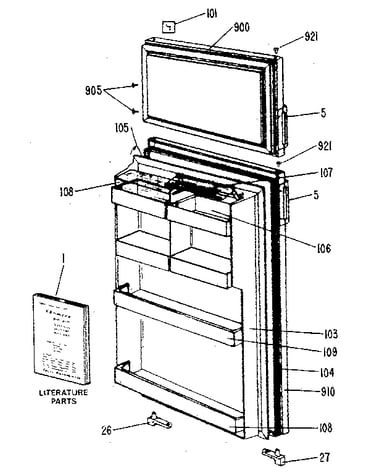

Door diagram

Kenmore refrigerator parts list

Part #SR3290

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Refrigerator Technical Sheet SR2604
#1A

Door diagram

Refrigerator technical sheet

Part #SR2604

The manufacturer no longer makes this part, and there's no substitute part

Foot WR02X8319
#287

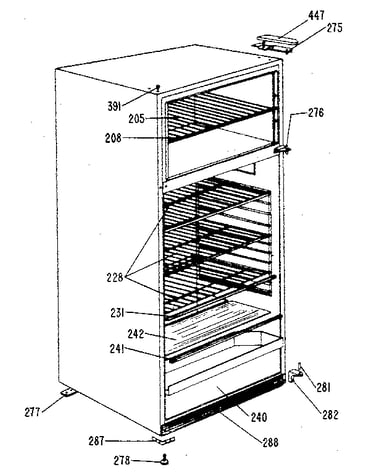

Cabinet diagram

Foot

Part #WR02X8319

Replaced by #WR2X8319

?
Manufacturer substitution
This part replaces WR02X8319. Substitute parts can look different from the original.
$25.01
In Stock
Refrigerator Knob WR02X8325
#301

Unit diagram

Refrigerator knob

Part #WR02X8325

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Leveling Leg WR02X8302
#278

Cabinet diagram

Refrigerator leveling leg

Part #WR02X8302

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Nameplate WR04X0198
#101

Door diagram

Refrigerator nameplate

Part #WR04X0198

The manufacturer no longer makes this part, and there's no substitute part

Panel WR77X5695
#103

Door diagram

Panel

Part #WR77X5695

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Glass Cover WR32X5376
#242

Cabinet diagram

Refrigerator glass cover

Part #WR32X5376

The manufacturer no longer makes this part, and there's no substitute part
