Hoover
Floor Scrubber

Model # H3032 Official Hoover floor scrubber

Here are the diagrams and repair parts for Official Hoover H3032 floor scrubber, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

Hood 93001037
#1

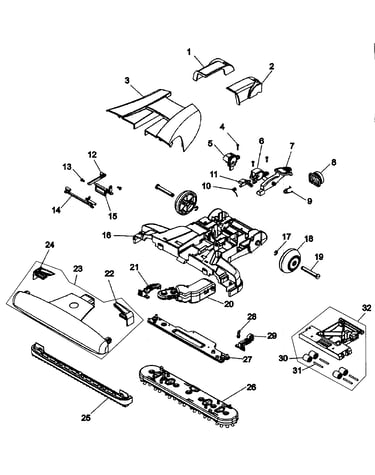

Base assy diagram

Hood

Part #93001037

The manufacturer no longer makes this part, and there's no substitute part

Retainer 93001127
#15

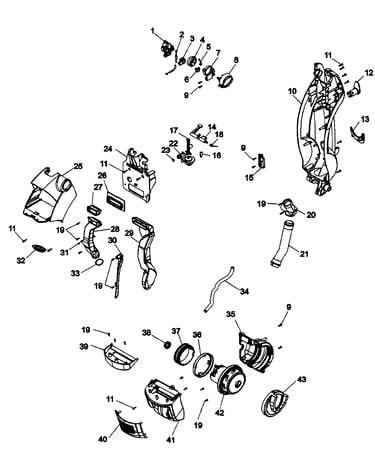

Main assy diagram

Retainer

Part #93001127

The manufacturer no longer makes this part, and there's no substitute part

Actuator 93001121
#4

Main assy diagram

Actuator

Part #93001121

The manufacturer no longer makes this part, and there's no substitute part

Liftr Link 93001068
#12

Base assy diagram

Liftr link

Part #93001068

The manufacturer no longer makes this part, and there's no substitute part

Left Latch 93001087
#29

Base assy diagram

Left latch

Part #93001087

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Valve Spring 93001150
#20

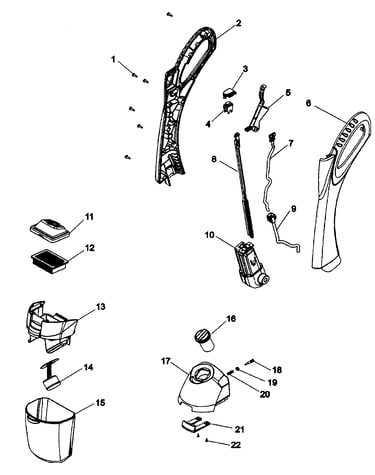

Handle assy diagram

Carpet cleaner solution valve spring

Part #93001150

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 93001116
#6

Handle assy diagram

Vacuum handle

Part #93001116

The manufacturer no longer makes this part, and there's no substitute part

Lever 93001109
#5

Handle assy diagram

Lever

Part #93001109

The manufacturer no longer makes this part, and there's no substitute part

Hood 93001040
#2

Base assy diagram

Hood

Part #93001040

The manufacturer no longer makes this part, and there's no substitute part

Tank Housing 93001129
#10

Main assy diagram

Tank housing

Part #93001129

The manufacturer no longer makes this part, and there's no substitute part
