Eureka
Upright Vacuum

Model # 4466DTV Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4466DTV upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Kenmore Bag Level Indicator 37761-2
#40

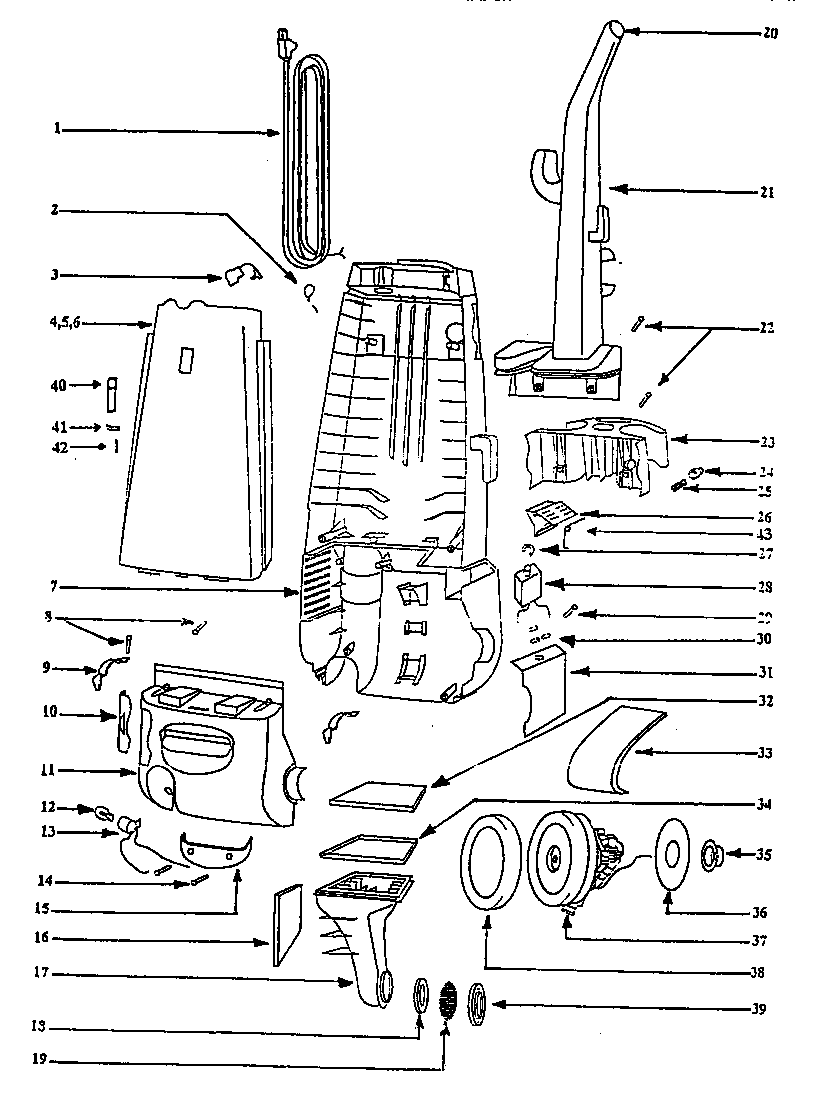

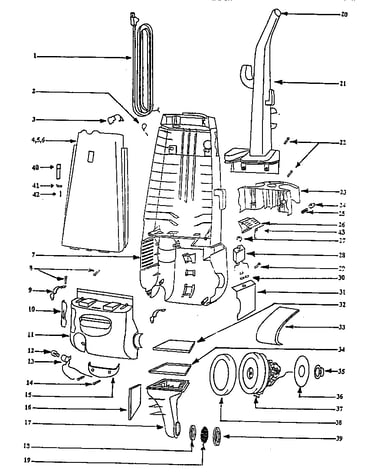

Handle and bag housing diagram

Kenmore bag level indicator

Part #37761-2

The manufacturer no longer makes this part, and there's no substitute part

Gasket 38613
#6

Handle and bag housing diagram

Gasket

Part #38613

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 15234-288N
#13

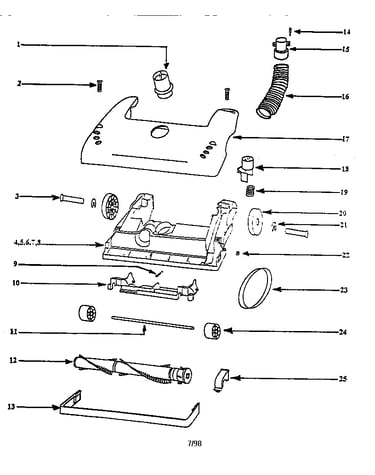

Base assembly diagram

Vacuum furniture guard

Part #15234-288N

The manufacturer no longer makes this part, and there's no substitute part

Motor Shield 38688
#36

Handle and bag housing diagram

Motor shield

Part #38688

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-2
#6

Base assembly diagram

Gasket

Part #58506-2

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#15

Handle and bag housing diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, 1-pack 38755
#16

Handle and bag housing diagram

Vacuum filter, 1-pack

Part #38755

The manufacturer no longer makes this part, and there's no substitute part

Screw 53238-1
#42

Handle and bag housing diagram

Screw

Part #53238-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 38479-2
#16

Base assembly diagram

Vacuum hose

Part #38479-2

The manufacturer no longer makes this part, and there's no substitute part

Shield 38689-2
#31

Handle and bag housing diagram

Shield

Part #38689-2

The manufacturer no longer makes this part, and there's no substitute part
