Drill Press

Model # 12447747 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 12447747 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Craftsman Angle Scale 2101900200
#69

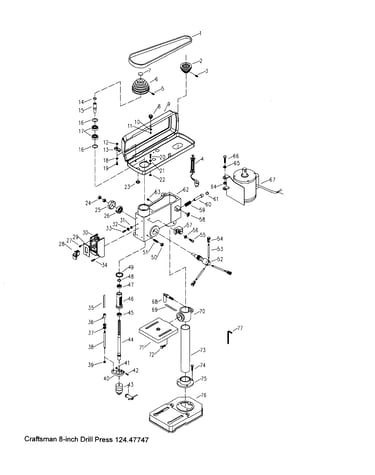

Drill asy diagram

Craftsman angle scale

Part #2101900200

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Belt House Knob 2111400100
#8

Drill asy diagram

Craftsman belt house knob

Part #2111400100

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Knob 2114400200
#54

Drill asy diagram

Craftsman knob

Part #2114400200

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Depth Rod 2101800100
#38

Drill asy diagram

Craftsman depth rod

Part #2101800100

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Hex Nut 34106
#39

Drill asy diagram

Craftsman hex nut

Part #34106

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 34108
Hex nut

Part #34108

The manufacturer no longer makes this part, and there's no substitute part

Chuck With Key 38JT33
#43

Drill asy diagram

Chuck with key

Part #38JT33

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 31708008
#63

Drill asy diagram

Set screw

Part #31708008

The manufacturer no longer makes this part, and there's no substitute part

Motor Pulley 2101100110
#2

Drill asy diagram

Motor pulley

Part #2101100110

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 2101600101
#15

Drill asy diagram

Sleeve

Part #2101600101

The manufacturer no longer makes this part, and there's no substitute part
