Model # CXH530GKA100 Official ICP split-system heat pump

Here are the diagrams and repair parts for Official ICP CXH530GKA100 split-system heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Central Air Conditioner Condenser Electronic Control Board (replaces 1086071) 1088977
#21

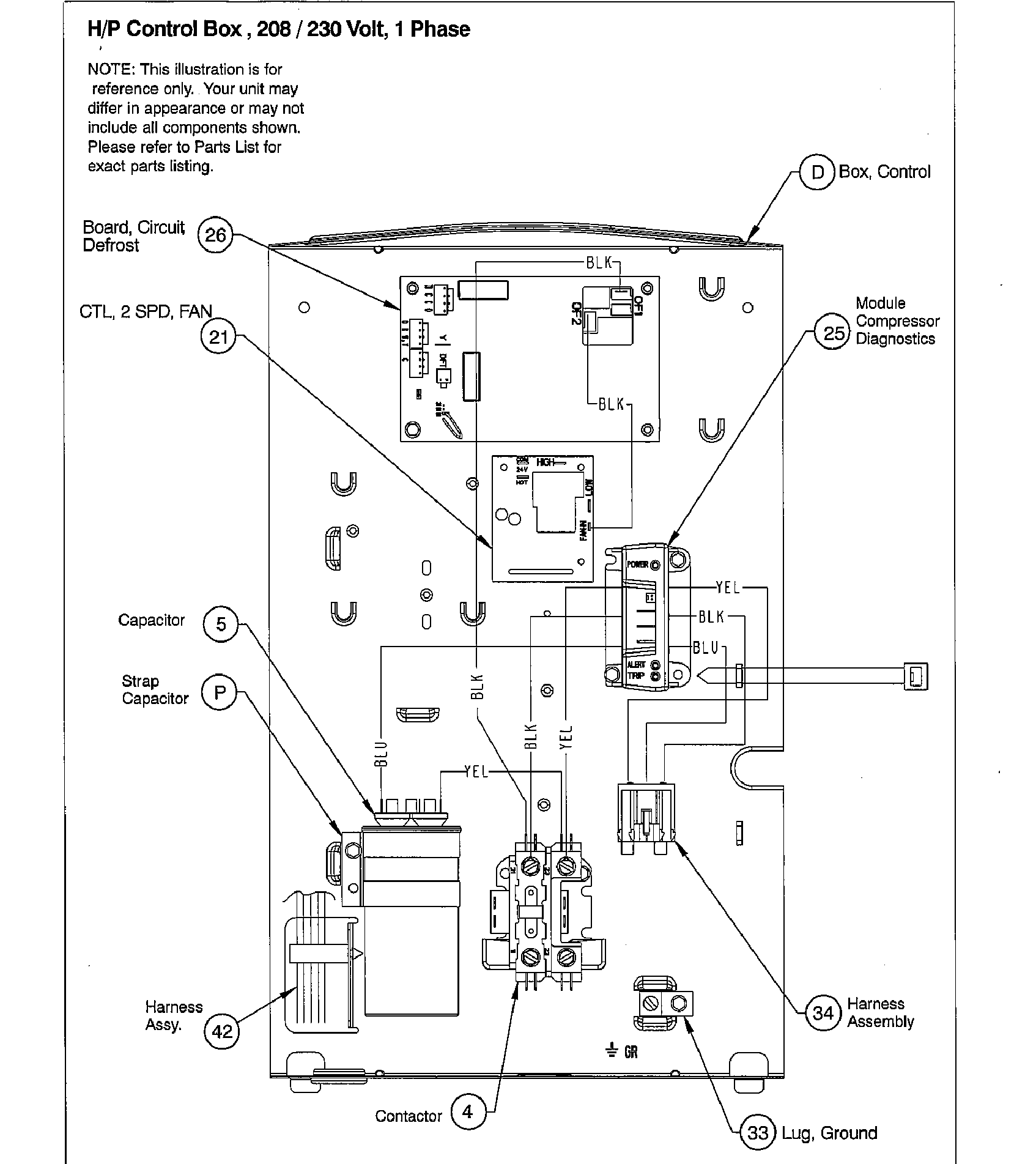

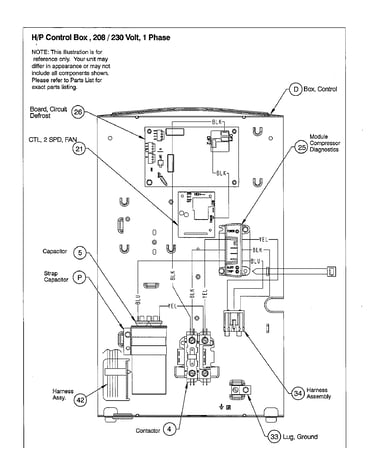

Control panel diagram

Central air conditioner condenser electronic control board (replaces 1086071)

Part #1088977

$85.61 |
7% OFF Phone Price : $91.61
In Stock
Condensing Unit Defrost Control Board 1173636
#26

Control panel diagram

Condensing unit defrost control board

Part #1173636

$174.11 |
6% OFF Phone Price : $186.11
In Stock
Fan Blade 1174940
#3

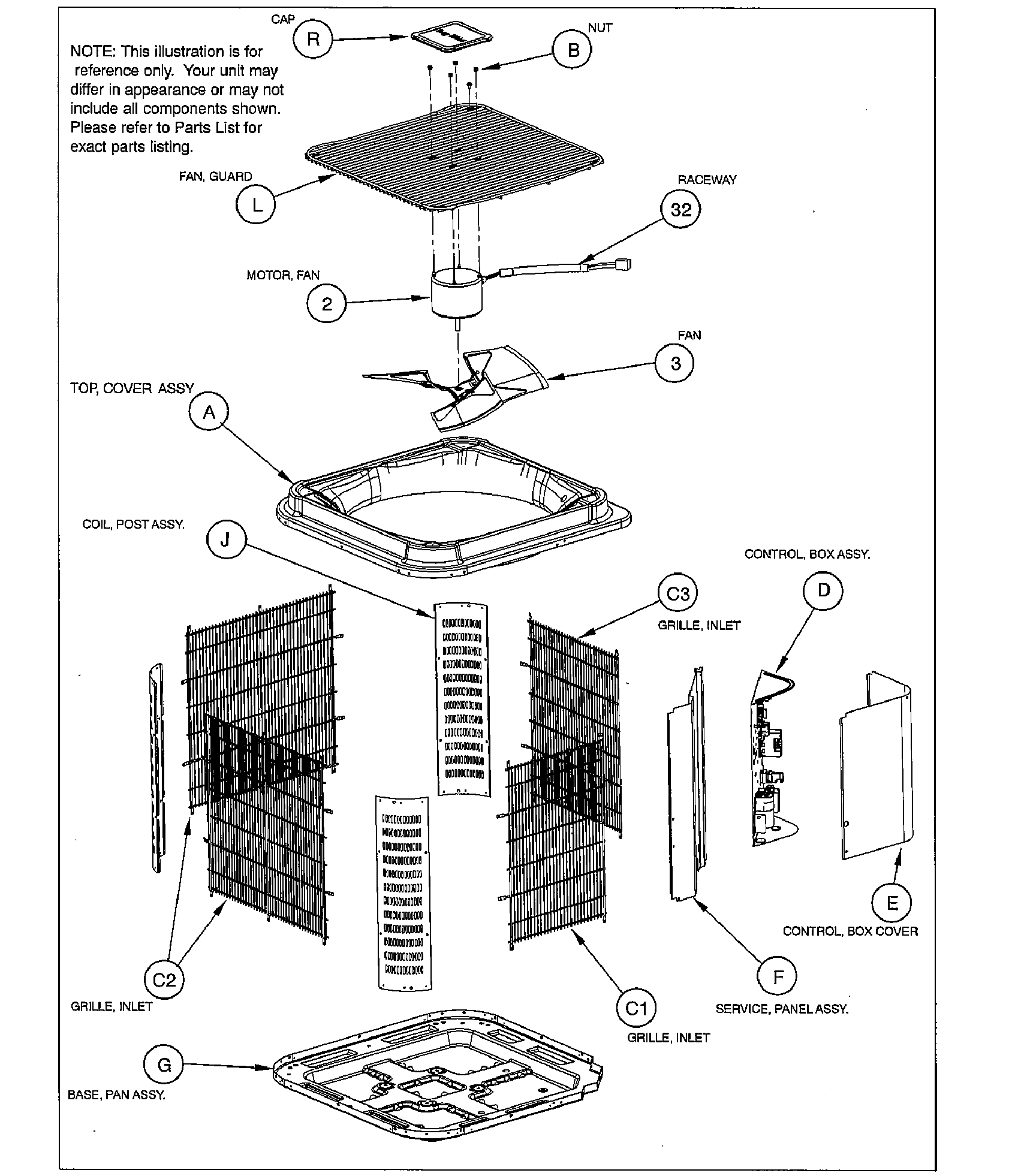

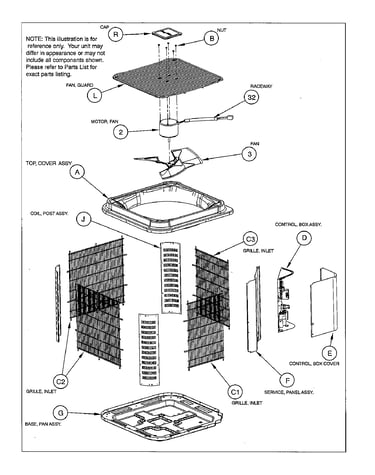

Cabinet diagram

Fan blade

Part #1174940

$106.46
In Stock
Guard Fan 1178573
#L

Cabinet diagram

Guard fan

Part #1178573

$269.62
In Stock
Clip 1173640
#30

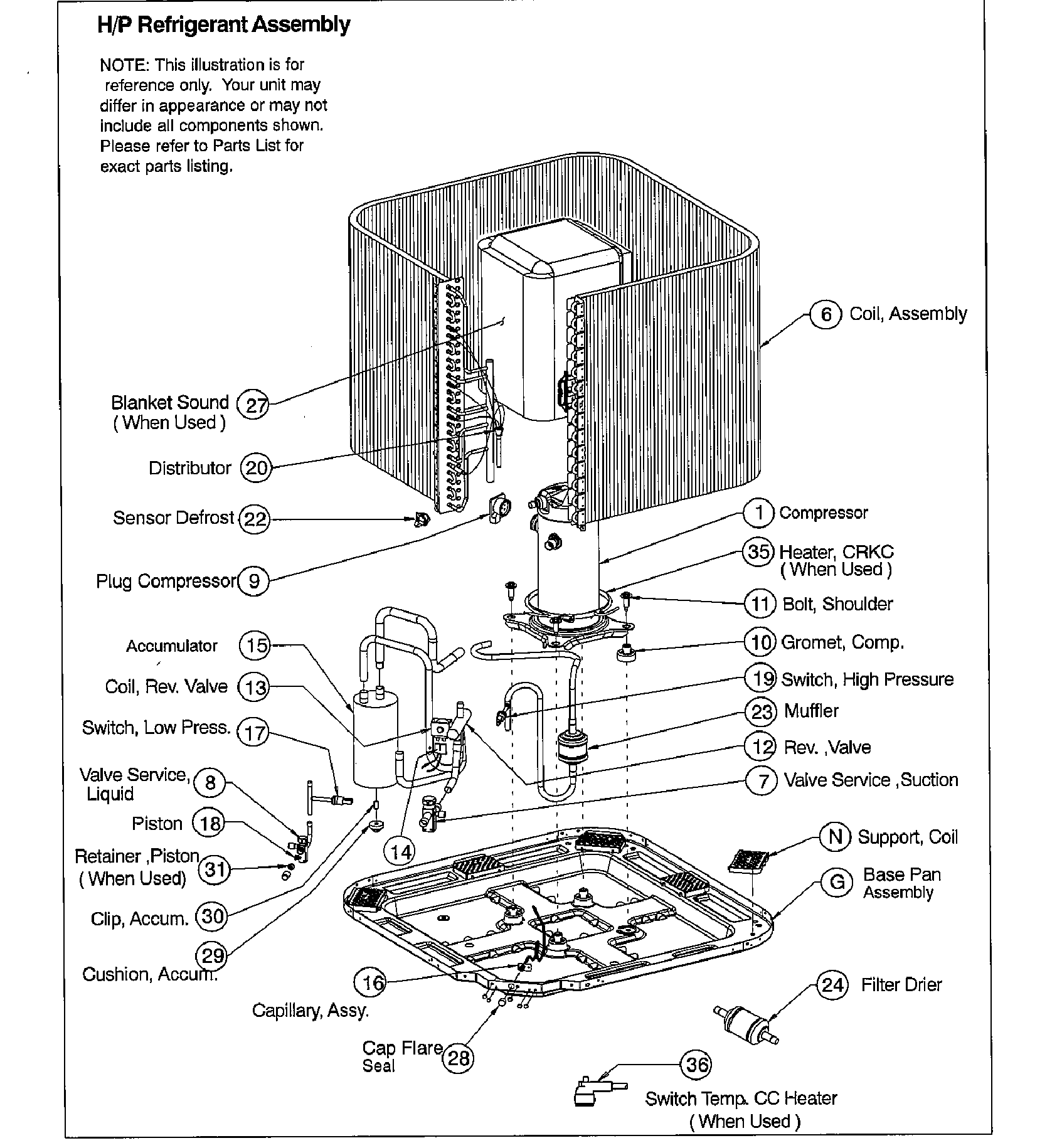

Compressor diagram

Clip

Part #1173640

This item is not returnable
$2.16
In Stock
Cornr Post 1178636
#J

Cabinet diagram

Cornr post

Part #1178636

$51.78
In Stock
Central Air Conditioner Service Valve Cap Kit 1175650
#NI

Cabinet diagram

Central air conditioner service valve cap kit

Part #1175650

$90.53
In Stock
Central Air Conditioner Condenser Fan Motor 1179379
#2

Cabinet diagram

Central air conditioner condenser fan motor

Part #1179379

$393.88
In Stock
Central Air Conditioner Heat Pump Defrost Control 1173637
#22

Compressor diagram

Central air conditioner heat pump defrost control

Part #1173637

$34.73
In Stock
Grille Inlet 1178633
#C1

Cabinet diagram

Grille inlet

Part #1178633

$64.49
In Stock
