Model # 113235200 Official Craftsman 10" miter saw

Here are the diagrams and repair parts for Official Craftsman 113235200 10" miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

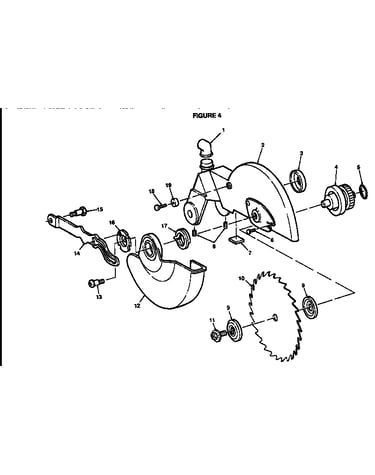

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
O-ring 821421-5
#7

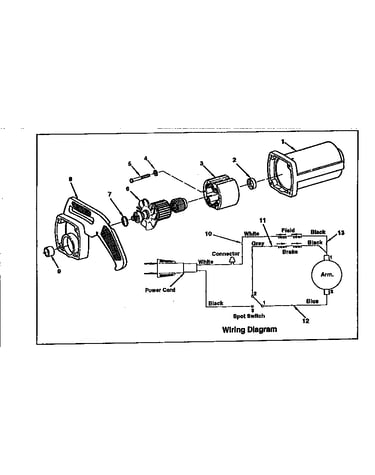

Motor assembly diagram

O-ring

Part #821421-5

The manufacturer no longer makes this part, and there's no substitute part

Arbor Lock Spring 823322
#11

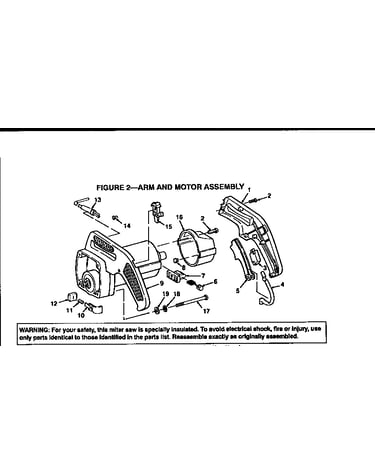

Arm and motor assembly diagram

Arbor lock spring

Part #823322

The manufacturer no longer makes this part, and there's no substitute part

Spacer Spring 823298
#8

Pivot assembly diagram

Spacer spring

Part #823298

The manufacturer no longer makes this part, and there's no substitute part

Needle 818682
#9

Motor assembly diagram

Needle

Part #818682

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Trigger Switch 823286
#3

Arm and motor assembly diagram

Miter saw trigger switch

Part #823286

The manufacturer no longer makes this part, and there's no substitute part

Washer Thrst 803899-5
#6

Pivot assembly diagram

Washer thrst

Part #803899-5

The manufacturer no longer makes this part, and there's no substitute part

Screw Set Hx 803309-2
#1

Pivot assembly diagram

Screw set hx

Part #803309-2

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Screw 436594
#13

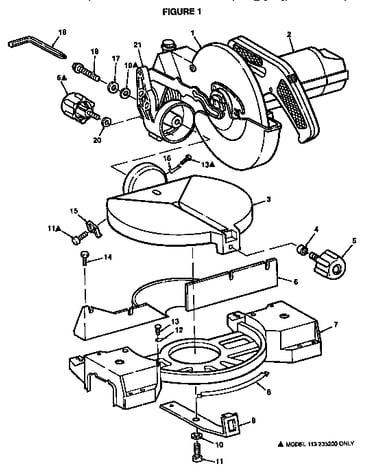

Table and fence parts diagram

Pan head screw

Part #436594

The manufacturer no longer makes this part, and there's no substitute part

Screw 808277-11
#17

Arm and motor assembly diagram

Screw

Part #808277-11

The manufacturer no longer makes this part, and there's no substitute part

Knob (black) 823313
#5

Table and fence parts diagram

Knob (black)

Part #823313

The manufacturer no longer makes this part, and there's no substitute part
