Model # 486240330 Official Craftsman 32" lawn sweeper

Here are the diagrams and repair parts for Official Craftsman 486240330 32" lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Lawn Sweeper Brush Retainer (replaces Af-23580) 23580
#40

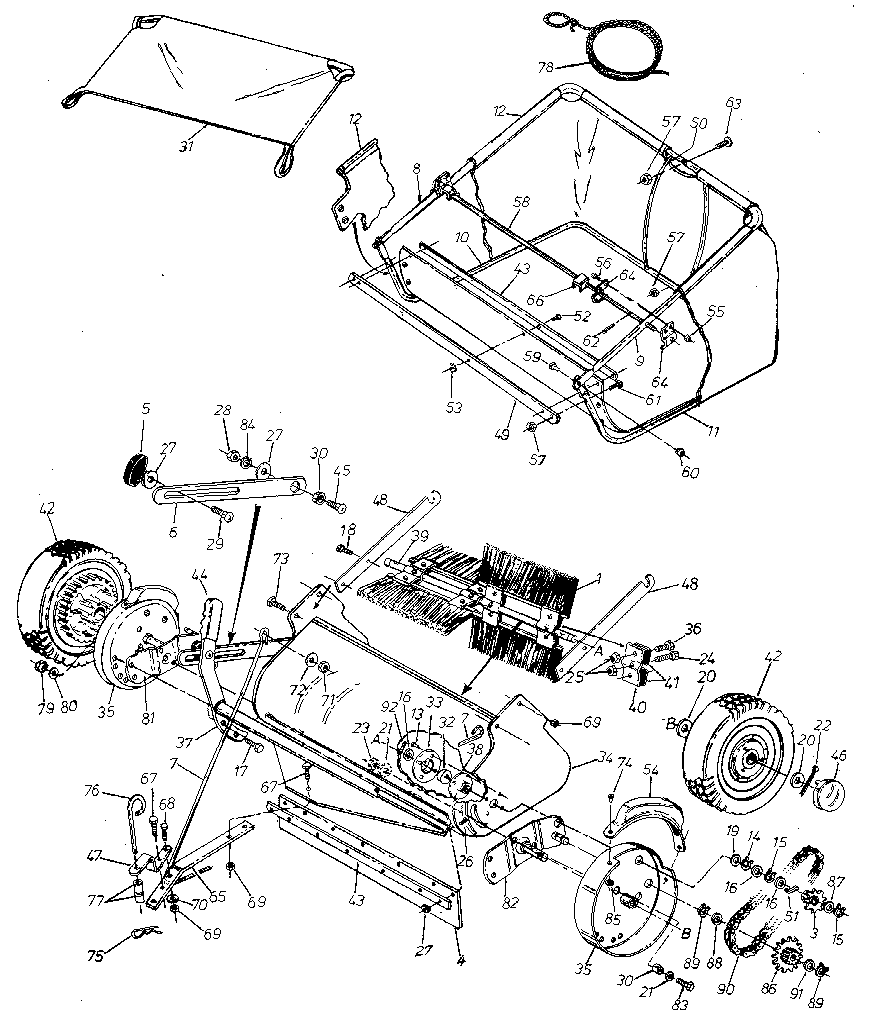

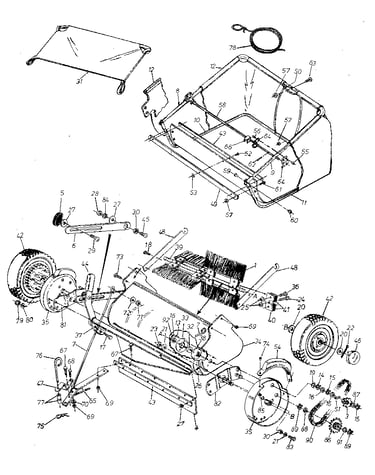

Replacement parts diagram

Lawn sweeper brush retainer (replaces af-23580)

Part #23580

BEST SELLER
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Lawn Sweeper Brush Retainer (replaces Af-23581) 23581
#41

Replacement parts diagram

Lawn sweeper brush retainer (replaces af-23581)

Part #23581

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Ratchet Sprocket 43889
#3

Replacement parts diagram

Lawn tractor lawn sweeper attachment ratchet sprocket

Part #43889

This item is not returnable
$11.43 |
15% OFF Phone Price : $13.43
Back Order
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#27

Replacement parts diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Lock Washer 43086
#84

Replacement parts diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn Tractor Lawn Sweeper Attachment Ratchet Sprocket, Right 43890
#2

Replacement parts diagram

Lawn tractor lawn sweeper attachment ratchet sprocket, right

Part #43890

This item is not returnable
$11.43 |
15% OFF Phone Price : $13.43
Back Order
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Carriage Bolt, 5/16-18 X 3/4-in 43080
Lawn & garden equipment carriage bolt, 5/16-18 x 3/4-in

Part #43080

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Hopper Rope (replaces Af-43737) 43737
#78

Replacement parts diagram

Lawn tractor lawn sweeper attachment hopper rope (replaces af-43737)

Part #43737

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Retainer Ring (replaces Af-1650-21) 1650-21
#15

Replacement parts diagram

Lawn tractor lawn sweeper attachment retainer ring (replaces af-1650-21)

Part #1650-21

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
