Model # LDEA400ACE Official Admiral dryer

Here are the diagrams and repair parts for Official Admiral LDEA400ACE dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Belt, Cylind 53-1589
#5

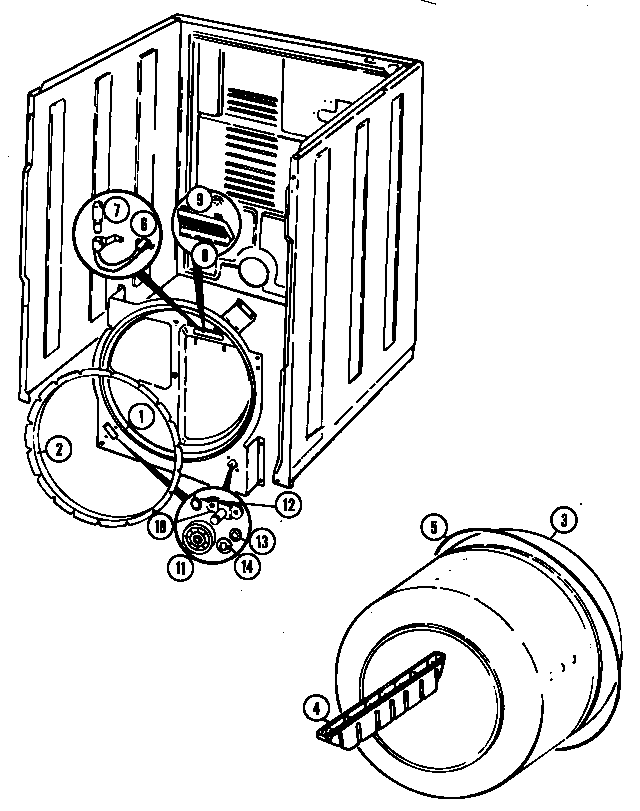

Tumbler (ldea400acl) (ldea400acw) diagram

Belt, cylind

Part #53-1589

Replaced by #341241

?
Manufacturer substitution
This part replaces 53-1589. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Dryer Drum Belt 31531589
Dryer drum belt

Part #31531589

Replaced by #341241

?
Manufacturer substitution
This part replaces 31531589. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Clamp 25-7823
Clamp

Part #25-7823

Replaced by #WP312967

?
Manufacturer substitution
This part replaces 25-7823. Substitute parts can look different from the original.
BEST SELLER
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Dryer Blower Wheel 31001317
#10C

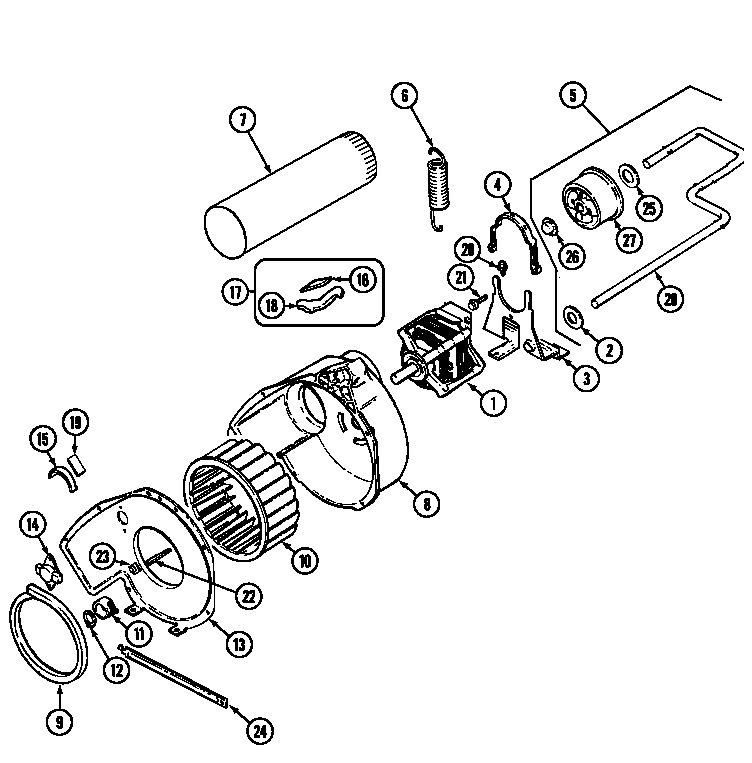

Motor & drive (ldea400ace) (ldea400ace) diagram

Dryer blower wheel

Part #31001317

Replaced by #W11497304

?
Manufacturer substitution
This part replaces 31001317. Substitute parts can look different from the original.
BEST SELLER
$46.03 |
12% OFF Phone Price : $52.03
In Stock
Screw, Suppo 25-7828
Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Motor Clamp 53-0214
Motor clamp

Part #53-0214

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 53-0214. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 25-7820
Screw

Part #25-7820

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 25-7820. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Locator Nut 25-0224
Locator nut

Part #25-0224

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dryer High-limit Thermostat 53-0771
Dryer high-limit thermostat

Part #53-0771

Replaced by #WP53-0771

?
Manufacturer substitution
This part replaces 53-0771. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Dryer Thermal Fuse 53-1182
#6

Heater (ldea400acl) (ldea400acw) diagram

Dryer thermal fuse

Part #53-1182

Replaced by #WP53-1182

?
Manufacturer substitution
This part replaces 53-1182. Substitute parts can look different from the original.
$36.14 |
14% OFF Phone Price : $42.14
In Stock
