Model # A2B769EVASD1 Official GE air conditioner

Here are the diagrams and repair parts for Official GE A2B769EVASD1 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forA2B769EVASD1 Air Conditioner

  • Screw WZ5X153
    #983

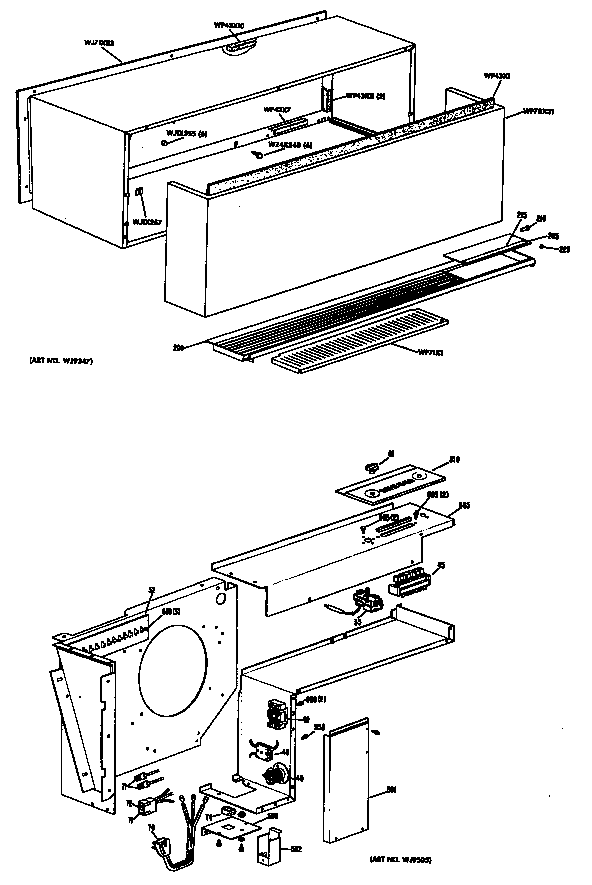

    Cabinet diagram

    Screw

    Part #WZ5X153

    This item is not returnable
    $2.49
    In Stock
  • Clip WJ3X87

    #NI

    All parts diagram

    Clip

    Part #WJ3X87

    This item is not returnable
    $2.16
    In Stock
  • Zoneline H& 49-7067

    #NI

    All parts diagram

    Zoneline h&

    Part #49-7067

    Replaced by #49-7140-1

    ?
    Manufacturer substitution
    This part replaces 49-7067. Substitute parts can look different from the original.
    $8.49
    In Stock
  • Zoneline H& 49-7066

    #NI

    All parts diagram

    Zoneline h&

    Part #49-7066

    Replaced by #49-7140-1

    ?
    Manufacturer substitution
    This part replaces 49-7066. Substitute parts can look different from the original.
    $8.49
    In Stock
  • Indoor Scroll Assembly WP76X01
    #186

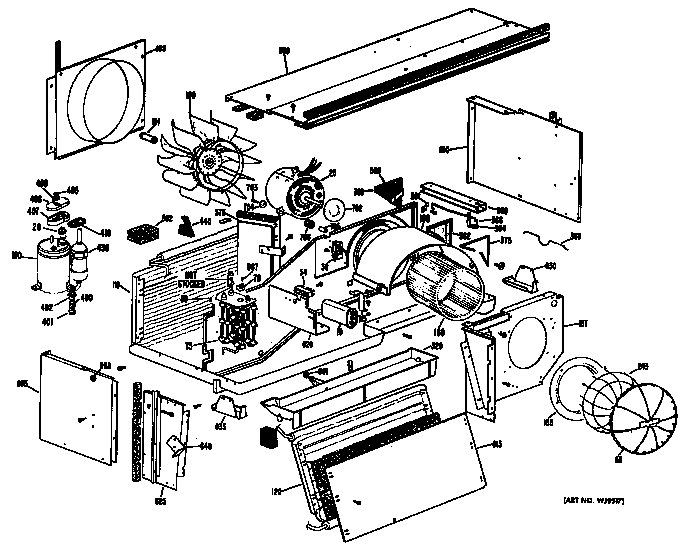

    Chassis diagram

    Indoor scroll assembly

    Part #WP76X01

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor WJ20X310
    #25B

    Chassis diagram

    Capacitor

    Part #WJ20X310

    The manufacturer no longer makes this part, and there's no substitute part

  • Compressor Wire Harness WP36X02

    #NI

    All parts diagram

    Compressor wire harness

    Part #WP36X02

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw WZ2X529
    #953

    Cabinet diagram

    Screw

    Part #WZ2X529

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor Clamp WJ3X287
    #713

    Chassis diagram

    Capacitor clamp

    Part #WJ3X287

    The manufacturer no longer makes this part, and there's no substitute part

  • Compressor Kit WJ98X537
    #100

    Chassis diagram

    Compressor kit

    Part #WJ98X537

    The manufacturer no longer makes this part, and there's no substitute part
