Model # JCP930TC1WW Official GE counter unit
Here are the diagrams and repair parts for Official GE JCP930TC1WW counter unit, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
JCP930TC1WW Cooktops
#58

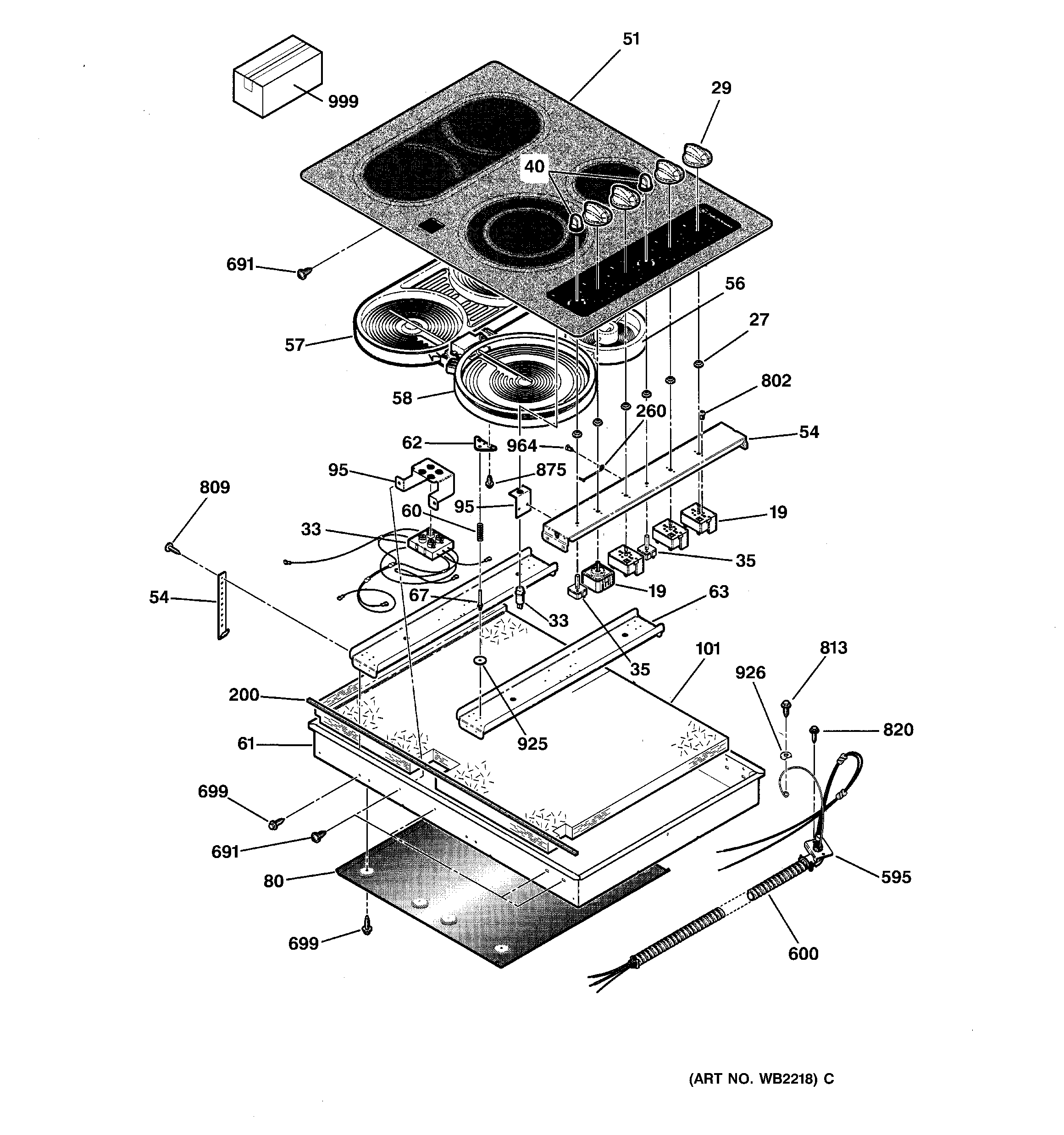

Cooktop diagram
Range halogen surface element
Part #WB30T10044
Replaced by #WB30T10099
?
Manufacturer substitution
This part replaces WB30T10044. Substitute parts can look different from the original.
$100.64 |
11% OFF Phone Price : $112.64
In Stock
#19
Cooktop diagram
Control element
Part #WB23M0009
Replaced by #WB23M9
?
Manufacturer substitution
This part replaces WB23M0009. Substitute parts can look different from the original.
$113.45 |
10% OFF Phone Price : $125.45
In Stock
#19
Cooktop diagram
Cooktop element control switch, 3,000-watt
Part #WB23K5052
Replaced by #WB24X29364
?
Manufacturer substitution
This part replaces WB23K5052. Substitute parts can look different from the original.
$69.51 |
8% OFF Phone Price : $75.51
In Stock
#699
Cooktop diagram
Screw
Part #WB01K5150
Replaced by #WB1M1
?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$7.17 |
12% OFF Phone Price : $8.17
In Stock
#200
Cooktop diagram
Cooktop main top seal (replaces wb02x11333)
Part #WB06T10007
$41.57 |
13% OFF Phone Price : $47.57
In Stock
#875
Cooktop diagram
Screw
Part #WH02X0930
Replaced by #WH2X930
?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$8.37 |
11% OFF Phone Price : $9.37
In Stock
#56
Cooktop diagram
Range radiant surface element, 6-in
Part #WB30T10043
$226.76 |
5% OFF Phone Price : $238.76
In Stock
#57
Cooktop diagram
Range radiant bridge surface element (replaces wb23k5061, wb30t10036, wb30t10057, wb30t10117)
Part #WB30T10046
$313.84 |
$12.00 OFF Phone Price : $325.84
In Stock
#54
Cooktop diagram
Brkt hold dn
Part #WB02K5328
Replaced by #WB2K5328
?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$7.65 |
12% OFF Phone Price : $8.65
In Stock
#813
Cooktop diagram
Screw
Part #WB01X1261
Replaced by #WB1X1261
?
Manufacturer substitution
This part replaces WB01X1261. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Most common symptoms to help you fix your cooktops
Choose a symptom to see related cooktop repairs.
Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…
Repair guides for electric cooktops
How to replace a coil surface element on an electric cooktop
Easily replace a coil surface element in 15 minutes or less by following these step-by-step instructions.…
Repair difficulty
Time required
15 minutes or less
How to replace the glass top on an electric cooktop
Don't use a cracked or damage glass cooktop—replace it, using these instructions to guide you.…
Repair difficulty
Time required
30 minutes or less
How to replace a radiant element on an electric cooktop
Follow these step-by-step instructions to replace a damaged radiant element on your electric cooktop when the element wo…
Repair difficulty
Time required
45 minutes or less
