Kenmore
Compact Refrigerator

Model # 11268916081 Official Kenmore compact refrigerator

Here are the diagrams and repair parts for Official Kenmore 11268916081 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Refrigerator Dryer 40
#20

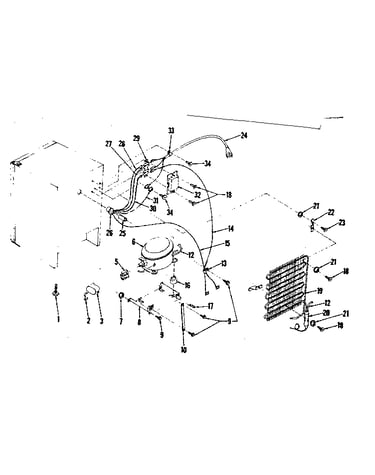

Unit parts diagram

Refrigerator dryer

Part #40

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Bulb 989
#12

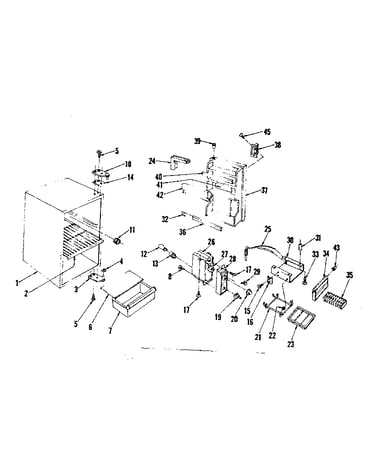

Cabinet parts diagram

Refrigerator light bulb

Part #989

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Retainer 795
#26

Unit parts diagram

Refrigerator retainer

Part #795

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clamp 623
#16

Cabinet parts diagram

Refrigerator clamp

Part #623

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Plug 1004
#25

Unit parts diagram

Refrigerator plug

Part #1004

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 3653-2
#45

Cabinet parts diagram

Refrigerator screw

Part #3653-2

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Trim 3492

#NI

All parts diagram

Refrigerator trim

Part #3492

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Relief 148
#13

Unit parts diagram

Refrigerator relief

Part #148

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door 3669

#NI

All parts diagram

Refrigerator door

Part #3669

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Grommet 764
#22

Cabinet parts diagram

Refrigerator grommet

Part #764

The manufacturer no longer makes this part, and there's no substitute part
