Model # RJ-102 Official Ryobi reciprocating saw

Here are the diagrams and repair parts for Official Ryobi RJ-102 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Armature 6030254
#31

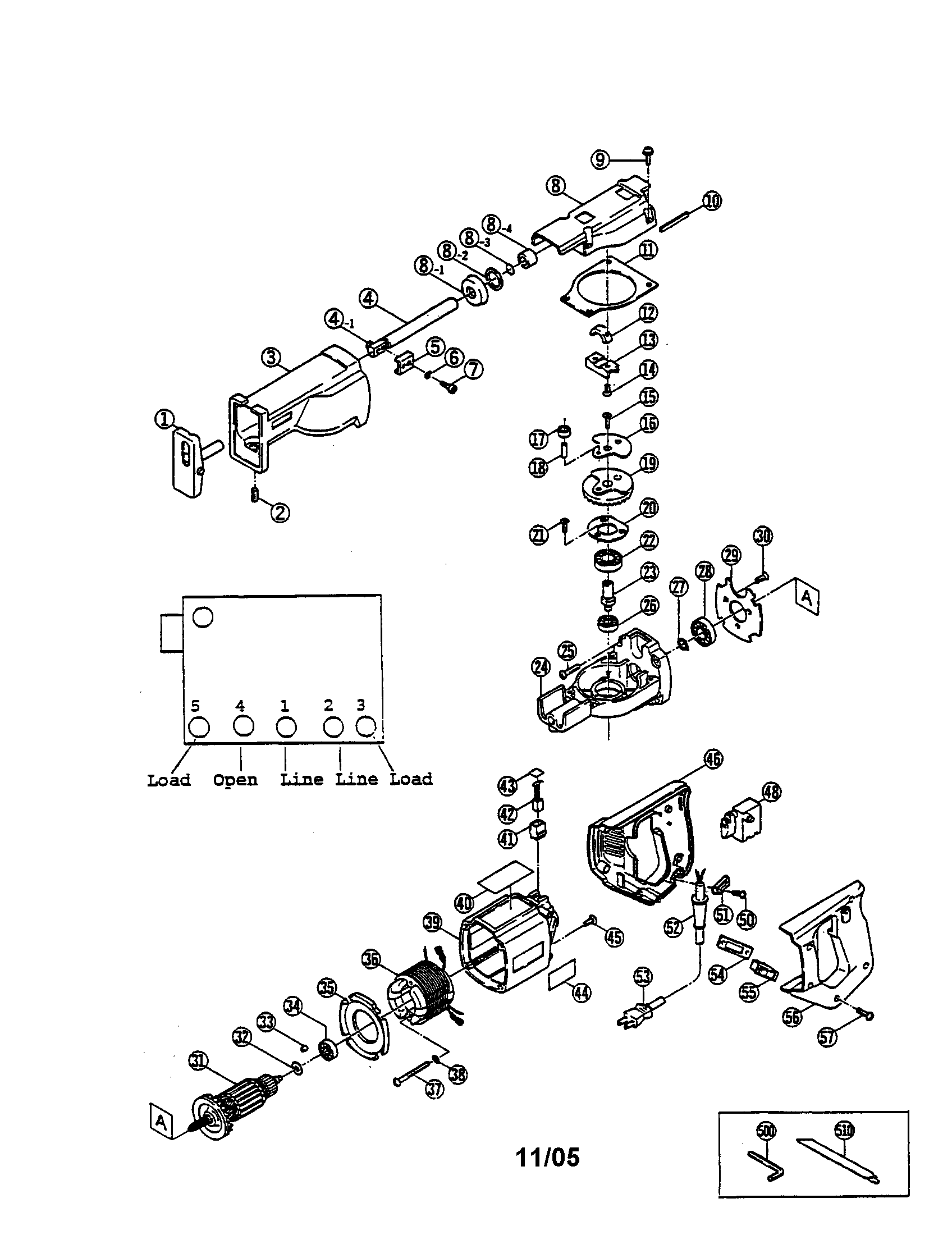

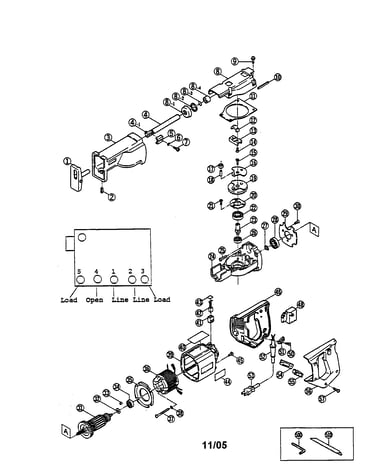

Reciprocating saw diagram

Armature

Part #6030254

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060414
#50

Reciprocating saw diagram

Screw

Part #9060414

The manufacturer no longer makes this part, and there's no substitute part

Head Bolt 6130245
#7

Reciprocating saw diagram

Head bolt

Part #6130245

The manufacturer no longer makes this part, and there's no substitute part

Carbon Brush 6541143
#42

Reciprocating saw diagram

Carbon brush

Part #6541143

The manufacturer no longer makes this part, and there's no substitute part

Washer 6150233
#16

Reciprocating saw diagram

Washer

Part #6150233

The manufacturer no longer makes this part, and there's no substitute part

Screw 6130959
#45

Reciprocating saw diagram

Screw

Part #6130959

The manufacturer no longer makes this part, and there's no substitute part

Case 6770694

#NI05

All parts diagram

Case

Part #6770694

The manufacturer no longer makes this part, and there's no substitute part

Shoe Assembly 6080055
#1

Reciprocating saw diagram

Shoe assembly

Part #6080055

The manufacturer no longer makes this part, and there's no substitute part

Flat Screw 6130181
#15

Reciprocating saw diagram

Flat screw

Part #6130181

The manufacturer no longer makes this part, and there's no substitute part

Housing 6800264
#39

Reciprocating saw diagram

Housing

Part #6800264

The manufacturer no longer makes this part, and there's no substitute part
