Hedge Trimmer

Model # 31517047 Official Craftsman hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 31517047 hedge trimmer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
31517047 Hedge Trimmer
Screw 1-930993-01
#15

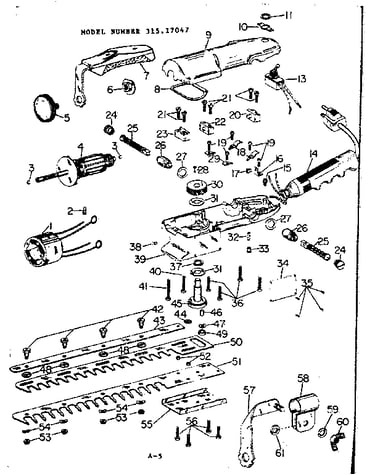

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Guide Screw 2-621842-00
#42

Unit parts diagram

Guide screw

Part #2-621842-00

The manufacturer no longer makes this part, and there's no substitute part

Dr. Shft Asy 2-622546-01
#45

Unit parts diagram

Dr. shft asy

Part #2-622546-01

The manufacturer no longer makes this part, and there's no substitute part

Fastng Screw 1-940049-17
#41

Unit parts diagram

Fastng screw

Part #1-940049-17

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 1-622154-06
#47

Unit parts diagram

Spring washer

Part #1-622154-06

The manufacturer no longer makes this part, and there's no substitute part

Spring 2-621851-00
#16

Unit parts diagram

Spring

Part #2-621851-00

The manufacturer no longer makes this part, and there's no substitute part

Up. Frme Asy 4-622528-03
#9

Unit parts diagram

Up. frme asy

Part #4-622528-03

The manufacturer no longer makes this part, and there's no substitute part

Field Core 3-622515-01
#1

Unit parts diagram

Field core

Part #3-622515-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-930150-09
#19

Unit parts diagram

Screw

Part #1-930150-09

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1-622532-00
#20

Unit parts diagram

Bearing

Part #1-622532-00

The manufacturer no longer makes this part, and there's no substitute part
