KitchenAid
Electric Cooktop

Model # GCI3051B00 Official KitchenAid 30" induction cooktop

Here are the diagrams and repair parts for Official KitchenAid GCI3051B00 30" induction cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Bracket Support W10328377
#4

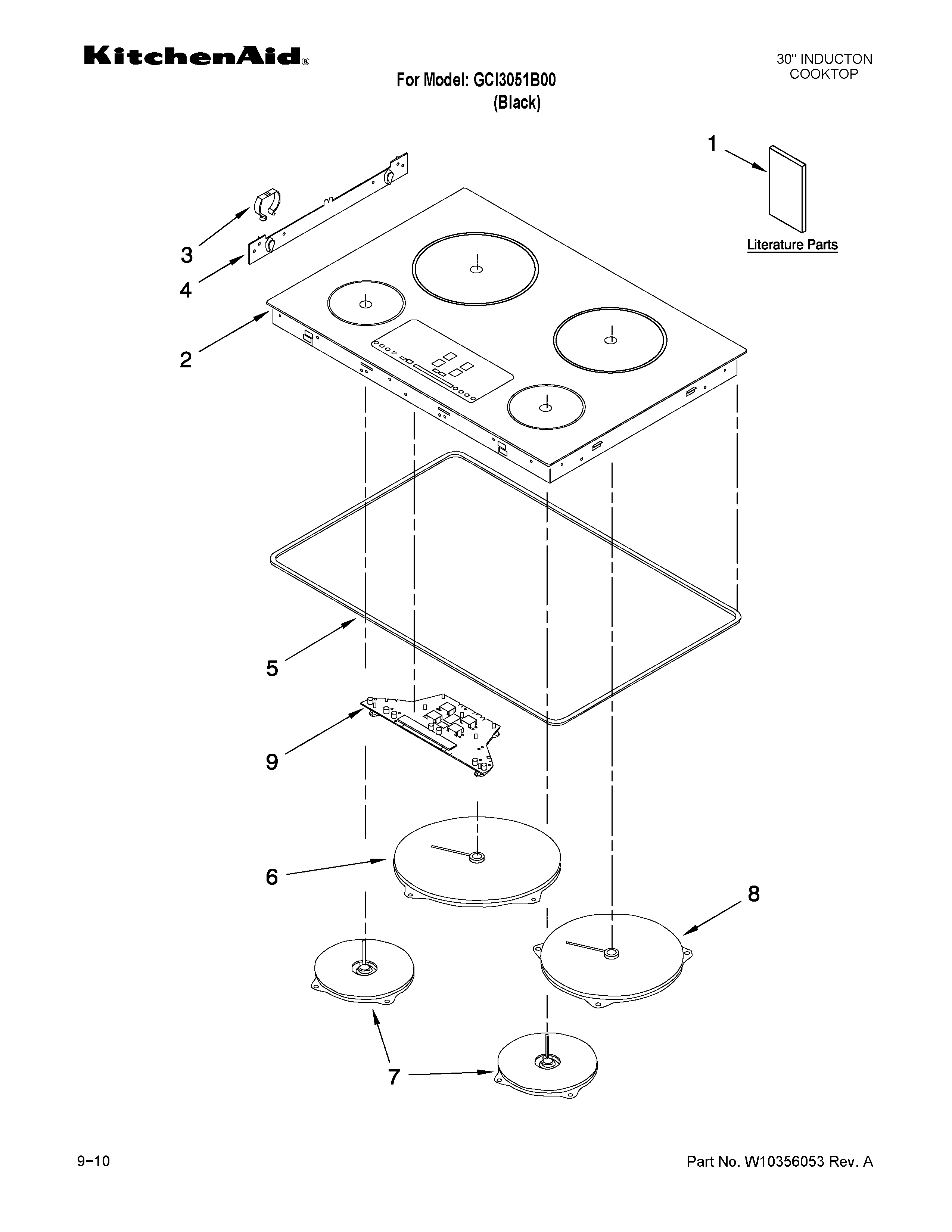

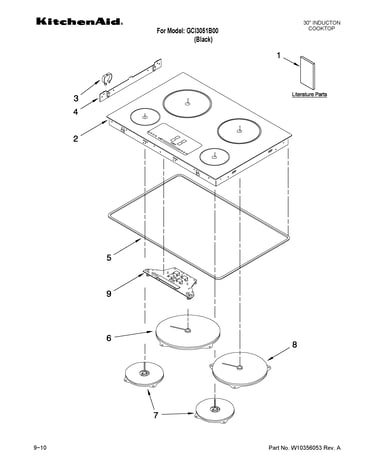

Cooktop parts diagram

Bracket support

Part #W10328377

Replaced by #WPW10328377

?
Manufacturer substitution
This part replaces W10328377. Substitute parts can look different from the original.
This item is not returnable
$32.12 |
16% OFF Phone Price : $38.12
In Stock
Cooktop Fuse W10328492
#2

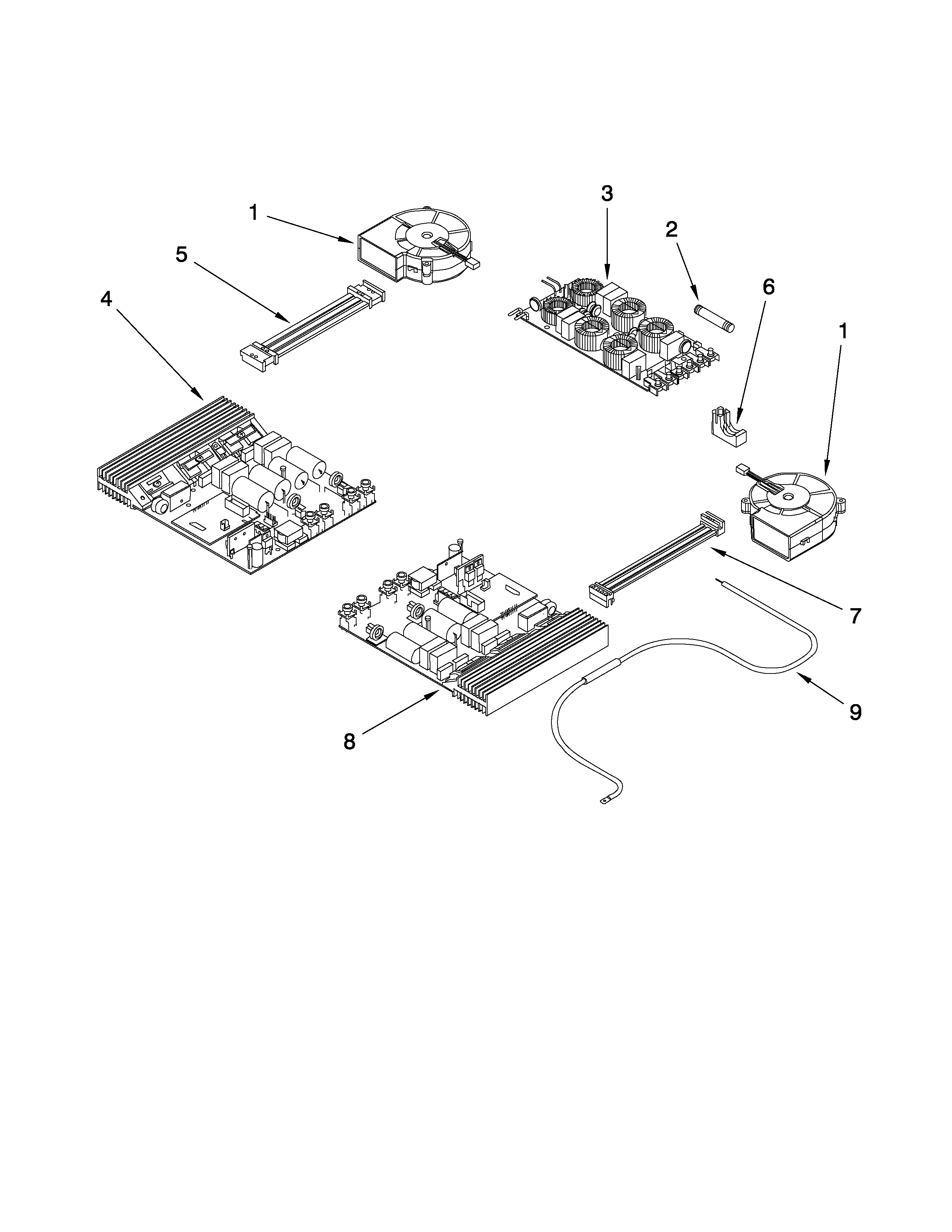

Interior parts diagram

Cooktop fuse

Part #W10328492

Replaced by #WPW10328492

?
Manufacturer substitution
This part replaces W10328492. Substitute parts can look different from the original.
$78.99 |
7% OFF Phone Price : $84.99
In Stock
Cooktop Display Board W10328453
#9

Cooktop parts diagram

Cooktop display board

Part #W10328453

Replaced by #WPW10328453

?
Manufacturer substitution
This part replaces W10328453. Substitute parts can look different from the original.
$530.62 |
$12.00 OFF Phone Price : $542.62
In Stock
Electronic Control Board W10328474
#4

Interior parts diagram

Electronic control board

Part #W10328474

Replaced by #WPW10328474

?
Manufacturer substitution
This part replaces W10328474. Substitute parts can look different from the original.
$259.05 |
$12.00 OFF Phone Price : $271.05
In Stock
Cooktop Main Top W10328518
#2

Cooktop parts diagram

Cooktop main top

Part #W10328518

Replaced by #WPW10328518

?
Manufacturer substitution
This part replaces W10328518. Substitute parts can look different from the original.
$355.97 |
$12.00 OFF Phone Price : $367.97
In Stock
Cooktop Conduit Mounting Bracket W10328401
#6

Interior parts diagram

Cooktop conduit mounting bracket

Part #W10328401

$137.67
In Stock
Hot Plate W10328384
#7

Cooktop parts diagram

Hot plate

Part #W10328384

$133.04
In Stock
Hot Plate W10328387
#8

Cooktop parts diagram

Hot plate

Part #W10328387

$181.31
In Stock
Blower Fan W10328378
#1A

Interior parts diagram

Blower fan

Part #W10328378

$207.00
In Stock
Cooktop Wire Harness W10328395
#5

Interior parts diagram

Cooktop wire harness

Part #W10328395

$43.64
In Stock
