GE
Gas Range

Model # JGBP35GEP2 Official GE gas range

Here are the diagrams and repair parts for Official GE JGBP35GEP2 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Screw WB1K23

#297

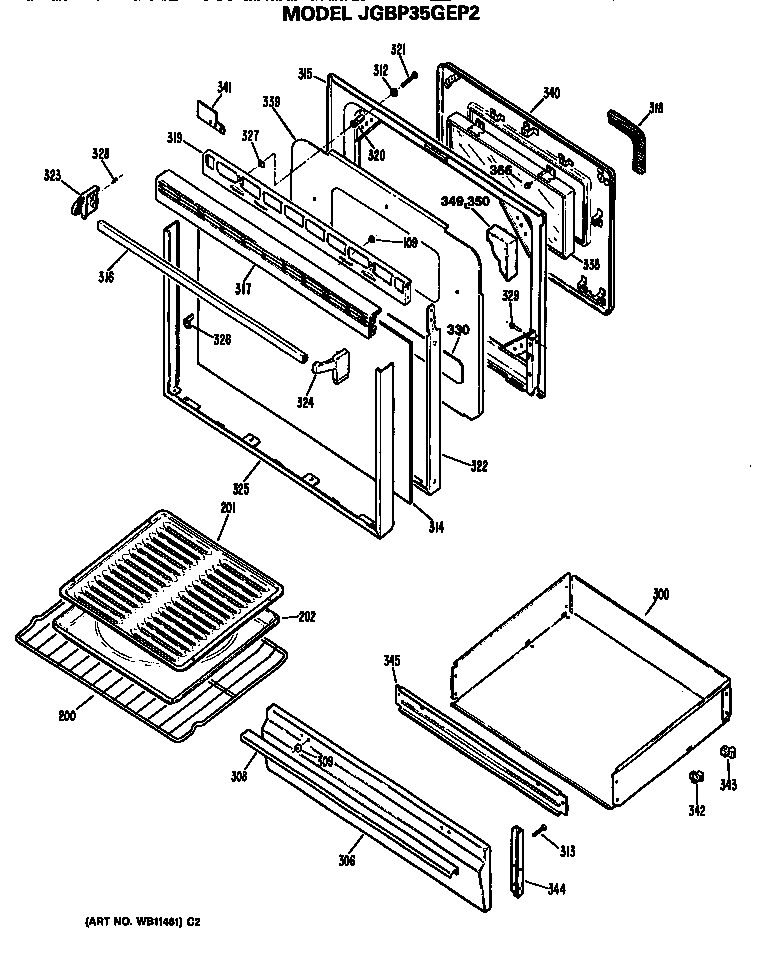

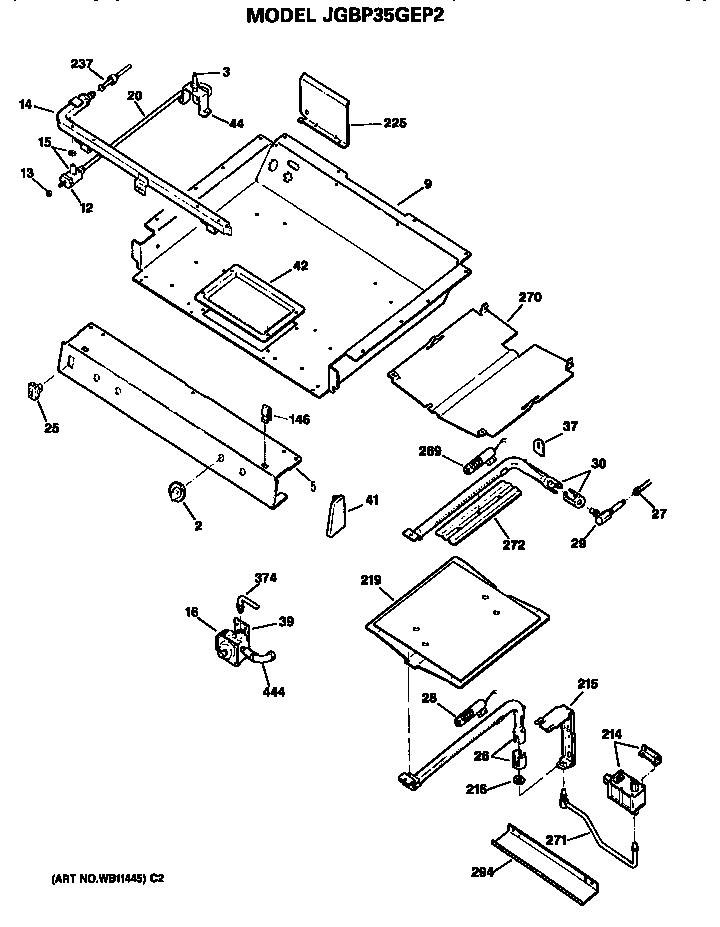

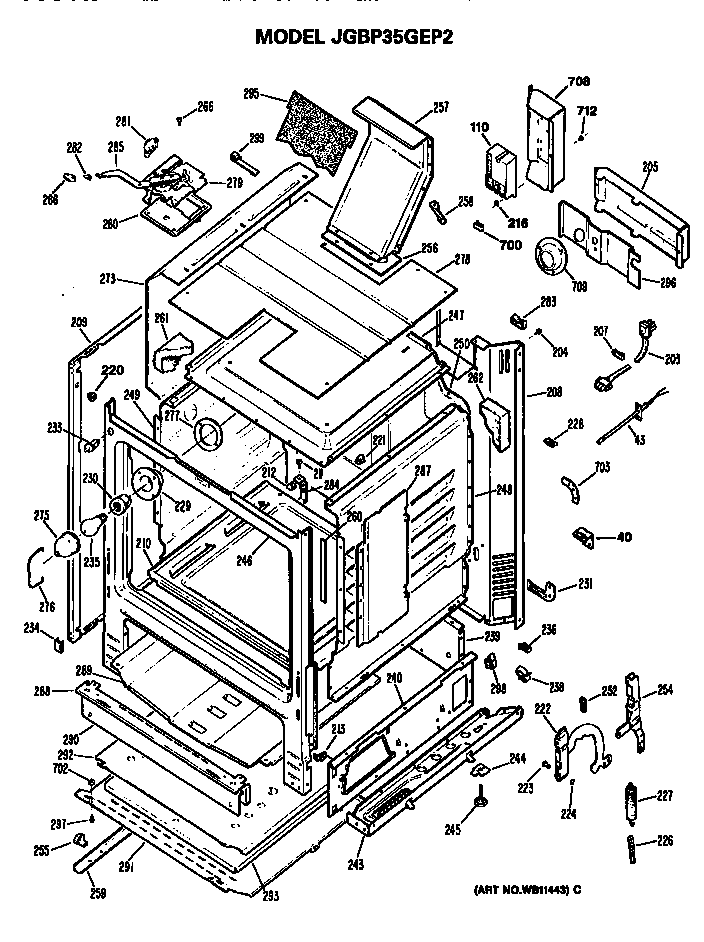

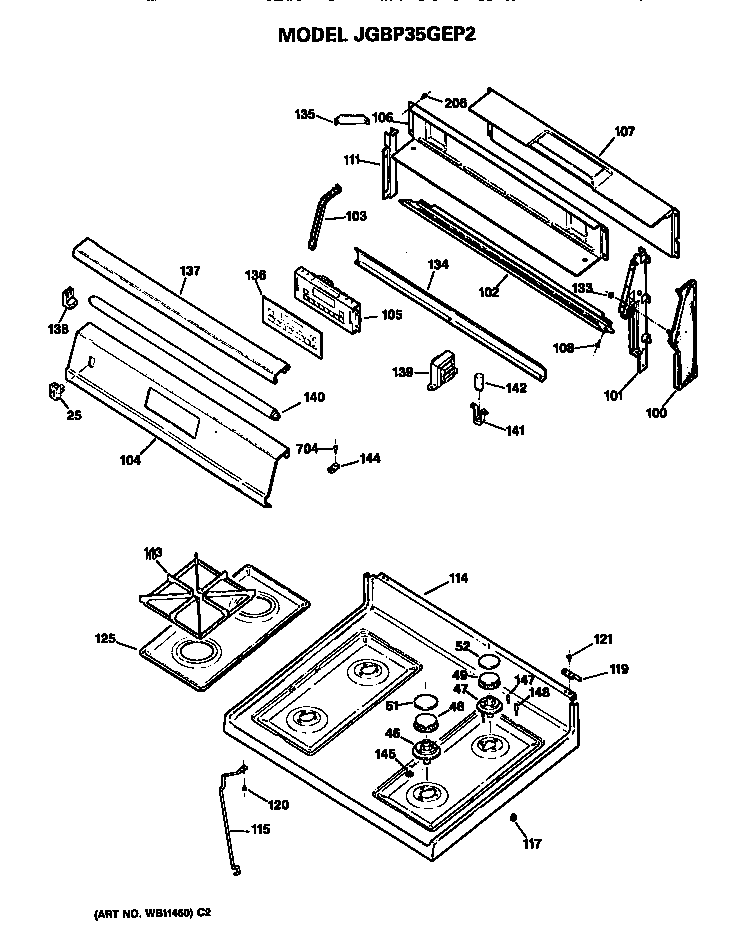

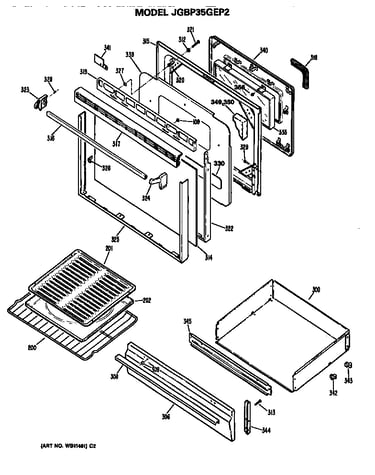

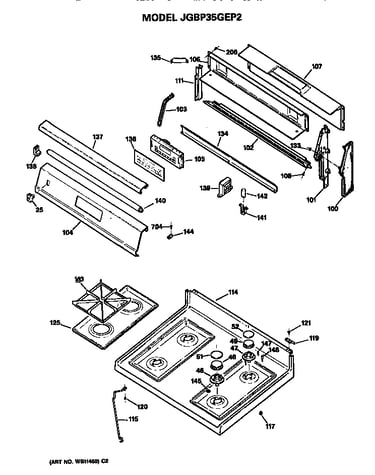

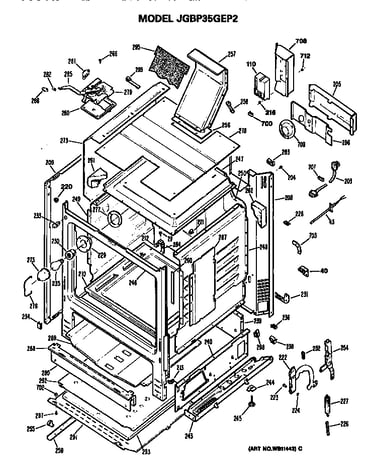

All parts diagram

Screw

Part #WB1K23

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K23. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Anti-tip Bracket WB2K20

#LITR

All parts diagram

Range anti-tip bracket

Part #WB2K20

$11.37 |
15% OFF Phone Price : $13.37
In Stock
Range Surface Burner Valve Guard WB2K24

#13

All parts diagram

Range surface burner valve guard

Part #WB2K24

This item is not returnable
$27.25 |
18% OFF Phone Price : $33.25
In Stock
Washer WB1X119

#312

All parts diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Drawer Support WB2K43

#255

All parts diagram

Drawer support

Part #WB2K43

Replaced by #WB02K10158

?
Manufacturer substitution
This part replaces WB2K43. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB1X593

#461

All parts diagram

Screw

Part #WB1X593

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1X593. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw WB1K21

#206

All parts diagram

Range screw

Part #WB1K21

Replaced by #WR01X10065

?
Manufacturer substitution
This part replaces WB1K21. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Oven Light Lens Retainer WB2K27

#276

All parts diagram

Range oven light lens retainer

Part #WB2K27

$45.50 |
12% OFF Phone Price : $51.50
In Stock
Drawer Panel WB39K10

#306

All parts diagram

Drawer panel

Part #WB39K10

$79.60
In Stock
Lower Heat Shield WB34K11

#289

All parts diagram

Lower heat shield

Part #WB34K11

Replaced by #WB34K10086

?
Manufacturer substitution
This part replaces WB34K11. Substitute parts can look different from the original.
$122.23 |
9% OFF Phone Price : $134.23
In Stock
