Model # UT32600 Official Homelite trimmer

Here are the diagrams and repair parts for Official Homelite UT32600 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 76 parts |

#27

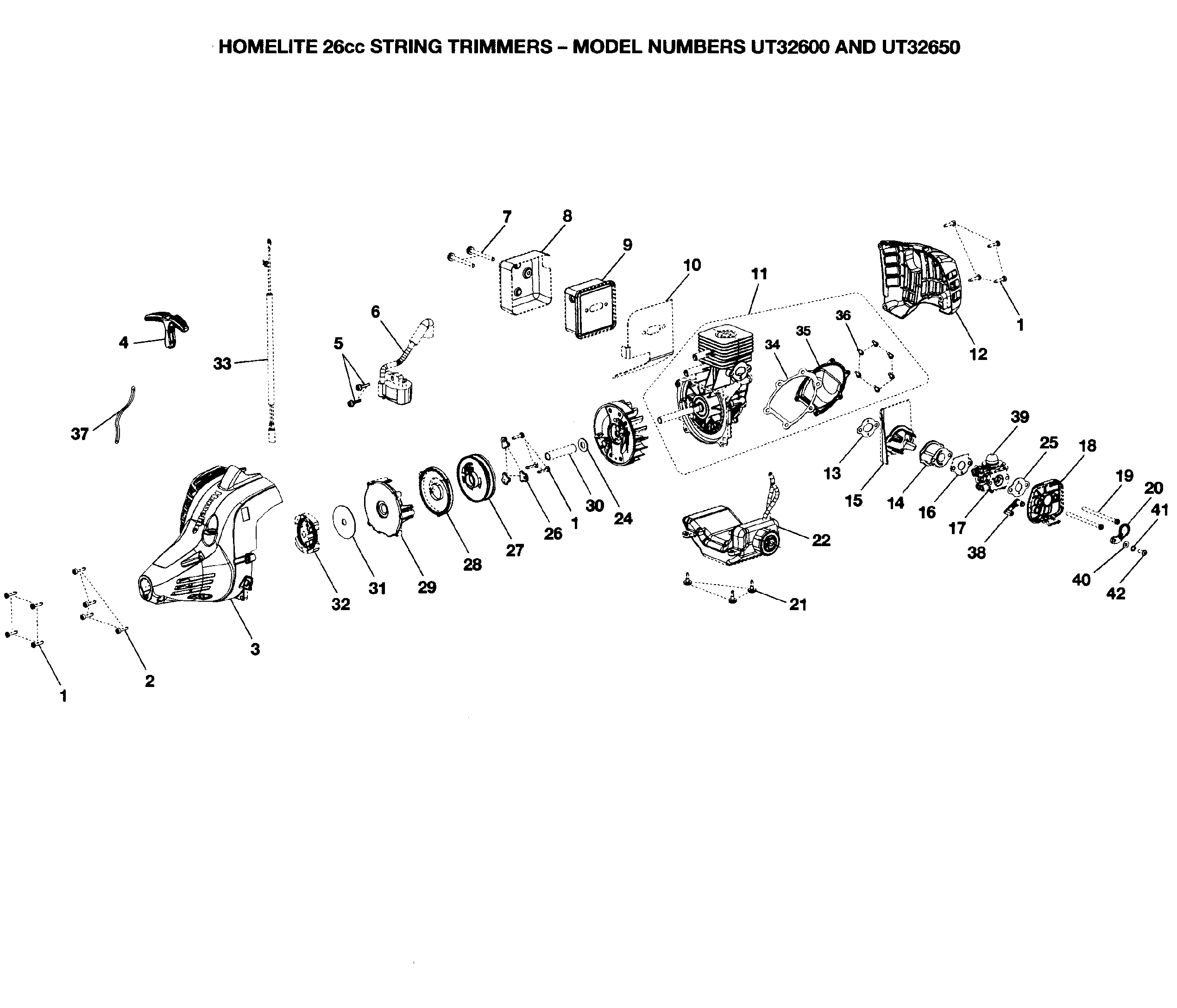

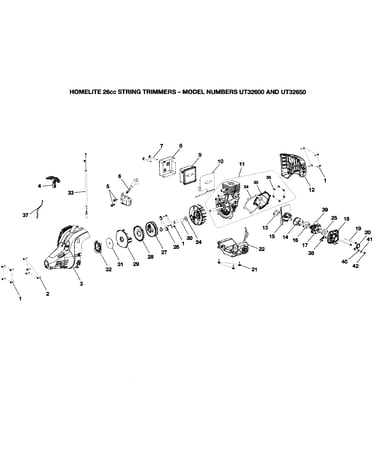

Engine diagram

Starter pulley

Part #310022004

The manufacturer no longer makes this part, and there's no substitute part

#15

Engine diagram

Heat dam d

Part #521808001

The manufacturer no longer makes this part, and there's no substitute part

#28

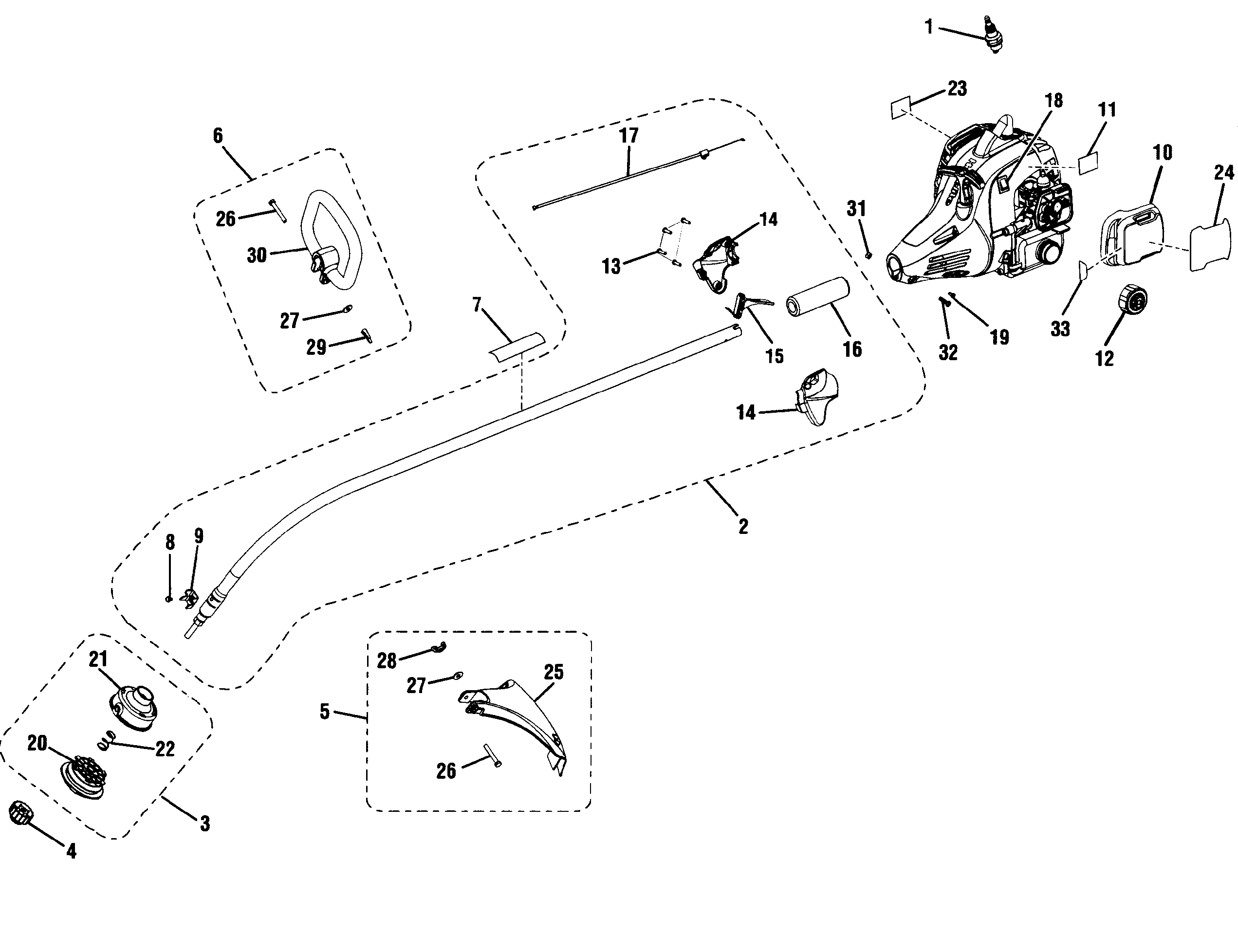

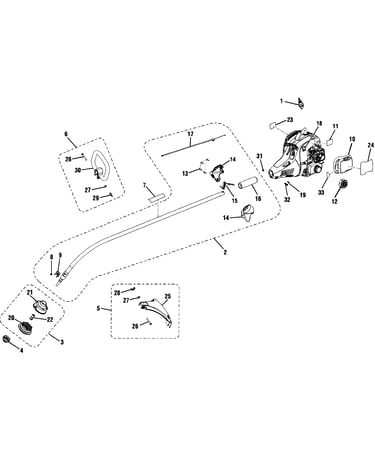

Trimmer diagram

Line trimmer wing nut

Part #678034001

The manufacturer no longer makes this part, and there's no substitute part

Trimmer diagram

Line trimmer cutting head

Part #309562001

The manufacturer no longer makes this part, and there's no substitute part

Trimmer diagram

Line trimmer spool retainer

Part #308042002

The manufacturer no longer makes this part, and there's no substitute part

#25

Trimmer diagram

Grass shield

Part #308052001

The manufacturer no longer makes this part, and there's no substitute part

#22

Trimmer diagram

Complete spring

Part #678022001

The manufacturer no longer makes this part, and there's no substitute part

#24

Trimmer diagram

Starter label

Part #940686065

The manufacturer no longer makes this part, and there's no substitute part

#17

Trimmer diagram

Line trimmer throttle cable

Part #308842008

The manufacturer no longer makes this part, and there's no substitute part

#14

Engine diagram

Heat dam

Part #518497001

The manufacturer no longer makes this part, and there's no substitute part
