Model # DG3350 Official Speed Queen dryer

Here are the diagrams and repair parts for Official Speed Queen DG3350 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

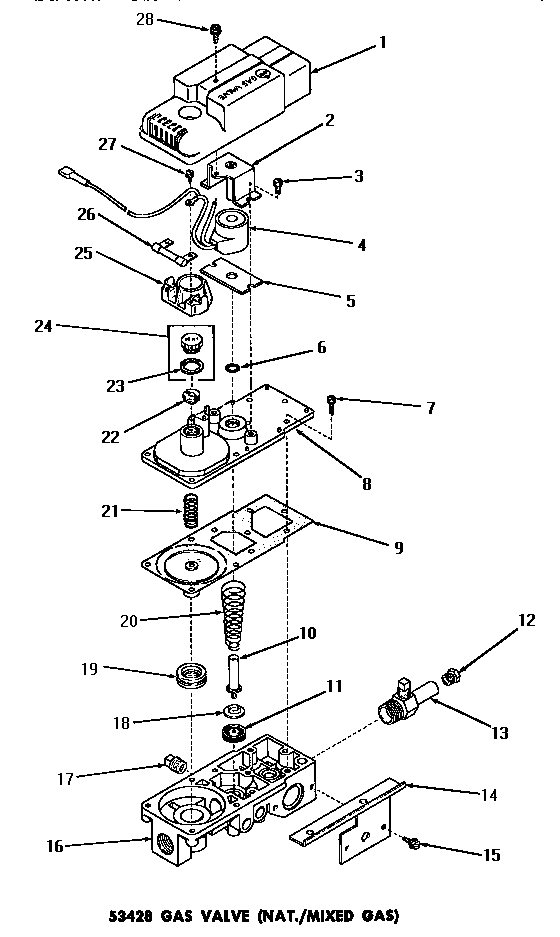

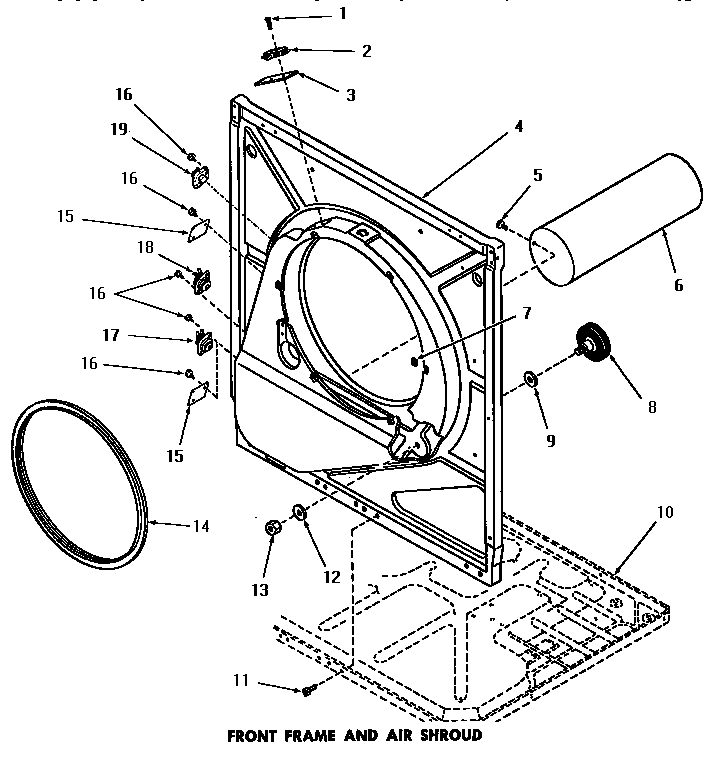

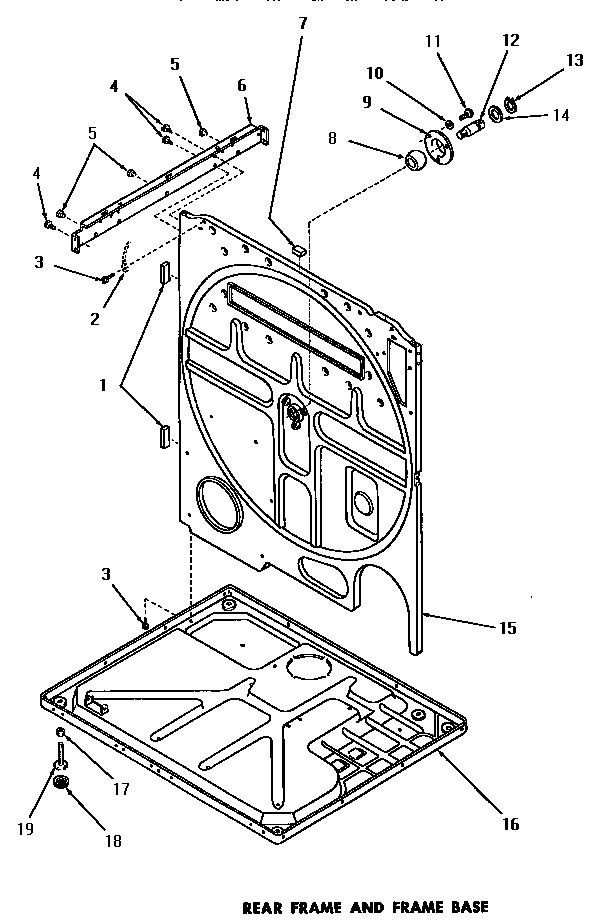

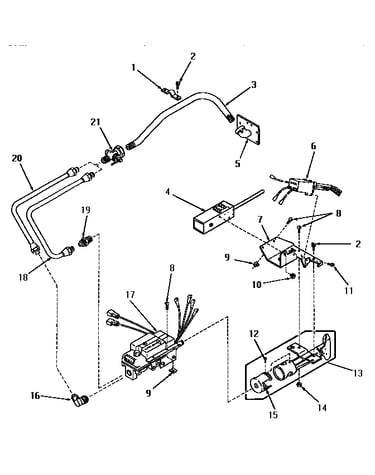

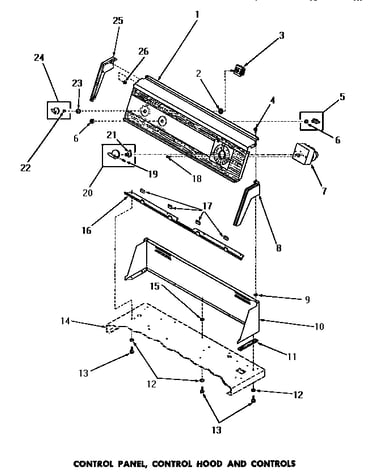

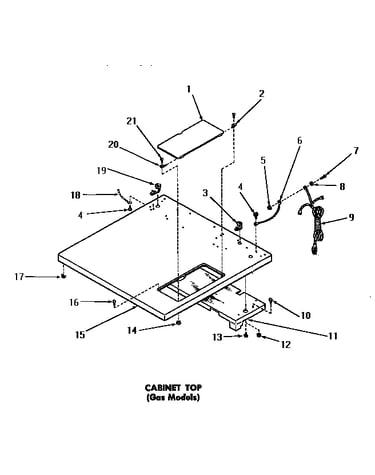

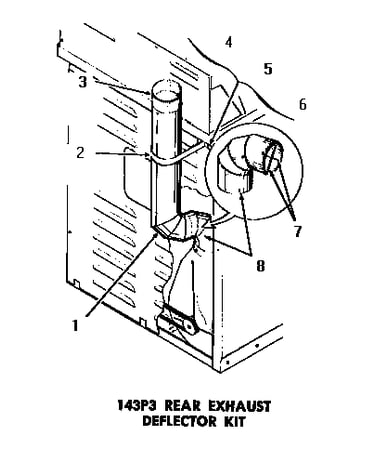

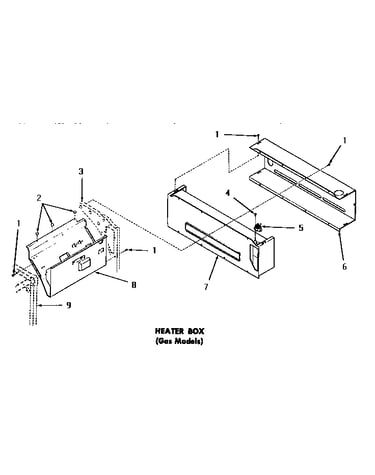

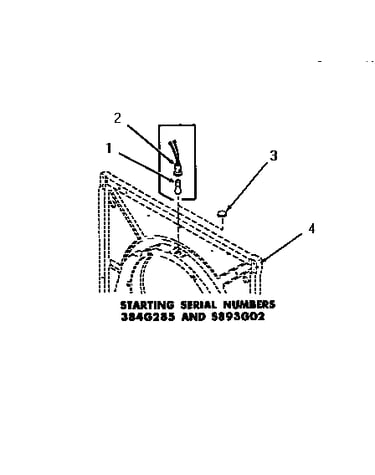

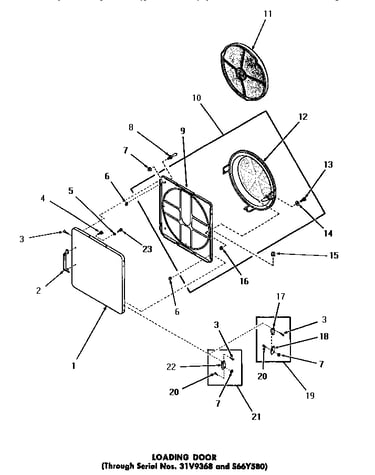

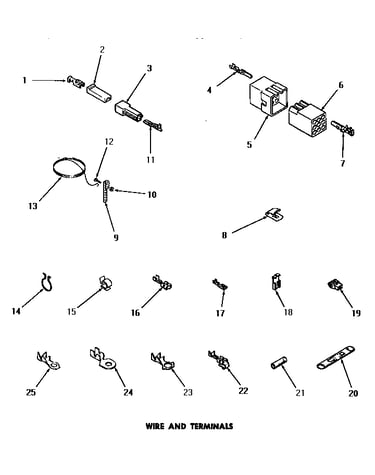

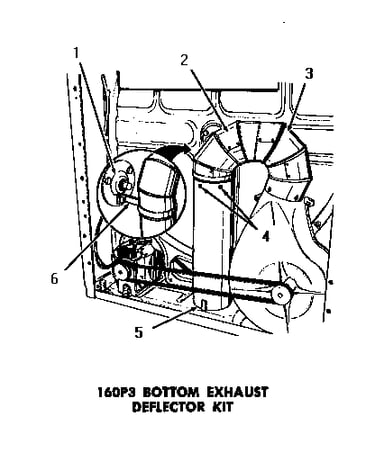

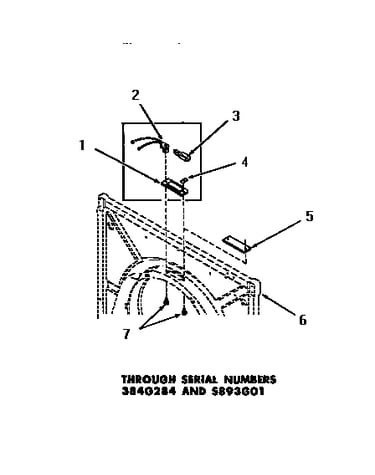

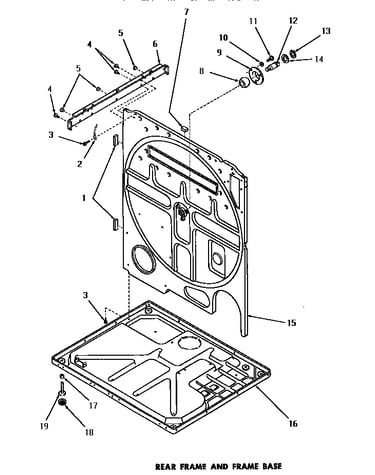

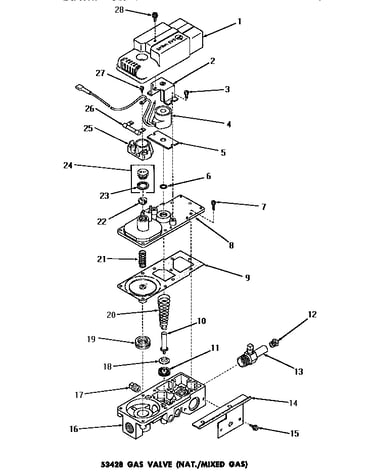

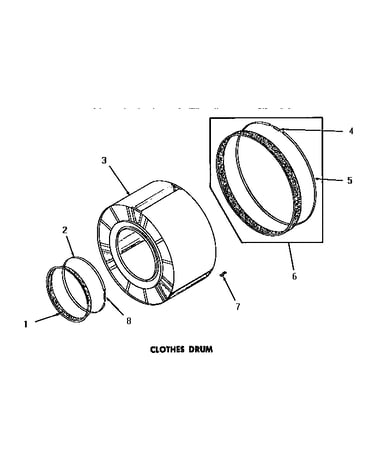

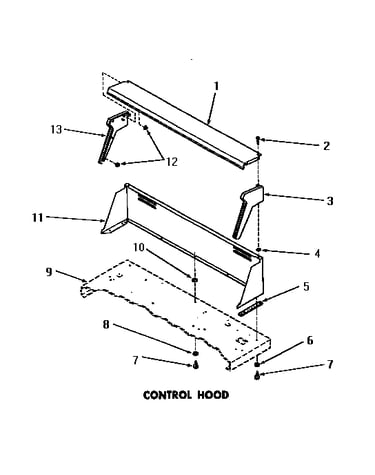

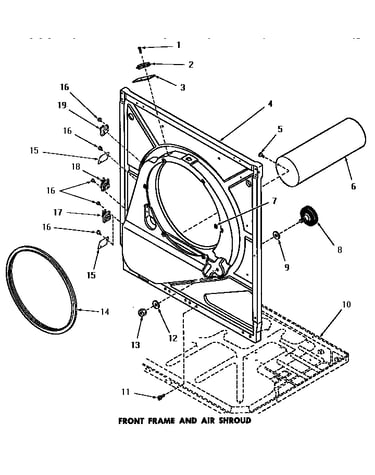

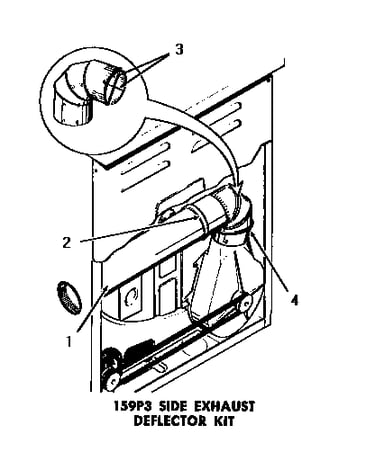

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 333 parts  |
Idler Wheel 54414
#17

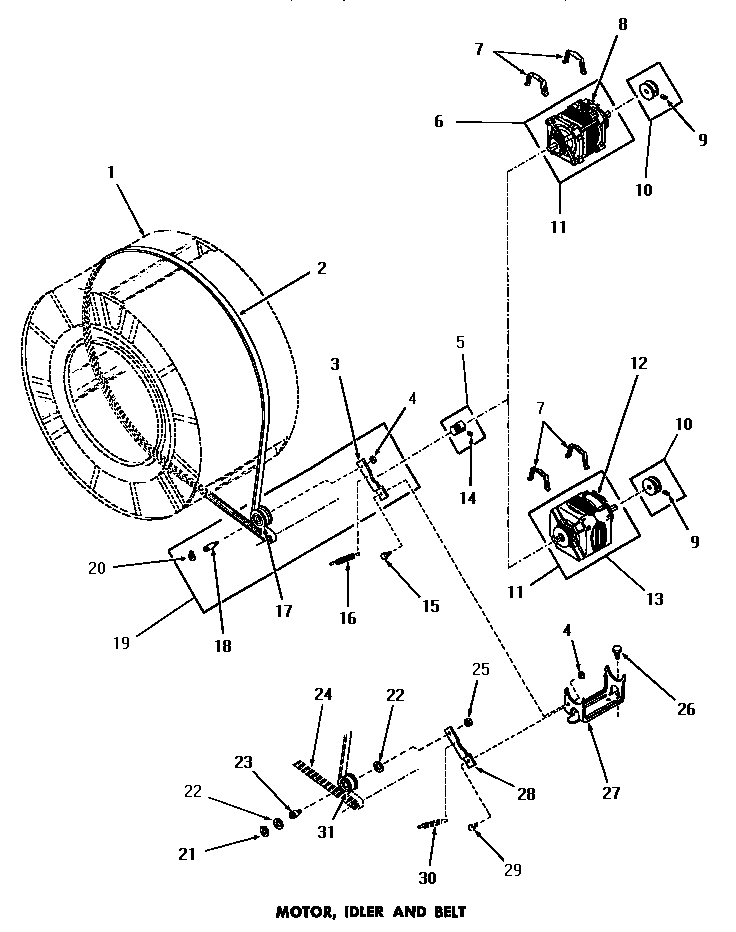

Motor, idler & belt diagram

Idler wheel

Part #54414

Replaced by #WPY54414

?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
BEST SELLER
$18.57 |
10% OFF Phone Price : $20.57
In Stock
Clip 51789
#7

Motor, idler & belt diagram

Clip

Part #51789

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 51789. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Door Catch 54660
#21

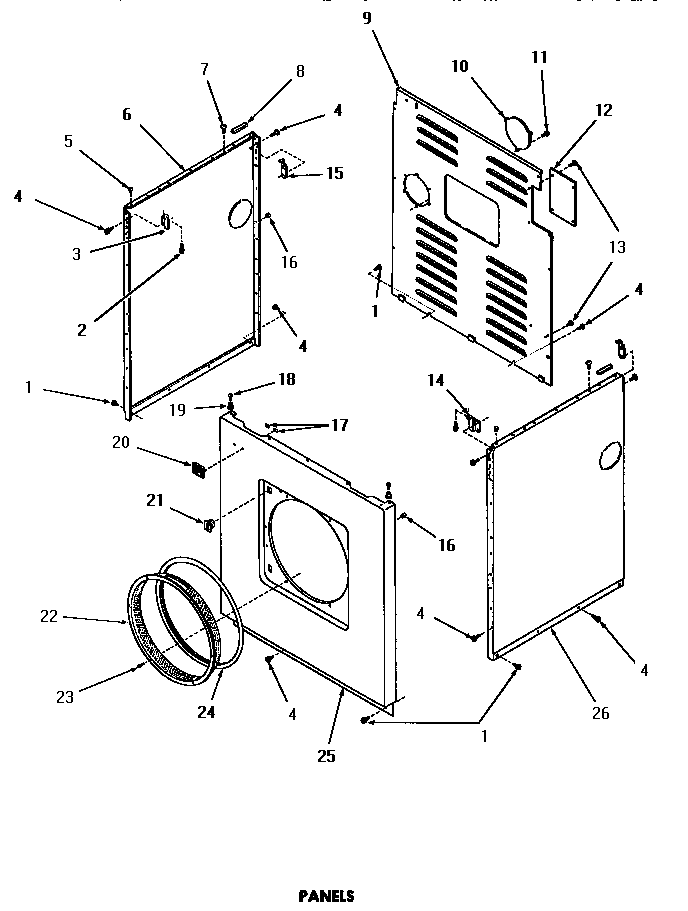

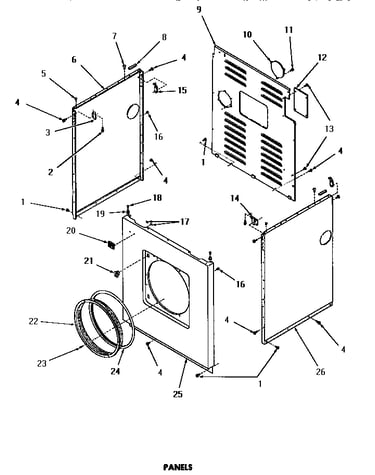

Panels diagram

Door catch

Part #54660

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54660. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Door Strike 54661
#6

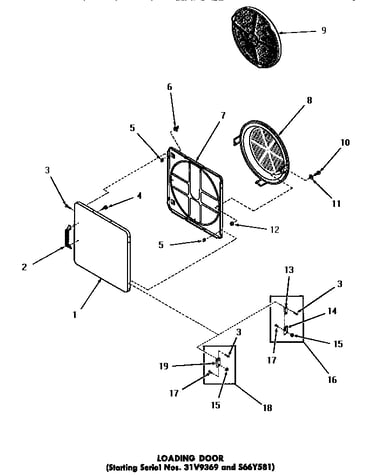

Loading door (starting serial numbers 31v9369 and s66y581) diagram

Door strike

Part #54661

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54661. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Screw 52150
Screw

Part #52150

Replaced by #WP489464

?
Manufacturer substitution
This part replaces 52150. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Speed Queen Hex Nut 52566
Speed queen hex nut

Part #52566

This item is not returnable
$3.49
In Stock
Kenmore Screw 20267
Kenmore screw

Part #20267

This item is not returnable
$3.23
In Stock
Washer 52564
Washer

Part #52564

This item is not returnable
$2.16
In Stock
Screw 53952
Screw

Part #53952

$16.29
In Stock
Speed Queen Nut 51236
Speed queen nut

Part #51236

This item is not returnable
$3.86
In Stock
