Model # 167430580 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167430580 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Clamp 066-6217
#23

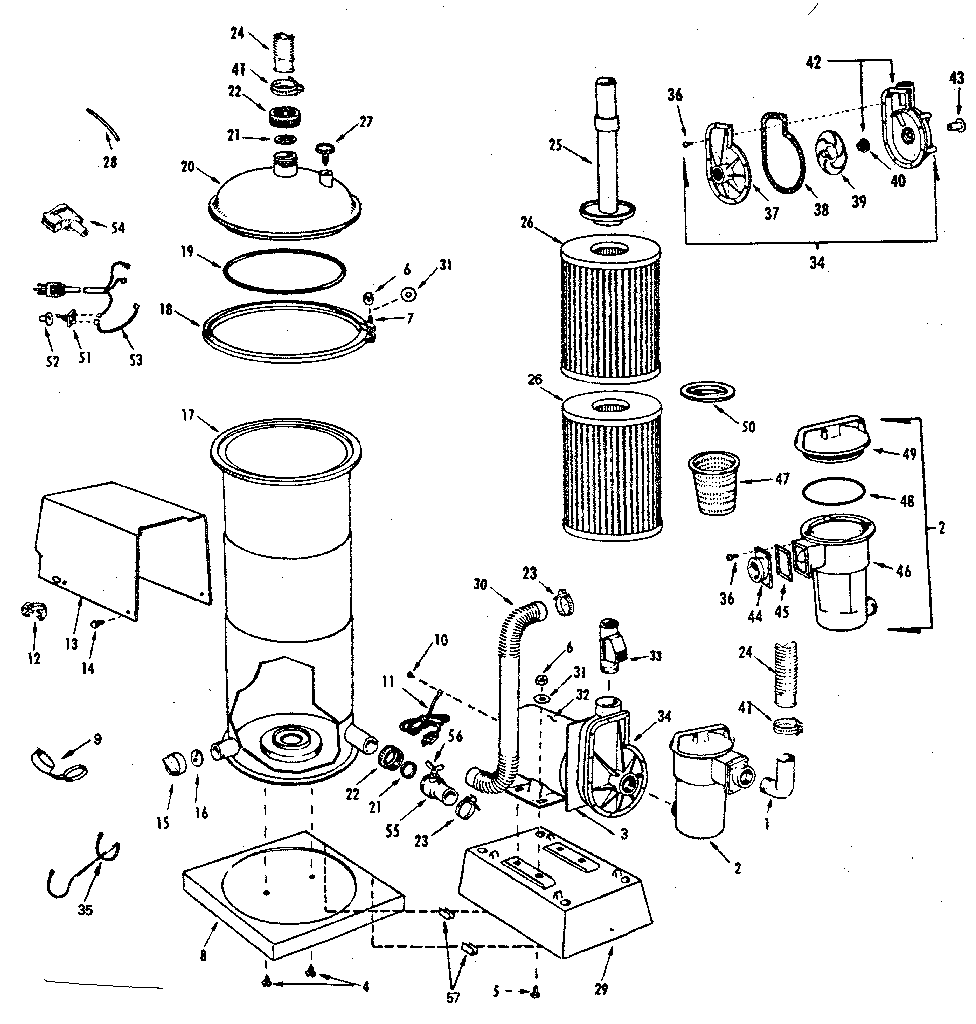

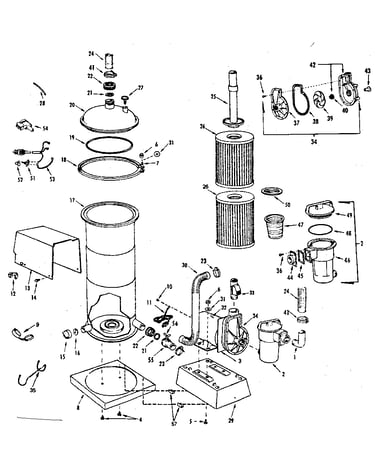

Replacement parts diagram

Clamp

Part #066-6217

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 066-6211
#41

Replacement parts diagram

Hose clamp

Part #066-6211

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 052-3701
#31

Replacement parts diagram

Flat washer

Part #052-3701

The manufacturer no longer makes this part, and there's no substitute part

Motor 3/4 Hp 010-3078
#32

Replacement parts diagram

Motor 3/4 hp

Part #010-3078

The manufacturer no longer makes this part, and there's no substitute part

Indicator 12-2054
#33

Replacement parts diagram

Indicator

Part #12-2054

The manufacturer no longer makes this part, and there's no substitute part

Tube 102-7012
#24

Replacement parts diagram

Tube

Part #102-7012

The manufacturer no longer makes this part, and there's no substitute part

U-clip 055-3717
#57

Replacement parts diagram

U-clip

Part #055-3717

The manufacturer no longer makes this part, and there's no substitute part

Body 09-3026
#42

Replacement parts diagram

Body

Part #09-3026

The manufacturer no longer makes this part, and there's no substitute part

Pump Gasket 038-3435
#38

Replacement parts diagram

Pump gasket

Part #038-3435

The manufacturer no longer makes this part, and there's no substitute part

Strainer 097-6902
#47

Replacement parts diagram

Strainer

Part #097-6902

The manufacturer no longer makes this part, and there's no substitute part
