Model # LBR5432LQ0 Official Whirlpool direct-drive washer
Here are the diagrams and repair parts for Official Whirlpool LBR5432LQ0 direct-drive washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

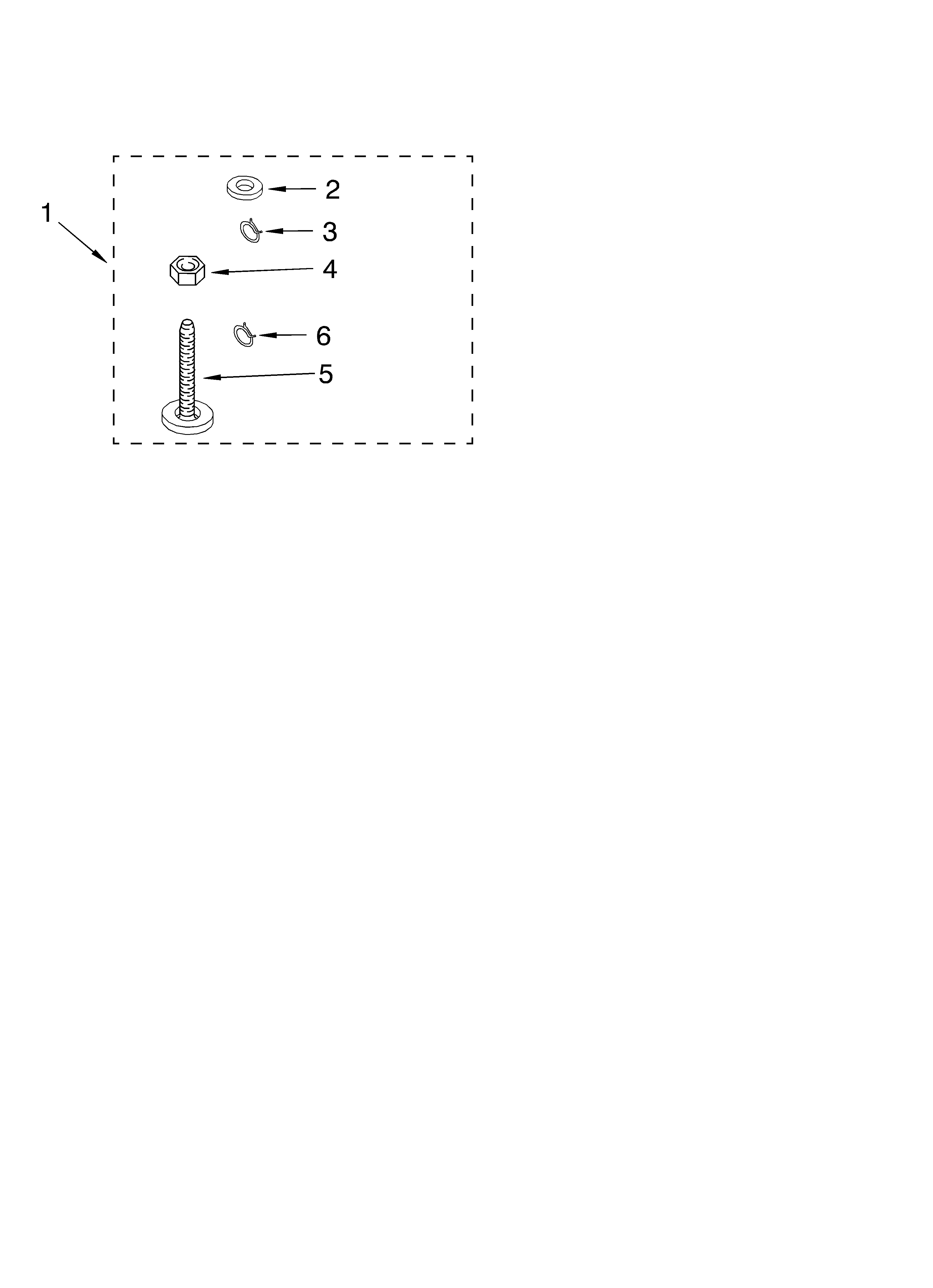

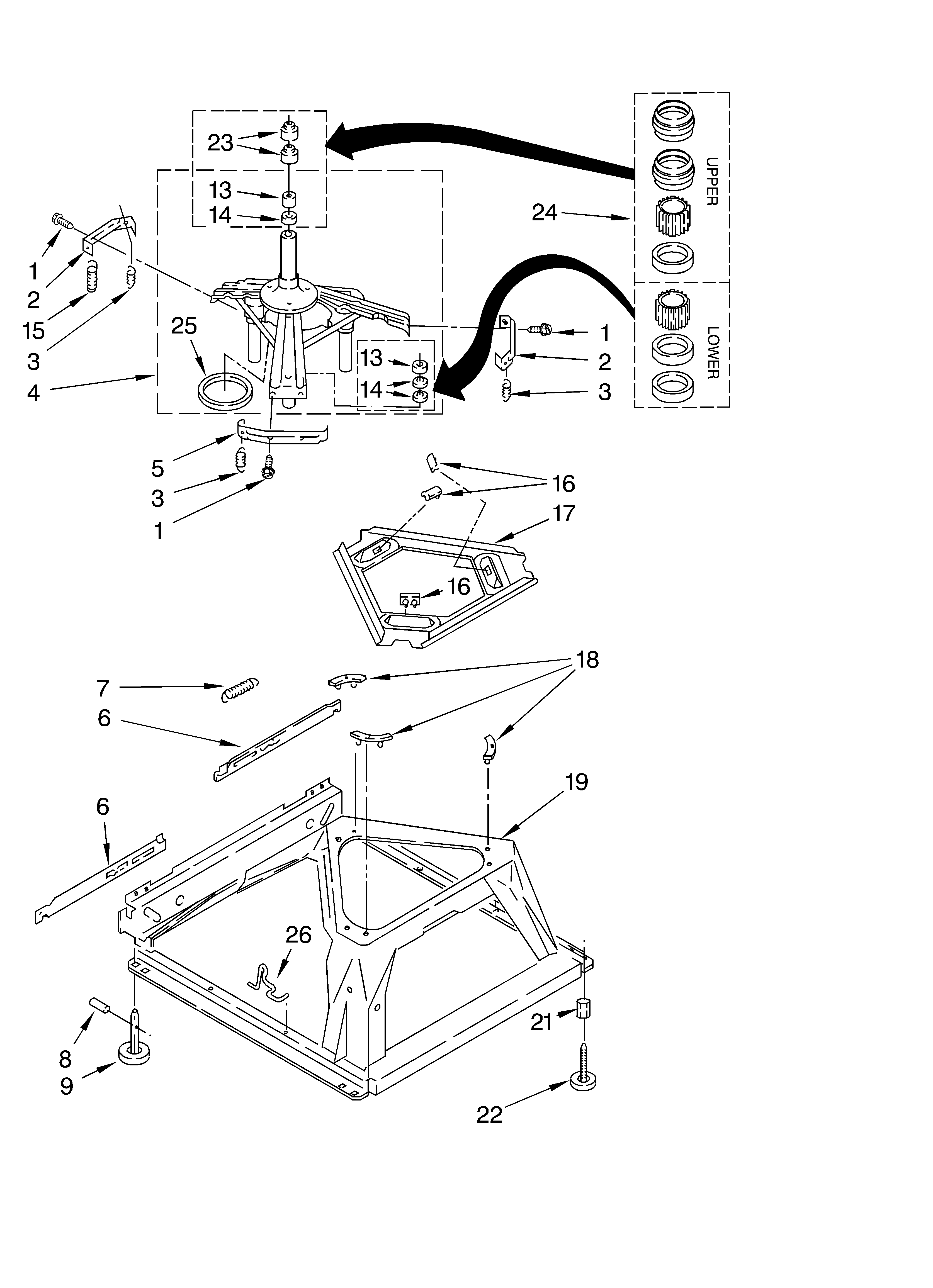

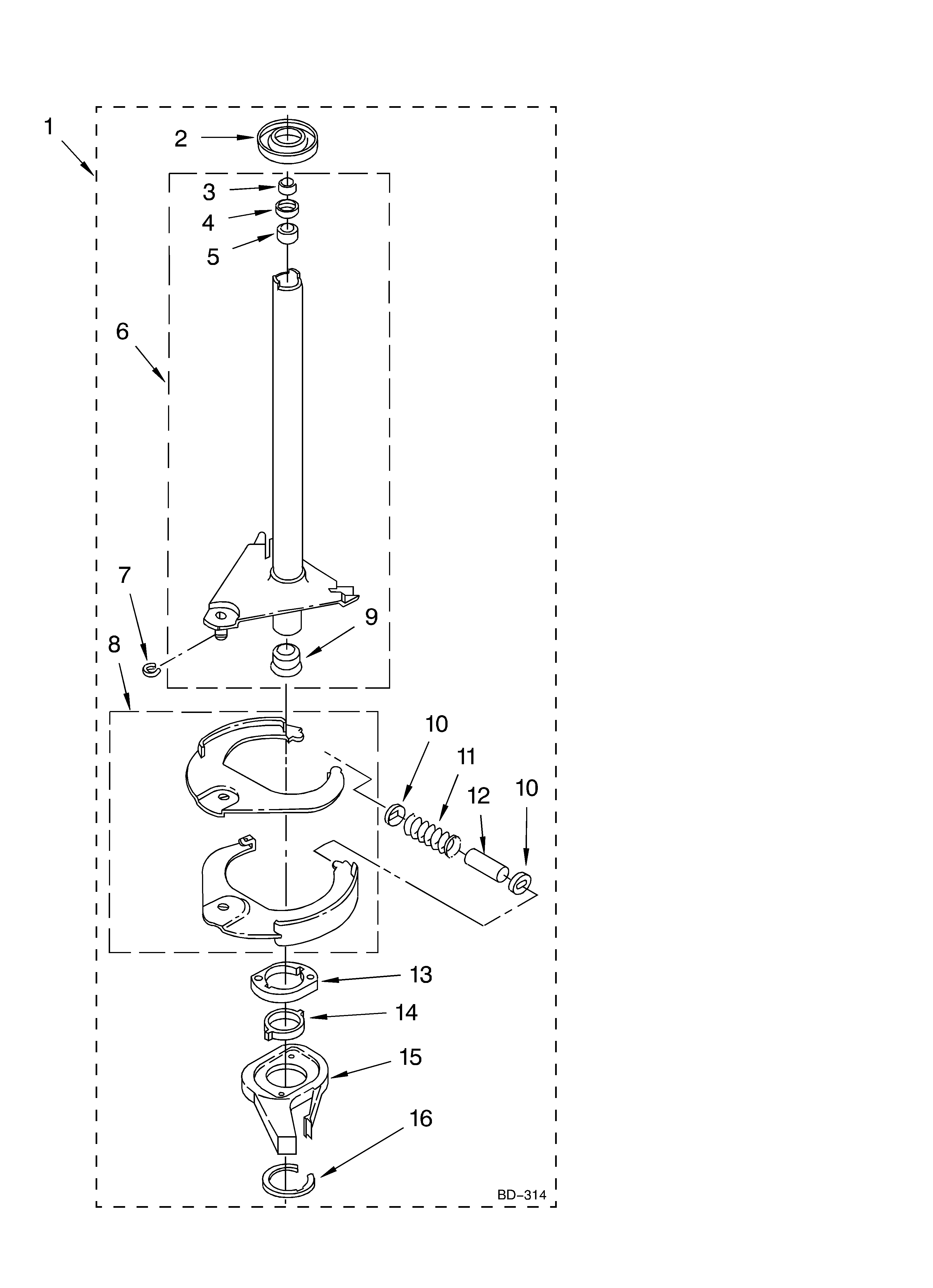

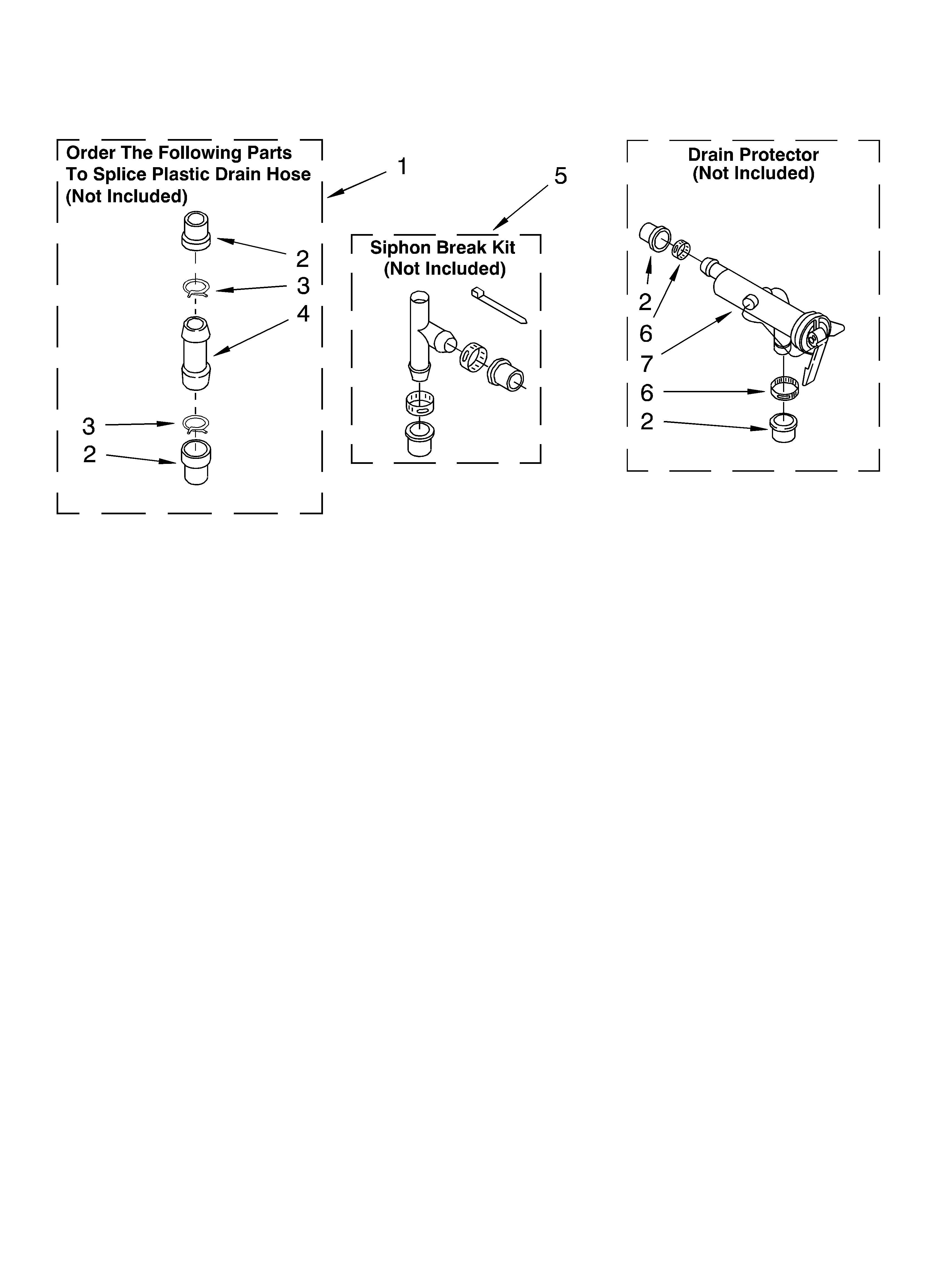

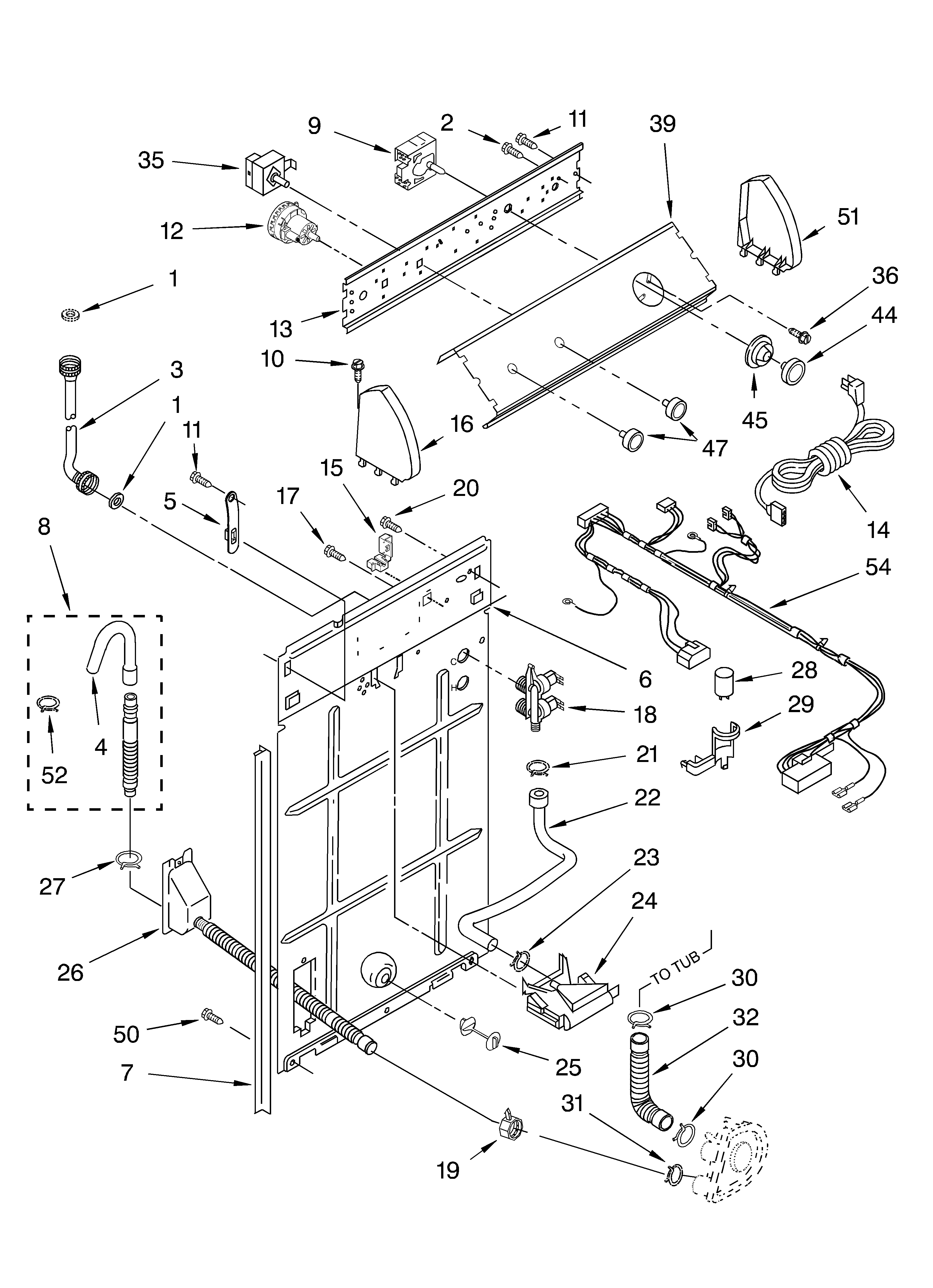

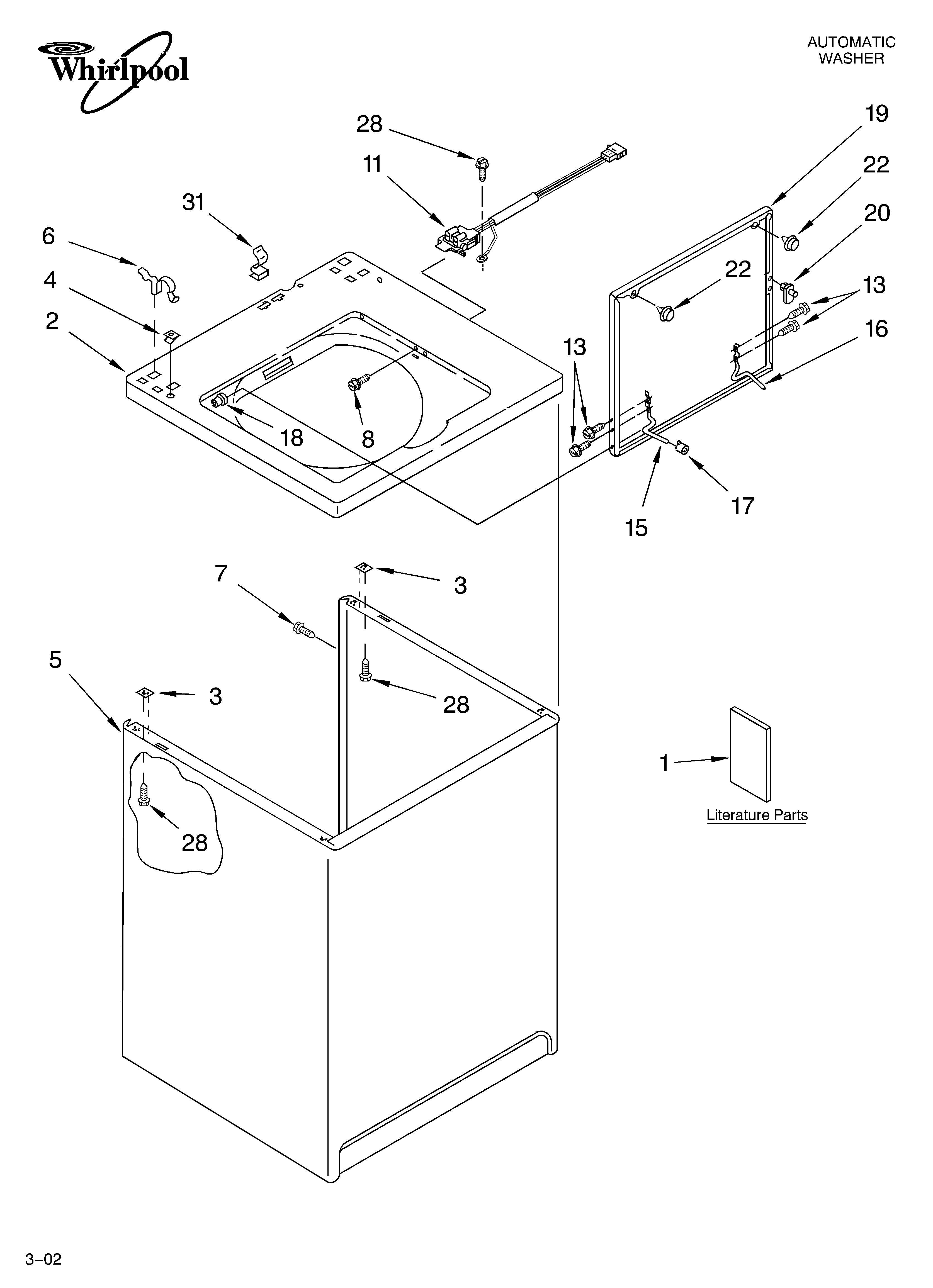

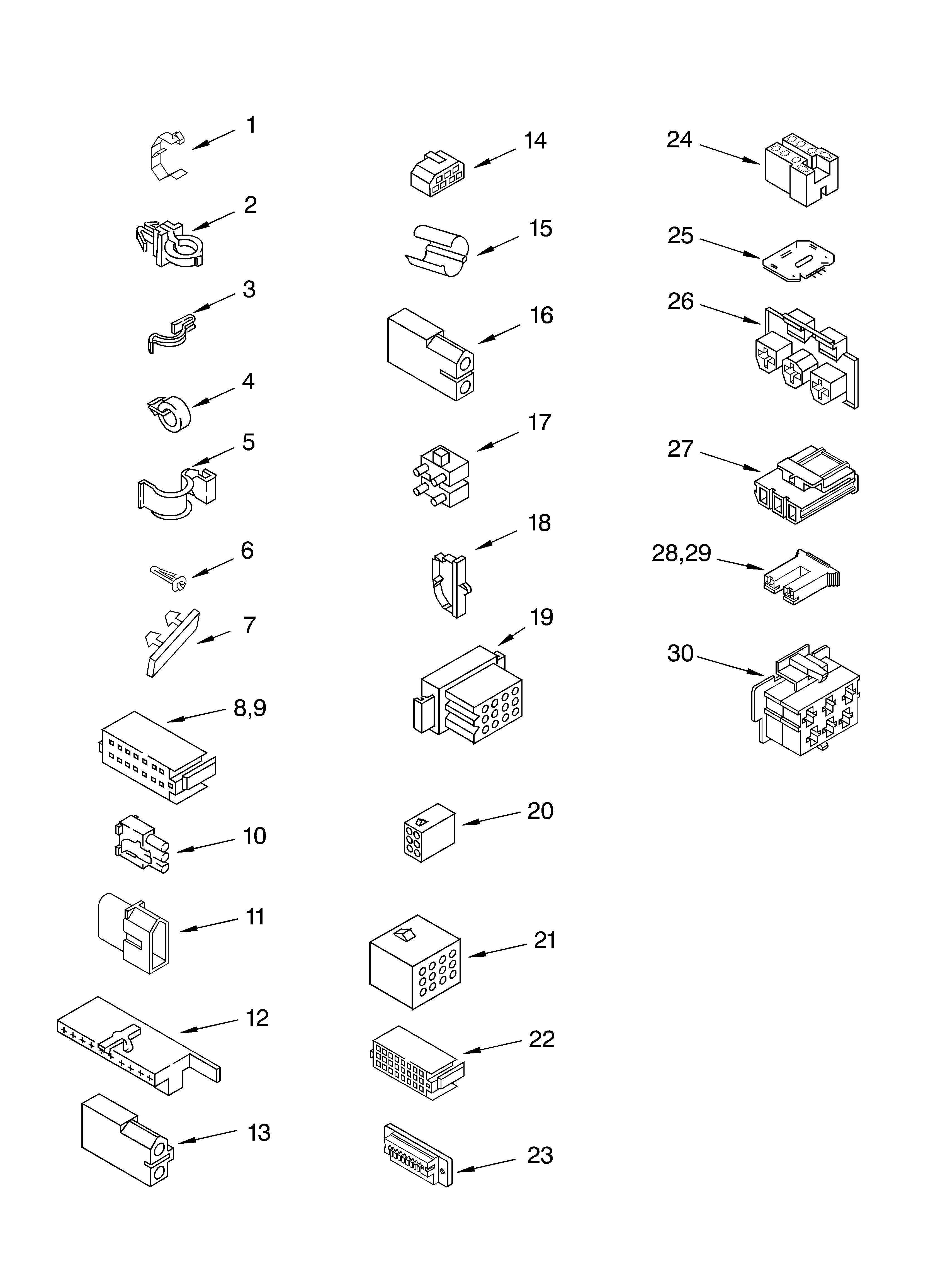

SELECT DIAGRAM
Browse Parts for
LBR5432LQ0 Direct-Drive Washer
#13

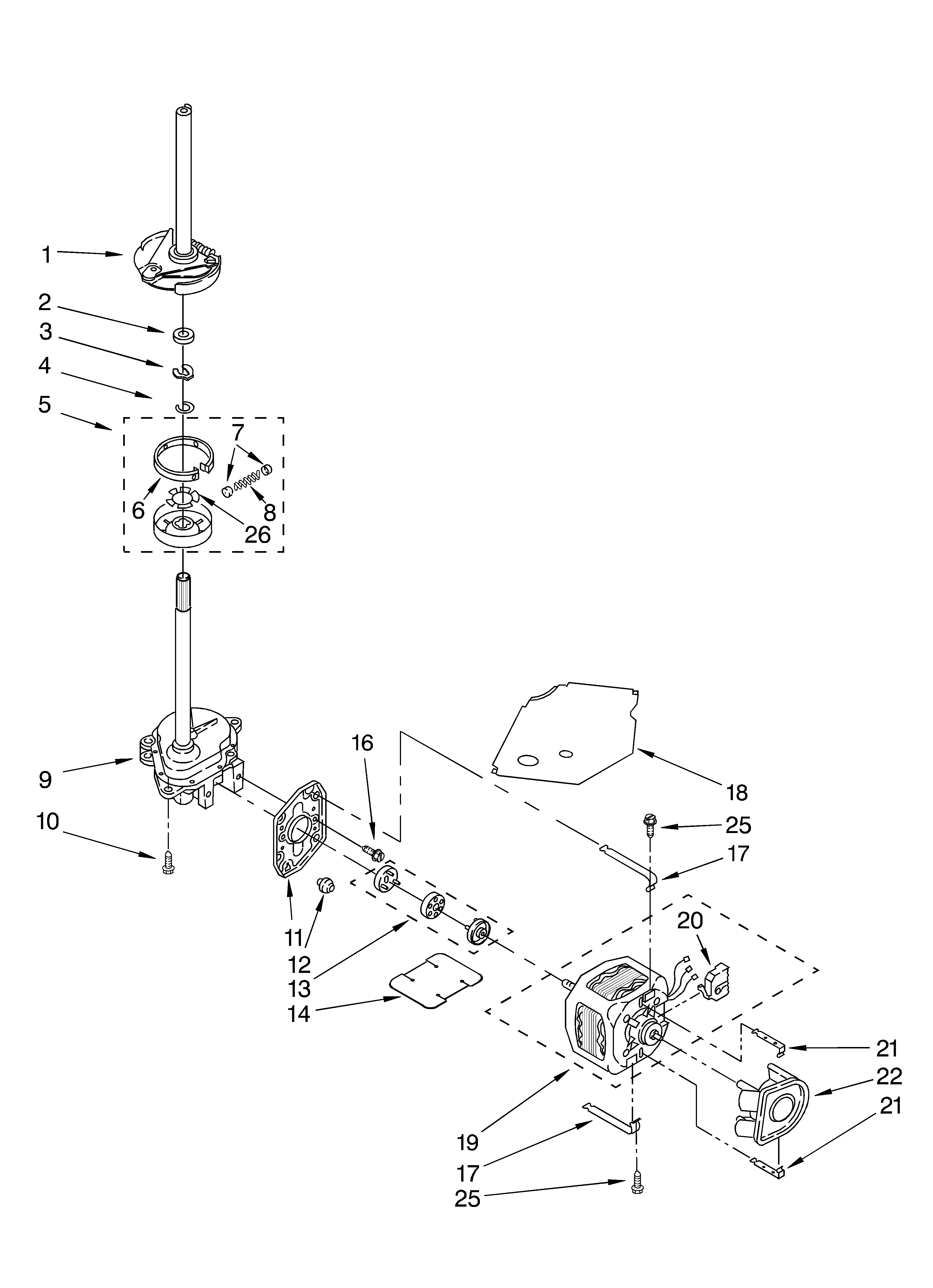

Brake, clutch, gearcase, motor and pump diagram
Washer motor coupling
Part #285753
Replaced by #285753A
?
Manufacturer substitution
This part replaces 285753. Substitute parts can look different from the original.
$21.19 |
22% OFF Phone Price : $27.19
In Stock
#25
Gearcase diagram
Gear
Part #62570
Replaced by #3360629
?
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
$205.17 |
6% OFF Phone Price : $217.17
In Stock
Gear case
Part #3360630
Replaced by #3360629
?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
$205.17 |
6% OFF Phone Price : $217.17
In Stock
#5
Brake, clutch, gearcase, motor and pump diagram
Clutch
Part #3951311
Replaced by #285785
?
Manufacturer substitution
This part replaces 3951311. Substitute parts can look different from the original.
$29.44 |
17% OFF Phone Price : $35.44
In Stock
Basketdriv
Part #388951
Replaced by #W10820043
?
Manufacturer substitution
This part replaces 388951. Substitute parts can look different from the original.
$100.90 |
11% OFF Phone Price : $112.90
In Stock
#15

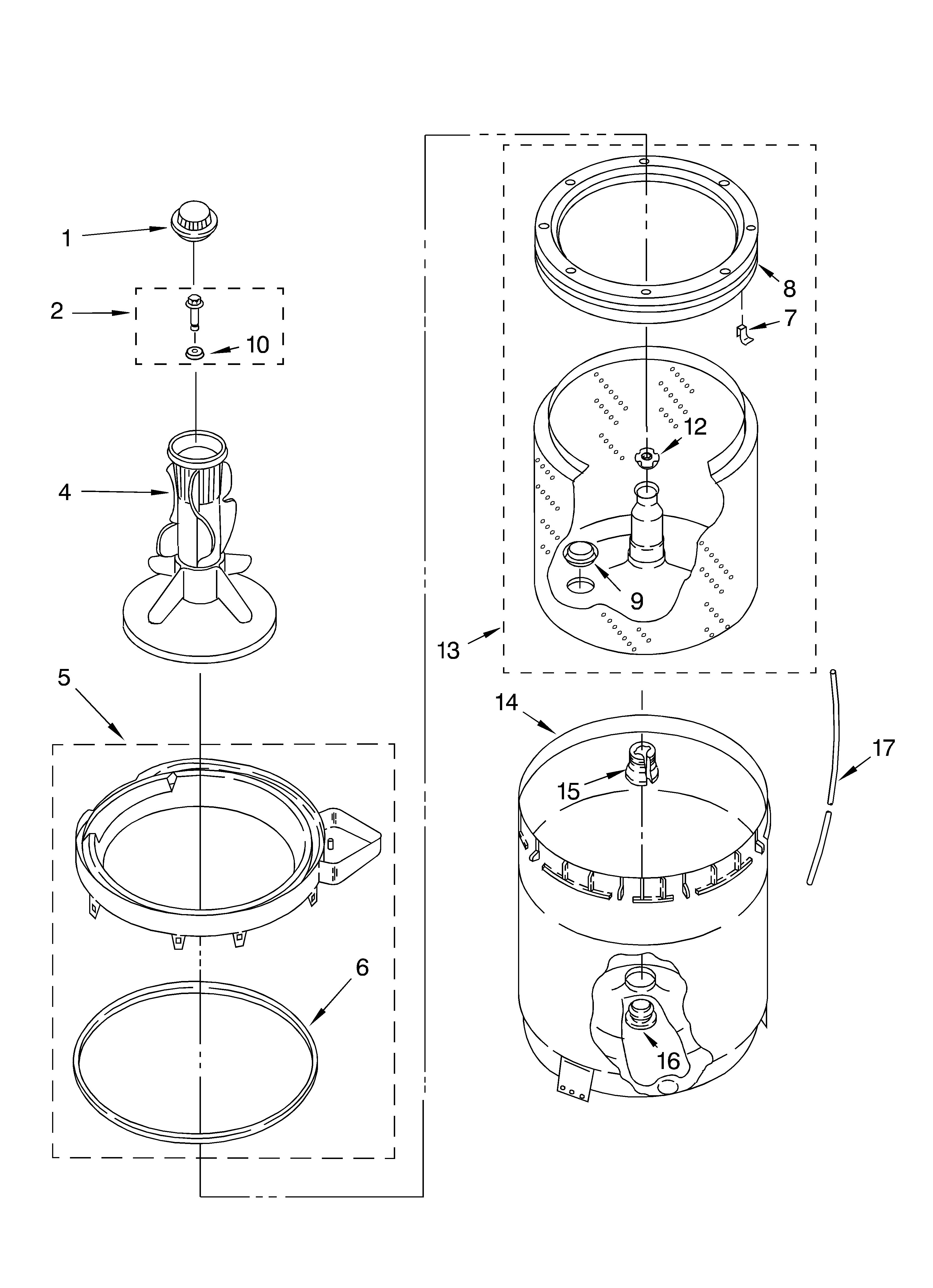

Agitator, basket and tub diagram
Washer drive block
Part #389140
Replaced by #WP389140
?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
$23.33 |
20% OFF Phone Price : $29.33
In Stock
#22
Brake, clutch, gearcase, motor and pump diagram
Washer drain pump
Part #3363394
Replaced by #WP3363394
?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
$28.52 |
17% OFF Phone Price : $34.52
In Stock
#12
Agitator, basket and tub diagram
Washer spanner nut
Part #21366
Replaced by #WP21366
?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#19
Brake, clutch, gearcase, motor and pump diagram
Washer drive motor
Part #8528157
Replaced by #WP661600
?
Manufacturer substitution
This part replaces 8528157. Substitute parts can look different from the original.
$135.45 |
8% OFF Phone Price : $147.45
In Stock
#16
Agitator, basket and tub diagram
Washer tub gasket
Part #383727
Replaced by #W10814296
?
Manufacturer substitution
This part replaces 383727. Substitute parts can look different from the original.
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
