Model # DSC-W190R Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W190R digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Flash Unit A1732640A
#57

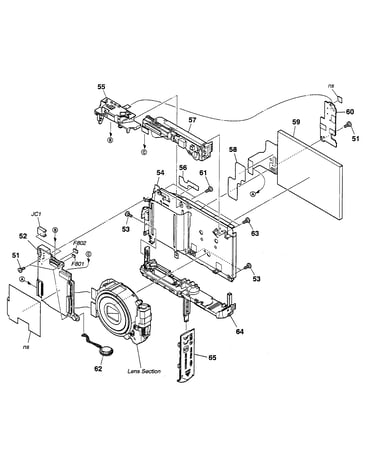

Main frame diagram

Flash unit

Part #A1732640A

$116.25
In Stock
Tape 415175301
#56

Main frame diagram

Tape

Part #415175301

This item is not returnable
$2.16
In Stock
Filter Assembly 415171201
#102

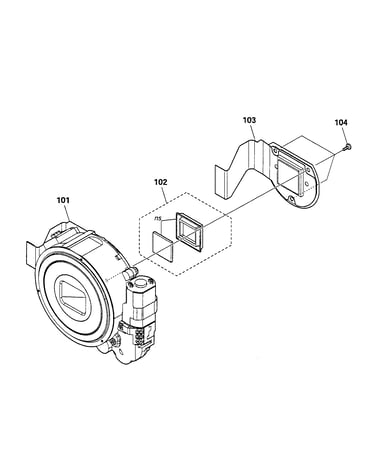

Lens diagram

Filter assembly

Part #415171201

$8.74
In Stock
Screw 329513201
#63

Main frame diagram

Screw

Part #329513201

$30.84
In Stock
Screw 415176101
#104

Lens diagram

Screw

Part #415176101

This item is not returnable
$4.80
In Stock
Fuse Micro 157691331
#F802

Main frame diagram

Fuse micro

Part #157691331

This item is not returnable
$2.65
In Stock
Pcb A1732637A
#60

Main frame diagram

Pcb

Part #A1732637A

$62.91
In Stock
Connector 182033311
#JC1

Main frame diagram

Connector

Part #182033311

$13.24
In Stock
Battery Lid 415138501
#65

Main frame diagram

Battery lid

Part #415138501

$8.74
In Stock
Sony Cabinet X25141141
#1

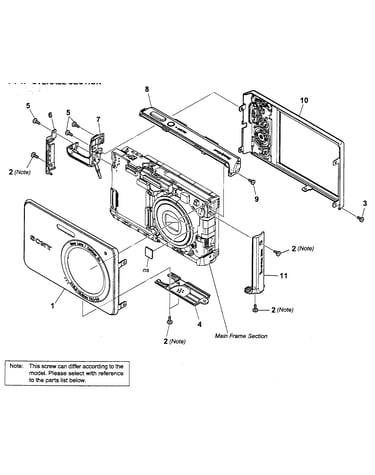

Cabinet parts diagram

Sony cabinet

Part #X25141141

$116.25
In Stock
