Model # BH20090 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover BH20090 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |

Hoover Hand Vacuum 440002283
#6

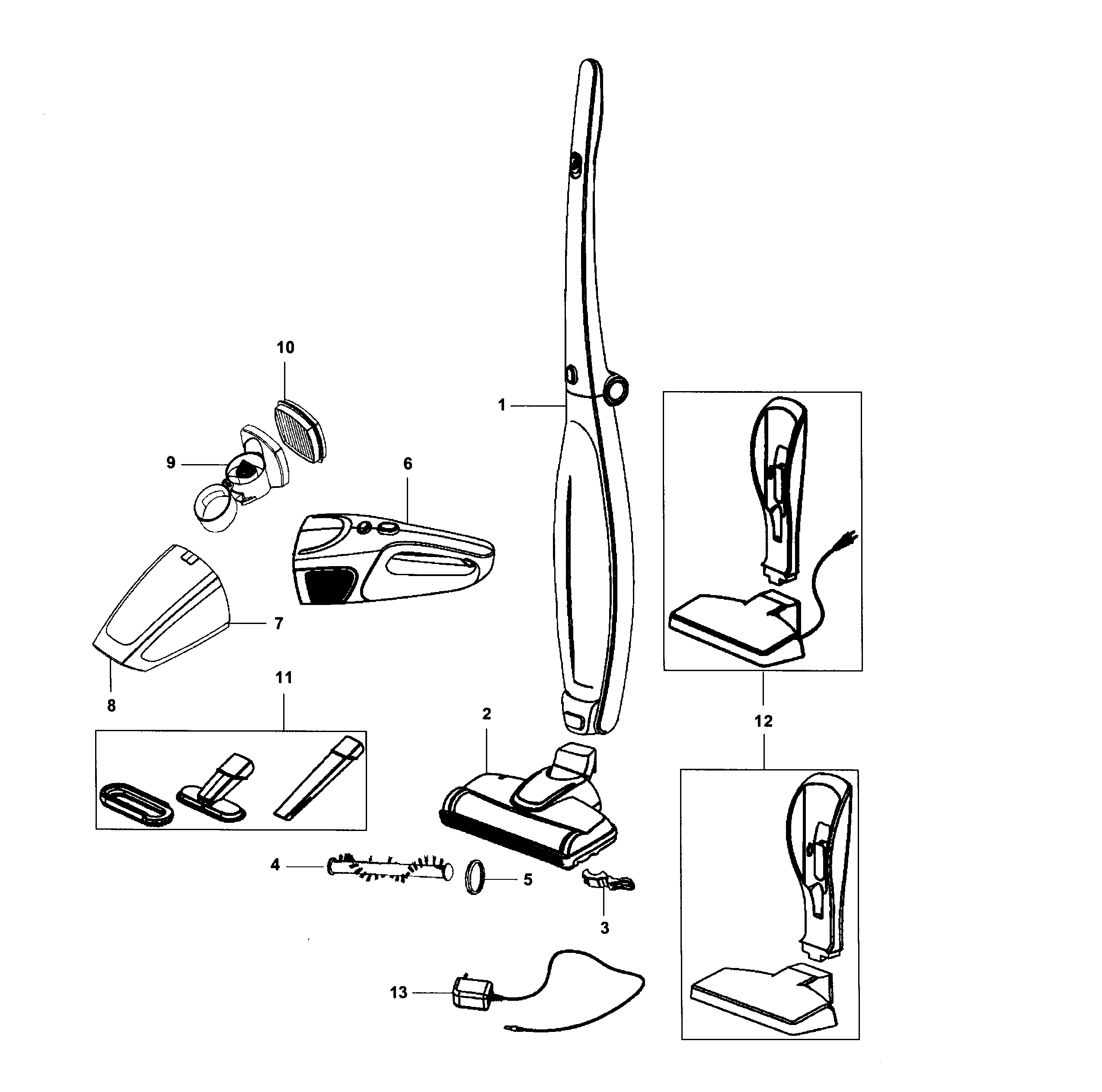

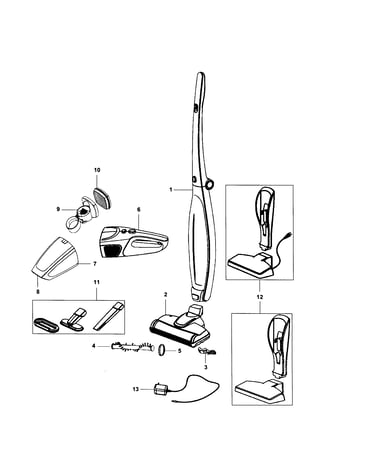

Main assy diagram

Hoover hand vacuum

Part #440002283

The manufacturer no longer makes this part, and there's no substitute part

Separator 440002280
#9

Main assy diagram

Separator

Part #440002280

The manufacturer no longer makes this part, and there's no substitute part

Main Body 440003276
#1A

Main assy diagram

Main body

Part #440003276

The manufacturer no longer makes this part, and there's no substitute part

Stand-chrg 440002285
#12

Main assy diagram

Stand-chrg

Part #440002285

The manufacturer no longer makes this part, and there's no substitute part

Hoover Brush 440002093
#4

Main assy diagram

Hoover brush

Part #440002093

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 440002094
#10

Main assy diagram

Vacuum filter

Part #440002094

The manufacturer no longer makes this part, and there's no substitute part

Belt 440002284
#5

Main assy diagram

Belt

Part #440002284

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 440003274
#2A

Main assy diagram

Nozzle

Part #440003274

The manufacturer no longer makes this part, and there's no substitute part

Hand Vacuum 440003275
#6A

Main assy diagram

Hand vacuum

Part #440003275

The manufacturer no longer makes this part, and there's no substitute part

Hoover Nozzle 440002281
#2

Main assy diagram

Hoover nozzle

Part #440002281

The manufacturer no longer makes this part, and there's no substitute part
