Toro
Electric Snowblower

Model # 38310-3900001, 4900001 & UP Official Toro snow thrower

Here are the diagrams and repair parts for Official Toro 38310-3900001-4900001-UP snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Washer 3256-24
#24

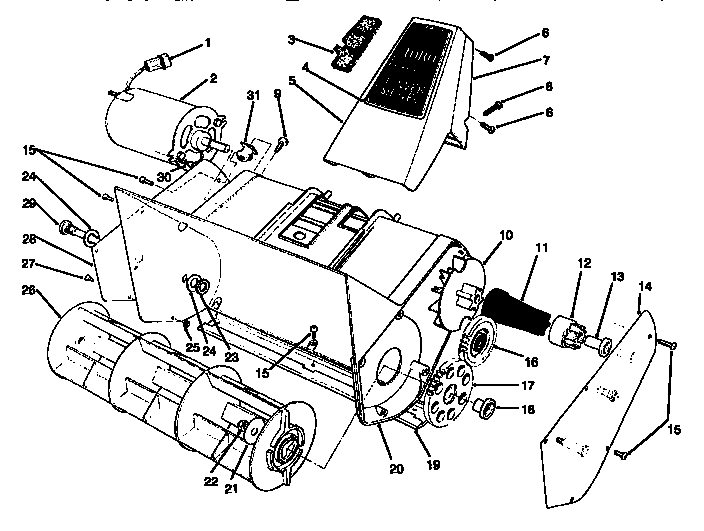

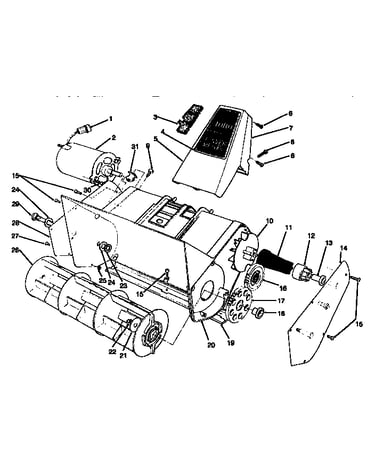

Rotor housing assembly diagram

Washer

Part #3256-24

This item is not returnable
$2.16
In Stock
Toro Lockout 41-9870
#14

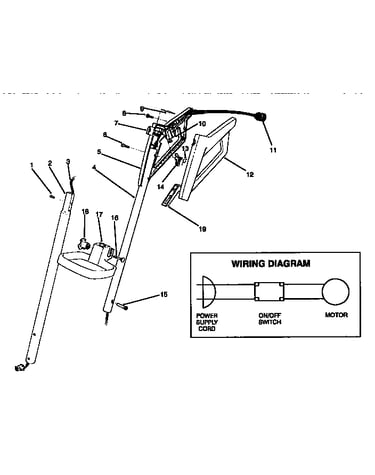

Handle assembly diagram

Toro lockout

Part #41-9870

$16.57
In Stock
Switch 36-8340
#10

Handle assembly diagram

Switch

Part #36-8340

$38.53
In Stock
Screw 32144-36
#30

Rotor housing assembly diagram

Screw

Part #32144-36

This item is not returnable
$2.20
In Stock
Toro Spring 38-8330
#13

Handle assembly diagram

Toro spring

Part #38-8330

$9.14
In Stock
Key 38-8310
#7

Handle assembly diagram

Key

Part #38-8310

$19.69
In Stock
Toro Pin Rotor 38-8210
#29

Rotor housing assembly diagram

Toro pin rotor

Part #38-8210

$32.82
In Stock
Toro Hand Support 64-8840
#7

Rotor housing assembly diagram

Toro hand support

Part #64-8840

$33.38
In Stock
Toro Hand Support 64-8830
#5

Rotor housing assembly diagram

Toro hand support

Part #64-8830

$29.31
In Stock
Toro Filter 42-0050
#3

Rotor housing assembly diagram

Toro filter

Part #42-0050

$12.43
In Stock
