Model # SHX43P16UC/53 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHX43P16UC-53 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

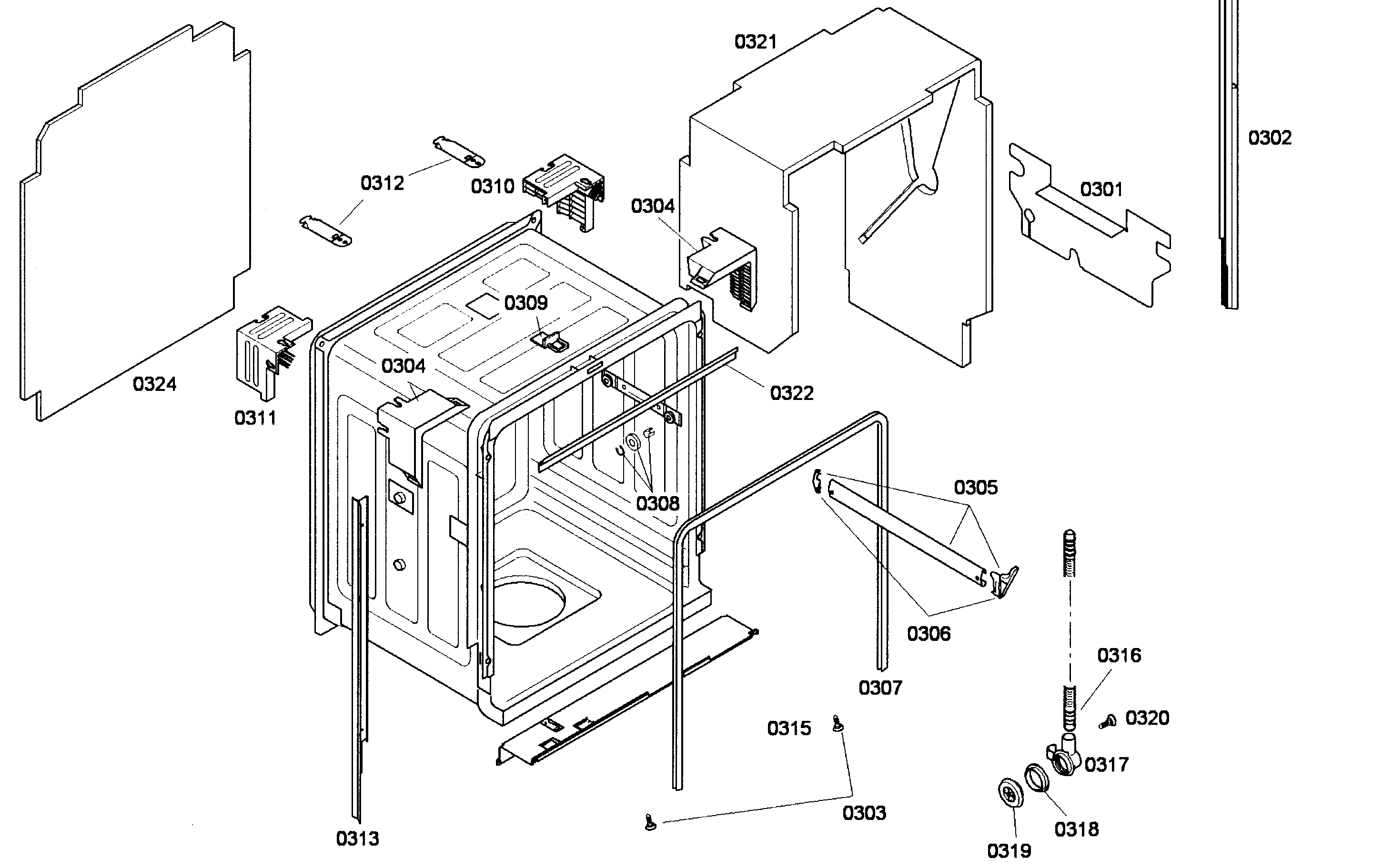

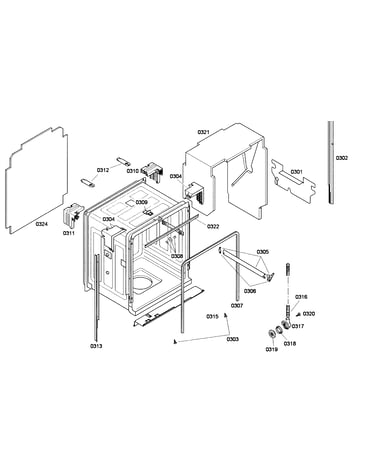

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Drain Pump 642239
#417

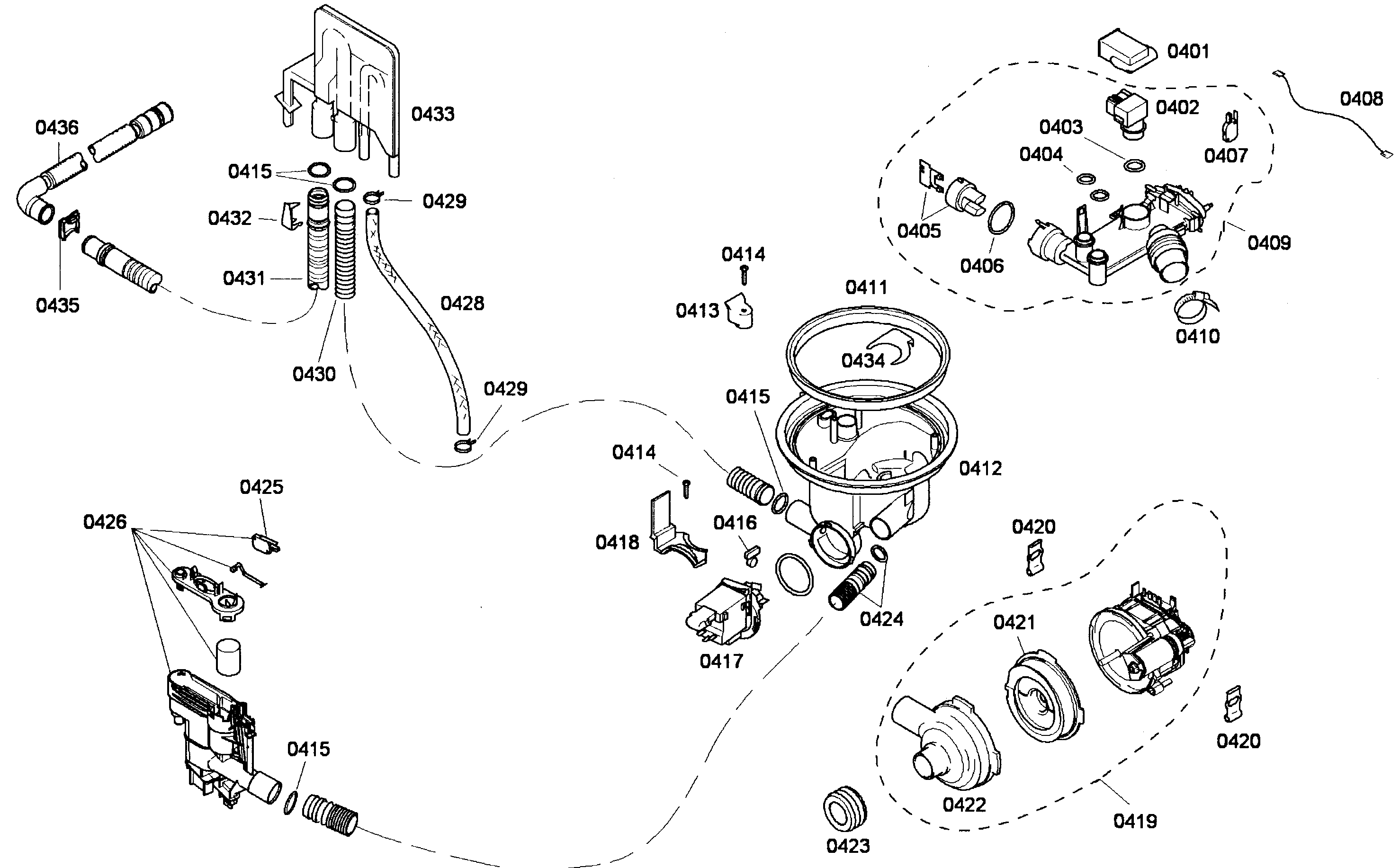

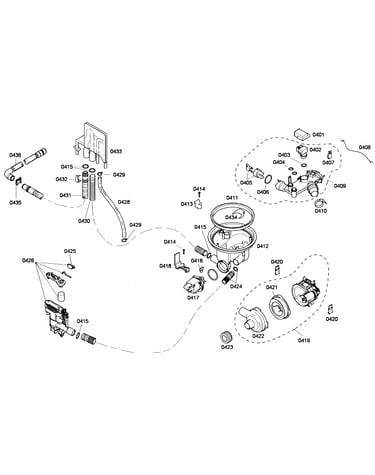

Pump assy diagram

Drain pump

Part #642239

Replaced by #00642239

?
Manufacturer substitution
This part replaces 642239. Substitute parts can look different from the original.
BEST SELLER
$126.36 |
9% OFF Phone Price : $138.36
In Stock
Dishwasher Recirculation Pump Assembly 442548
#419

Pump assy diagram

Dishwasher recirculation pump assembly

Part #442548

Replaced by #00442548

?
Manufacturer substitution
This part replaces 442548. Substitute parts can look different from the original.
BEST SELLER
$236.57 |
5% OFF Phone Price : $248.57
In Stock
Hose Clamp 172272
#410

Pump assy diagram

Hose clamp

Part #172272

Replaced by #00172272

?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Water Inlet Valve 607335
#520

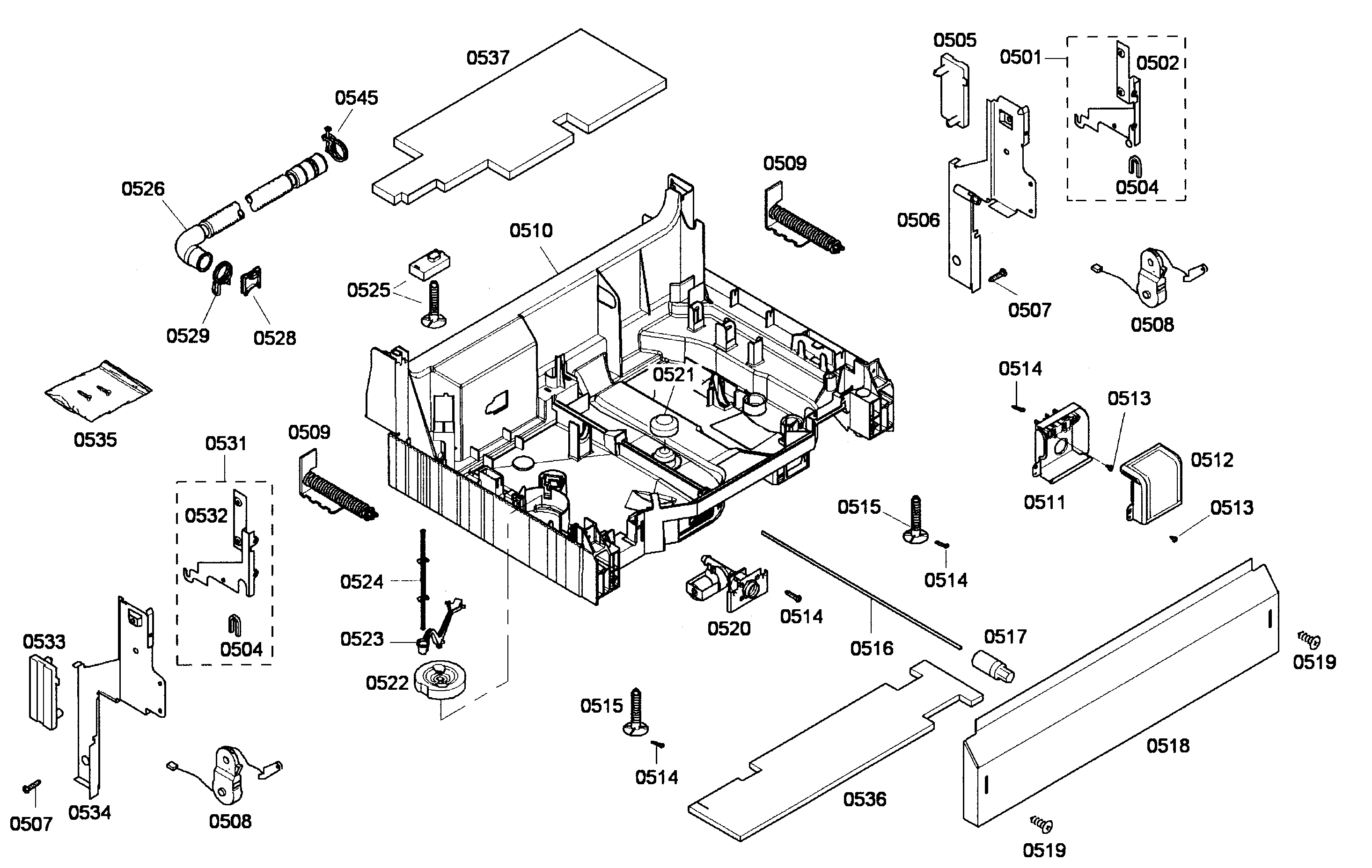

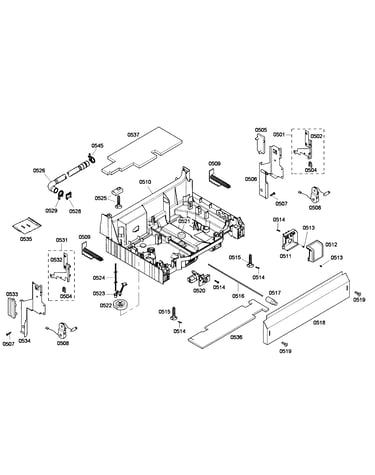

Base assy diagram

Dishwasher water inlet valve

Part #607335

Replaced by #00607335

?
Manufacturer substitution
This part replaces 607335. Substitute parts can look different from the original.
BEST SELLER
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Door Seal 432490
#204

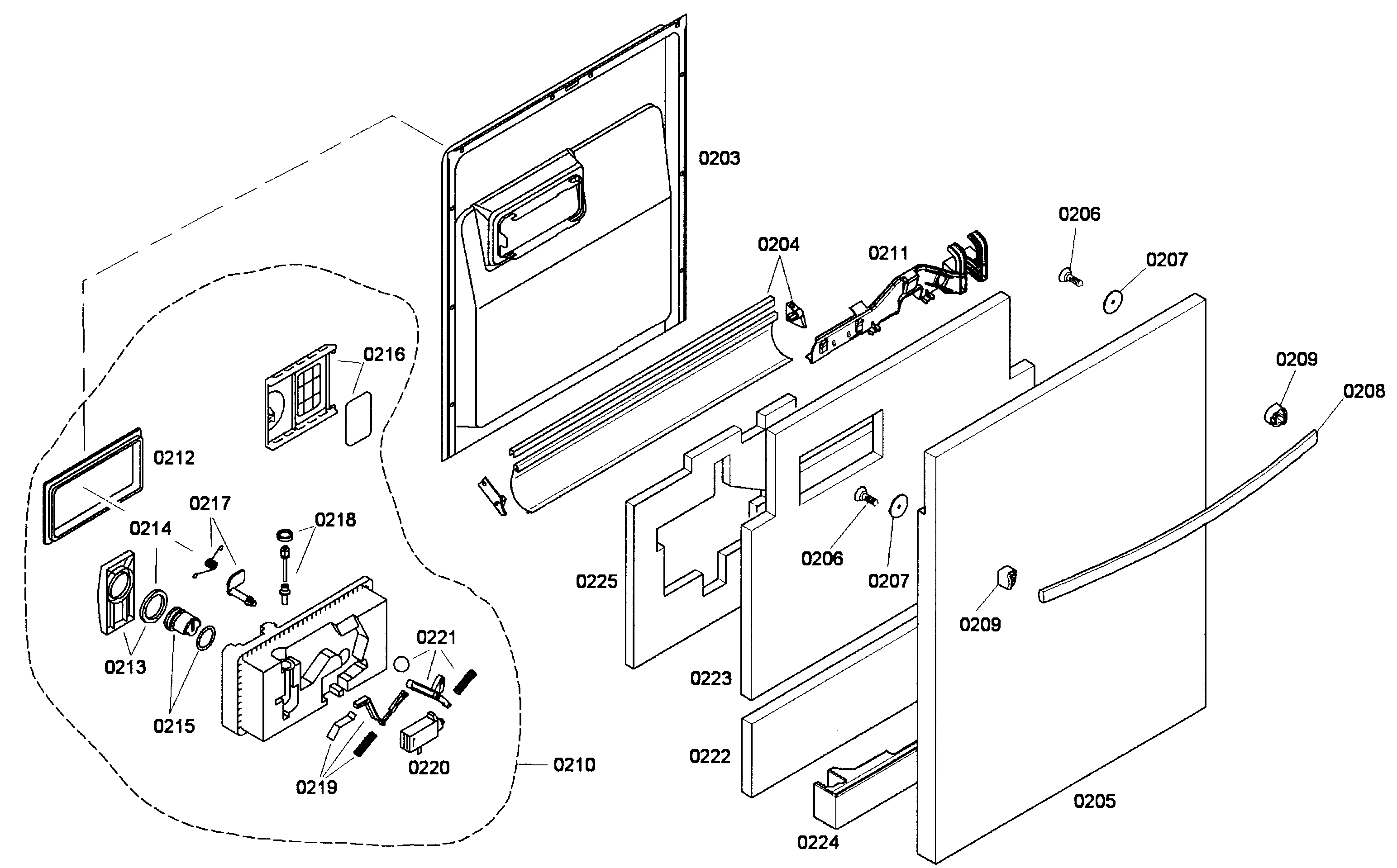

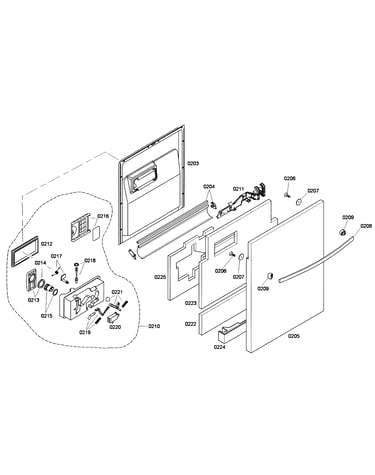

Door assy diagram

Door seal

Part #432490

Replaced by #00432490

?
Manufacturer substitution
This part replaces 432490. Substitute parts can look different from the original.
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Dishwasher Door Latch 438026
#111A

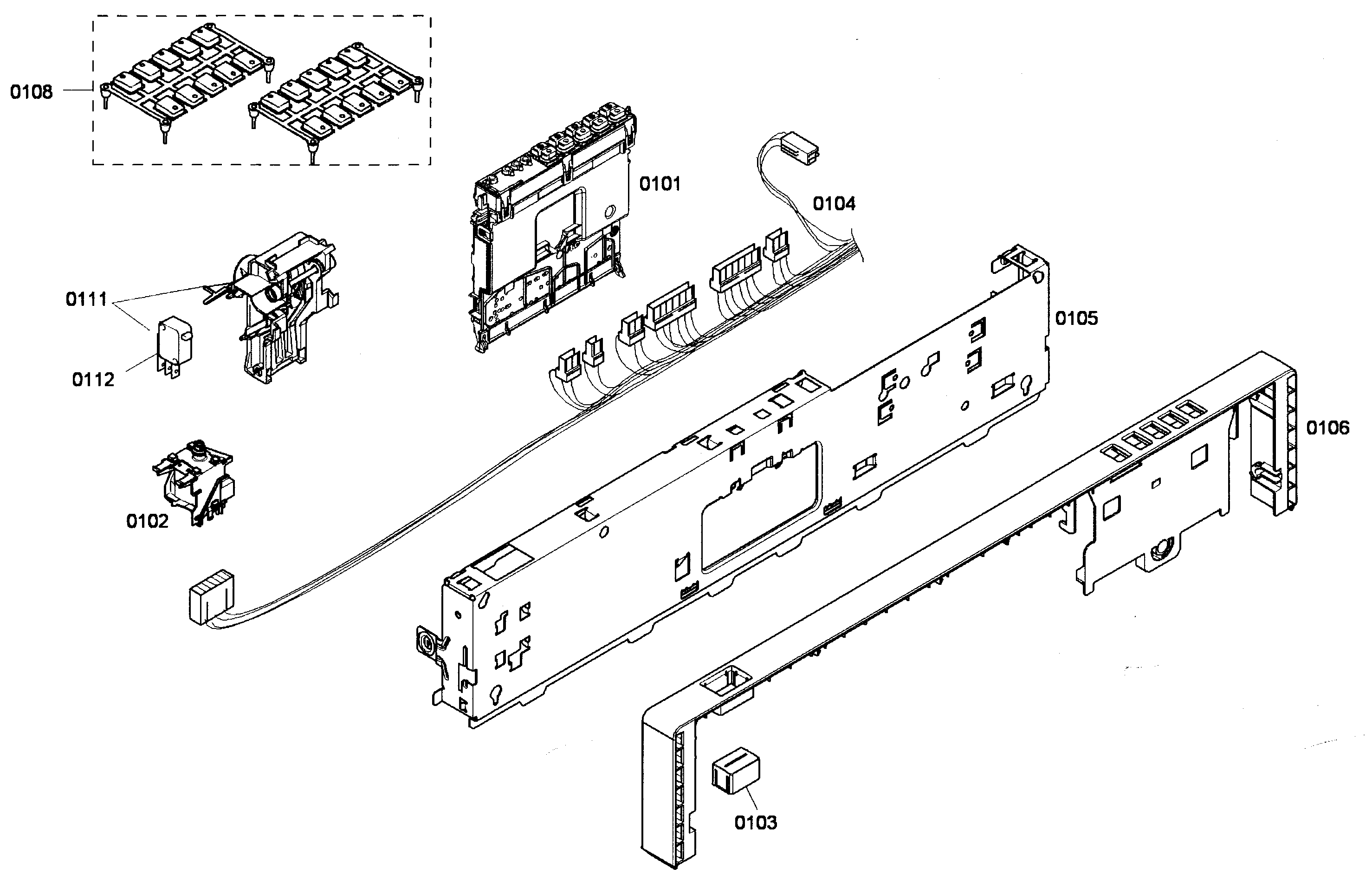

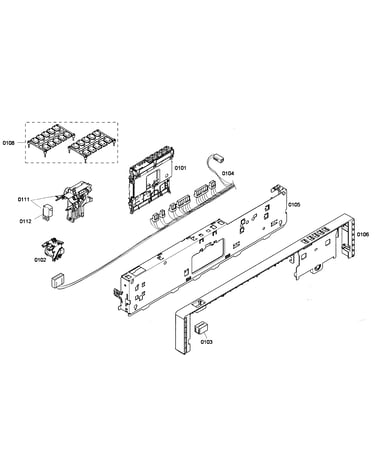

Front panel diagram

Dishwasher door latch

Part #438026

Replaced by #00438026

?
Manufacturer substitution
This part replaces 438026. Substitute parts can look different from the original.
$90.49 |
6% OFF Phone Price : $96.49
In Stock
Door Latch 664710
#111

Front panel diagram

Door latch

Part #664710

Replaced by #00438026

?
Manufacturer substitution
This part replaces 664710. Substitute parts can look different from the original.
$90.49 |
6% OFF Phone Price : $96.49
In Stock
Dishwasher Water Inlet Valve 263833
#433

Pump assy diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Basket 683547
#620

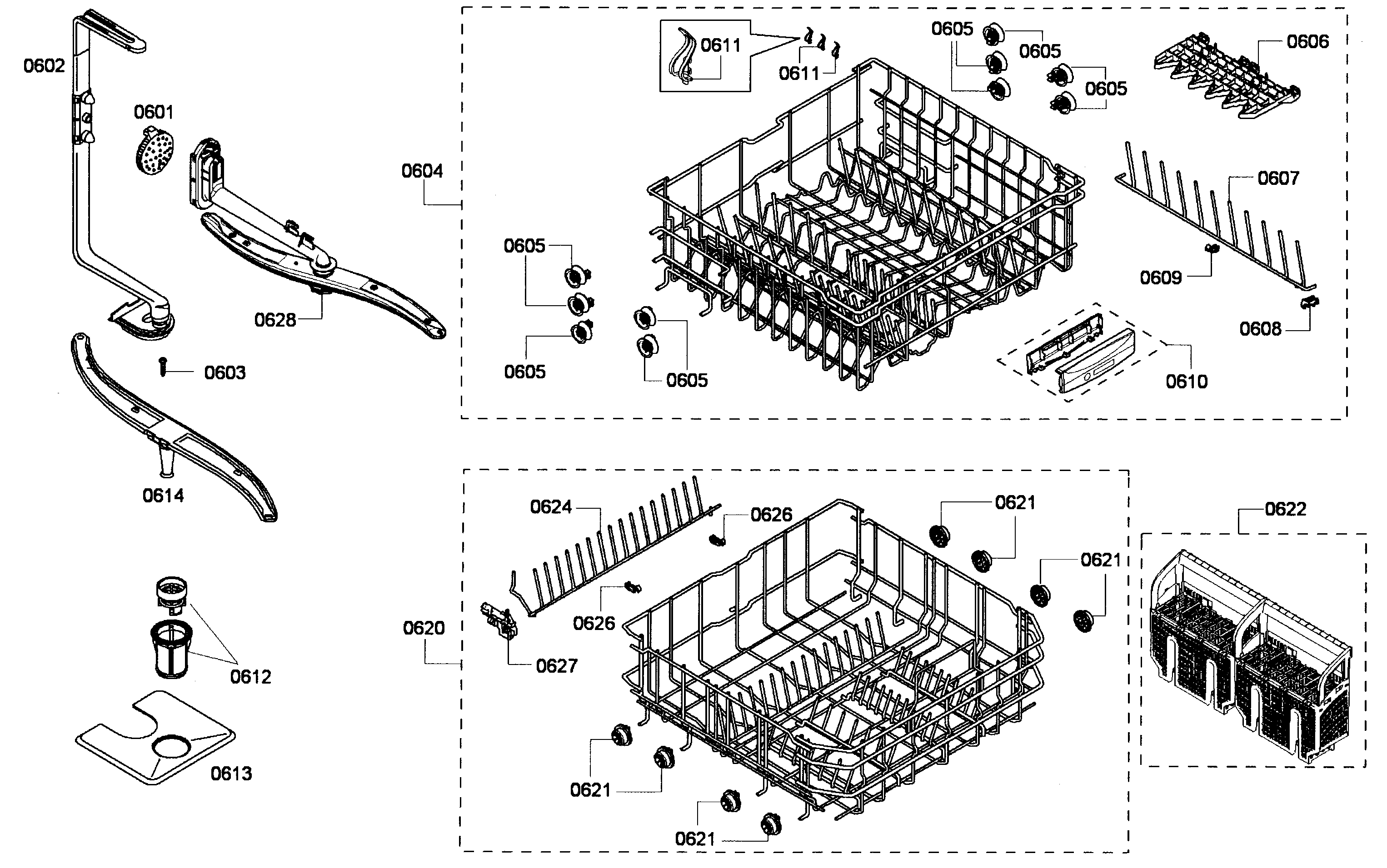

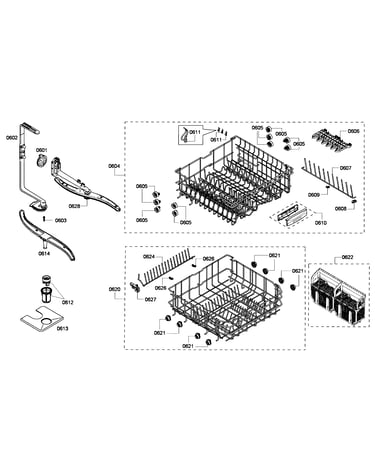

Baskets assy diagram

Basket

Part #683547

Replaced by #00770545

?
Manufacturer substitution
This part replaces 683547. Substitute parts can look different from the original.
$172.74 |
6% OFF Phone Price : $184.74
Back Order
Holder 611981
#626

Baskets assy diagram

Holder

Part #611981

Replaced by #00611981

?
Manufacturer substitution
This part replaces 611981. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
