Amana
Range/Microwave Combo

Model # 3072.000 Official Amana microwave/range

Here are the diagrams and repair parts for Official Amana 3072000 microwave/range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

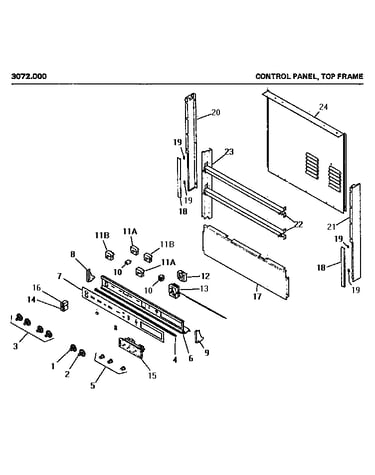

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 299 parts  |
Cushion M2D656
#26B

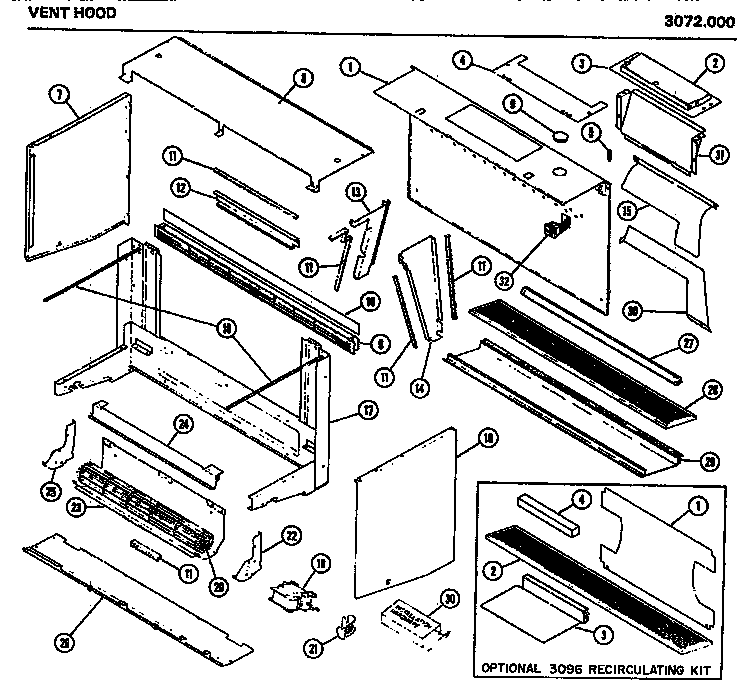

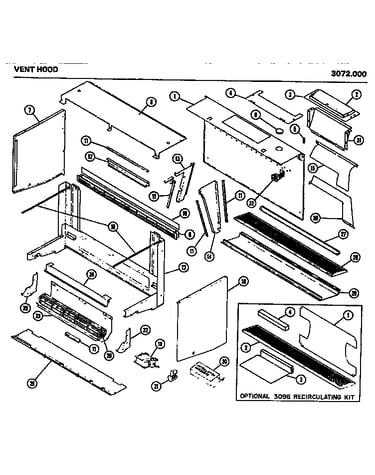

Vent hood diagram

Cushion

Part #M2D656

The manufacturer no longer makes this part, and there's no substitute part

Probe Jack M14D246
#7A

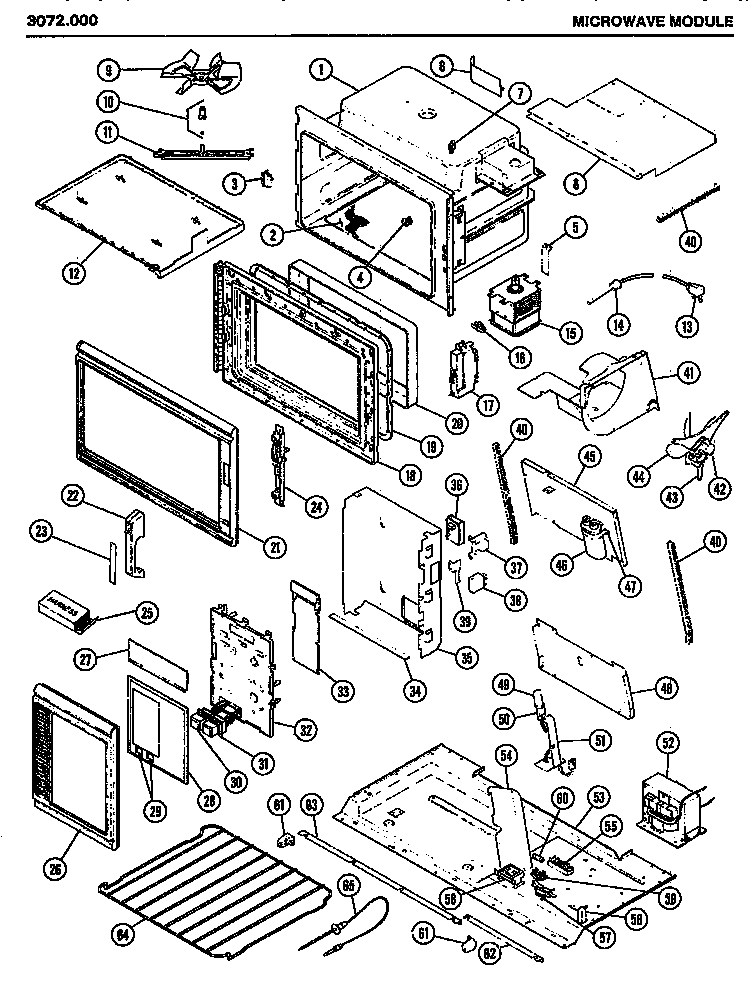

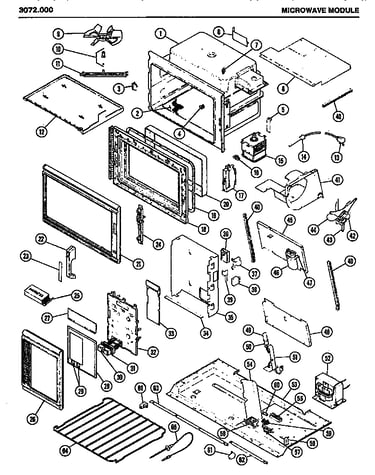

Microwave module diagram

Probe jack

Part #M14D246

The manufacturer no longer makes this part, and there's no substitute part

Frame Assembluy - Left (includes Feet) M83D10
#11

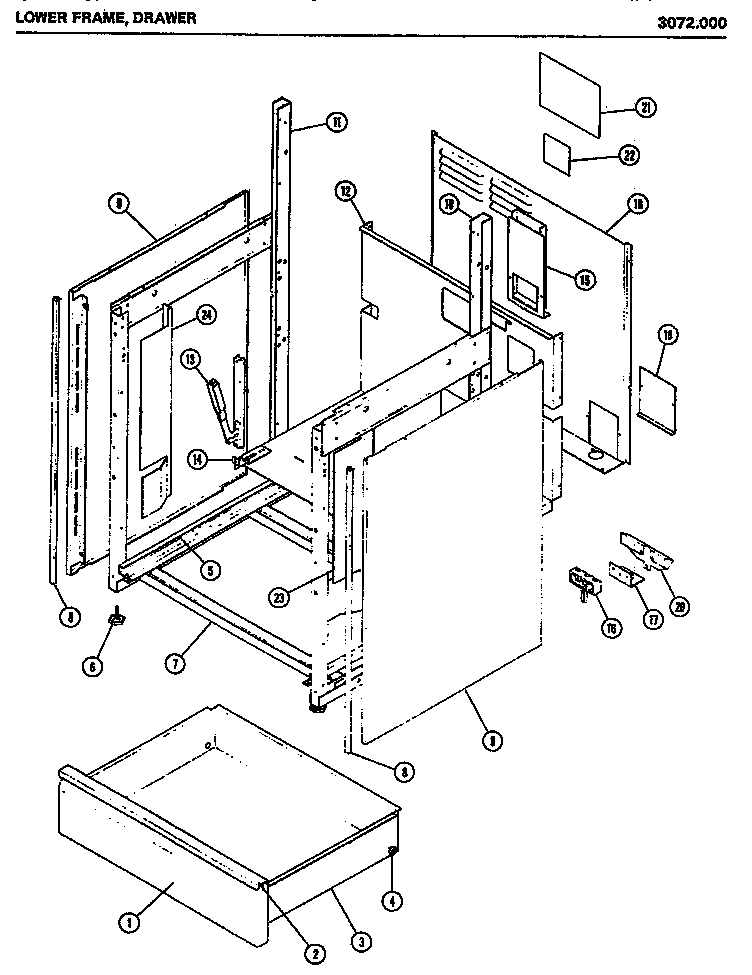

Lower frame diagram

Frame assembluy - left (includes feet)

Part #M83D10

The manufacturer no longer makes this part, and there's no substitute part

Insert, Surface Element M2D267
#38

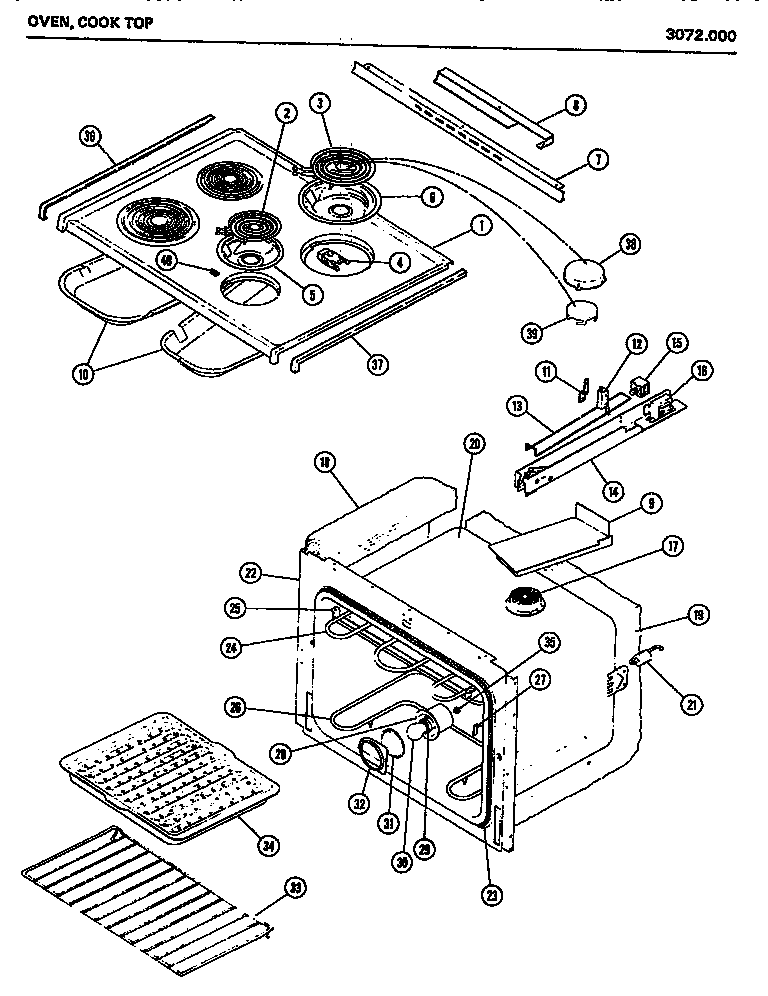

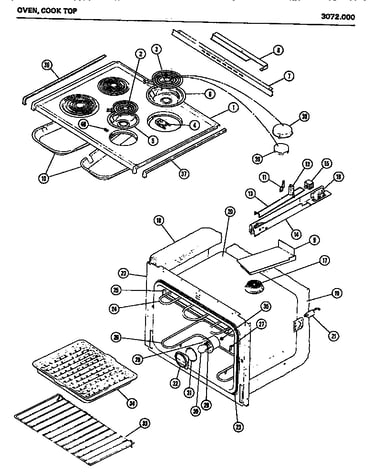

Oven diagram

Insert, surface element

Part #M2D267

The manufacturer no longer makes this part, and there's no substitute part

Surface Element, Small (240 V) M61D25
#2

Oven diagram

Surface element, small (240 v)

Part #M61D25

The manufacturer no longer makes this part, and there's no substitute part

Relay M16D92
#38A

Microwave module diagram

Relay

Part #M16D92

The manufacturer no longer makes this part, and there's no substitute part

Shelf (includes Sealant) M50D42
#2A

Microwave module diagram

Shelf (includes sealant)

Part #M50D42

The manufacturer no longer makes this part, and there's no substitute part

Door Latch Spring M2D288
#11

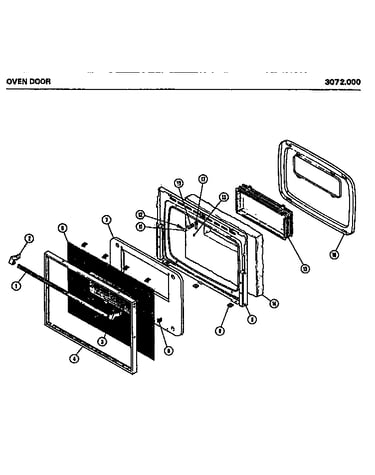

Oven door diagram

Door latch spring

Part #M2D288

The manufacturer no longer makes this part, and there's no substitute part

Bottom Panel M82D179
#26A

Vent hood diagram

Bottom panel

Part #M82D179

The manufacturer no longer makes this part, and there's no substitute part

Florescent Lamp Holder M5D311
#61A

Microwave module diagram

Florescent lamp holder

Part #M5D311

The manufacturer no longer makes this part, and there's no substitute part
