Model # PFC40 Official Proform c40 ergometer

Here are the diagrams and repair parts for Official Proform PFC40 c40 ergometer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 58 parts |

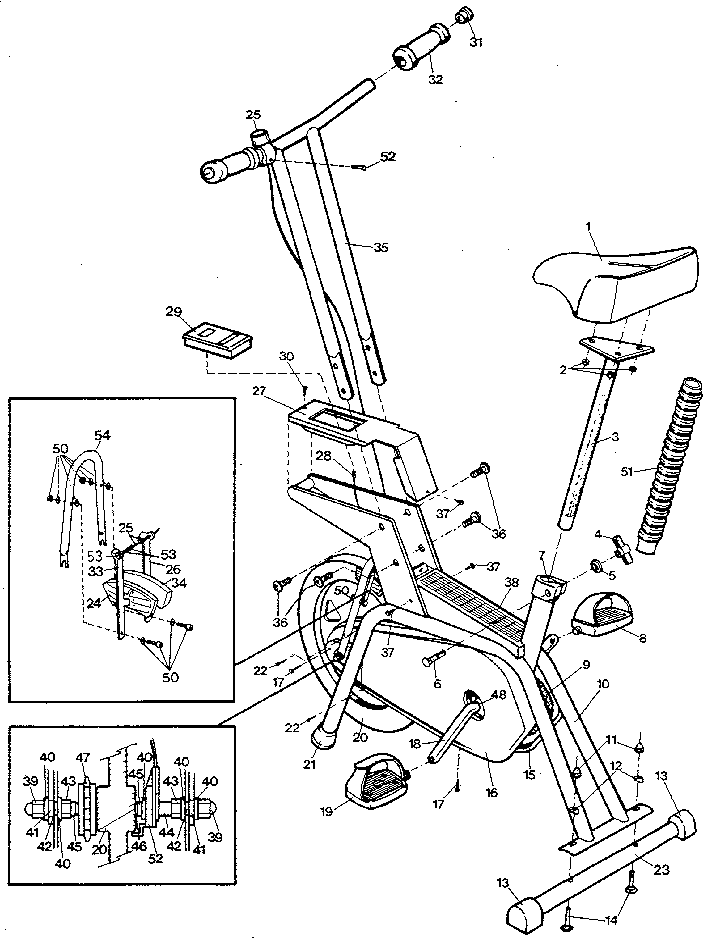

Unit parts diagram

Exercise equipment flat washer

Part #014073

This item is not returnable

$2.16

In Stock

Qty

#14

Unit parts diagram

Carriage bolt

Part #013092

This item is not returnable

$2.16

In Stock

Qty

Healthrider Exercise Equipment Flat Washer 014061

#40

Unit parts diagram

Healthrider exercise equipment flat washer

Part #014061

This item is not returnable

$2.16

In Stock

Qty

#12

Unit parts diagram

Wshr,formed,

Part #014100

This item is not returnable

$2.16

In Stock

Qty

Unit parts diagram

Nordictrack exercise equipment nut

Part #012002

This item is not returnable

$2.16

In Stock

Qty

Unit parts diagram

Weslo carriage bolt

Part #013137

This item is not returnable

$2.16

In Stock

Qty

#11

Unit parts diagram

Nut,acorn,hc

Part #012120

This item is not returnable

$2.16

In Stock

Qty

#NI

All parts diagram

Batt,a-76,wa

Part #033134

The manufacturer no longer makes this part, and there's no substitute part

#50

Unit parts diagram

Hwkit,set a

Part #070054

The manufacturer no longer makes this part, and there's no substitute part

#39

Unit parts diagram

Nut,acorn,bl

Part #012048

The manufacturer no longer makes this part, and there's no substitute part
