Side-By-Side Refrigerator

Model # ZSGW420DMA Official GE refrigerator - m series

Here are the diagrams and repair parts for Official GE ZSGW420DMA refrigerator - m series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

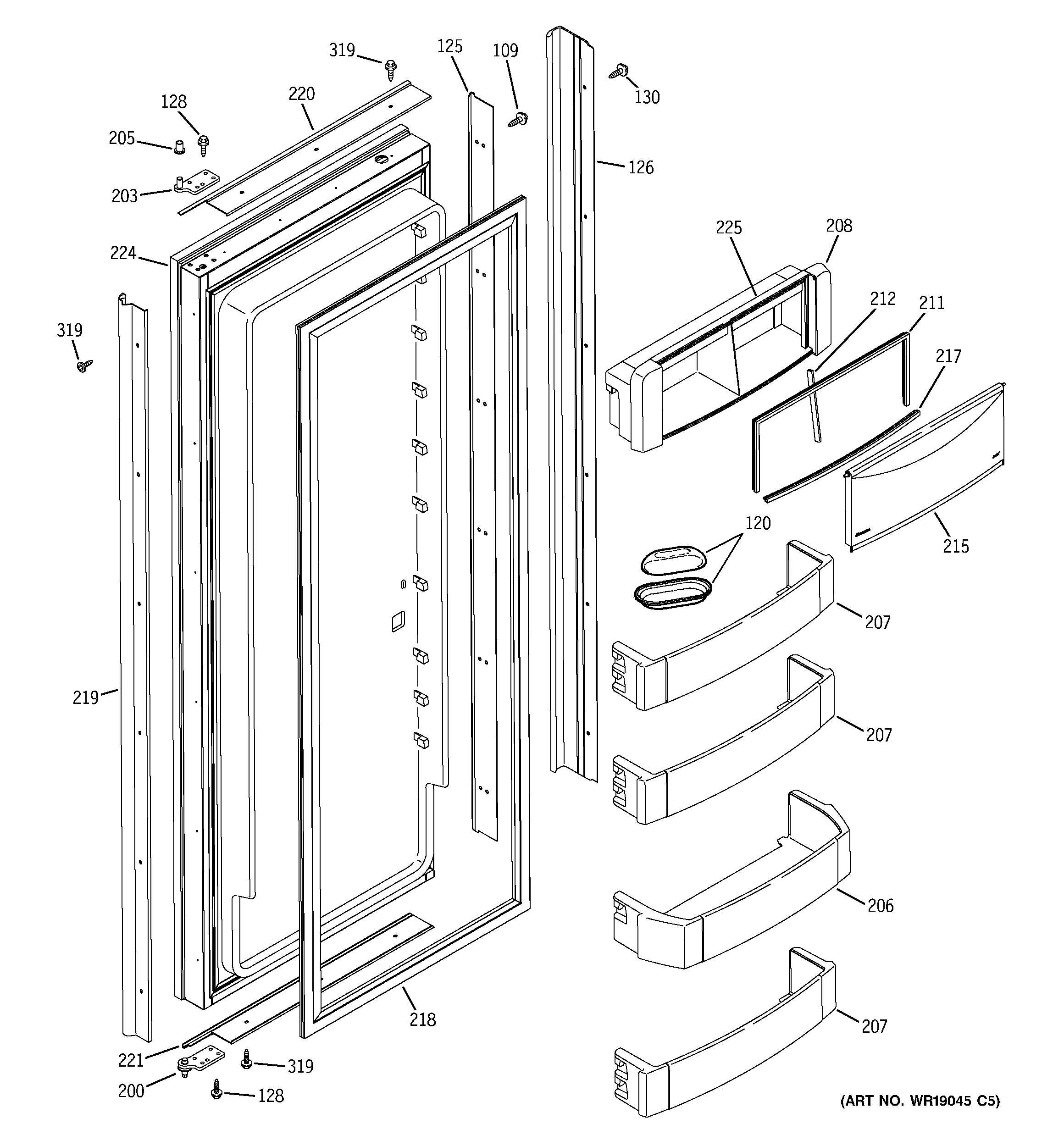

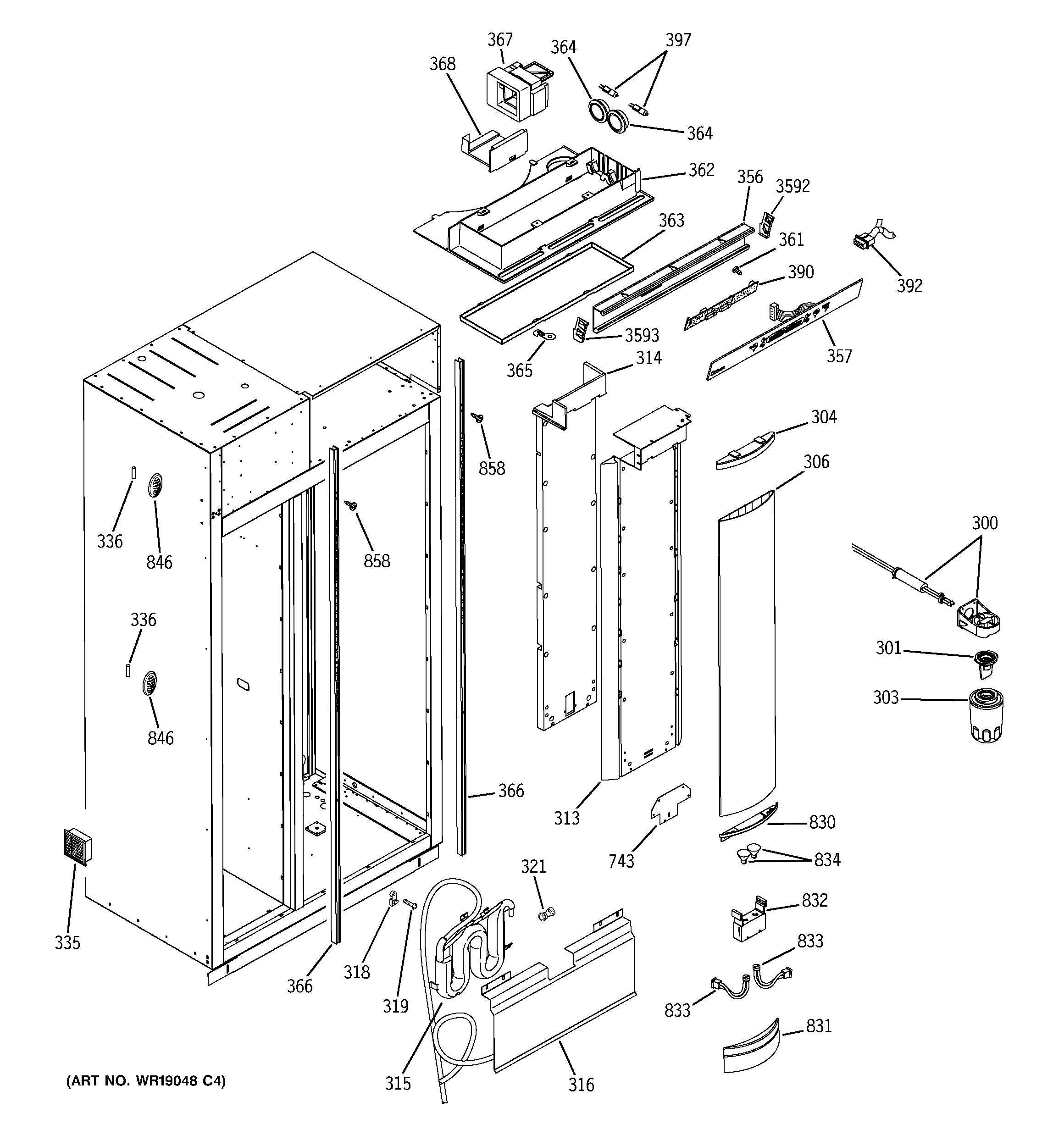

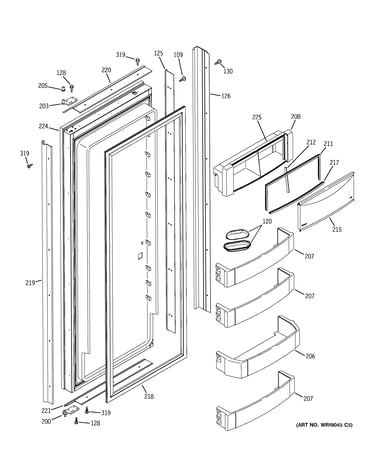

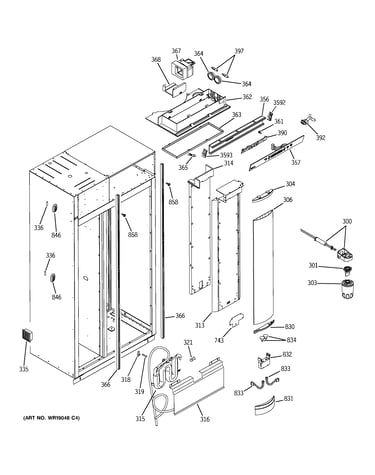

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 318 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Temperature Sensor WR55X10030
#389

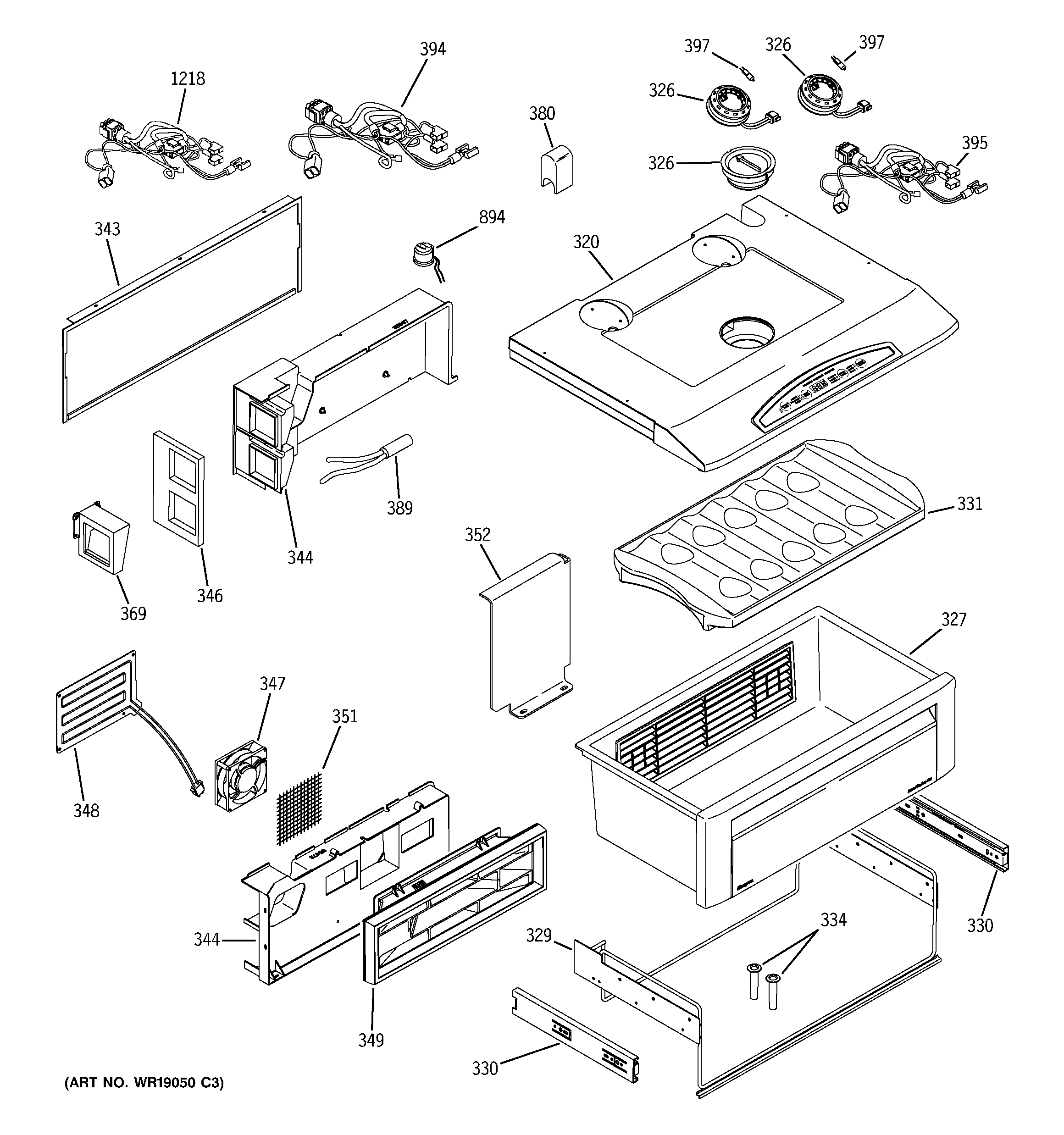

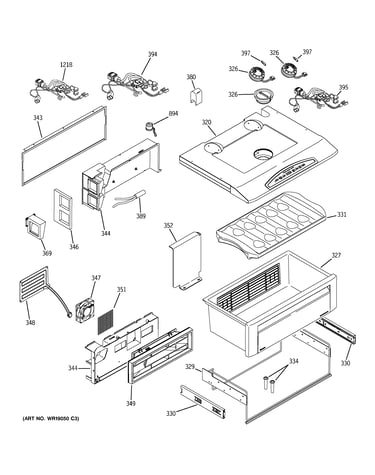

Quick chill diagram

Temperature sensor

Part #WR55X10030

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10030. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#706

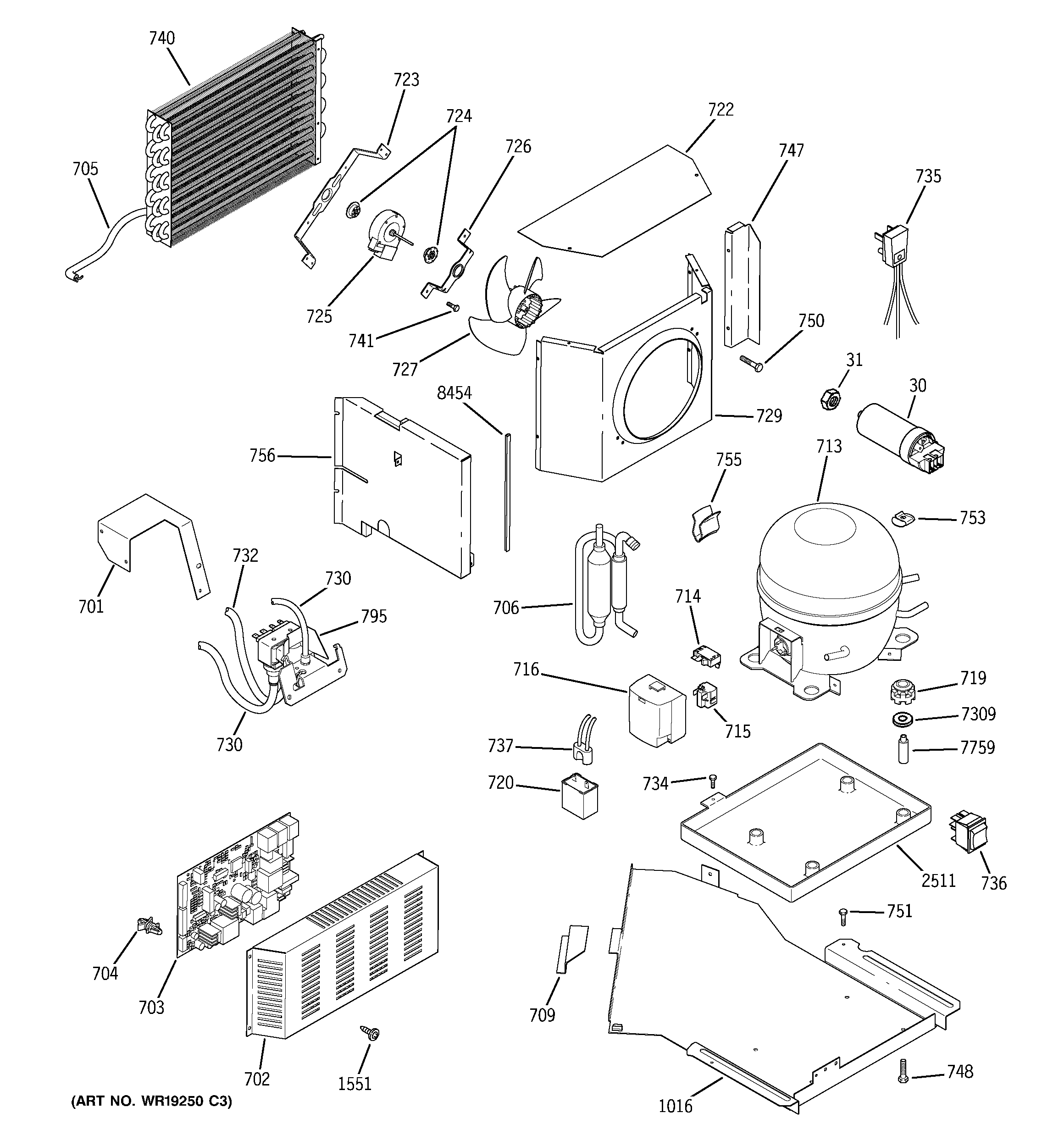

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Solenoid WR62X10020
#127

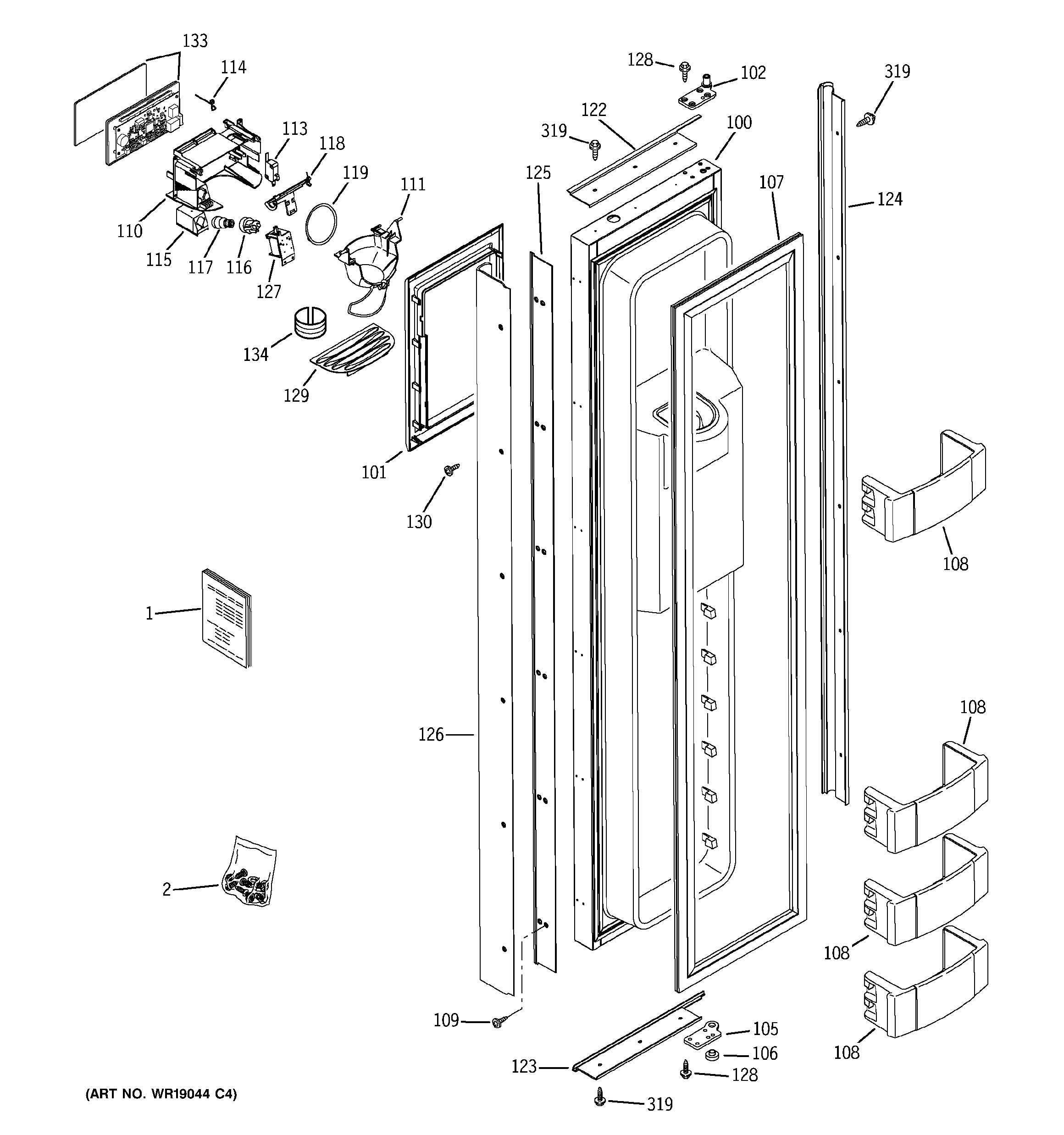

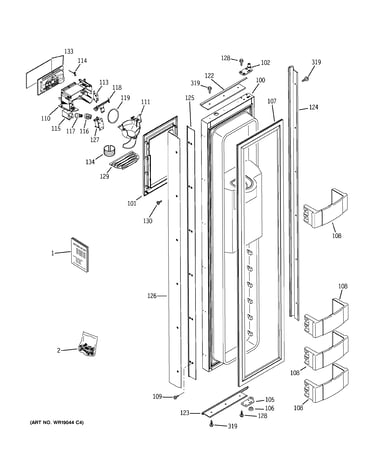

Freezer door diagram

Refrigerator solenoid

Part #WR62X10020

Replaced by #WR62X10055

?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
BEST SELLER
$54.06 |
10% OFF Phone Price : $60.06
In Stock
Refrigerator Water Tube Fitting WR02X10471
#553

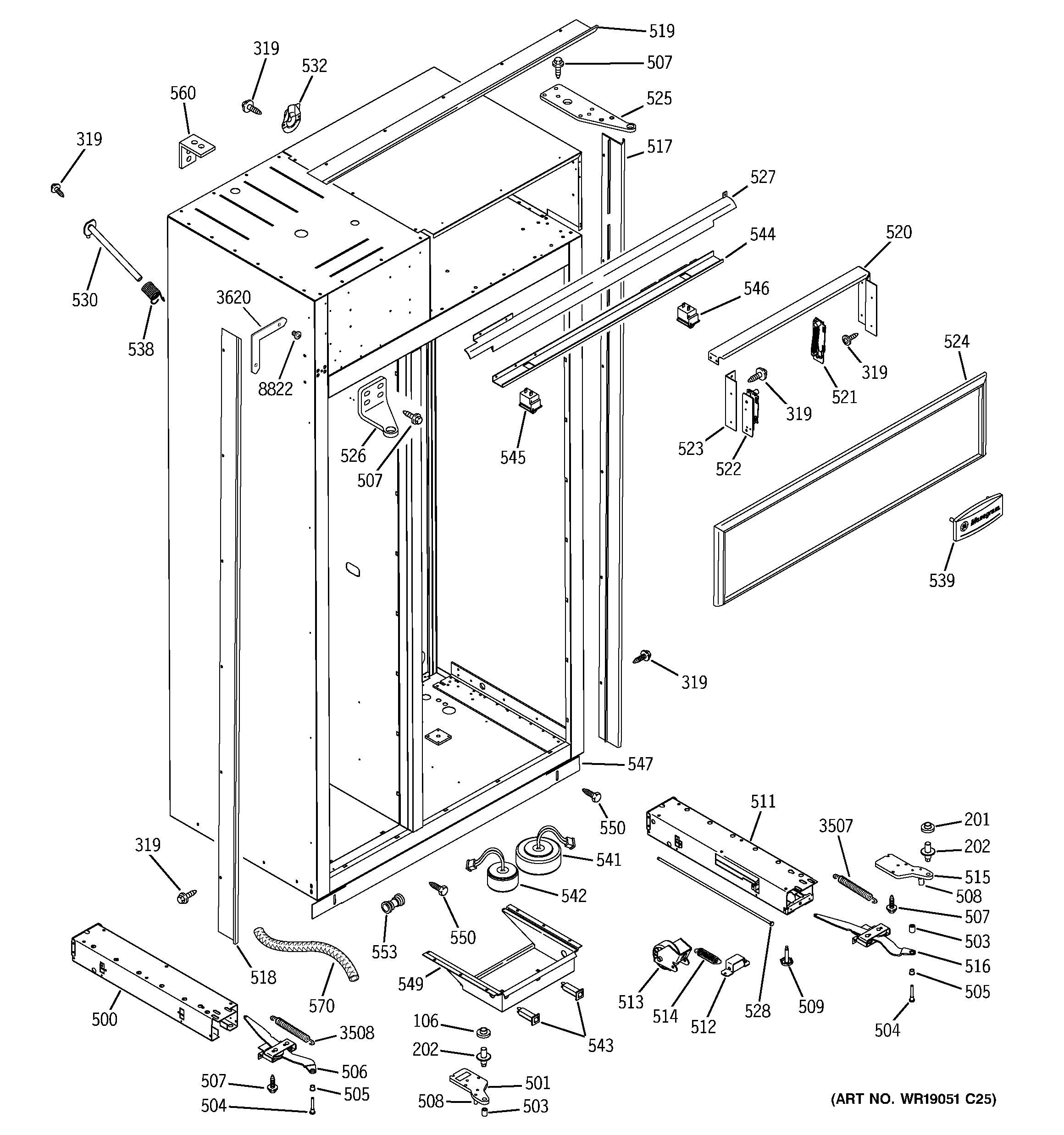

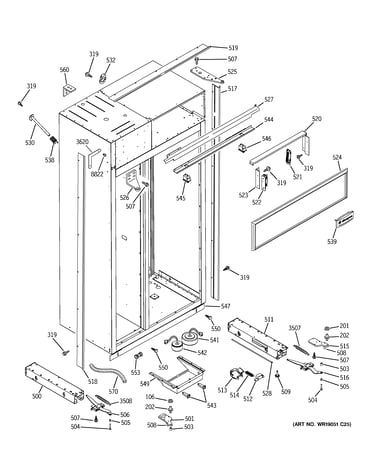

Case parts diagram

Refrigerator water tube fitting

Part #WR02X10471

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X10471. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Ge Profile Refrigerator Dispenser Ice Chute Door Crank WR17X10706
#118

Freezer door diagram

Ge profile refrigerator dispenser ice chute door crank

Part #WR17X10706

BEST SELLER
This item is not returnable
$6.86 |
13% OFF Phone Price : $7.86
In Stock
Refrigerator Solenoid Arm Assembly WR62X0058
#818

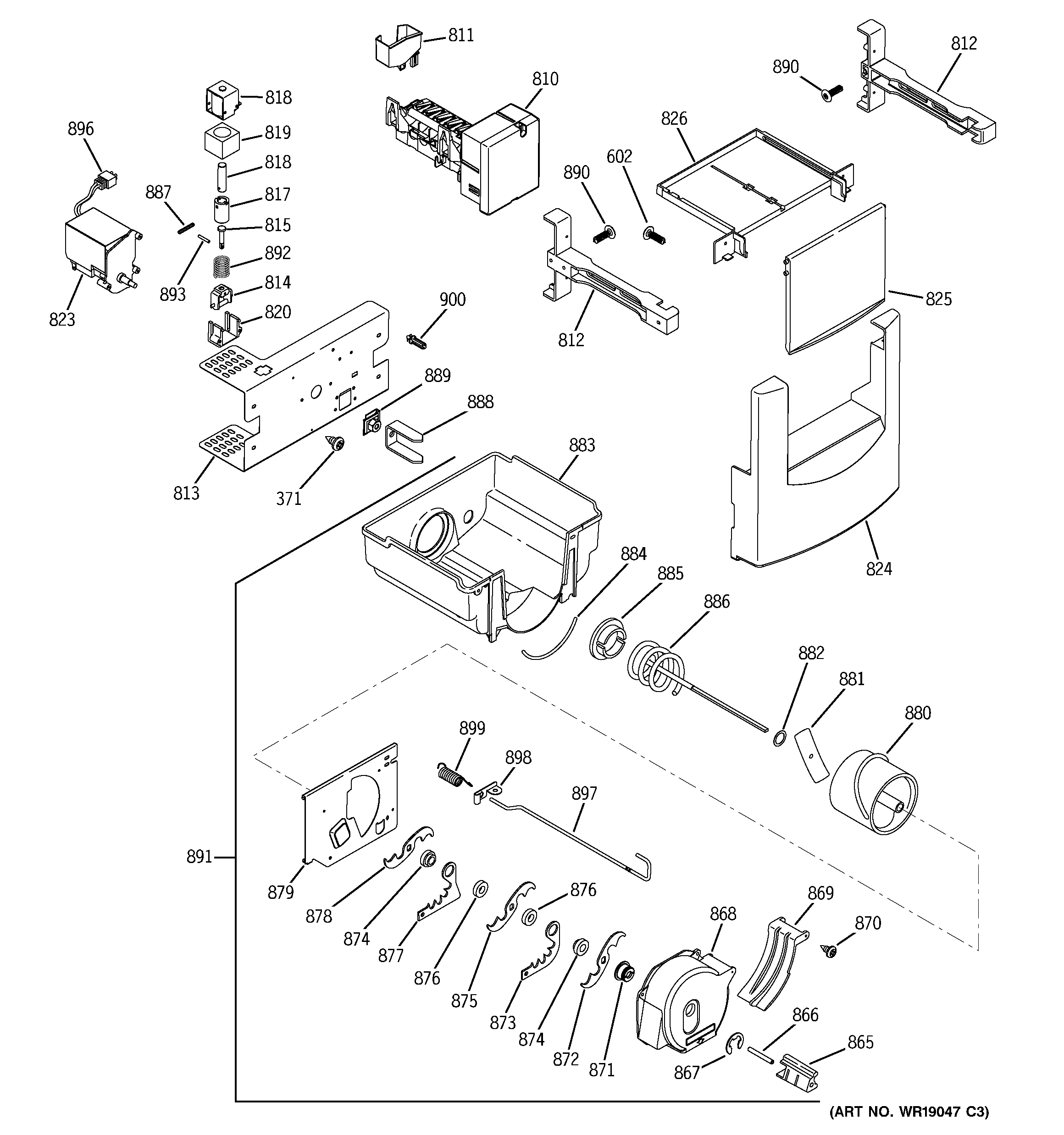

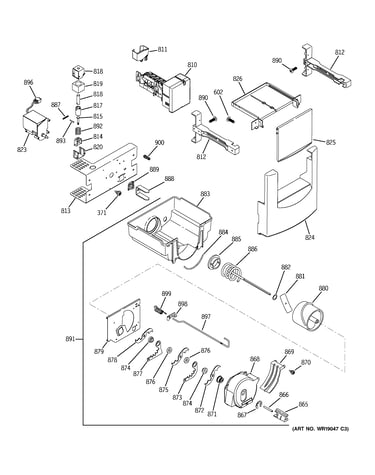

Ice maker & dispenser diagram

Refrigerator solenoid arm assembly

Part #WR62X0058

Replaced by #WR62X23154

?
Manufacturer substitution
This part replaces WR62X0058. Substitute parts can look different from the original.
BEST SELLER
$91.44 |
6% OFF Phone Price : $97.44
In Stock
Comp Rep Kit WR87X10044
#713

Sealed system & mother board diagram

Comp rep kit

Part #WR87X10044

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10044. Substitute parts can look different from the original.
BEST SELLER
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
Refrigerator Reservoir-to-dispenser Water Tubing (replaces Wr17x10732, Wr17x11439, Wr17x3104, Wr17x3140, Wr17x3228) WR17X2891
#732

Sealed system & mother board diagram

Refrigerator reservoir-to-dispenser water tubing (replaces wr17x10732, wr17x11439, wr17x3104, wr17x3140, wr17x3228)

Part #WR17X2891

BEST SELLER
$24.41 |
20% OFF Phone Price : $30.41
In Stock
Thermostat Evaporator WR50X10036
#895

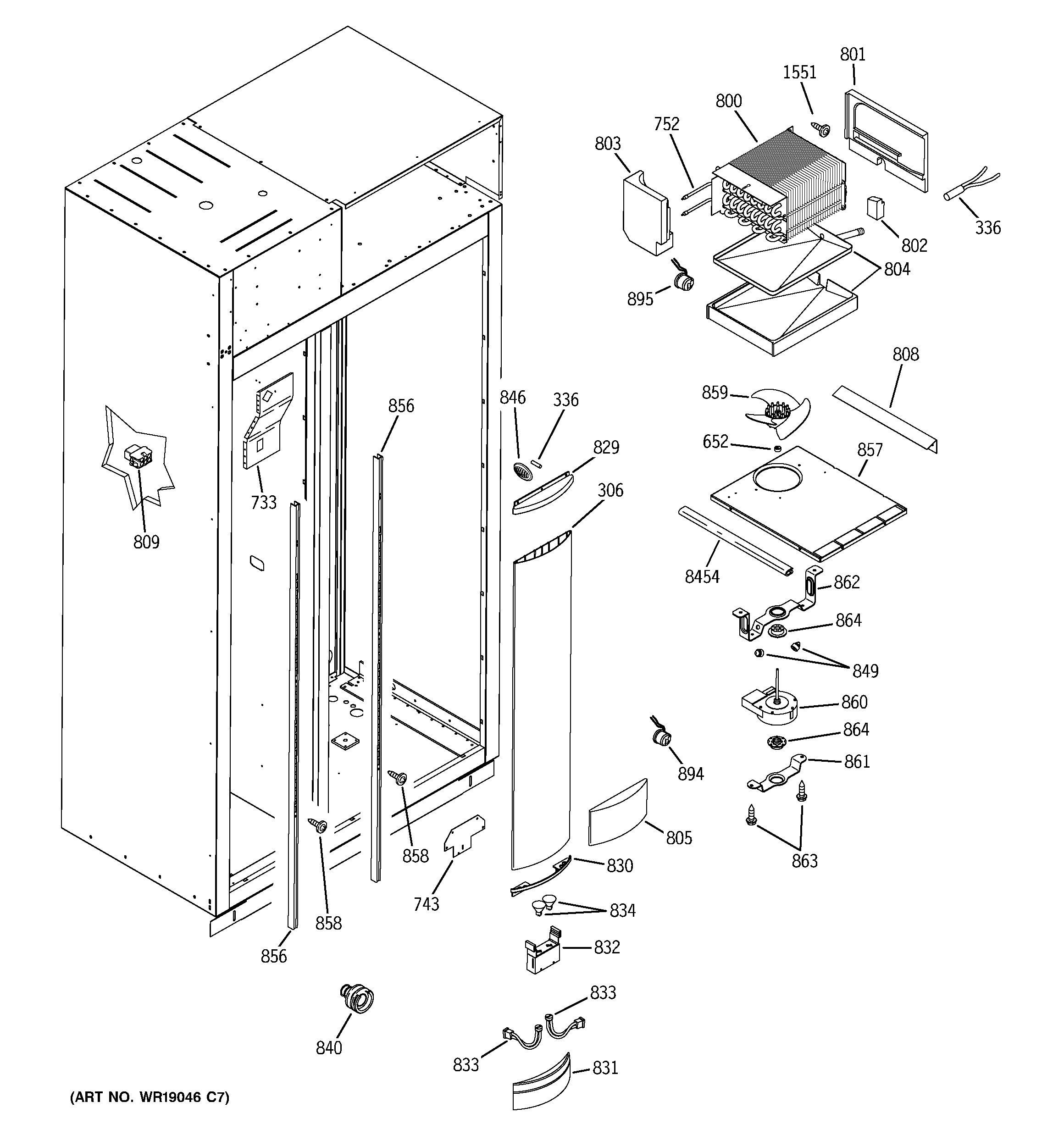

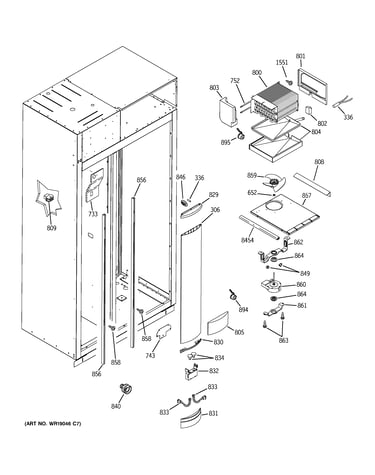

Freezer section diagram

Thermostat evaporator

Part #WR50X10036

Replaced by #WR50X29776

?
Manufacturer substitution
This part replaces WR50X10036. Substitute parts can look different from the original.
BEST SELLER
$54.62 |
10% OFF Phone Price : $60.62
In Stock
