KitchenAid
Gas Cooktop

Model # KGCT366GBT0 Official KitchenAid 36" gas glass surface cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCT366GBT0 36" gas glass surface cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Spark Module 3190700
#27

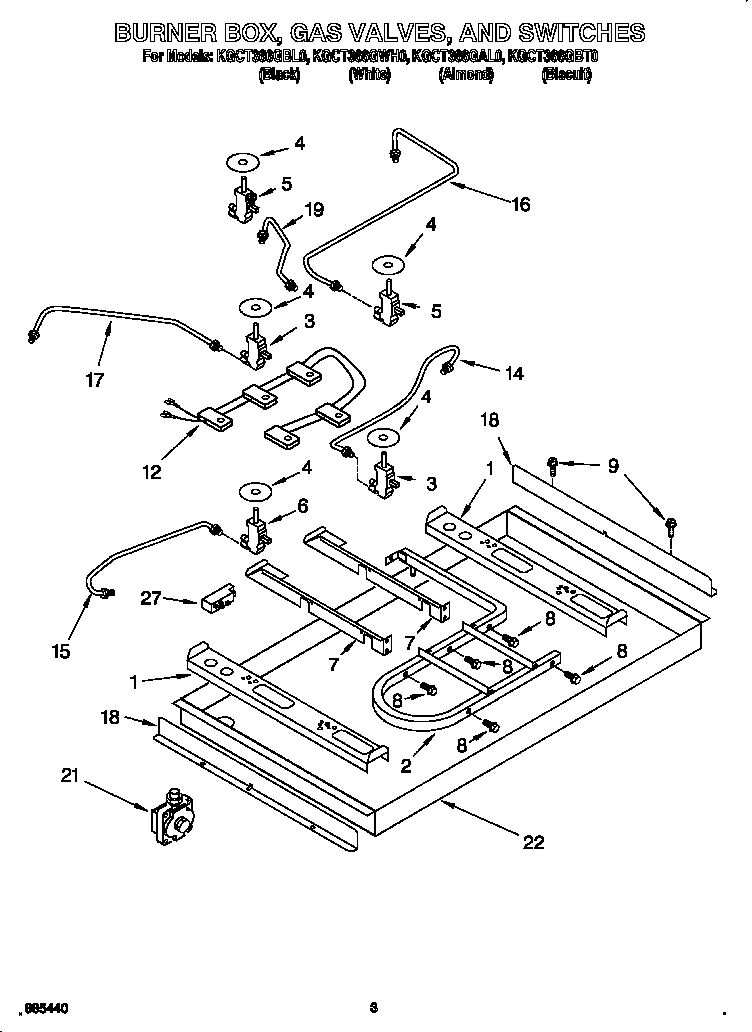

Burner box, gas valves/switches diagram

Spark module

Part #3190700

Replaced by #WPW10110486

?
Manufacturer substitution
This part replaces 3190700. Substitute parts can look different from the original.
$112.14 |
10% OFF Phone Price : $124.14
In Stock
Screw 3400863
#20

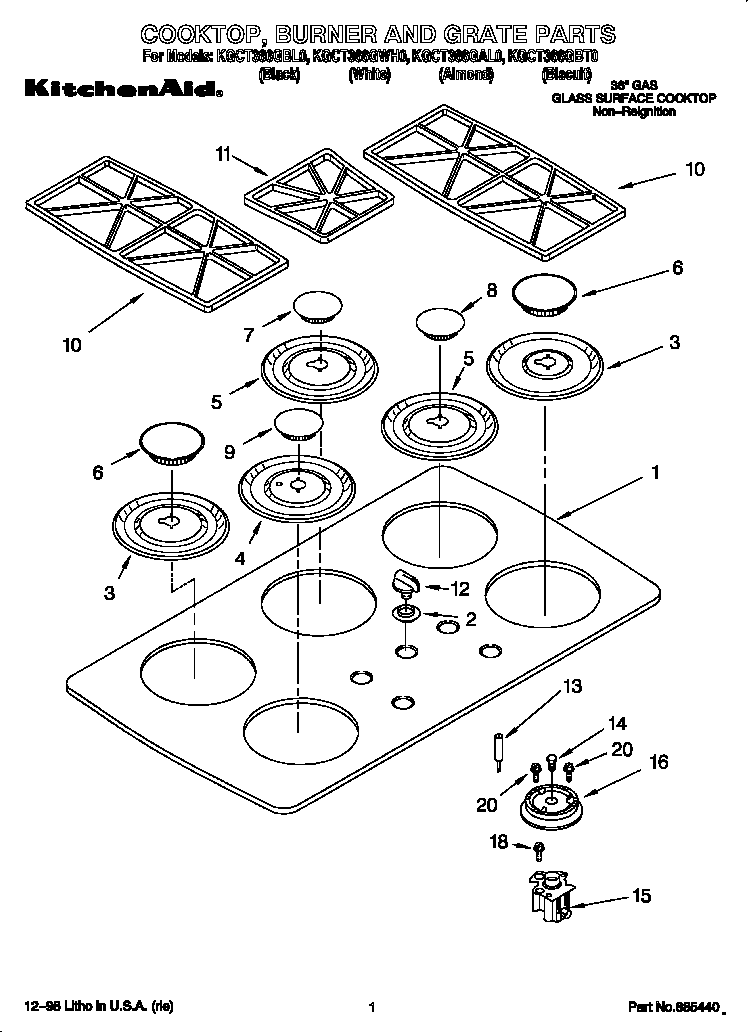

Cooktop, burner and grate diagram

Screw

Part #3400863

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400863. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Grommet-bl 3180079
#2B

Cooktop, burner and grate diagram

Grommet-bl

Part #3180079

Replaced by #W10854242

?
Manufacturer substitution
This part replaces 3180079. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Grommet-wh 3180081
#2A

Cooktop, burner and grate diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.70 |
13% OFF Phone Price : $7.70
In Stock
Holder Orifice 3191741
#15B

Cooktop, burner and grate diagram

Holder orifice

Part #3191741

Replaced by #814513

?
Manufacturer substitution
This part replaces 3191741. Substitute parts can look different from the original.
$98.89 |
11% OFF Phone Price : $110.89
In Stock
Burner Head 9753187
#16B

Cooktop, burner and grate diagram

Burner head

Part #9753187

Replaced by #814513

?
Manufacturer substitution
This part replaces 9753187. Substitute parts can look different from the original.
$98.89 |
11% OFF Phone Price : $110.89
In Stock
Cooktop Burner Cap 3191731
#7B

Cooktop, burner and grate diagram

Cooktop burner cap

Part #3191731

Replaced by #WP3191731

?
Manufacturer substitution
This part replaces 3191731. Substitute parts can look different from the original.
$31.64
In Stock
Shield 3191462
#18

Burner box, gas valves/switches diagram

Shield

Part #3191462

$19.09 |
9% OFF Phone Price : $21.09
In Stock
Bushing 4173634

#NI

All parts diagram

Bushing

Part #4173634

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Gas Tubing 3191324
#14

Burner box, gas valves/switches diagram

Gas tubing

Part #3191324

$49.79 |
11% OFF Phone Price : $55.79
In Stock
